Eagle CRS5933F8740-1 - Ford 4.6 ARP8740 H-Beam Connecting Rod (Single Rod)
Eagle | SKU:
CFQW-CRS5933F8740-1
Sale price
$13399
Regular price
$13999
Unit price
/
Unavailable
$6.00 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

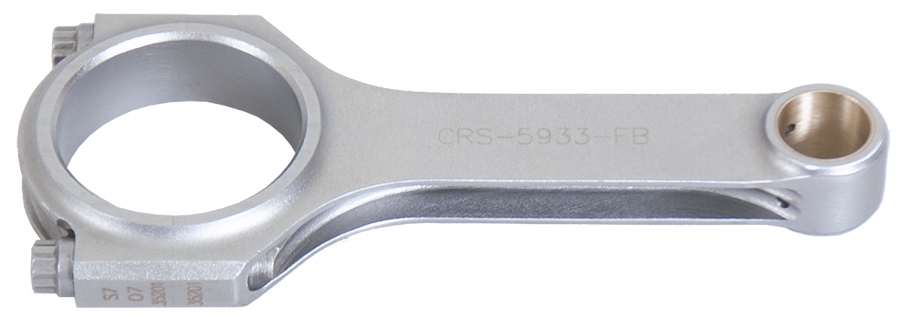

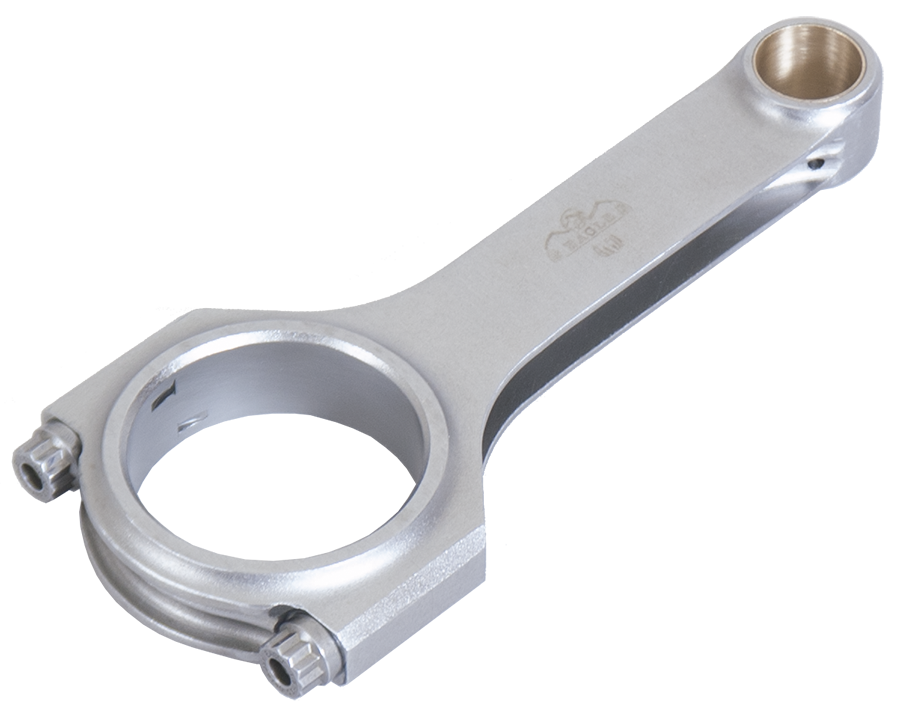

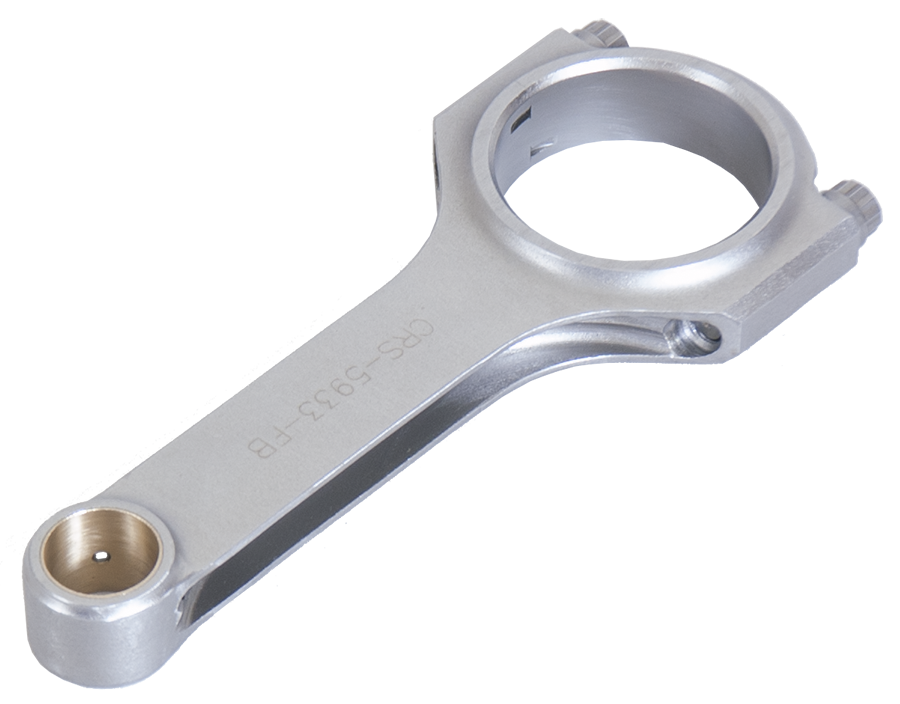

Eagle CRS5933F8740-1 - Ford 4.6 ARP8740 H-Beam Connecting Rod (Single Rod)
4340 Rod 5.933" FD 4.6L
Forged 4340 Steel H-Beam Rod - Ford 4.6L/5.0 COYOTE, ARP 8740 BOLTS.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Specify weight required when ordering. Recommended for competition use.
Big End Width: 0.94 in
Bolts: 3/8 in ARP 8740
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.933 in
Housing Bore: 2.2394 in
Length Center Bore To Center Bore: 5.933
Material: Forged 4340 Steel
Pin End Width: 0.939 in
Pin Size: 0.866 in
Rod Journal: 2.086 in
