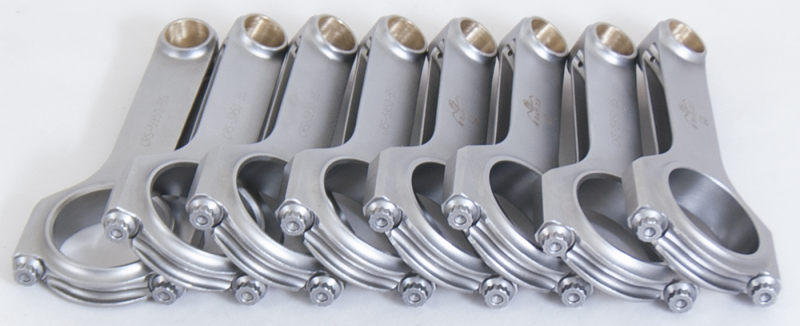

Eagle CRS5927M23D - 06-09 Mazdaspeed 3/6 MZR 22.5mm Pin H-Beam Connecting Rods (packaged in weight matched sets)
Eagle | SKU:
CFQW-CRS5927M23D
Sale price
$39899
Regular price
$45099
Unit price
/
Unavailable
$52.00 off
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Eagle CRS5927M23D - 06-09 Mazdaspeed 3/6 MZR 22.5mm Pin H-Beam Connecting Rods (packaged in weight matched sets)
4340 Rod MAZDA MZR 2.3 .886 PISTON PIN 4
Forged 4340 Steel H-Beam Rods - MAZDA MZR 2.3L DI TURBO.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Equipped with ARP 2000 bolts for even more power-handling capability. Recommended for competition use.
Big End Width: 0.86 in
Bolts: 3/8 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.927 in
Housing Bore: 2.165 in
Length Center Bore To Center Bore: 150.5
Material: Forged 4340 Steel
Pin End Width: 0.86 in
Pin Size: 0.886 in
Rod Journal: 0 in
