Eagle CRS5900MB3D - Mitsubishi 4G63 2nd Gen Engine Connecting Rods w/7-Bolt Crank/22mm Piston Pin (Set of 4)
Eagle | SKU:
CFQW-CRS5900MB3D
Sale price
$39899
Regular price
$45099
Unit price
/
Unavailable
$52.00 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

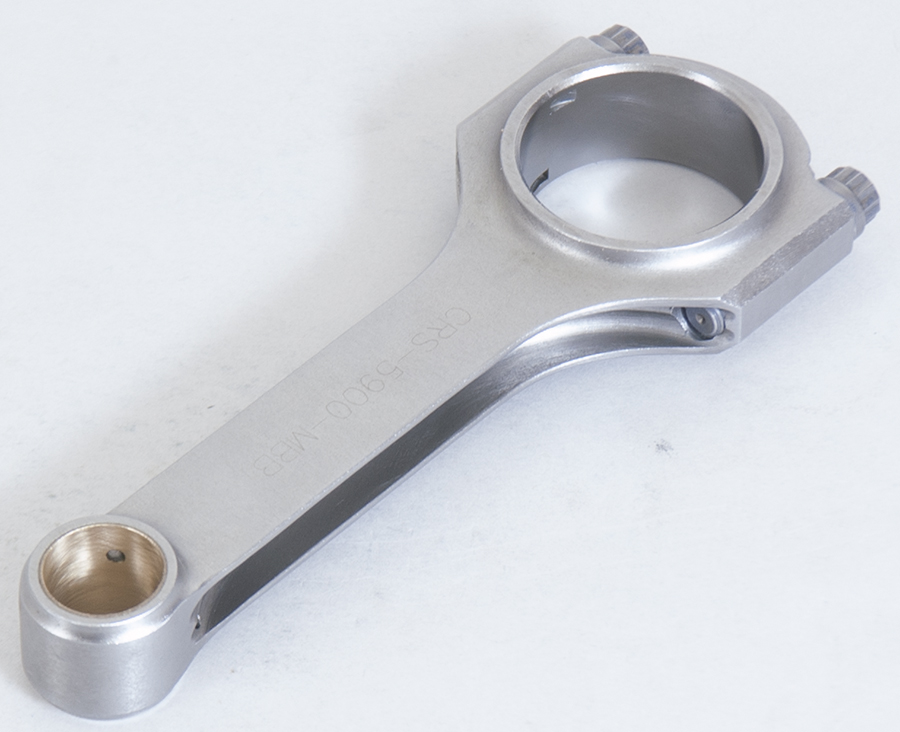

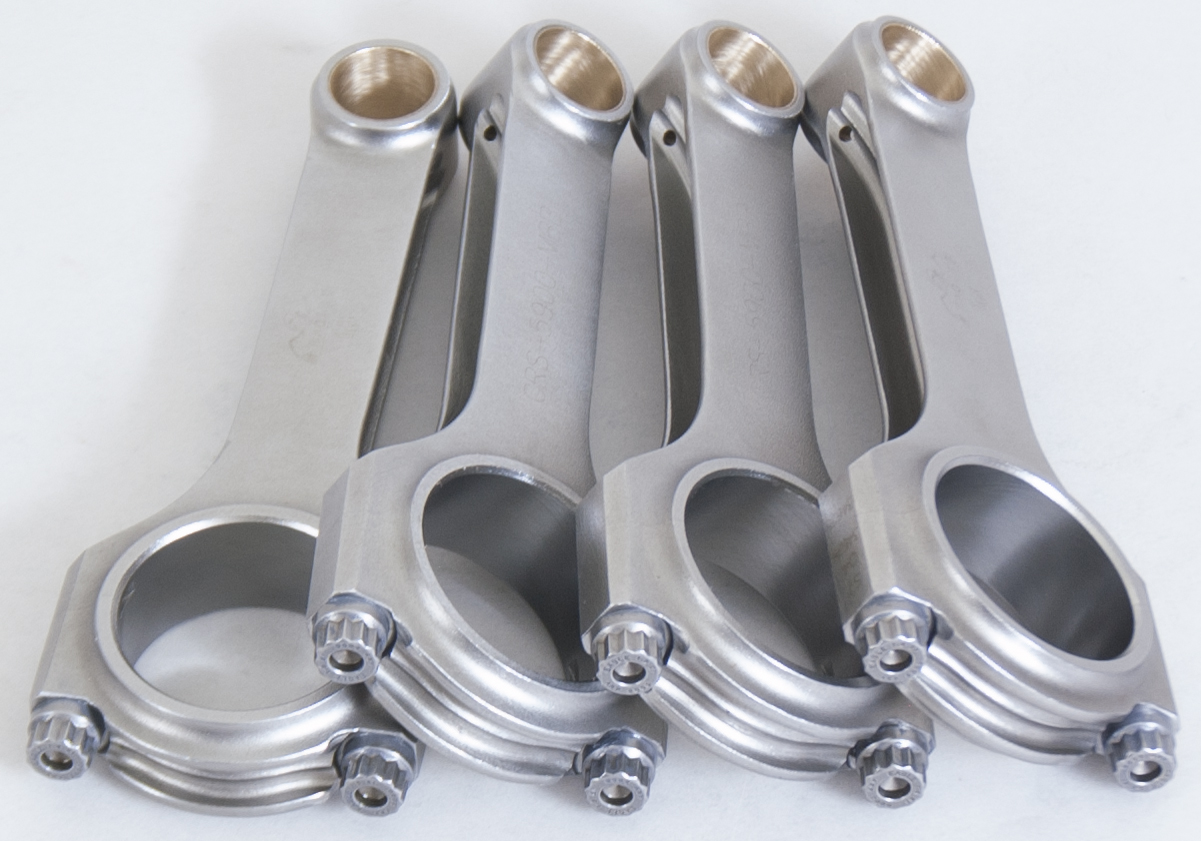

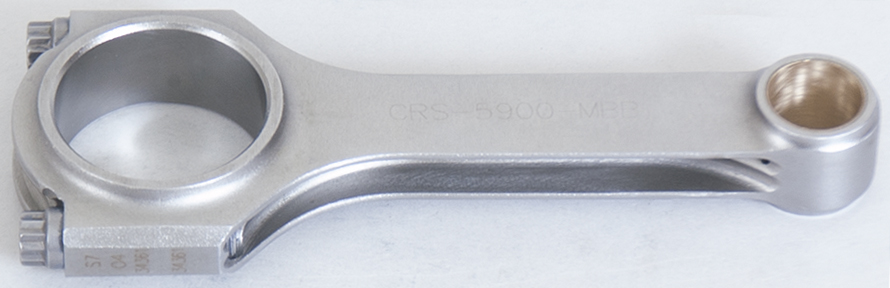

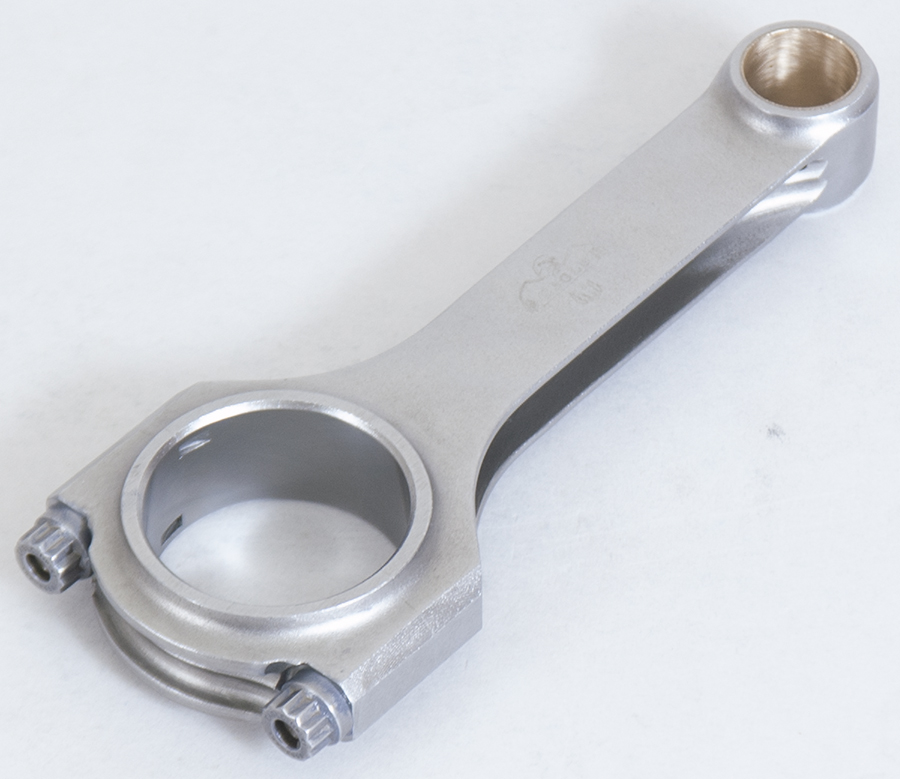

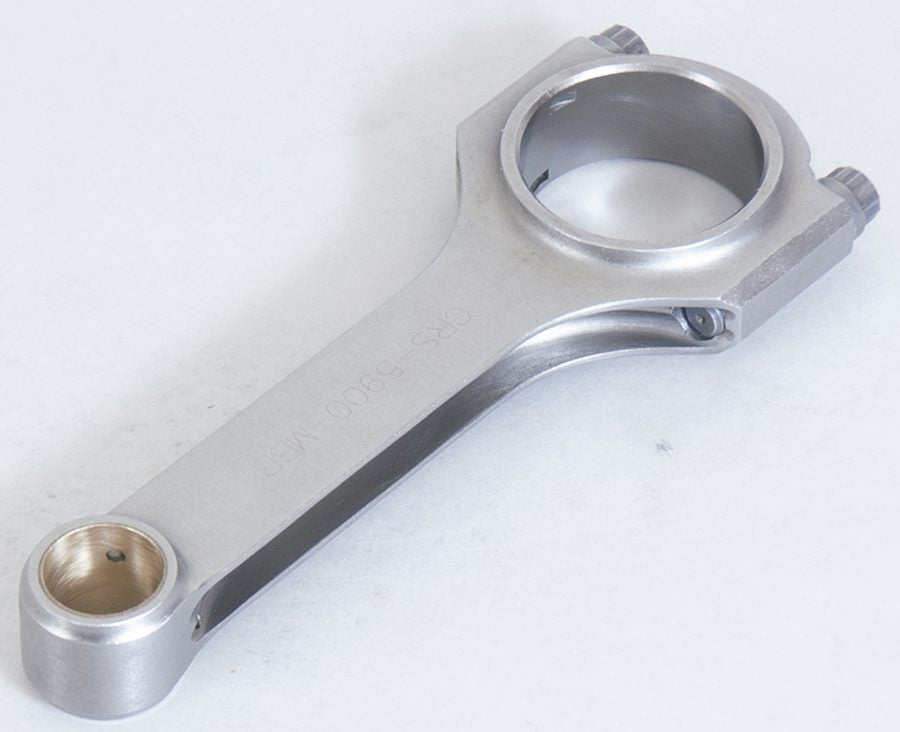

Eagle CRS5900MB3D - Mitsubishi 4G63 2nd Gen Engine Connecting Rods w/7-Bolt Crank/22mm Piston Pin (Set of 4)
Connecting Rod - H Beam - 5.900 in Long - Bushed - 3/8 in Cap Screws - ARP2000 Bolt - Forged - Steel - Mitsubishi 4G63 7-Bolt - Set of 4
Forged 4340 Steel H-Beam Rods - MITSUBISHI 4G63 (93 & UP).
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Equipped with ARP 2000 bolts for even more power-handling capability. Recommended for competition use.
Big End Width: 1.038 in
Bolts: 3/8 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.9 in.
Housing Bore: 1.89 in
Length Center Bore To Center Bore: 150
Material: Forged 4340 Steel
Pin End Width: 1.038 in
Pin Size: 0.866 in
Rod Journal: 1.771 in
