Eagle CRS5669A3D-1 - Audi 1.8L H-Beam Connecting Rod (1 Rod)
Eagle | SKU:
CFQW-CRS5669A3D-1
Sale price
$14099
Regular price
$14699
Unit price
/
Unavailable
$6.00 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

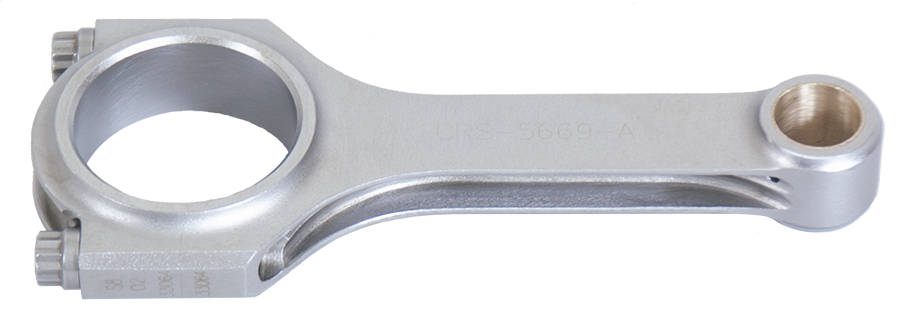

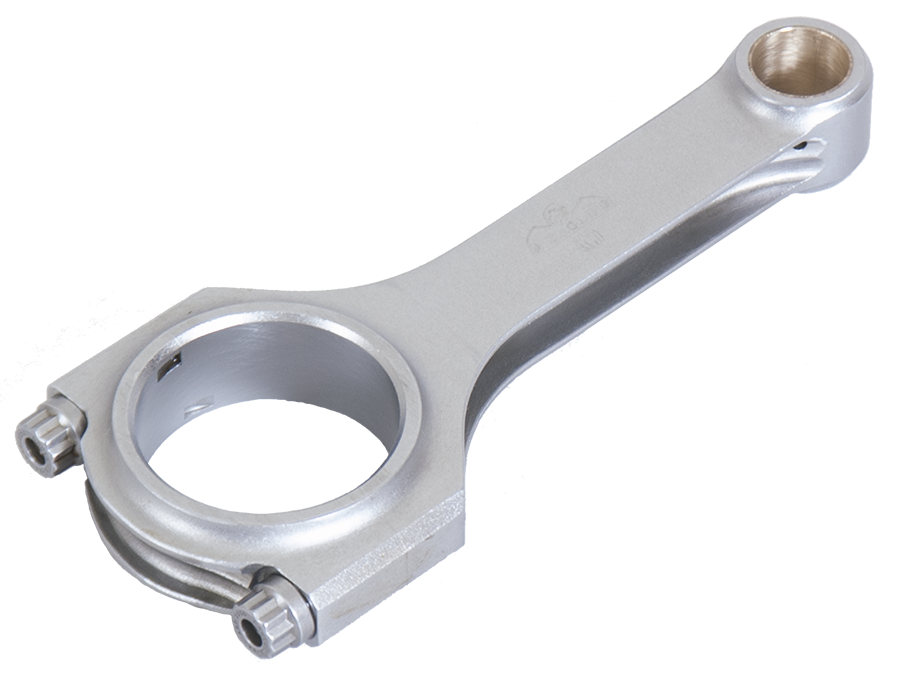

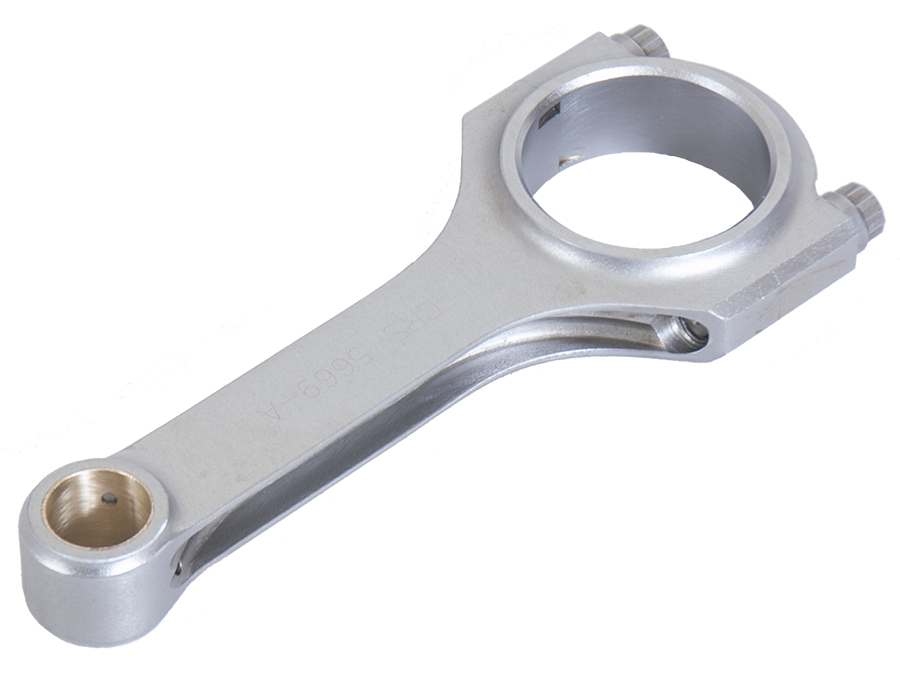

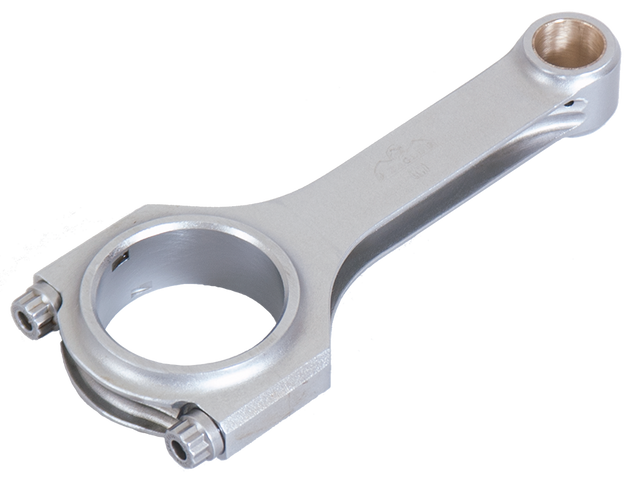

Eagle CRS5669A3D-1 - Audi 1.8L H-Beam Connecting Rod (1 Rod)
4340 H-BEAM Rod AUDI 1.8L Rod
Forged 4340 Steel H-Beam Rod - VW/AUDI 1.8T/2.0T.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Specify weight required when ordering. Recommended for competition use.
Big End Width: 0.982 in
Bolts: 3/8 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.669 in
Housing Bore: 1.9925 in
Length Center Bore To Center Bore: 144
Material: Forged 4340 Steel
Pin End Width: 0.98 in
Pin Size: 0.79 in
Rod Journal: 1.881 in
