Eagle CRS5590T4D - Toyota 2JZ 4th Generation H-Beam Connecting Rods Set (Set of 6)

Eagle  |  SKU: CFQW-CRS5590T4D
$84899 $97899

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

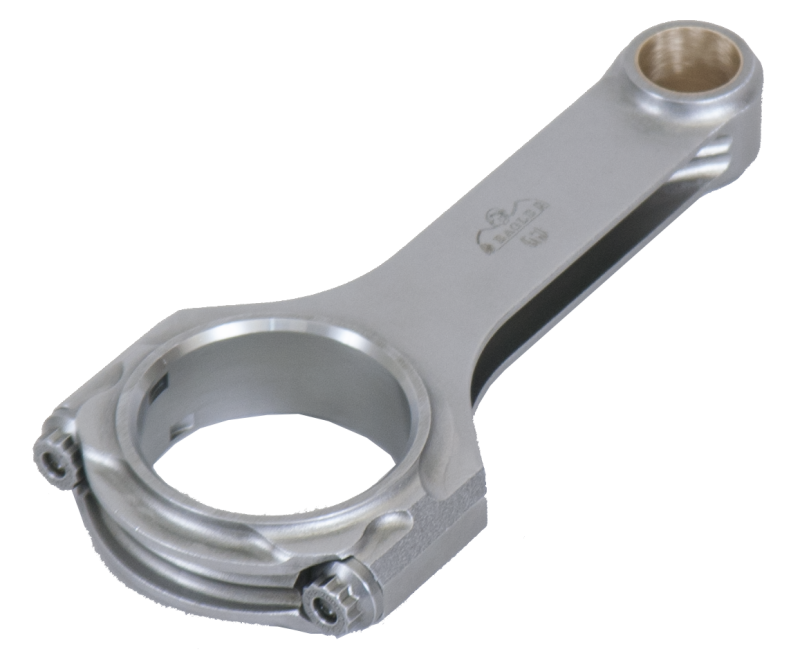

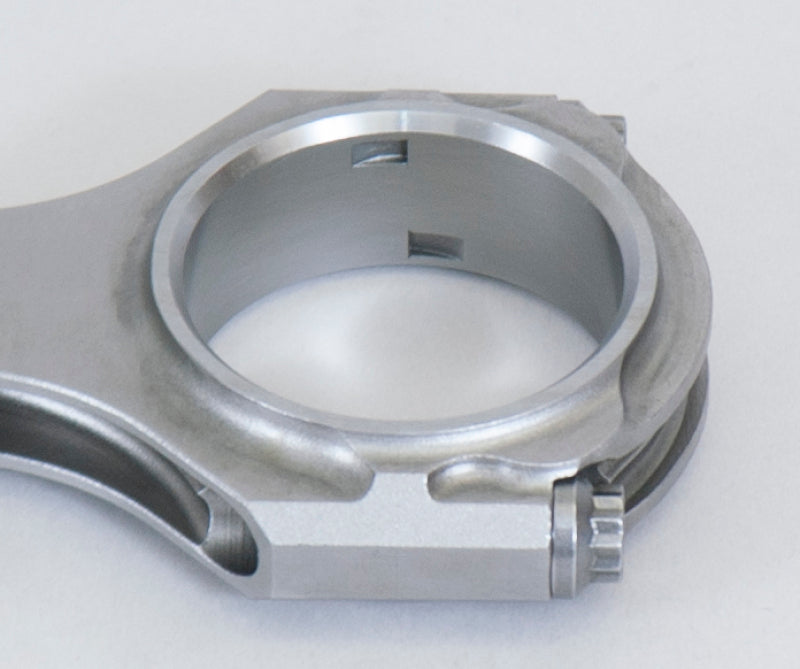

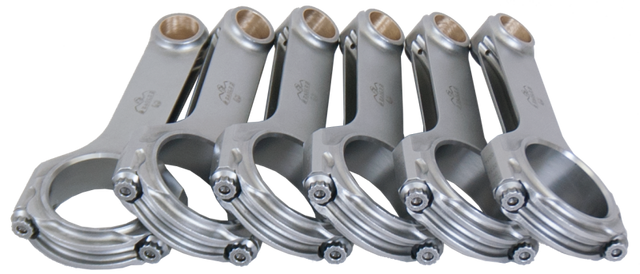

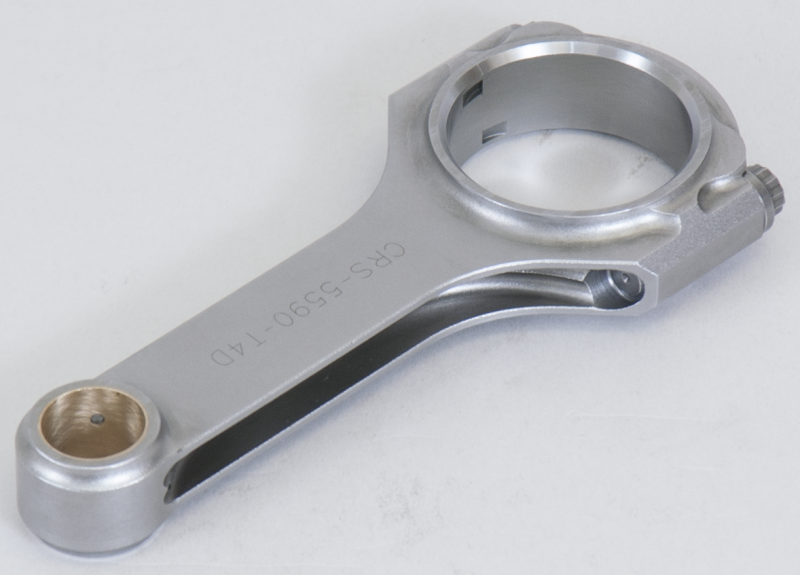

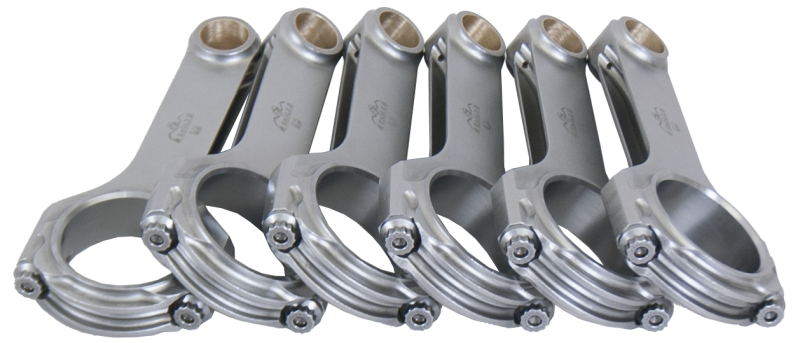

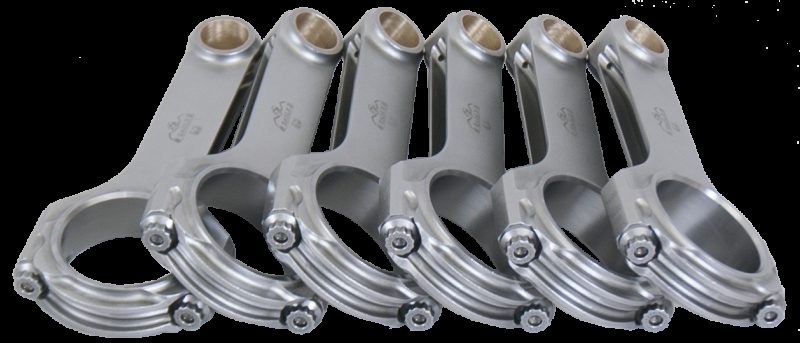

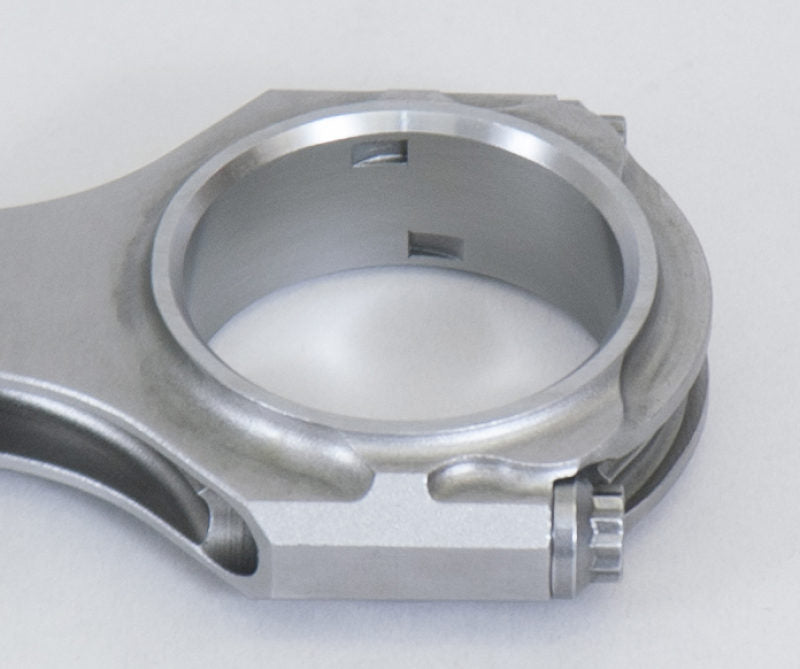

Eagle CRS5590T4D - Toyota 2JZ 4th Generation H-Beam Connecting Rods Set (Set of 6)

4D H-BEAM ROD TOYOTA 2JZGTE Set

FORGED STEEL 4D H-BEAM RODS - TOYOTA 2JZ

Eagle's 4th Generation H-Beam rods are forged from ASME certified 4340 steel in a two-piece forging and feature a fully machined and shot-peened surface. Eagle's 4th Generation design features thicker beam webbing for increased power handling capabilities, Increased beam and cap contact area and shoulder area to inprove bore stability under high load, and new small end profile to reduce reciprocating weight. Sizing is held to exact tolerances. Sold as a weight-matched set. Equipped with ARP 2000 bolts. Recommended for competition use.

Big End Width: 1.02 in
Bolts: 7/16 in ARP 2000
Bushing Type: bushed for full-floating piston pin
Center to Center Length: 5.59 in
Housing Bore: 2.1667 in
Material: forged 4340 steel
Pin End Width: 1.02 in
Pin Size: 0.866 in
Rod Journal: 2.047 in
Typical Weight: 645g
