Eagle CRS5565B3D - Chevy 400 H-Beam Connecting Rods (Set of 8)
Eagle | SKU:
CFQW-CRS5565B3D
Sale price
$60599
Regular price
$69299
Unit price
/
Unavailable
$87.00 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

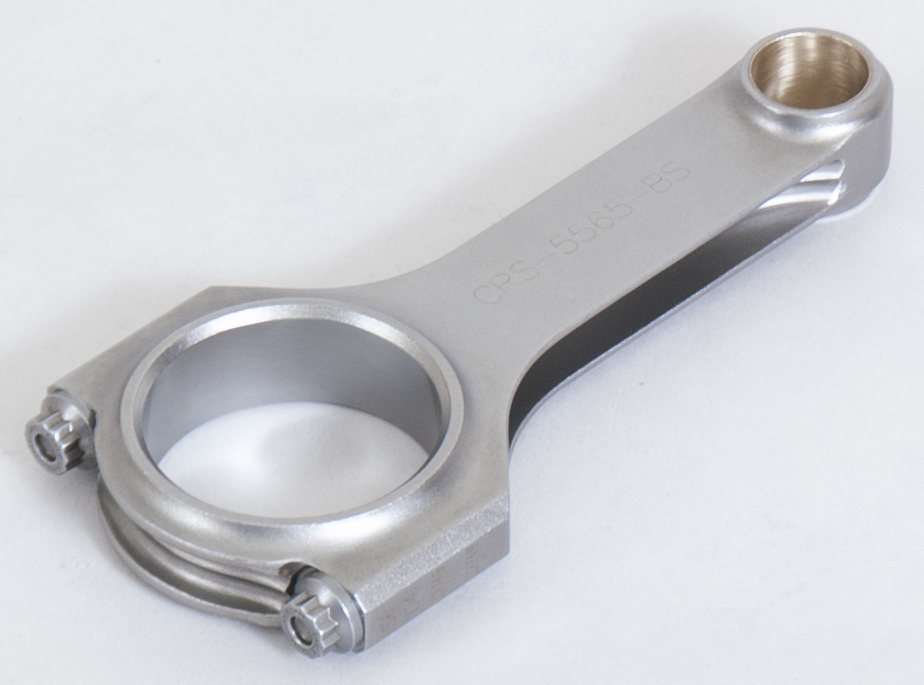

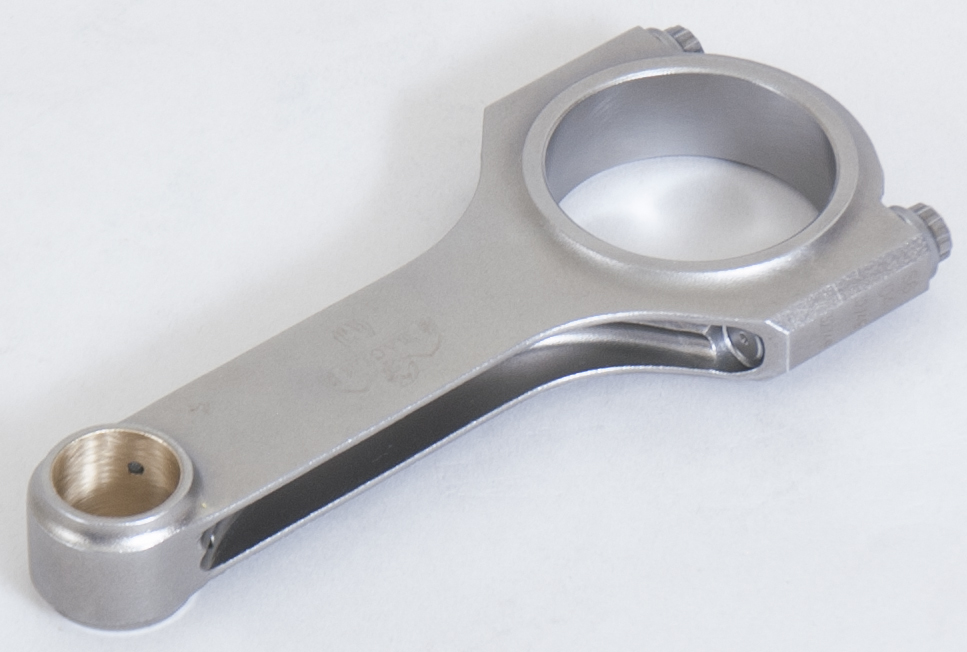

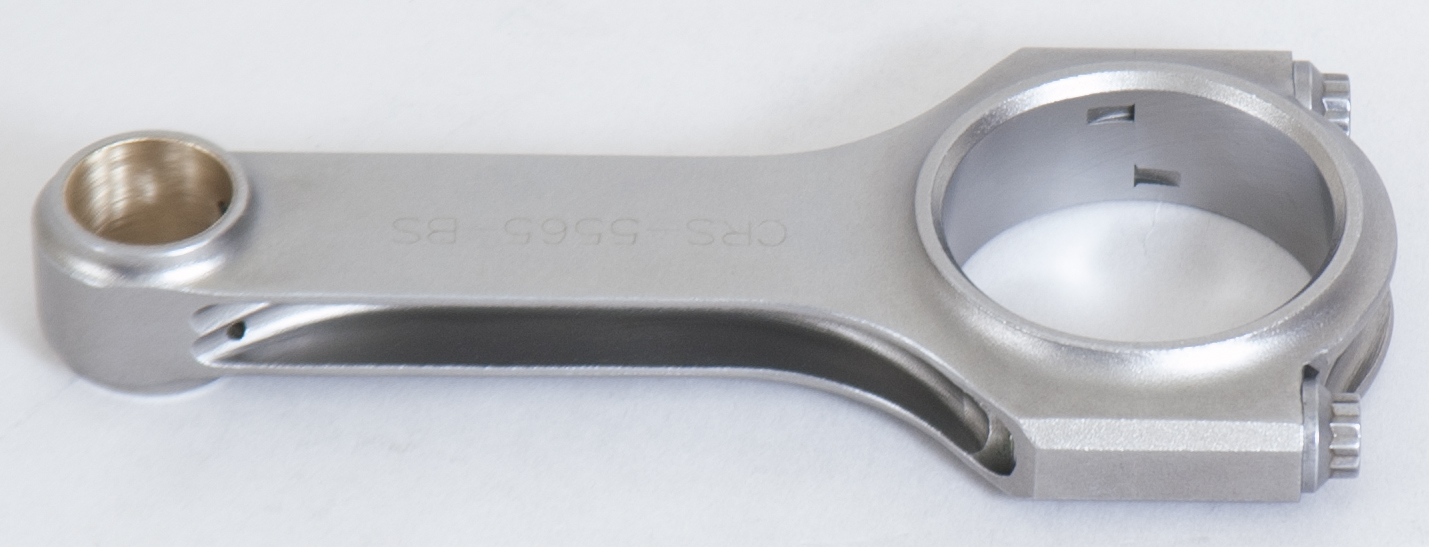

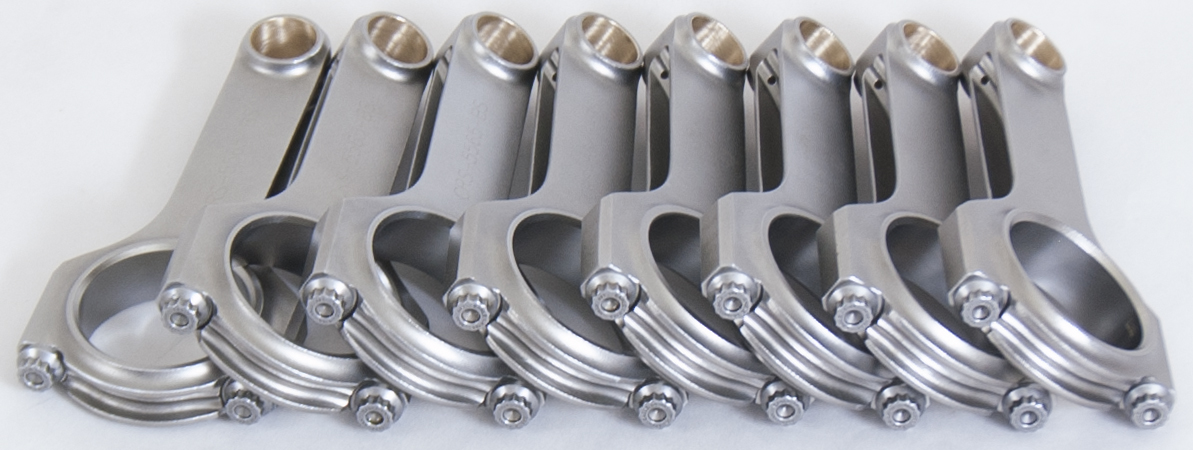

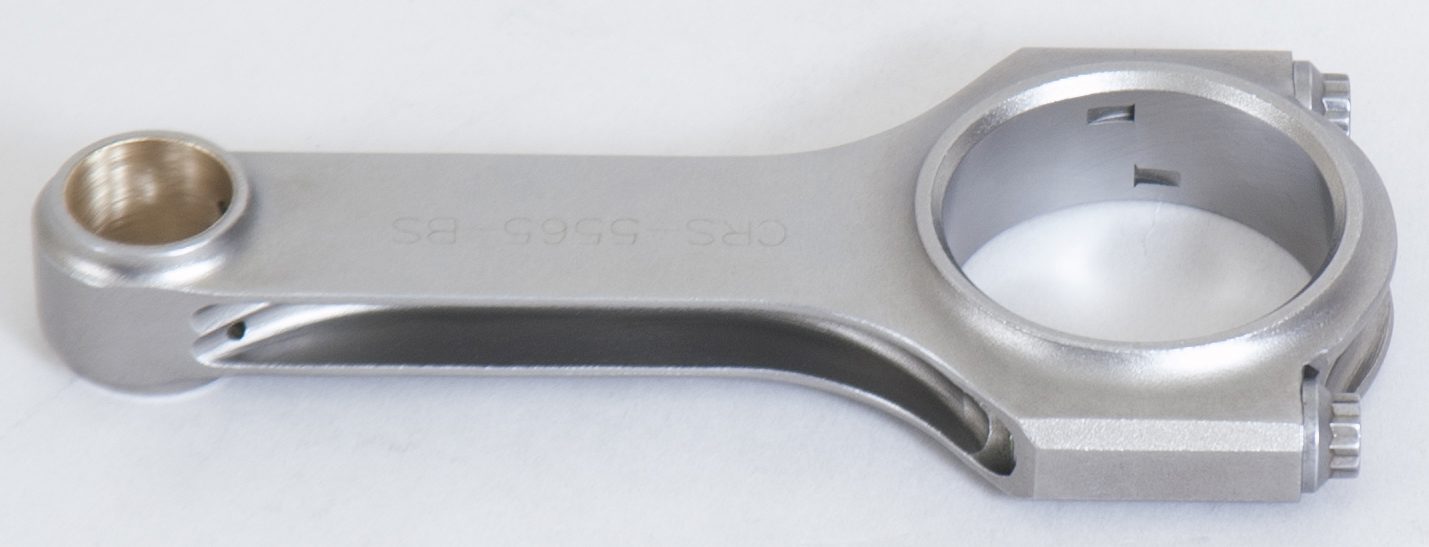

Eagle CRS5565B3D - Chevy 400 H-Beam Connecting Rods (Set of 8)
Connecting Rod - H Beam - 5.565 in Long - Bushed - 7/16 in Cap Screws - Forged - Steel - Small Block Chevy - Set of 8
Forged 4340 Steel H-Beam Rods - CHEVROLET 400.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Recommended for competition use.
Big End Width: 0.94 in
Bolts: 7/16 in ARP 8740
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.565 in
Housing Bore: 2.25 in
Length Center Bore To Center Bore: 5.565
Material: Forged 4340 Steel
Pin End Width: 1.06 in
Pin Size: 0.927 in
Rod Journal: 2.1 in.
