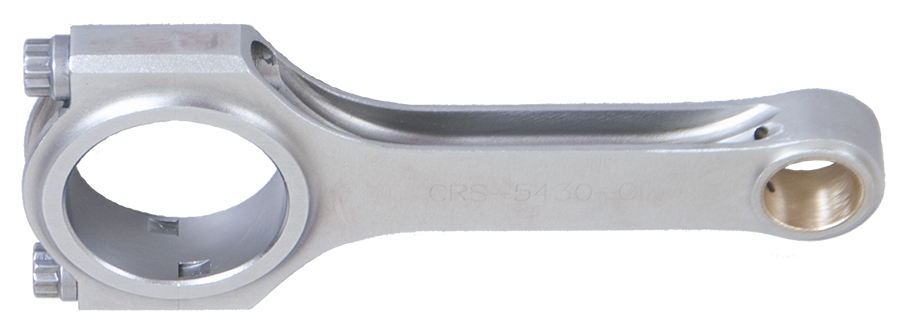

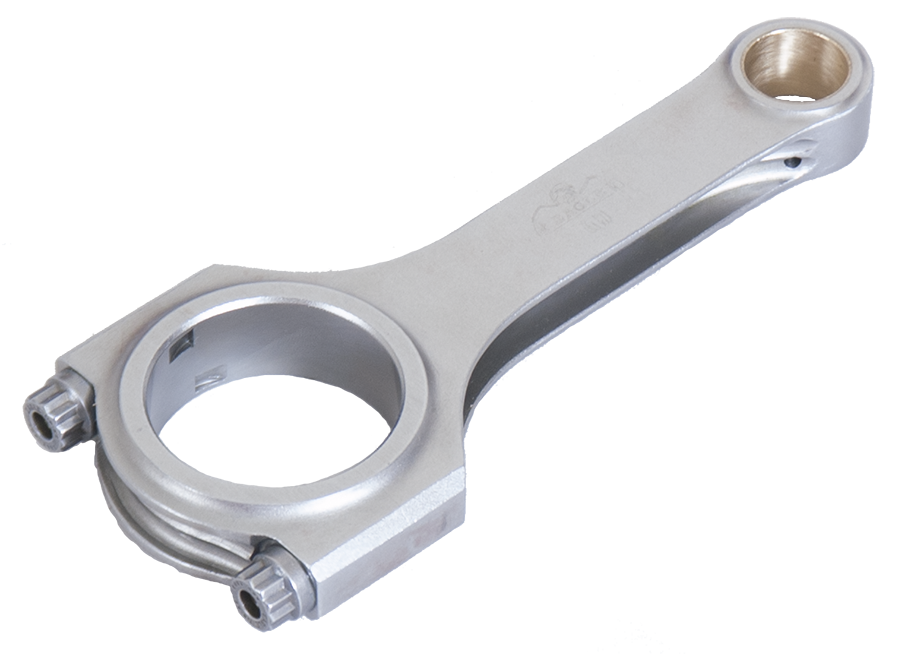

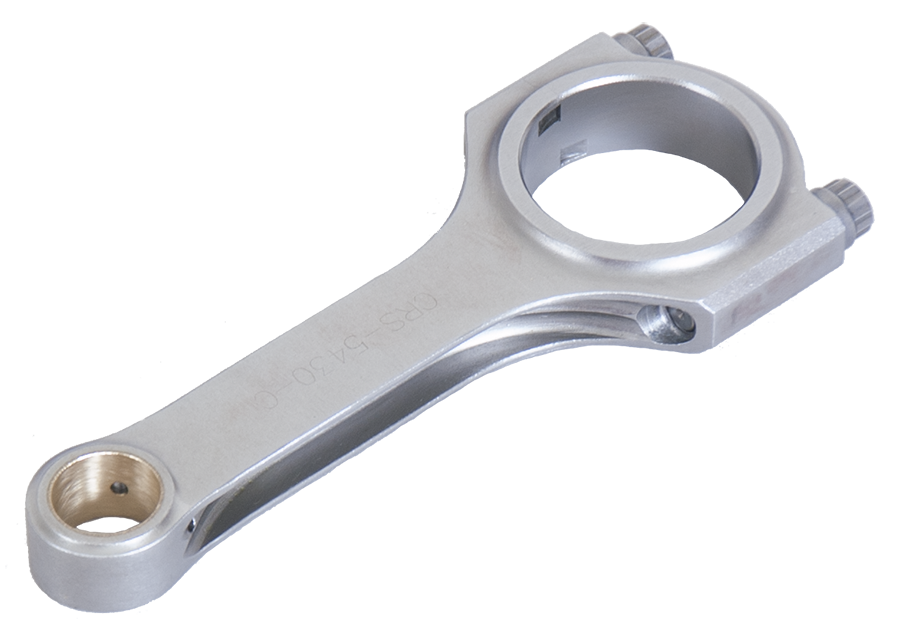

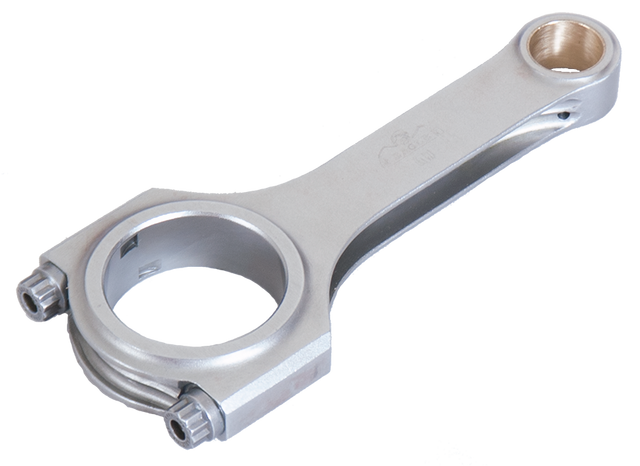

Eagle CRS5430A3D-1 - Honda B18C H-Beam Connecting Rod (Single Rod)
Eagle | SKU:
CFQW-CRS5430A3D-1
Sale price
$14099
Regular price
$14699
Unit price
/
Unavailable
$6.00 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Eagle CRS5430A3D-1 - Honda B18C H-Beam Connecting Rod (Single Rod)
4340 Rod Acura B18C1/5
Forged 4340 Steel H-Beam Rod - HONDA B18C.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Specify weight required when ordering. Recommended for competition use.
Big End Width: 0.858 in
Bolts: 3/8 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.43 in
Housing Bore: 1.89 in
Length Center Bore To Center Bore: 137.9
Material: Forged 4340 Steel
Pin End Width: 0.725 in
Pin Size: 0.827 in
Rod Journal: 1.771 in
