Eagle CRS5428T3D-1 - Toyota 3SGTE H-Beam Connecting Rod (Single Rod)
Eagle | SKU:
CFQW-CRS5428T3D-1
Sale price
$14099
Regular price
$14699
Unit price
/
Unavailable
$6.00 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

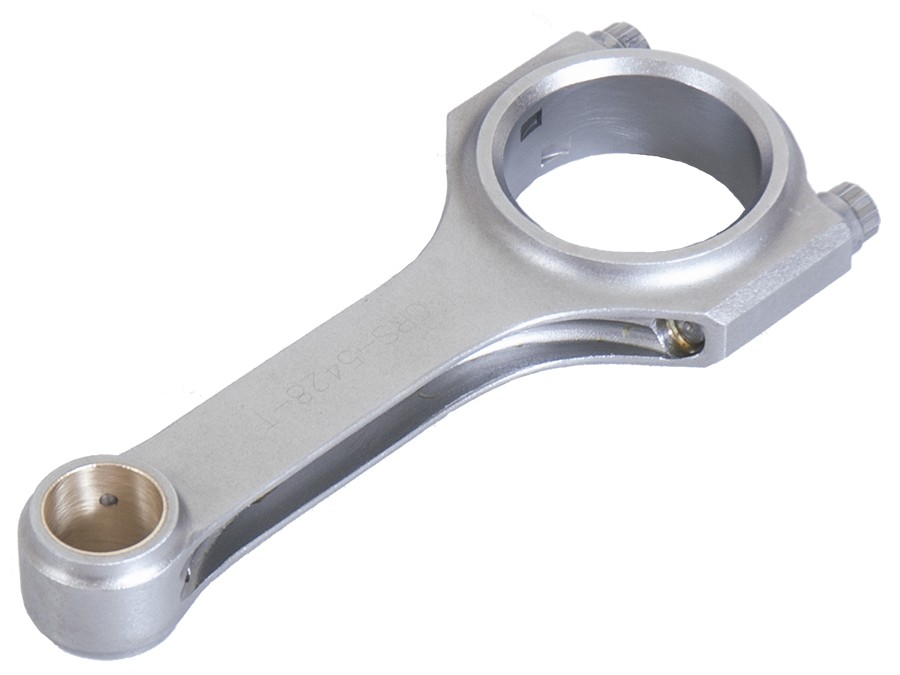

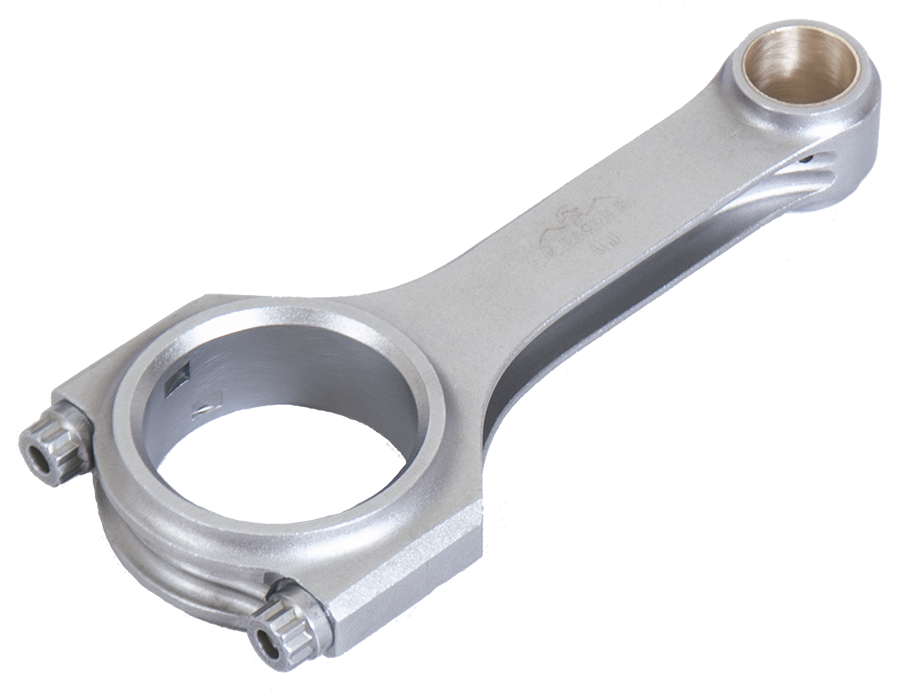

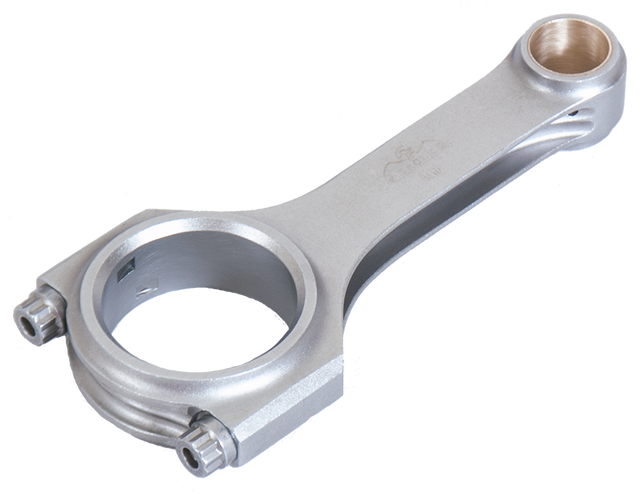

Eagle CRS5428T3D-1 - Toyota 3SGTE H-Beam Connecting Rod (Single Rod)
4340 Rod Toyota 3SGTE
Forged 4340 Steel H-Beam Rod - TOYOTA 3SGTE.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Specify weight required when ordering. Recommended for competition use.
Big End Width: 1.055 in
Bolts: 3/8 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.428 in
Housing Bore: 2.008 in
Length Center Bore To Center Bore: 137.9
Material: Forged 4340 Steel
Pin End Width: 1.055 in
Pin Size: 0.866 in
Rod Journal: 1.889 in
