Eagle CRS5400S3D - Ford 302 H-Beam Connecting Rods 0.927in Pin Size O.E. Rod Journals (Set of 8)
Eagle | SKU:
CFQW-CRS5400S3D
Sale price
$56599
Regular price
$62799
Unit price
/
Unavailable
$62.00 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

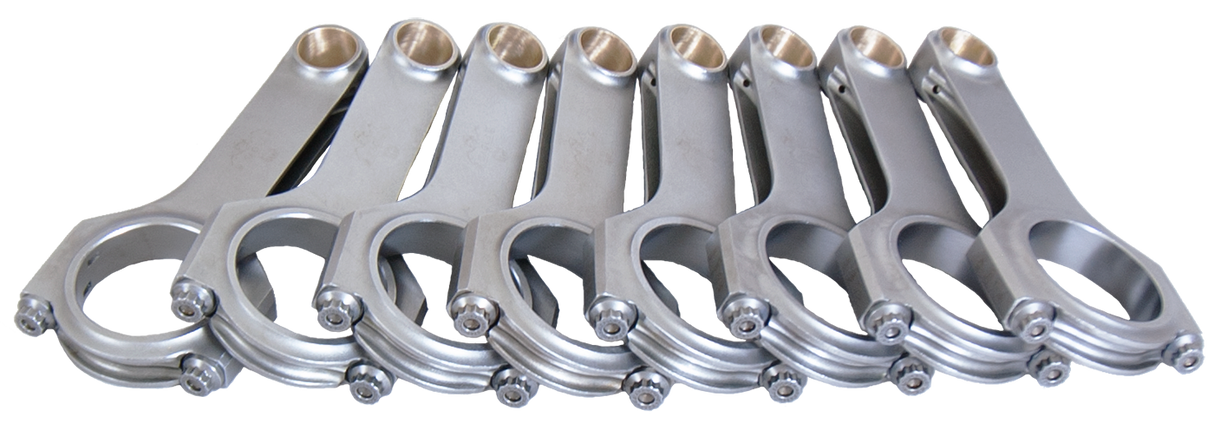

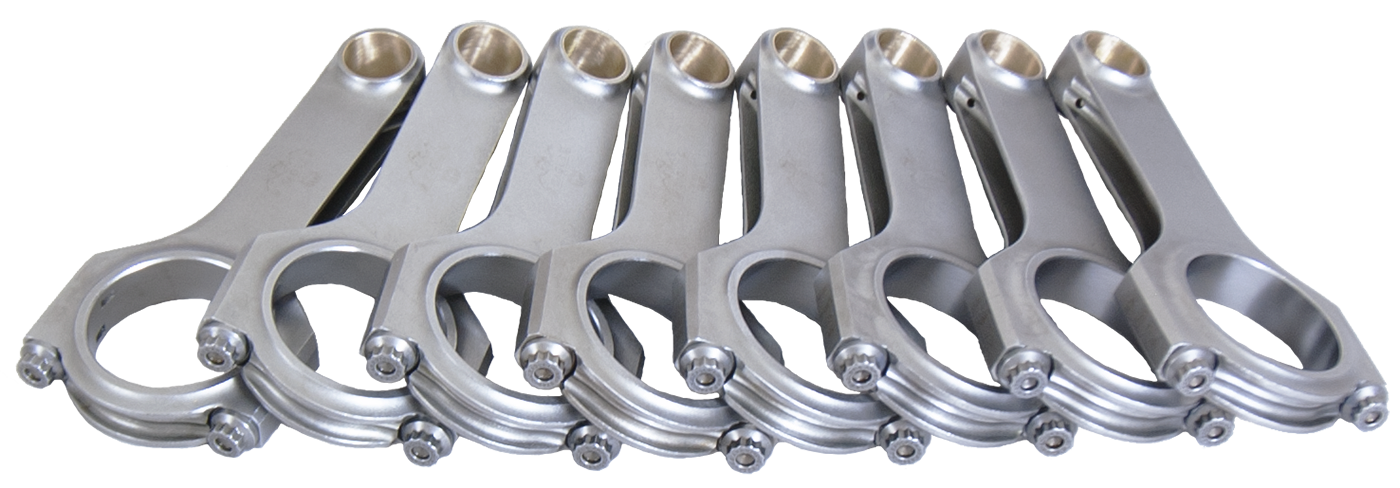

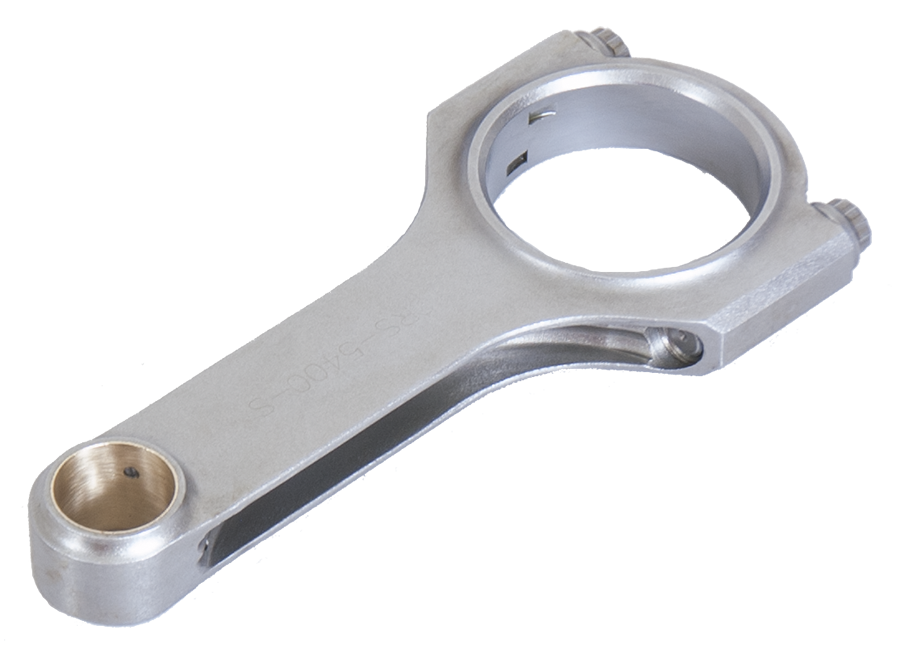

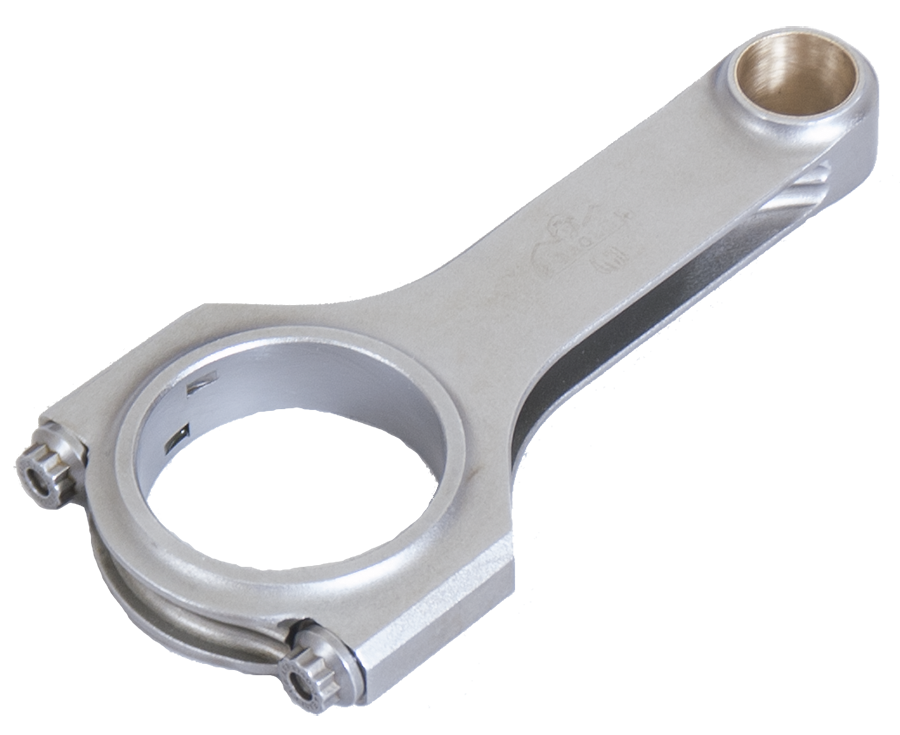

Eagle CRS5400S3D - Ford 302 H-Beam Connecting Rods 0.927in Pin Size O.E. Rod Journals (Set of 8)
Connecting Rod - H Beam - 5.400 in Long - Bushed - 7/16 in Cap Screws - Forged - Steel - Small Block Ford - Set of 8
Forged 4340 Steel H-Beam Rods - Ford 302 STROKER, 3.400" LENGTH, .927" PIN.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Recommended for competition use.
Big End Width: 0.8315 in
Bolts: 7/16 in ARP 8740
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.400 in
Housing Bore: 2.2394 in
Length Center Bore To Center Bore: 5.4
Material: Forged 4340 Steel
Pin End Width: 1.06 in
Pin Size: 0.927 in
Rod Journal: 2.123 in
