Eagle CRS5089S3D-1 - 2012+ Subaru BRZ / 12-16 Scion FR-S / 2017+ Toyota 86 4340 H-Beam Connecting Rods (Single)
Eagle | SKU:
CFQW-CRS5089S3D-1
Sale price
$14099
Regular price
$14699
Unit price
/
Unavailable
$6.00 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

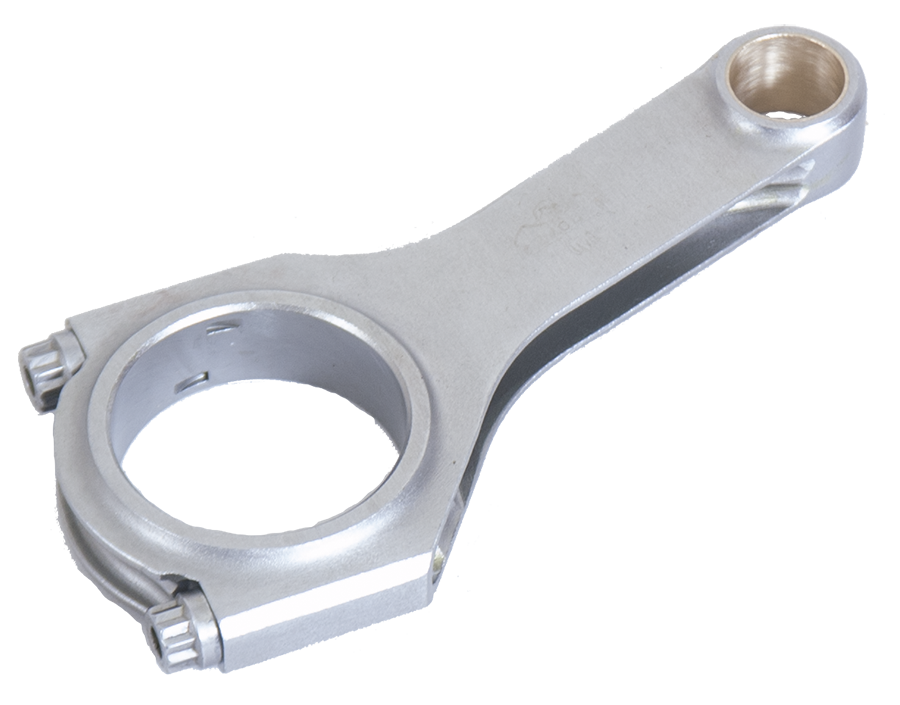

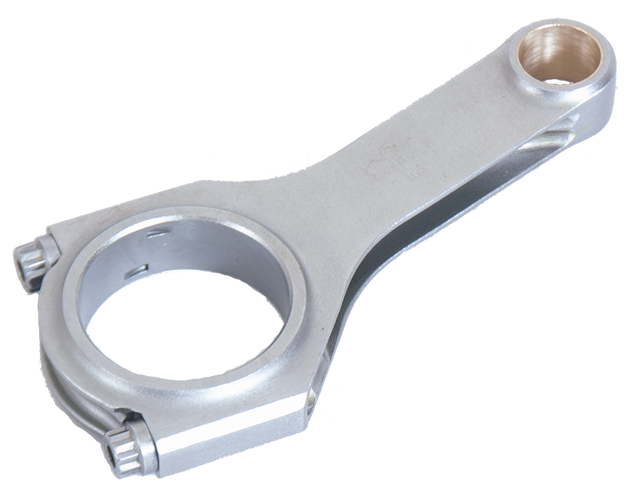

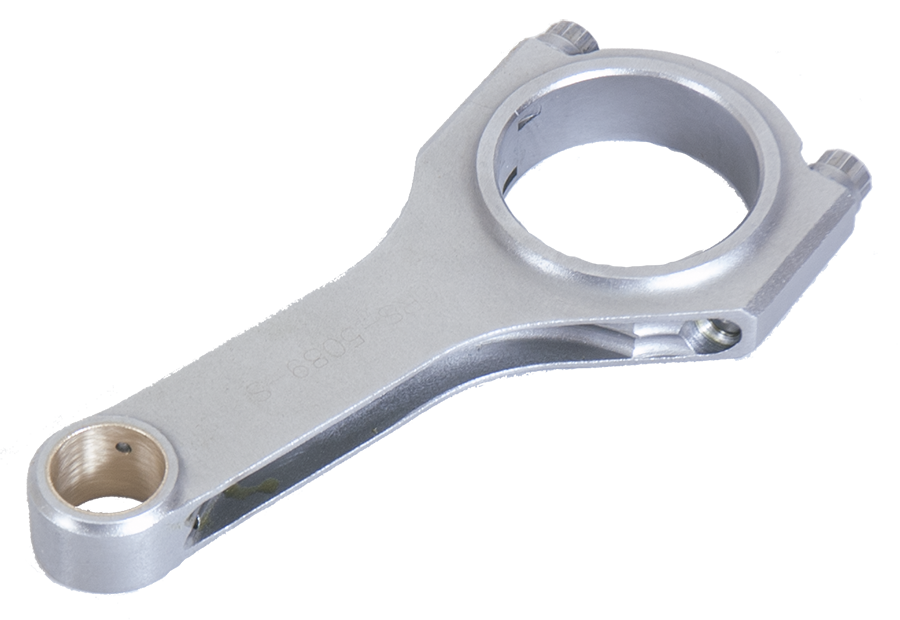

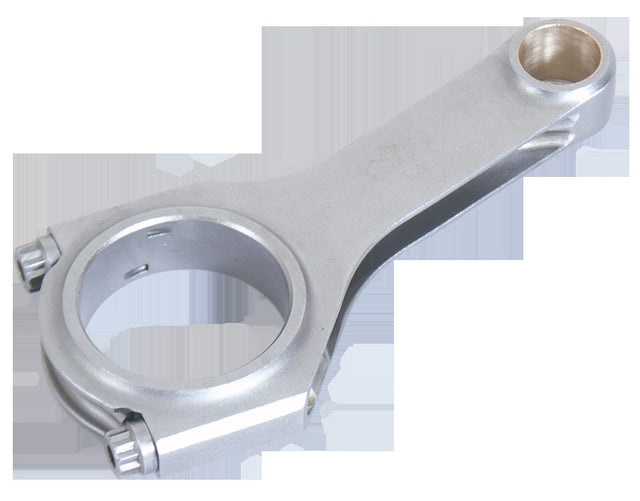

Eagle CRS5089S3D-1 - 2012+ Subaru BRZ / 12-16 Scion FR-S / 2017+ Toyota 86 4340 H-Beam Connecting Rods (Single)
H-BEAM Rod FRS/BRZ
Forged 4340 Steel H-Beam Rod - SUBARU FA20/TOYOTA 4UGSE.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Specify weight required when ordering. Recommended for competition use.
Big End Width: 0.842 in
Bolts: 3/8 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.089 in
Housing Bore: 2.165 in
Length Center Bore To Center Bore: 129.3
Material: Forged 4340 Steel
Pin End Width: 0.842 in
Pin Size: 0.906 in
Rod Journal: 2.047 in
