Eagle B18022L070 - Chevy 454 1Pc 4.250in Crank 6.385in I-Beam Rods 4.320in Pistons 168 Tooth FP Balanced Assembly
Eagle | SKU:
CFQW-B18022L070
Sale price
$2,07899
Regular price
$2,31499
Unit price
/
Unavailable
$236.00 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

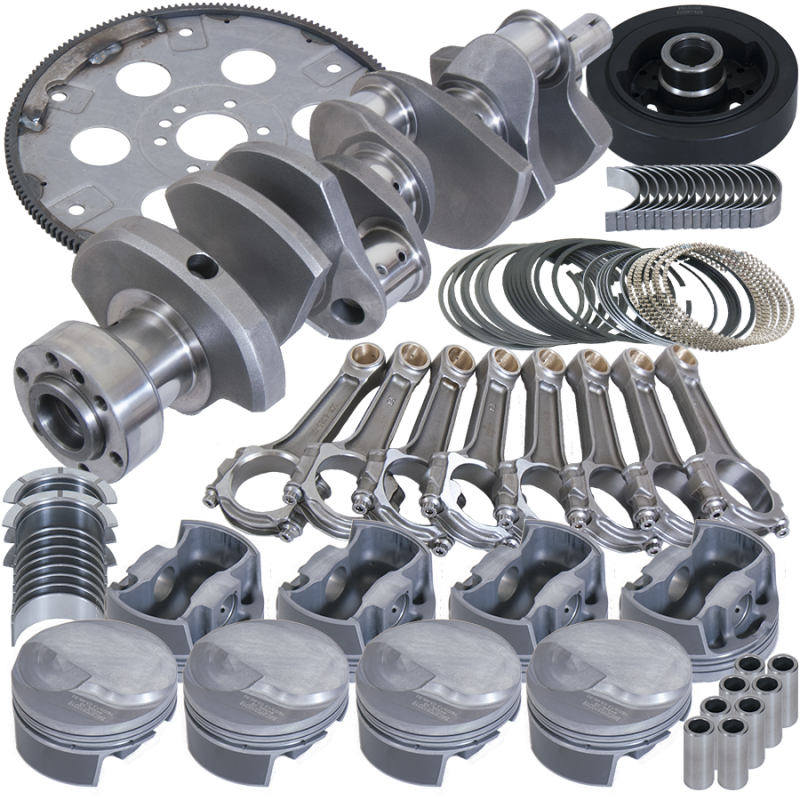

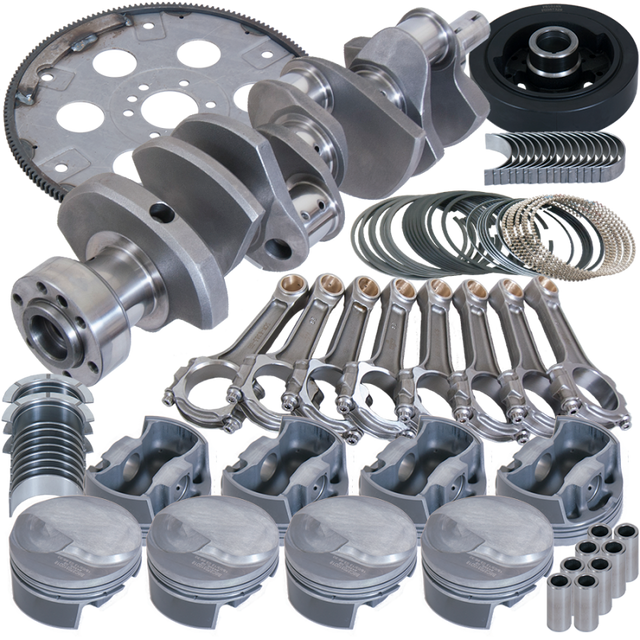

Eagle B18022L070 - Chevy 454 1Pc 4.250in Crank 6.385in I-Beam Rods 4.320in Pistons 168 Tooth FP Balanced Assembly
Balanced Street & Strip Assembly Chevy 454 1PC
BALANCED 4.250" Cast Crank,6.385" I-BEAM Rods,7/16" ARP 8740 BOLTS,Forged 4032 MAHLE 18CC DOME 4.320" PISTONS,PLASMA-MOLY FILE-FIT RINGS,KING SI Rod/MAIN BEARINGS, PIONEER DAMPER & 168 TOOTH FLEXPLATE.
Eagle Street & Strip Rotating Assemblies are perfect for pump gas, naturally aspirated, street vehicles.
Connecting Rod Length: 6.385 in
Connecting Rod Material: Forged 5140 steel
Crankshaft Center Counterweights: No
Crankshaft Flange Bolt Holes: 6
Crankshaft Main Journal Diameter: 2.749 in
Crankshaft Material: Cast Steel
Crankshaft Reluctor: No
Crankshaft Rod Journal Diameter: 2.200 in
Crankshaft Stroke: 4.250 in
Cylinder Bore Diameter: 4.320 in
Damper Included: Yes
Flexplate/Flywheel Included: 168 Tooth Flexplate
Main Bearing Type: O.E. Replacement
Main Bearings Included: Yes
Oil Rail Support Included: No
Piston Brand: Mahle
Piston Dome Volume: 18cc
Piston Face Type: dome
Piston Material: Forged 4032 Aluminum
Piston Pin Diameter: .990 in
Piston Pin Type: Full Floating
Piston Ring Gap: file-fit
Piston Ring Thickness: 1.5mm, 1.5mm, 3.0mm
Piston Type: Dome Forged
Product Line: Street & Strip
Rod Bearing Type: O.E. replacement
Rod Bearings Included: Yes
Second Piston Ring Type: Reverse Twist Iron
Thrust Washer Included: No
Top Piston Ring Type: Barrel Faced Plasma-Moly
Assembly Balanced: Yes
Assembly Type: Balanced Street & Strip Assembly
Balance Type: External
Bore: 4.32
Connecting Rod Bolt Diameter: 7/16 in
Connecting Rod Bolt Material: ARP 8740
Connecting Rod Design: I-Beam
