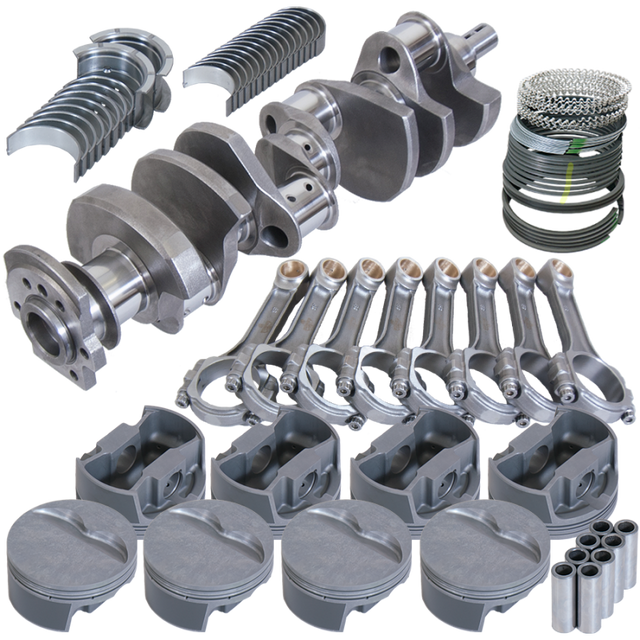

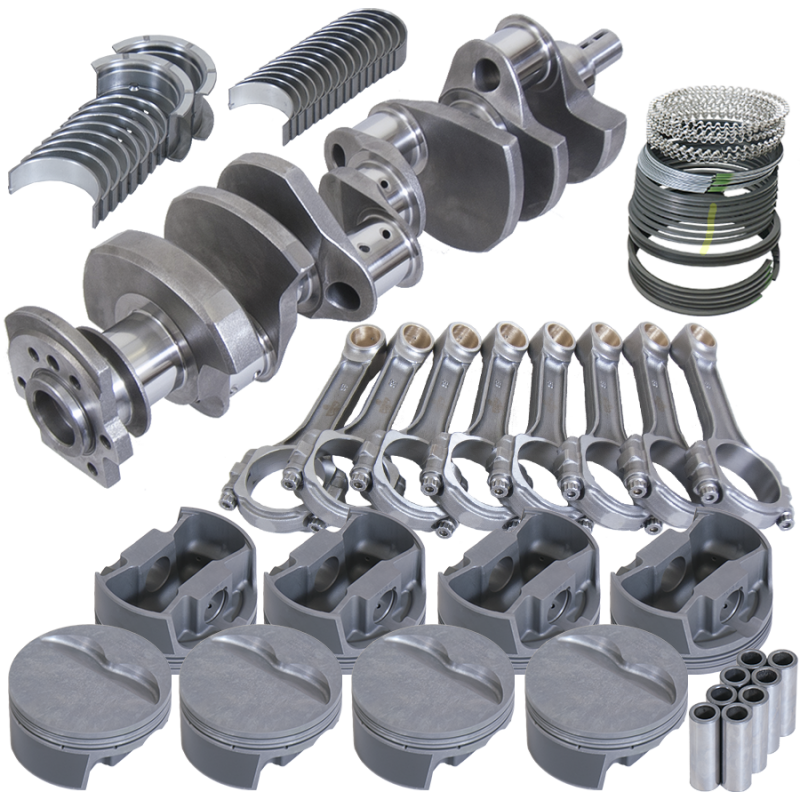

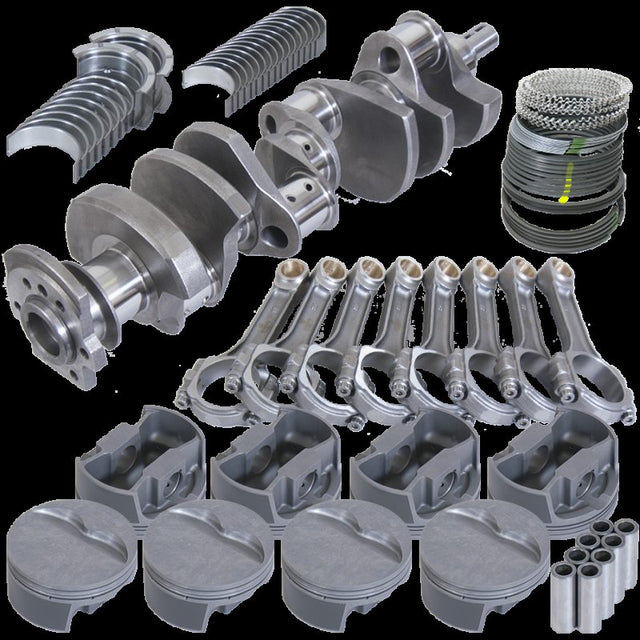

Eagle B13057E040 - Chevy 350 3.750in Crank 6.000in I-Beam Rods -5cc Flat Top 4.040in Pistons Balanced Assembly
Eagle | SKU:
CFQW-B13057E040
Sale price
$1,62299
Regular price
$1,80399
Unit price
/
Unavailable
$181.00 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Eagle B13057E040 - Chevy 350 3.750in Crank 6.000in I-Beam Rods -5cc Flat Top 4.040in Pistons Balanced Assembly
Balanced Street & Strip Assembly Chevy 350
BALANCED 3.750" Cast Crank,6.000" I-BEAM Rods,3/8" ARP 8740 BOLTS, Forged 4032 MAHLE -5CC FLAT TOP 4.040" PISTONS,PLASMA-MOLY STANDARD GAP RINGS,KING SI Rod/MAIN BEARINGS.
Eagle Street & Strip Rotating Assemblies are perfect for pump gas, naturally aspirated, street vehicles.
Top Piston Ring Type: Barrel Faced Plasma-Moly
Assembly Balanced: Yes
Assembly Type: Balanced Street & Strip Assembly
Balance Type: internal
Bore: 4.04
Connecting Rod Bolt Diameter: 3/8 in
Connecting Rod Bolt Material: ARP 8740
Connecting Rod Design: I-Beam
Connecting Rod Length: 6.000 in
Connecting Rod Material: Forged 5140 steel
Crankshaft Center Counterweights: No
Crankshaft Flange Bolt Holes: 6
Crankshaft Main Journal Diameter: 2.449 in
Crankshaft Material: Cast Steel
Crankshaft Reluctor: No
Crankshaft Rod Journal Diameter: 2.100 in
Crankshaft Stroke: 3.750 in
Cylinder Bore Diameter: 4.040 in
Damper Included: No
Flexplate/Flywheel Included: No
Main Bearing Type: O.E. Replacement
Main Bearings Included: Yes
Oil Rail Support Included: No
Piston Brand: Mahle
Piston Dome Volume: -5cc
Piston Face Type: flat top
Piston Material: Forged 4032 Aluminum
Piston Pin Diameter: .927 in
Piston Pin Type: Full Floating
Piston Ring Gap: Standard
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Type: Flat Top Forged 4032
Product Line: Street & Strip
Rod Bearing Type: O.E. replacement
Rod Bearings Included: Yes
Second Piston Ring Type: Reverse Twist Iron
Thrust Washer Included: No
