Eagle 445642526385 - Chevrolet Big Block 454/502 Forged Crankshaft 4.250in Stroke
Eagle | SKU:
CFQW-445642526385
Sale price
$93699
Regular price
$1,11999
Unit price
/
Unavailable
$183.00 off
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

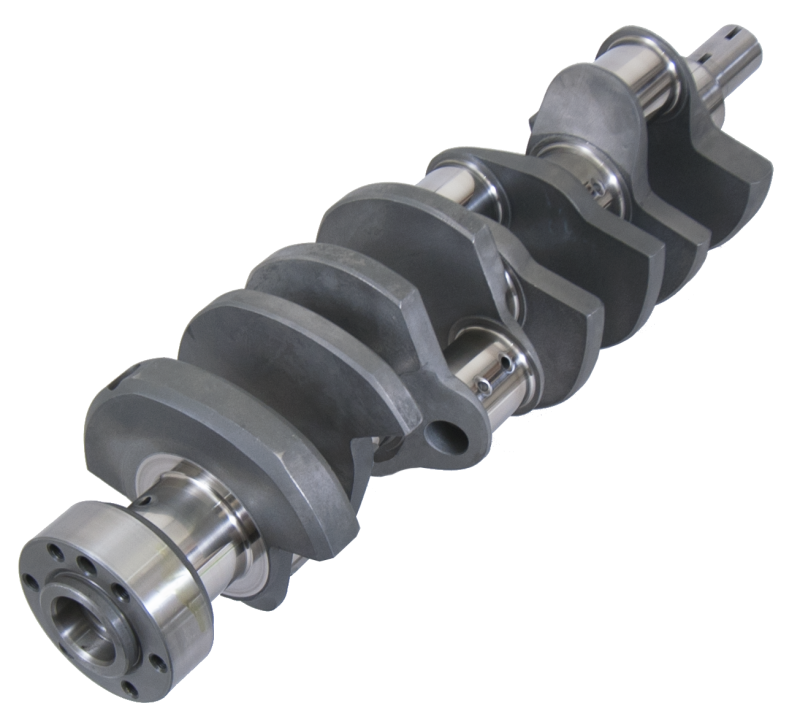

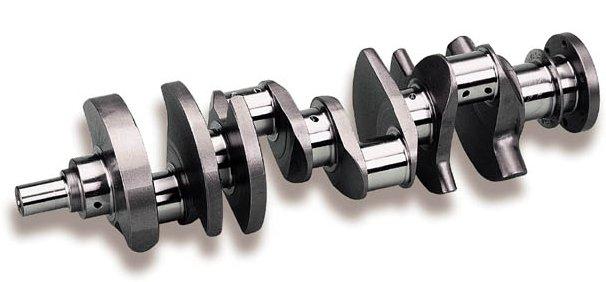

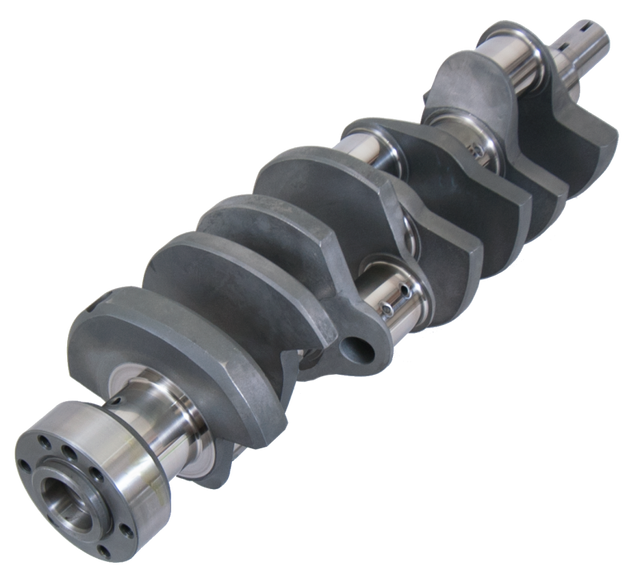

Eagle 445642526385 - Chevrolet Big Block 454/502 Forged Crankshaft 4.250in Stroke
Crankshaft - 4.250 in Stroke - Internal Balance - Forged Steel - 1-Piece Seal - Big Block Chevy - Each
Forged 4340 Steel Crank - Chevrolet 454, 1PC REAR SEAL, 4.250" Stroke, CENTER COUNTERWEIGHTED, INTERNAL BALANCE.
Eagle forged 4340 steel center-counterweighted Cranks feature a non-twist forging, center counterweights for added stability at high RPM and high-power applications. 125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications.
Balance Type: Internal
Crankshaft Stroke: 4.250 in
Engine Stroke: 4.25
Flywheel Bolt Count: 6
Flywheel Register Diameter: call
Intended Balance: internal
Main Journal: 2.749 in
Material: Forged 4340 Steel
Minimum Rod Length: 6.385 in
Pilot Bore Diameter: 1.094 in
Rear Seal Diameter: call
Rod Journal Width: 2.000 in
Rod Journal: 2.2 in.
Snout Diameter: 1.6 in.
Target Bobweight: 2350g
