Eagle 442640006100 - Forged 4340 Steel Crankshaft Chevy LS9 4.000in. Stroke w/ LS2 Reluctor Wheel
Eagle | SKU:
CFQW-442640006100
Regular price
$000
Unit price
/
Unavailable
AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

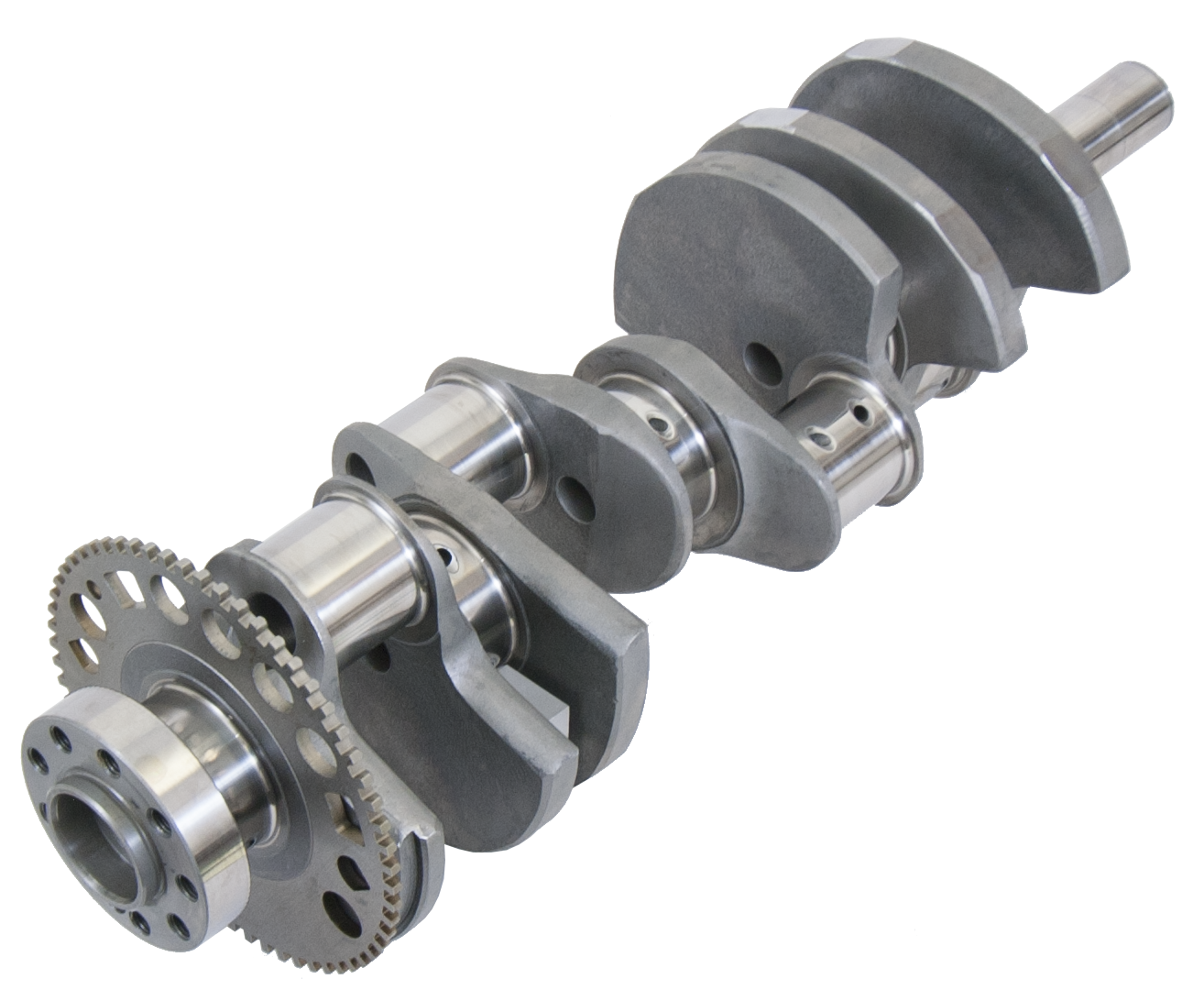

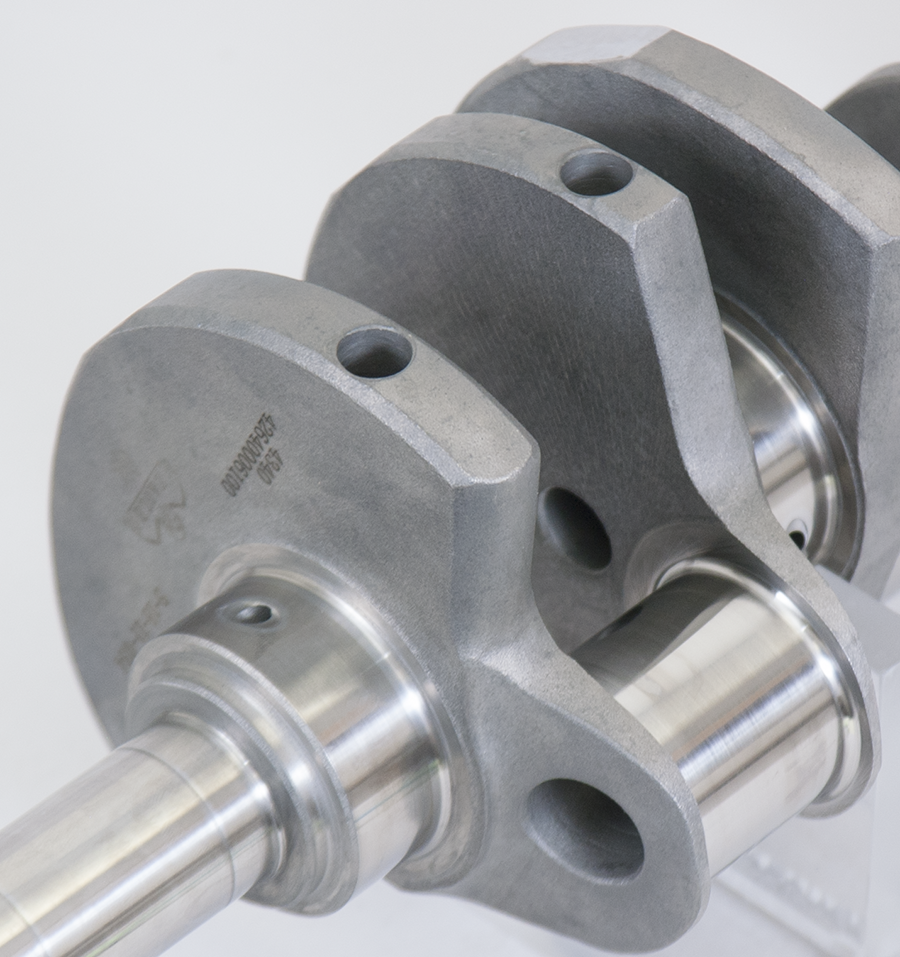

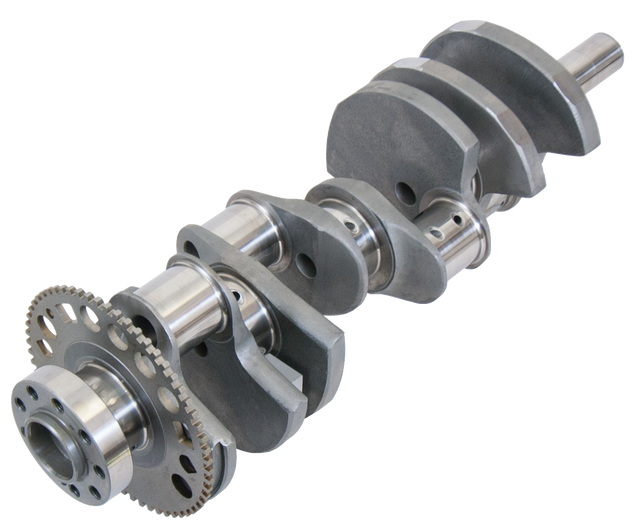

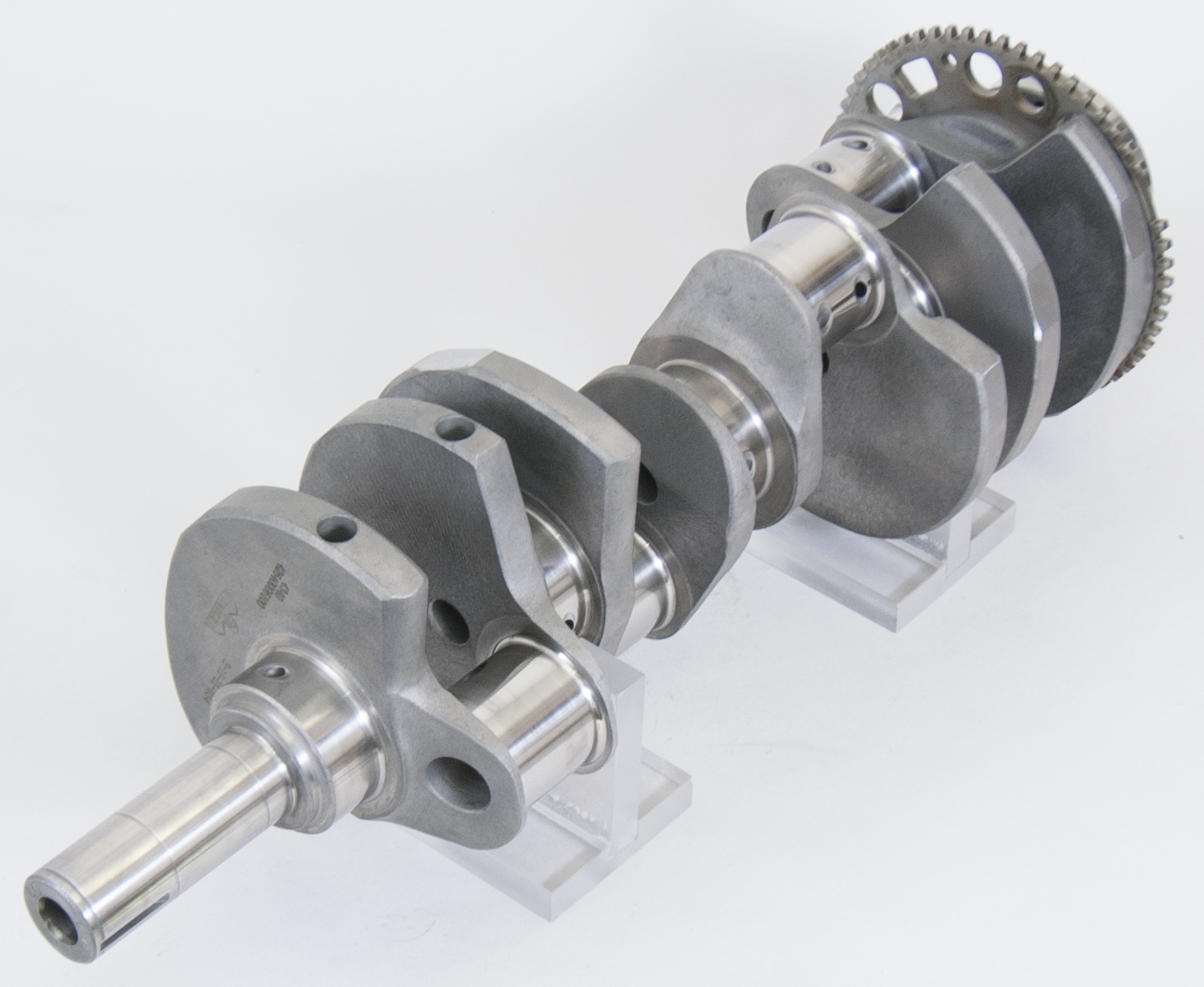

Eagle 442640006100 - Forged 4340 Steel Crankshaft Chevy LS9 4.000in. Stroke w/ LS2 Reluctor Wheel
4340 Crank Chevy LS9, 58T LS2 RELUCTOR

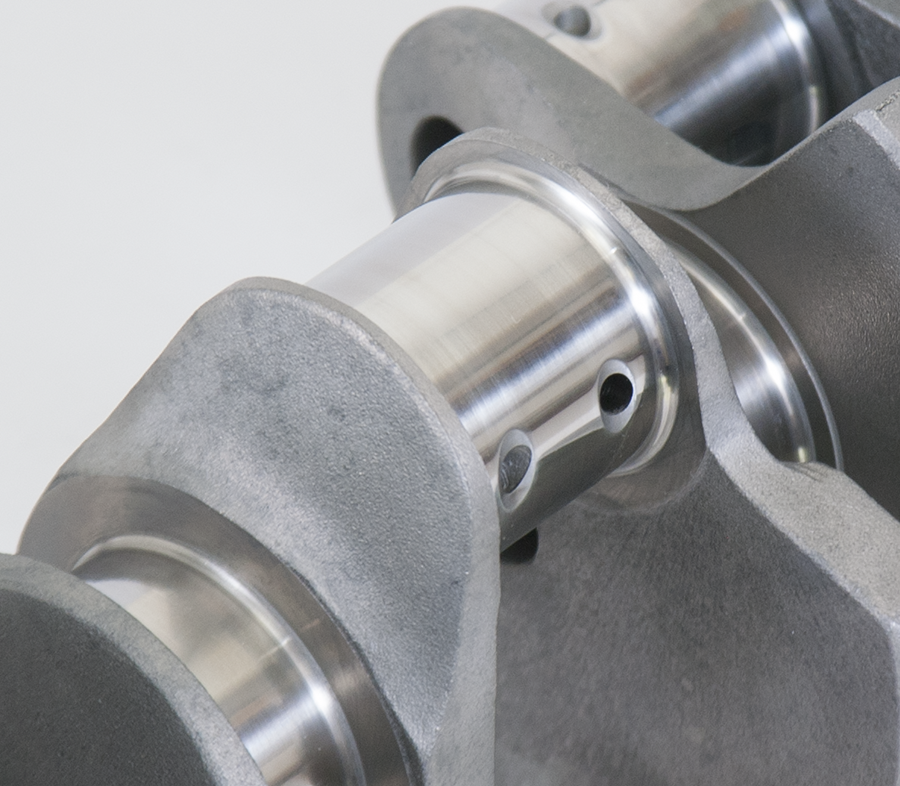

Eagle forged 4340 steel Cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications. Includes 58 tooth LS9 reluctor.
Rear Seal Diameter: call
Reluctor: 58 tooth LS2
Rod Journal Diameter: 2.1
Rod Journal Width: 1.900 in
Rod Journal: 2.100 in
Snout Diameter: 1.48 in
Target Bobweight: 1800g
Balance Type: Internal
Crankshaft Stroke: 4.000 in
Engine Stroke: 2.559
Flywheel Bolt Count: 9
Flywheel Register Diameter: call
Intended Balance: internal
Main Journal: 2.559 in
Material: Forged 4340 Steel
Minimum Rod Length: 6.125 in
Pilot Bore Diameter: call
rear flange bolts: 9
