Eagle 4350355057LA - ESP 4340 CRANK CHEVY 305/350 LIGHTWEIGHT
Eagle | SKU:
CFQW-4350355057LA
Regular price
$000
Unit price
/
Unavailable
AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Eagle 4350355057LA - ESP 4340 CRANK CHEVY 305/350 LIGHTWEIGHT
4340 CRANK CHEVY 305/350 LIGHTWEIGHT

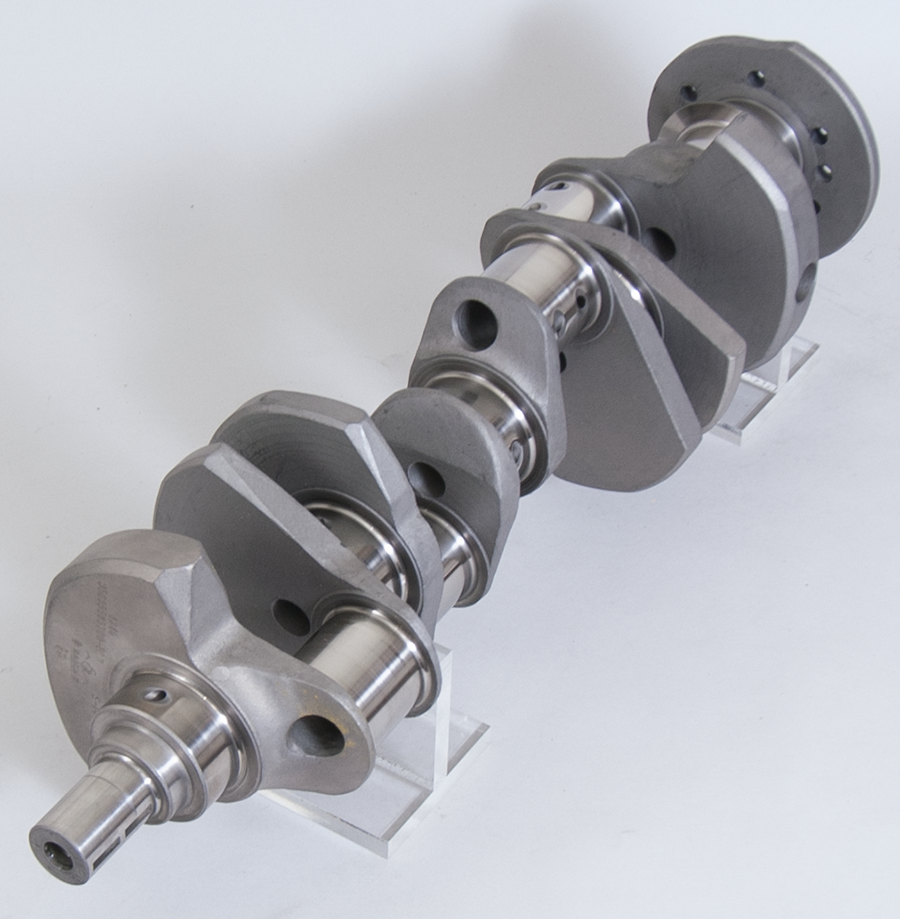

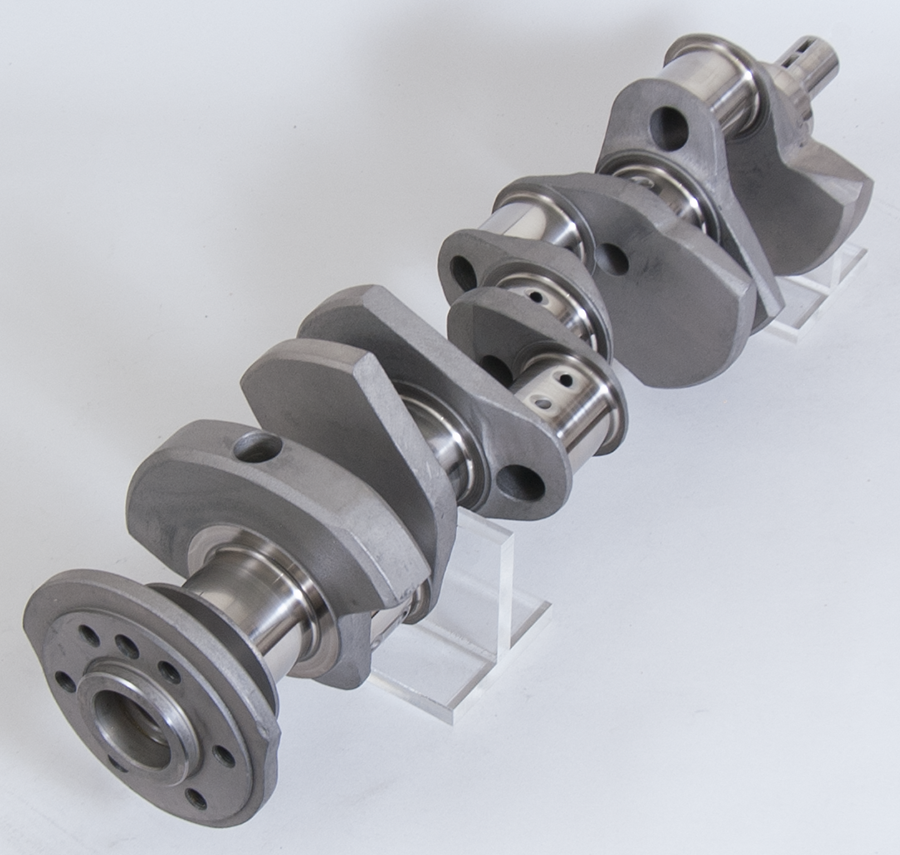

Forged 4340 LIGHTWEIGHT Steel Crank - CHEVROLET 305/350, 3.550" STROKE.

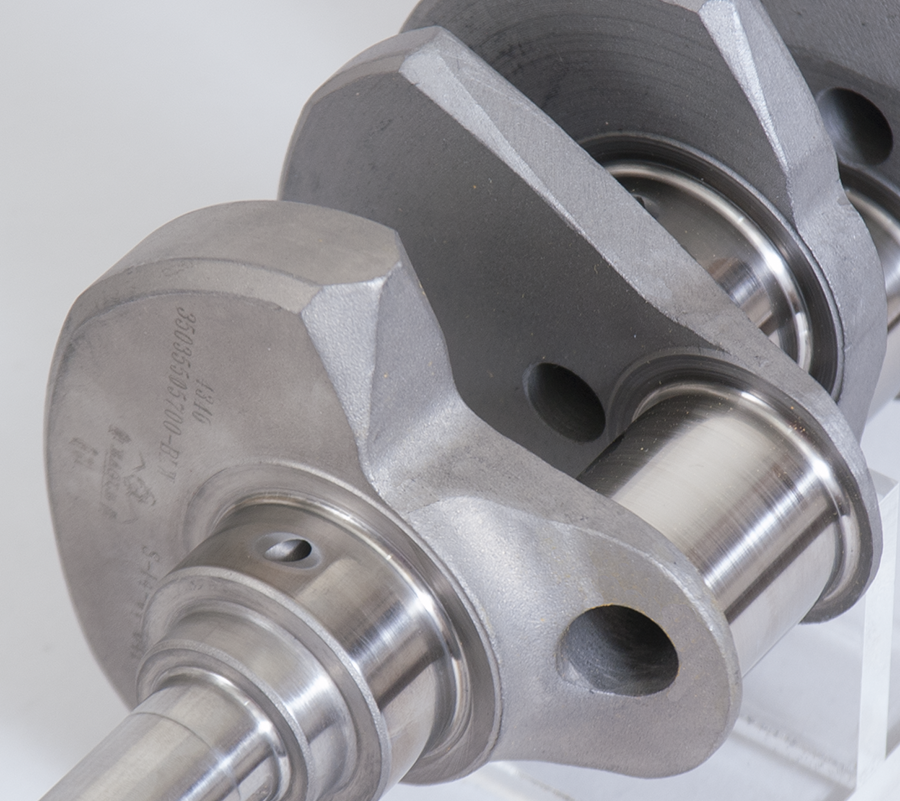

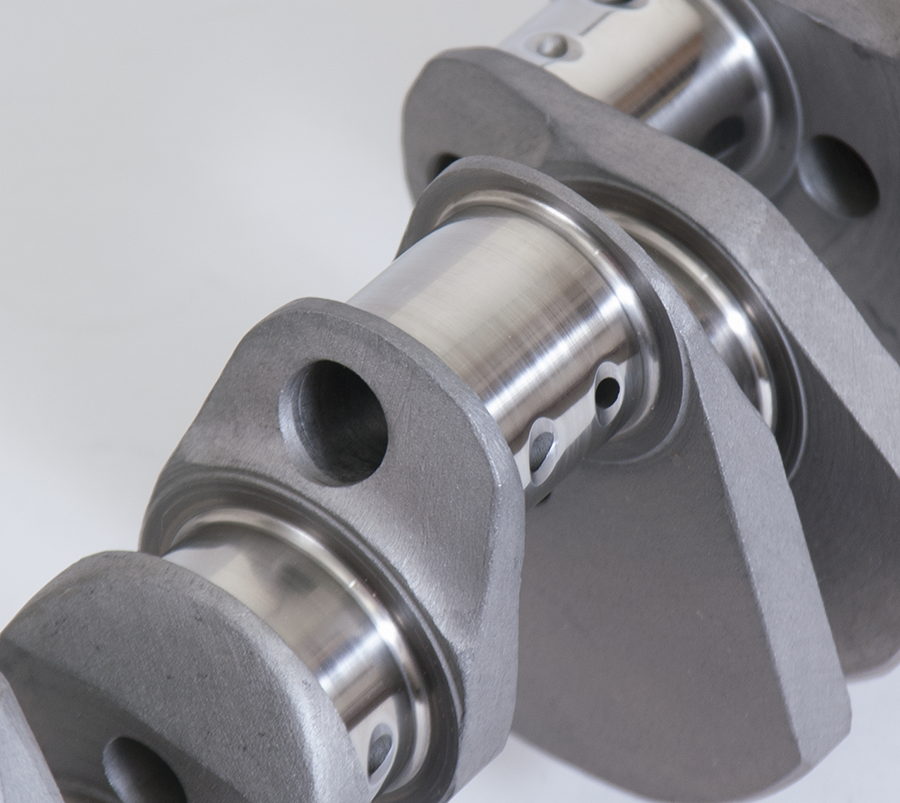

Eagle lightweight forged 4340 steel Cranks feature a non-twist forging, lightweight counterweight design to reduce rotating weight, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for restricted-class competition use.
Balance Type: Internal
Crankshaft Stroke: 3.550 in
Engine Stroke: 3.55
Flywheel Bolt Count: 6
Flywheel Register Diameter: call
Intended Balance: internal
Main Journal: 2.449 in
Material: Forged 4340 Steel
Minimum Rod Length: 5.700 in
Pilot Bore Diameter: call
Rear Seal Diameter: call
Rod Journal Diameter: 2.1
Rod Journal Width: 1.900 in
Rod Journal: 2.1 in.
Snout Diameter: 1.245 in
Target Bobweight: 1820g
