Eagle 428137505950 - Ford 4.6 Stroker 1.889in Rod Journal / 3.750in Stroke 4340 Forged Crankshaft

Eagle  |  SKU: CFQW-428137505950
$98899 $1,14199

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Eagle 428137505950 - Ford 4.6 Stroker 1.889in Rod Journal / 3.750in Stroke 4340 Forged Crankshaft

4340 CRANK 4.6L 281 3.750" STROKE

Forged 4340 Steel Crank - Ford 4.6L MODULAR V8, 3.750" Stroke, 1.889" Rod JournalS.

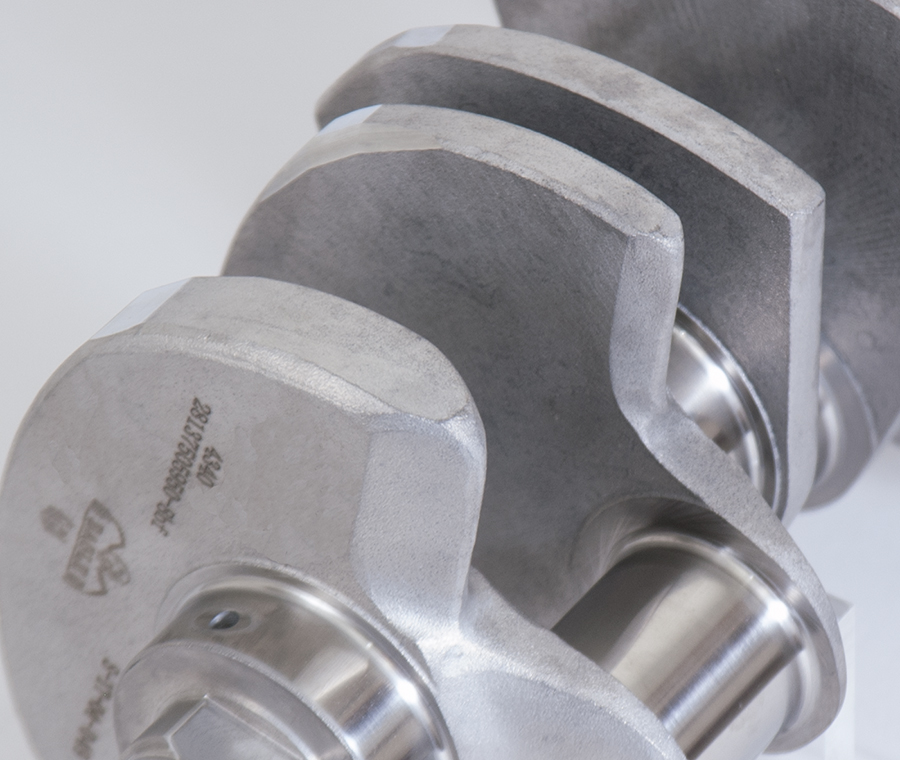

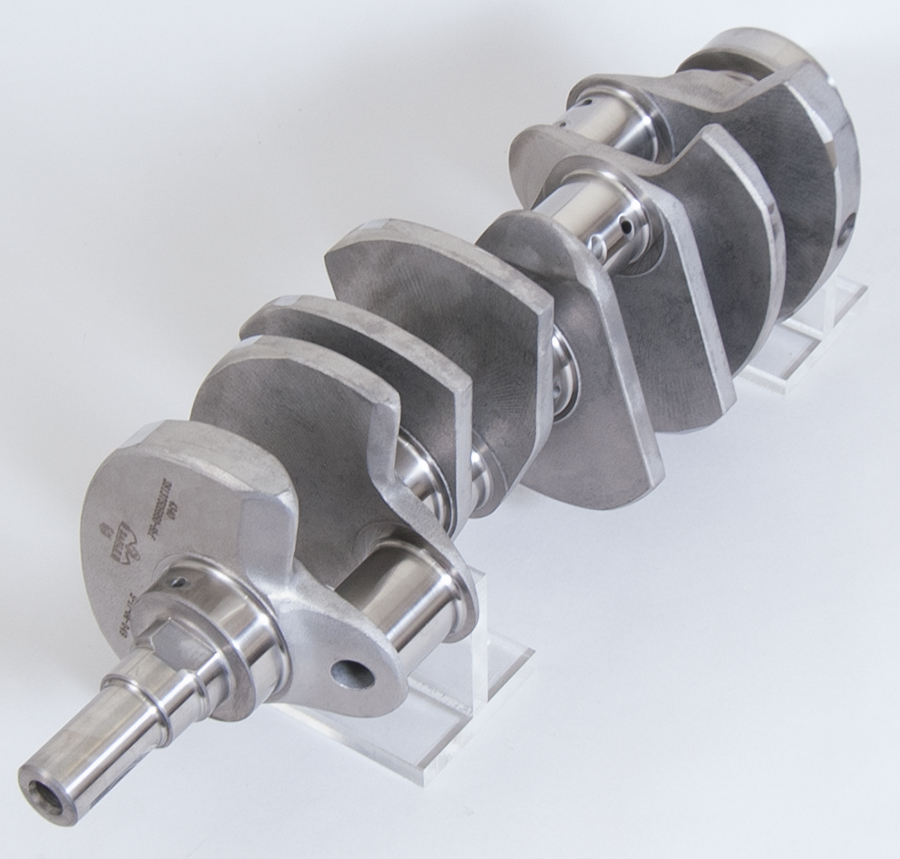

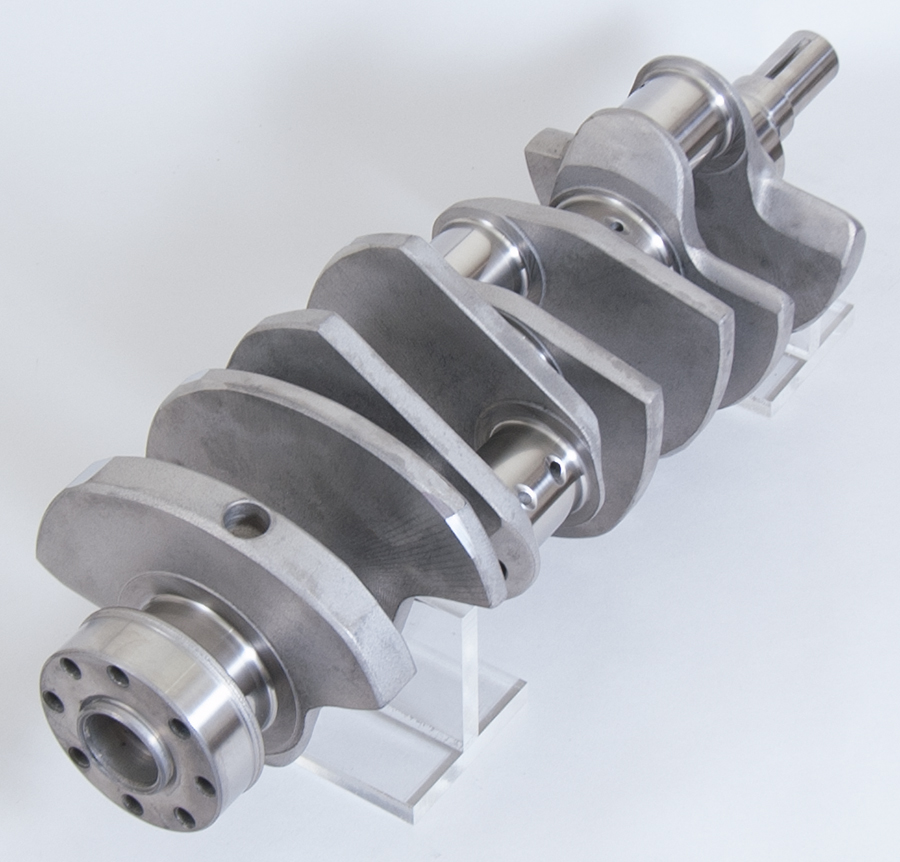

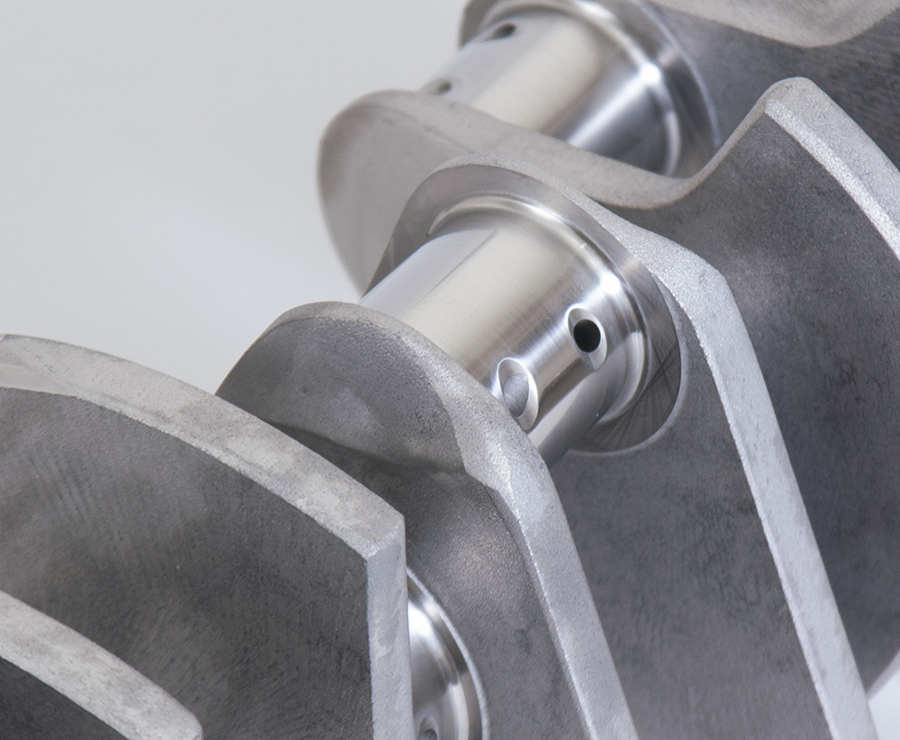

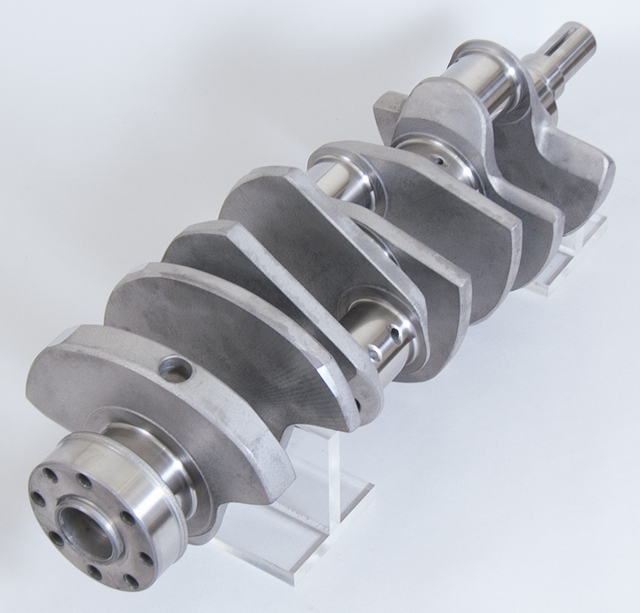

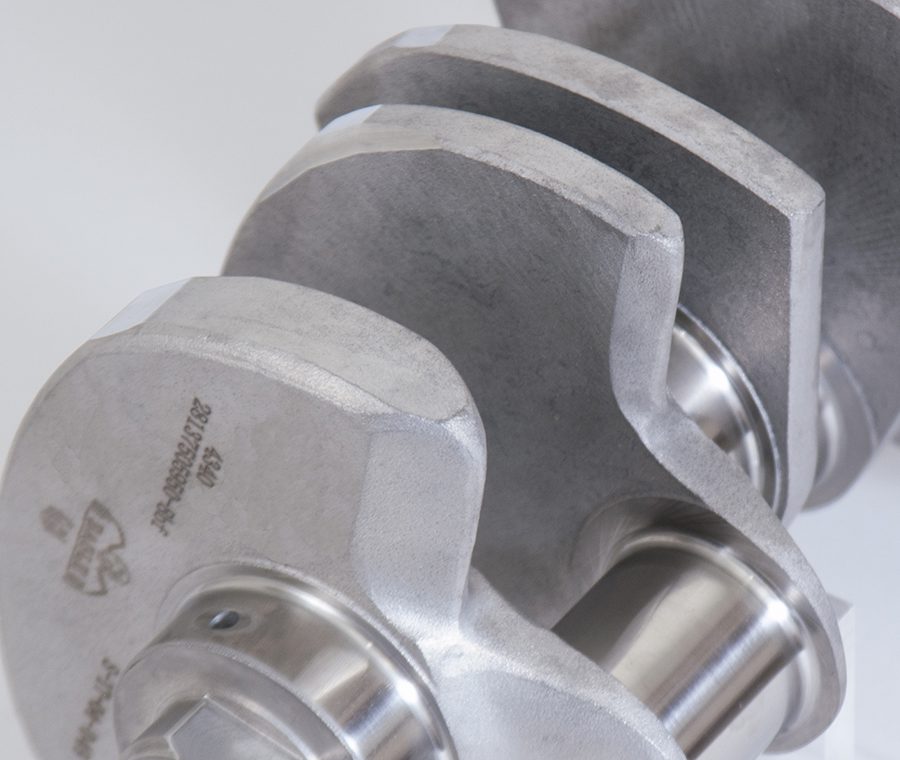

Eagle forged 4340 steel center-counterweighted Cranks feature a non-twist forging, center counterweights for added stability at high RPM and high-power applications. 125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications.

Balance Type: Internal
Crankshaft Stroke: 3.750 in
Engine Stroke: 3.75
Flywheel Bolt Count: 8
Flywheel Register Diameter: call
Intended Balance: internal
Main Journal: 2.657 in
Material: Forged 4340 Steel
Minimum Rod Length: 5.950 in
Pilot Bore Diameter: call
Rear Seal Diameter: call
Rod Journal Diameter: 1.889
Rod Journal Width: 1.900 in
Rod Journal: 1.889 in
Snout Diameter: call
Target Bobweight: 1600g
