Description
Description

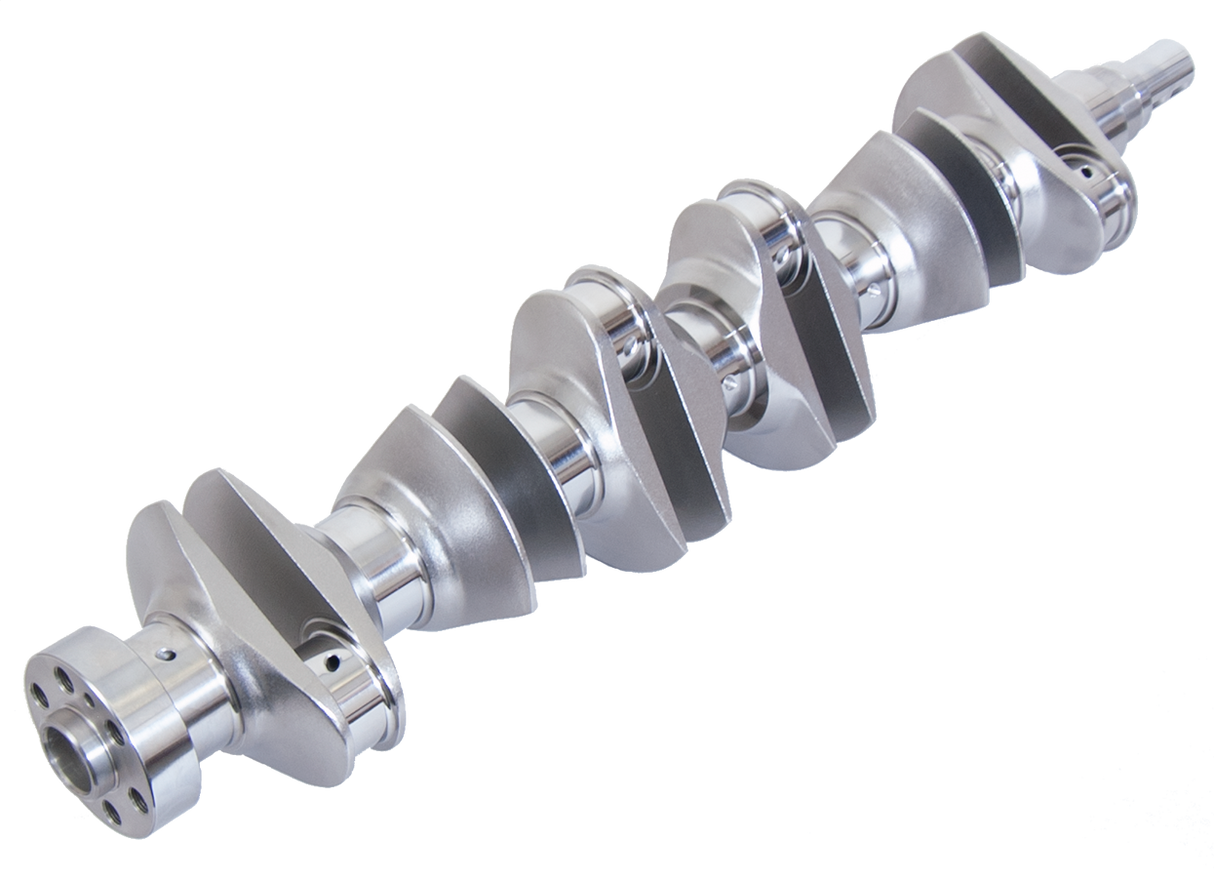

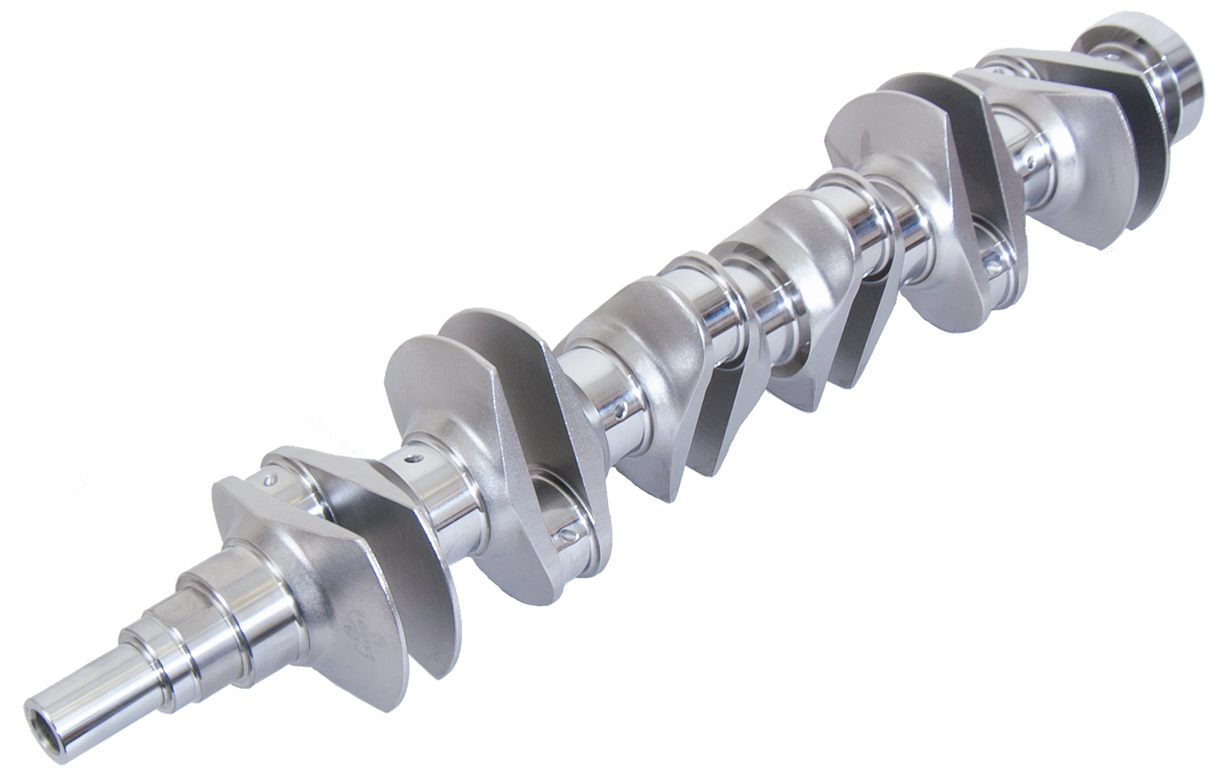

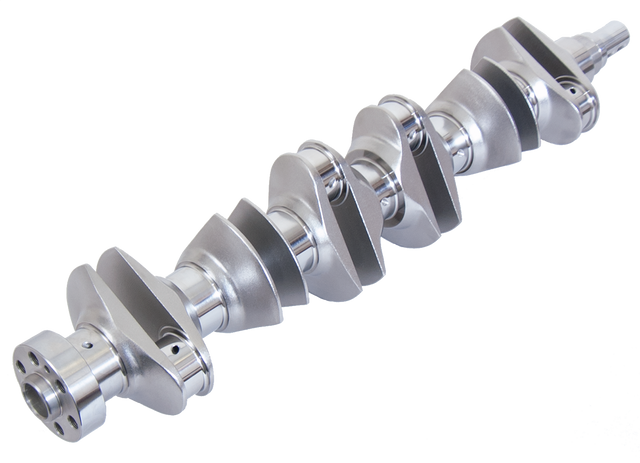

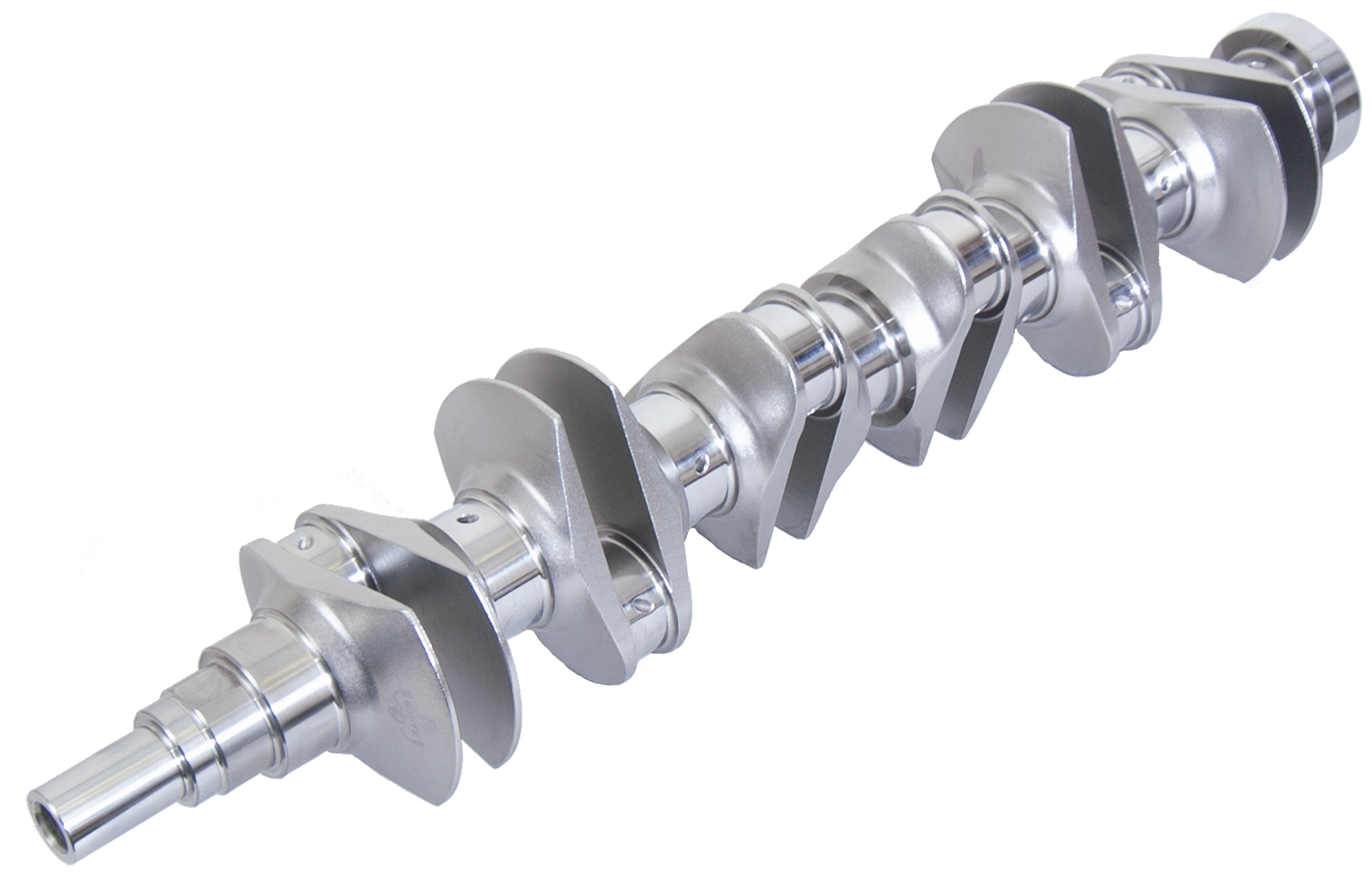

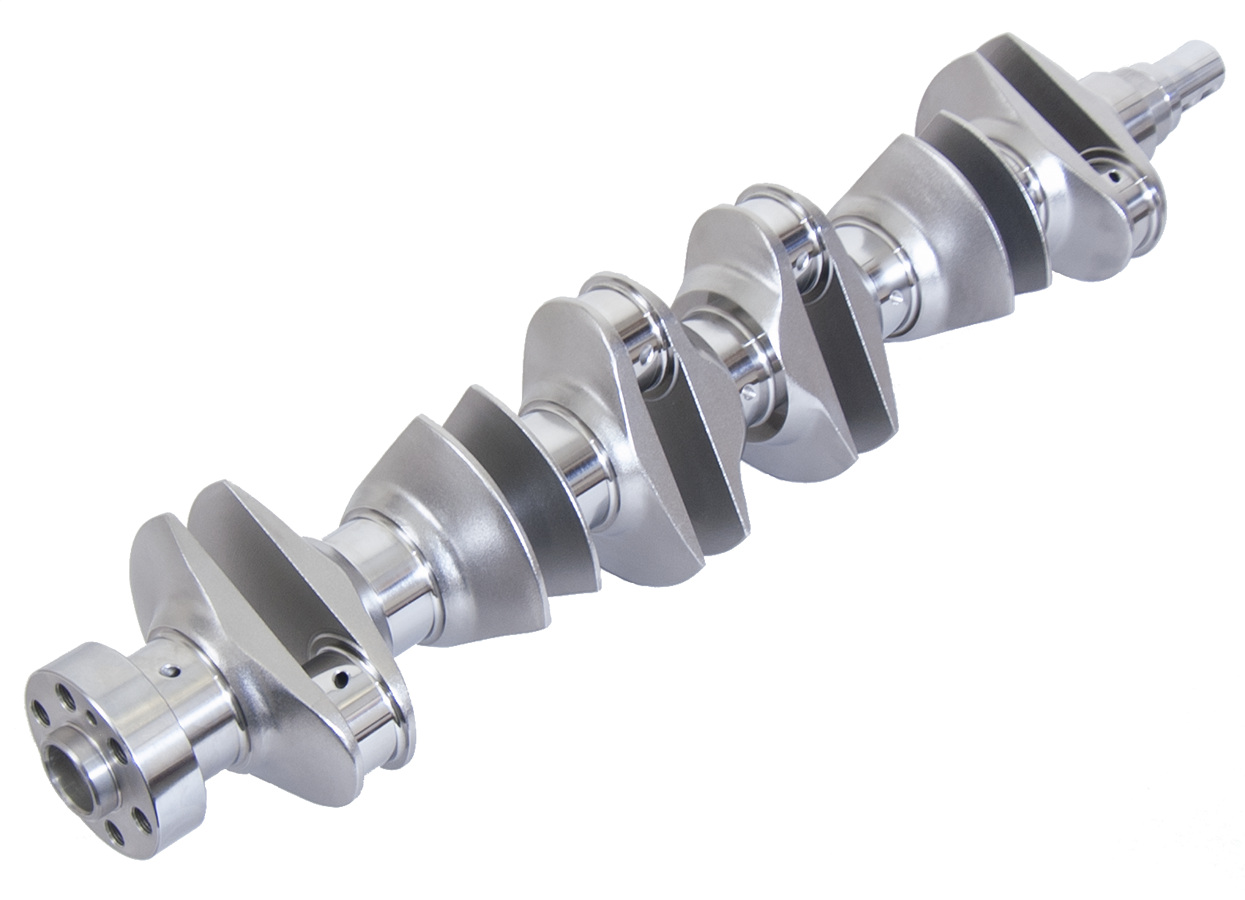

Eagle 3RB230594783 - Nissan RB26 Stroker 4340 Billet Crankshaft
4340 BILLET CRANK NISSAN RB26
Billet 4340 Steel Crank - NISSAN RB26, 3.059" Stroke, KNIFE-EDGED COUNTERWEIGHTS.

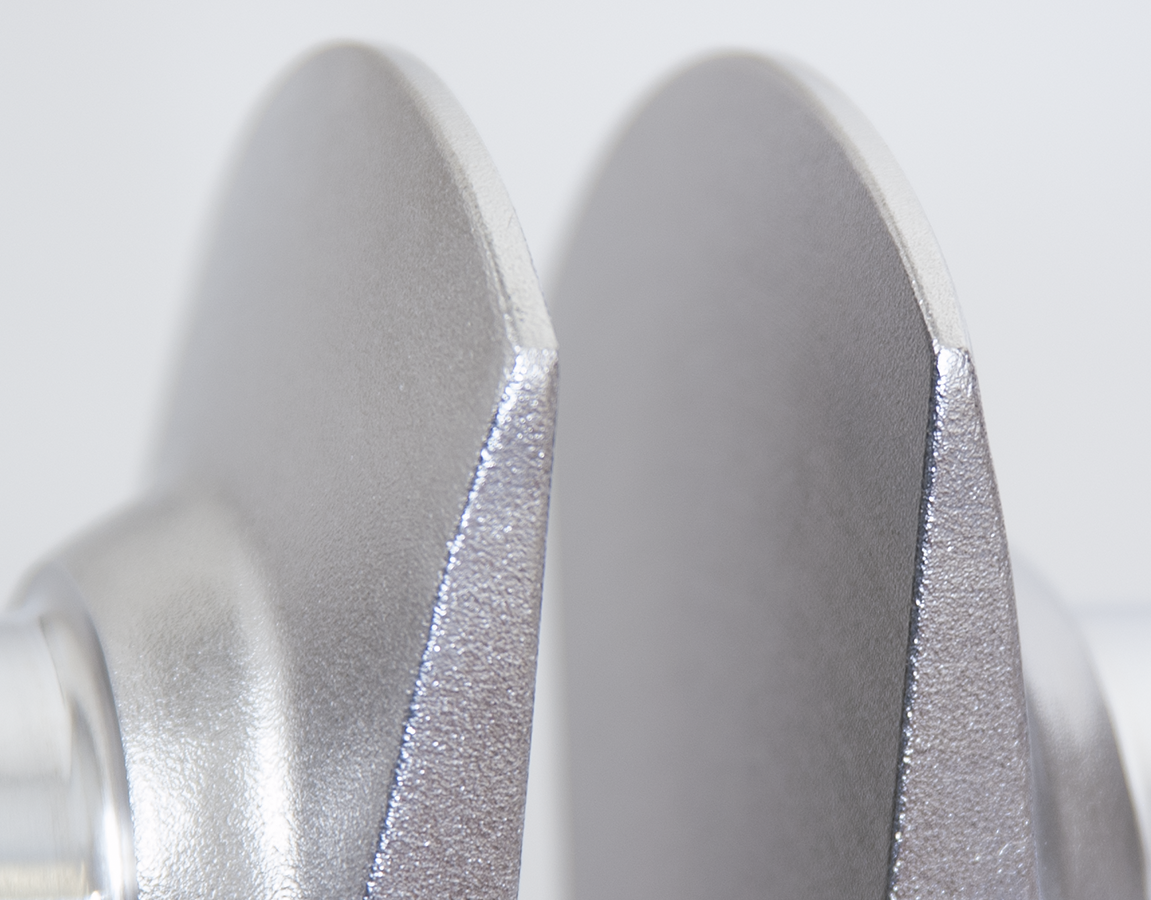

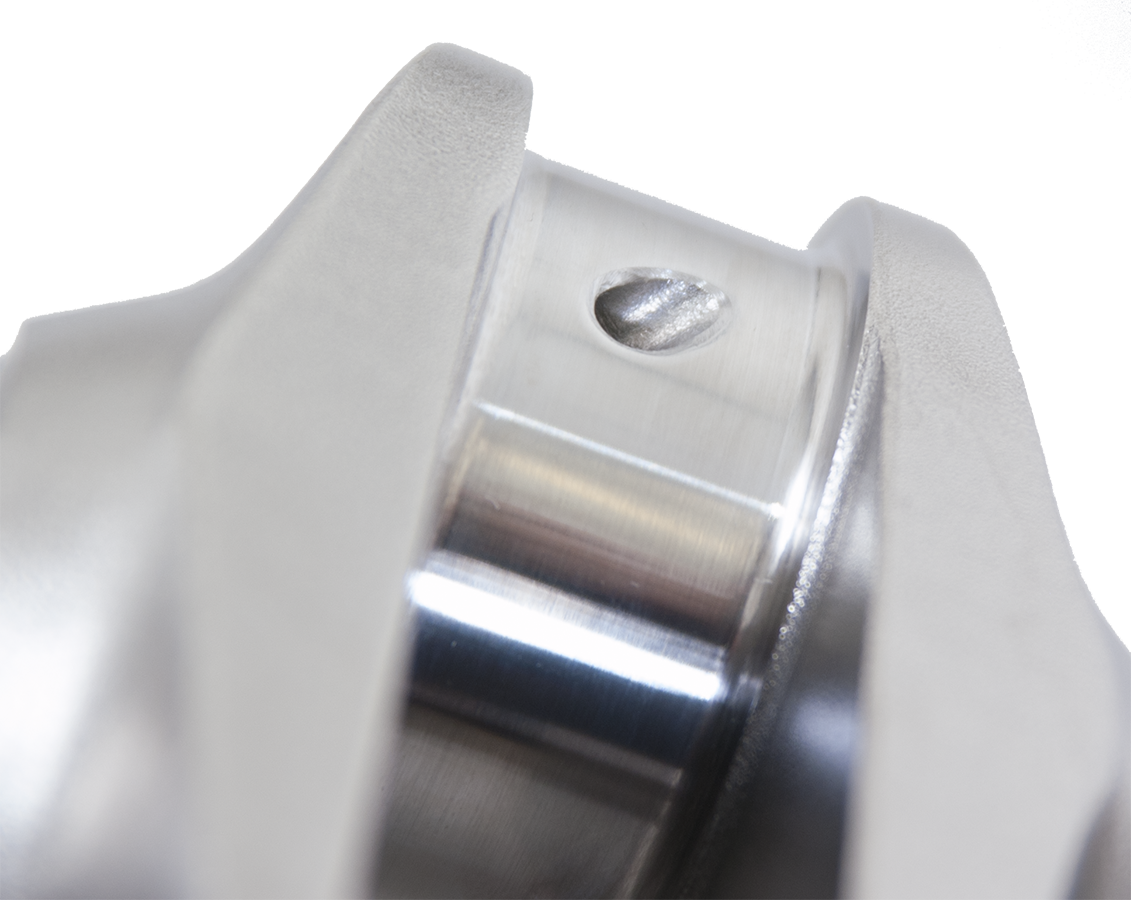

Eagle knife-edged Billet 4340 steel cranks feature knife-edged counterweights to dramatically reduce rotating weight, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications.
Balance Type: Internal
Crankshaft Stroke: 3.059 in
Engine Stroke: 3.059
Flywheel Bolt Count: 8
Flywheel Register Diameter: call
Intended Balance: internal
Main Journal: 2.164 in
Material: Billet 4340 Steel
Minimum Rod Length: 4.783 in
Pilot Bore Diameter: call
Rear Seal Diameter: call
Rod Journal Width: 0.873 in
Rod Journal: 1.888 in
Snout Diameter: call
