Eagle 16003000 - Ford 302 Rotating Assembly Kit with 5.400in I-Beam - Standard Bore
Eagle | SKU:
CFQW-16003000
Sale price
$1,44899
Regular price
$1,60899
Unit price
/
Unavailable
$160.00 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

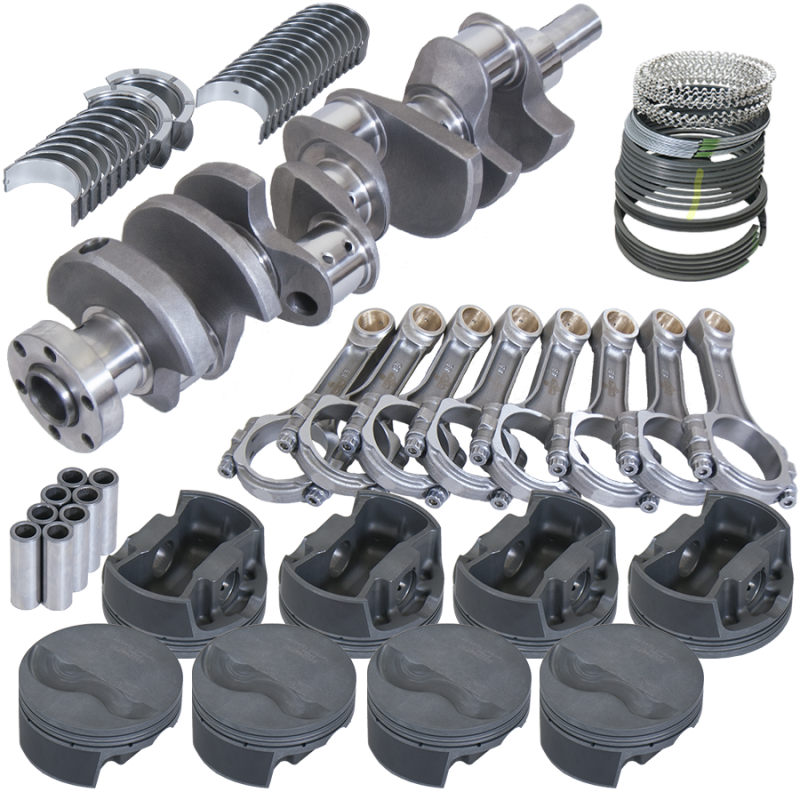

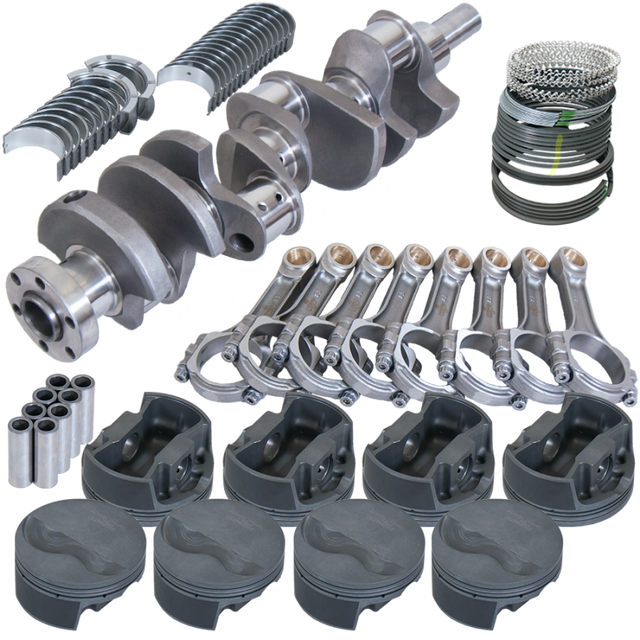

Eagle 16003000 - Ford 302 Rotating Assembly Kit with 5.400in I-Beam - Standard Bore
Street & Strip Assembly Ford 289 / 302
3.400" Cast Crank,5.400" I-BEAM Rods,3/8" ARP 8740 BOLTS,Forged 4032 MAHLE -6CC FLAT TOP 4.000" PISTONS,PLASMA-MOLY FILE-FIT RINGS,KING SI Rod/MAIN BEARINGS.
Eagle Street & Strip Rotating Assemblies are perfect for pump gas, naturally aspirated, street vehicles.
Assembly Balanced: No
Assembly Type: Street & Strip Assembly
Balance Type: External 28in-oz
Bore: 4
Connecting Rod Bolt Diameter: 3/8 in
Connecting Rod Bolt Material: ARP 8740
Connecting Rod Design: I-Beam
Connecting Rod Length: 5.400 in
Connecting Rod Material: Forged 5140 steel
Crankshaft Center Counterweights: No
Crankshaft Flange Bolt Holes: 6
Crankshaft Main Journal Diameter: 2.249 in
Crankshaft Material: Cast Steel
Crankshaft Reluctor: No
Crankshaft Rod Journal Diameter: 2.123 in
Crankshaft Stroke: 3.400 in
Cylinder Bore Diameter: 4.000 in
Damper Included: No
Flexplate/Flywheel Included: No
Main Bearing Type: O.E. Replacement
Main Bearings Included: Yes
Oil Rail Support Included: Yes
Piston Brand: Mahle
Piston Dome Volume: -6cc
Piston Face Type: flat top
Piston Material: Forged 4032 Aluminum
Piston Pin Diameter: .927 in
Piston Pin Type: Full Floating
Piston Ring Gap: Standard
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Type: Flat Top Forged
Product Line: Street & Strip
Rod Bearing Type: O.E. replacement
Rod Bearings Included: Yes
Second Piston Ring Type: Reverse Twist Iron
Thrust Washer Included: No
Top Piston Ring Type: Barrel Faced Plasma-Moly
