Eagle 15101030 - Ford 429/460 Big Block Rotating Assembly Kit with 4.390in Bore 4.140in Stroke +28cc Dome

Eagle  |  SKU: CFQW-15101030
$1,84799 $2,14999

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

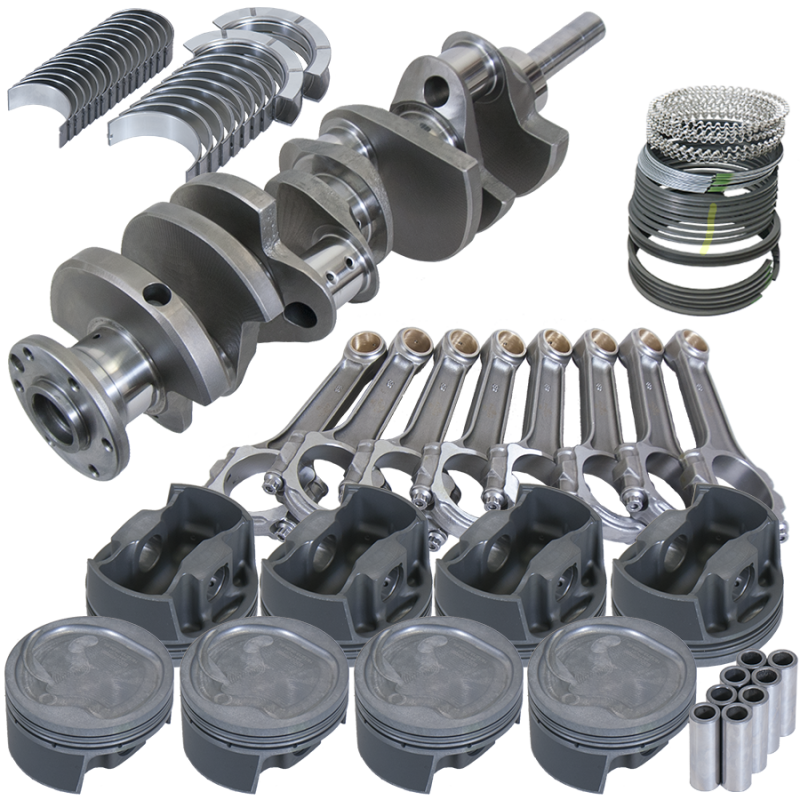

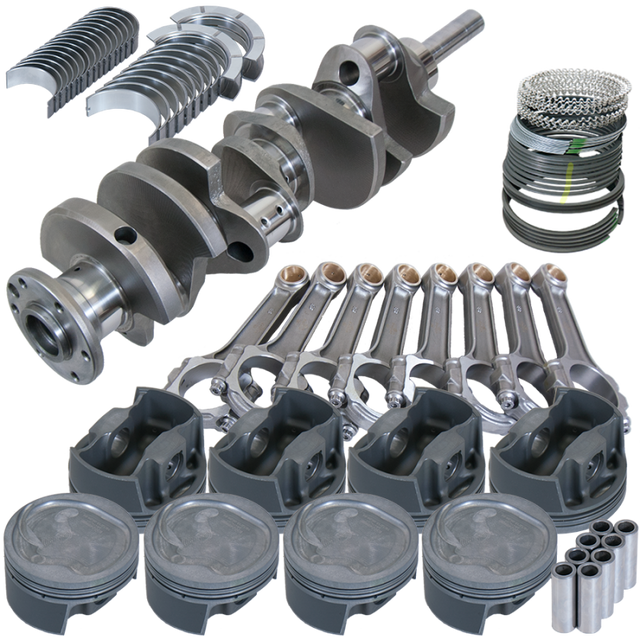

Eagle 15101030 - Ford 429/460 Big Block Rotating Assembly Kit with 4.390in Bore 4.140in Stroke +28cc Dome

Street and Strip Rotating Assembly Ford 429 / 460

4.140" Cast Crank, 6.700" I-Beam Rods, 7/16" ARP 8740 BOLTS,Forged 4032 MAHLE -28CC INV. DOME 4.390" PISTONS,PLASMA-MOLY FILE-FIT RINGS,KING SI ROD/MAIN BEARINGS.

Eagle Street & Strip Rotating Assemblies are the perfect alternative to reworking O.E. Parts. Eagle takes great care to select the most cost effective parts for our Street & Strip assemblies without sacrificing quality. Eagle Street & Strip assemblies are recommended for use in naturally-aspirated, pump gas, street engines.

Piston Pin Type: Full Floating
Piston Ring Gap: file-fit
Piston Ring Thickness: 1.5mm, 1.5mm, 3.0mm
Piston Type: Inverted Dome Forged
Product Line: Street & Strip
Rod Bearing Type: O.E. Replacement
Rod Bearings Included: Yes
Second Piston Ring Type: Reverse Twist Iron
Thrust Washer Included: No
Top Piston Ring Type: Barrel Faced Plasma-Moly
Assembly Balanced: No
Assembly Type: Street & Strip Assembly
Balance Type: internal
Bore: 4.39
Connecting Rod Bolt Diameter: 7/16 in
Connecting Rod Bolt Material: ARP 8740
Connecting Rod Design: I-Beam
Connecting Rod Length: 6.700 in
Connecting Rod Material: Forged 5140 steel
Crankshaft Center Counterweights: No
Crankshaft Flange Bolt Holes: 6
Crankshaft Main Journal Diameter: 3.000 in
Crankshaft Material: Cast Steel
Crankshaft Reluctor: No
Crankshaft Rod Journal Diameter: 2.200 in
Crankshaft Stroke: 4.140 in
Cylinder Bore Diameter: 4.390 in
Damper Included: No
Flexplate/Flywheel Included: No
Main Bearing Type: O.E. Replacement
Main Bearings Included: Yes
Oil Rail Support Included: No
Piston Brand: Mahle
Piston Dome Volume: -28cc
Piston Face Type: inverted dome
Piston Material: Forged 4032 Aluminum
Piston Pin Diameter: .990 in
