Eagle 13202L040 - Chevy LT1350 1Pc 3.480in Crank 5.700in I-Beam Rods -7cc 4.040in Pistons Rotating Assembly
Eagle | SKU:
CFQW-13202L040
Sale price
$1,07299
Regular price
$1,18699
Unit price
/
Unavailable
$114.00 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

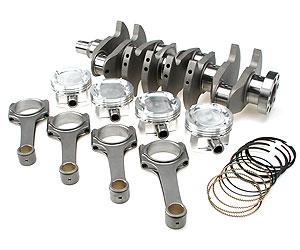

Eagle 13202L040 - Chevy LT1350 1Pc 3.480in Crank 5.700in I-Beam Rods -7cc 4.040in Pistons Rotating Assembly
Street & Strip Assembly Chevy LT1,350 1PC
3.480" Cast Crank,5.700" I-BEAM Rods,3/8" ARP 8740 BOLTS,HYPEREUTECTIC KB -7CC FLAT TOP 4.040" PISTONS,PLASMA-MOLY STANDARD GAP RINGS,KING SI Rod/MAIN BEARINGS.
Eagle Street & Strip Rotating Assemblies are perfect for pump gas, naturally aspirated, street vehicles.
Assembly Balanced: No
Assembly Type: Street & Strip Assembly
Balance Type: combination (interal front, External rear)
Bore: 4.04
Connecting Rod Bolt Diameter: 3/8 in
Connecting Rod Bolt Material: ARP 8740
Connecting Rod Design: I-Beam
Connecting Rod Length: 5.700 in
Connecting Rod Material: Forged 5140 steel
Crankshaft Center Counterweights: No
Crankshaft Flange Bolt Holes: 6
Crankshaft Main Journal Diameter: 2.449 in
Crankshaft Material: Cast Steel
Crankshaft Reluctor: No
Crankshaft Rod Journal Diameter: 2.100 in
Crankshaft Stroke: 3.480 in
Cylinder Bore Diameter: 4.040 in
Damper Included: No
Flexplate/Flywheel Included: No
Main Bearing Type: O.E. Replacement
Main Bearings Included: Yes
Oil Rail Support Included: No
Piston Brand: KB
Piston Dome Volume: -7cc
Piston Face Type: flat top
Piston Material: hypereutectic Aluminum
Piston Pin Diameter: .927 in
Piston Pin Type: Full Floating
Piston Ring Gap: file-fit
Piston Ring Thickness: 5/64 in, 5/64 in, 3/16 in
Piston Type: Flat Top Hypereutectic
Product Line: Street & Strip
Rod Bearing Type: O.E. replacement
Rod Bearings Included: Yes
Second Piston Ring Type: Reverse Twist Iron
Thrust Washer Included: No
Top Piston Ring Type: Barrel Faced Plasma-Moly
