Eagle 13055030 - SBC 383 Internal Rotating Assembly 2 Piece Rear Seal w/ .030in Over Bore

Eagle  |  MPN: 13055030  |  SKU: CFQW-13055030
$1,07399 $1,23299

Description

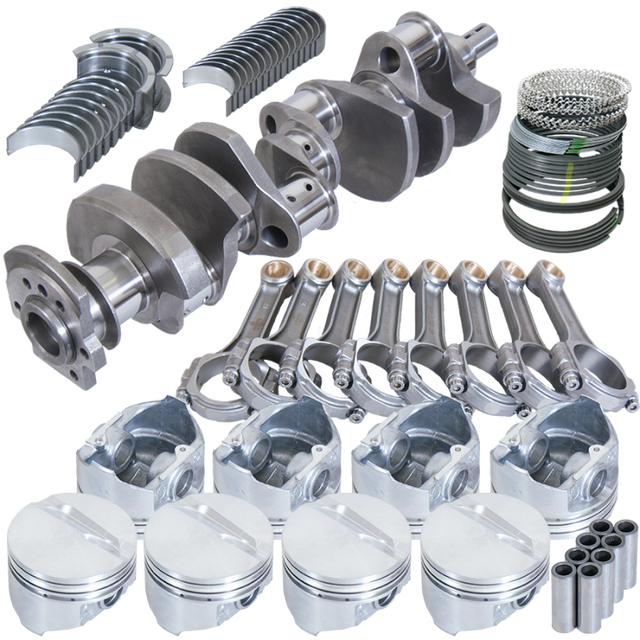

Eagle 13055030 - SBC 383 Internal Rotating Assembly 2 Piece Rear Seal w/ .030in Over Bore

Rotating Assembly - 383 CID - Cast Crank - Hypereutectic Pistons - 3.480 in Stroke - 4.030 in Bore - 5.700 in I Beam Rods - Small Block Chevy - Kit

Street & Strip Rotating Assembly,3.750" cast crank,5.700" I-Beam rods,3/8" ARP 8740 bolts,hypereutectic KB -7cc flat top 4.030" pistons,plasma-moly standard g Ap rings,King SI rod/main bearings.

Eagle Street & Strip Rotating Assemblies are the perfect alternative to reworking O.E. Parts. Eagle takes great care to select the most cost effective parts for our Street & Strip assemblies without sacrificing quality. Eagle Street & Strip assemblies are recommended for use in naturally-aspirated, pump g As, street engines.

Assembly Balanced: No
Assembly Type: Street & Strip Assembly
Balance Type: internal
Bore: 4.03
Connecting Rod Bolt Diameter: 3/8 in
Connecting Rod Bolt Material: ARP 8740
Connecting Rod Design: I-Beam
Connecting Rod Length: 5.700 in
Connecting Rod Material: Forged 5140 steel
Crankshaft Center Counterweights: No
Crankshaft Flange Bolt Holes: 6
Crankshaft Main Journal Diameter: 2.449 in
Crankshaft Material: Cast Steel
Crankshaft Reluctor: No
Crankshaft Rod Journal Diameter: 2.100 in
Crankshaft Stroke: 3.750 in
Cylinder Bore Diameter: 4.030 in
Damper Included: No
Flexplate/Flywheel Included: No
Main Bearing Type: O.E. Replacement
Main Bearings Included: Yes
Oil Rail Support Included: No
Piston Brand: KB
Piston Dome Volume: -7cc
Piston Face Type: flat top
Piston Material: hypereutectic Aluminum
Piston Pin Diameter: .927 in
Piston Pin Type: Full Floating
Piston Ring Gap: Standard
Piston Ring Thickness: 5/64 in, 5/64 in, 3/16 in
Piston Type: Flat Top Hypereutectic
Product Line: Street & Strip
Rod Bearing Type: O.E. replacement
Rod Bearings Included: Yes
Second Piston Ring Type: Reverse Twist Iron
Thrust Washer Included: No
Top Piston Ring Type: Barrel Faced Plasma-Moly
