Eagle 129384030 - Chevrolet/Pontiac LS-Series Competition Assembly 4.030in Bore 6.125in H-Beam

Eagle  |  SKU: CFQW-129384030
$2,47699 $2,76199

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Eagle 129384030 - Chevrolet/Pontiac LS-Series Competition Assembly 4.030in Bore 6.125in H-Beam

Competition Assembly Chevy LS3

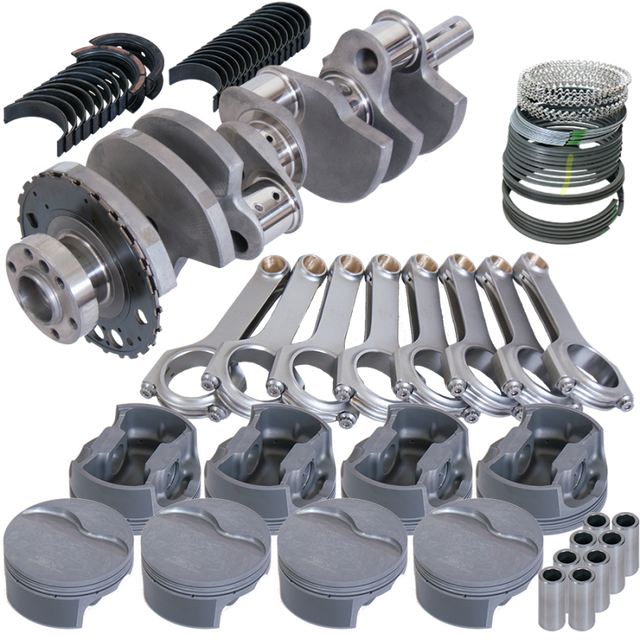

4.000" Forged 4340 Crank, 24 TOOTH RELUCTOR,6.125" H-BEAM Rods,7/16" ARP 8740 BOLTS,Forged 4032 MAHLE -4CC FLAT TOP 4.030" PISTONS,PLASMA-MOLY FILE FIT RINGS,KING XP Rod/MAIN BEARINGS.

Eagle Competition Rotating Assemblies are perfect for all forms of racing use including nitrous and forced-induction.

Assembly Balanced: No
Assembly Type: Competition Assembly
Balance Type: internal
Bore: 4.03
Connecting Rod Bolt Diameter: 7/16 in
Connecting Rod Bolt Material: ARP 8740
Connecting Rod Design: H-Beam
Connecting Rod Length: 6.125 in
Connecting Rod Material: Forged 4340 Steel
Crankshaft Center Counterweights: No
Crankshaft Flange Bolt Holes: 6
Crankshaft Main Journal Diameter: 2.559 in
Crankshaft Material: Forged 4340 Steel
Crankshaft Reluctor: 24 tooth
Crankshaft Rod Journal Diameter: 2.100 in
Crankshaft Stroke: 4.000 in
Cylinder Bore Diameter: 4.030 in
Damper Included: No
Flexplate/Flywheel Included: No
Main Bearing Type: hardened, chamfered or narrowed
Main Bearings Included: Yes
Oil Rail Support Included: Yes
Piston Brand: Mahle
Piston Dome Volume: -4cc
Piston Face Type: flat top
Piston Material: Forged 4032 Aluminum
Piston Pin Diameter: .927 in
Piston Pin Type: Full Floating
Piston Ring Gap: file fit
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Type: Flat Top Forged
Product Line: Competition
Rod Bearing Type: hardened, chamfered or narrowed
Rod Bearings Included: Yes
Second Piston Ring Type: Reverse Twist Iron
Thrust Washer Included: No
Top Piston Ring Type: Barrel Faced Plasma-Moly
