Eagle 129264010 - Rotating Assembly Kit for Chevrolet/Pontiac LS-Series 403/408cu.in. - 4.010in Bore

Eagle  |  SKU: CFQW-129264010
$2,56599 $2,86999

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

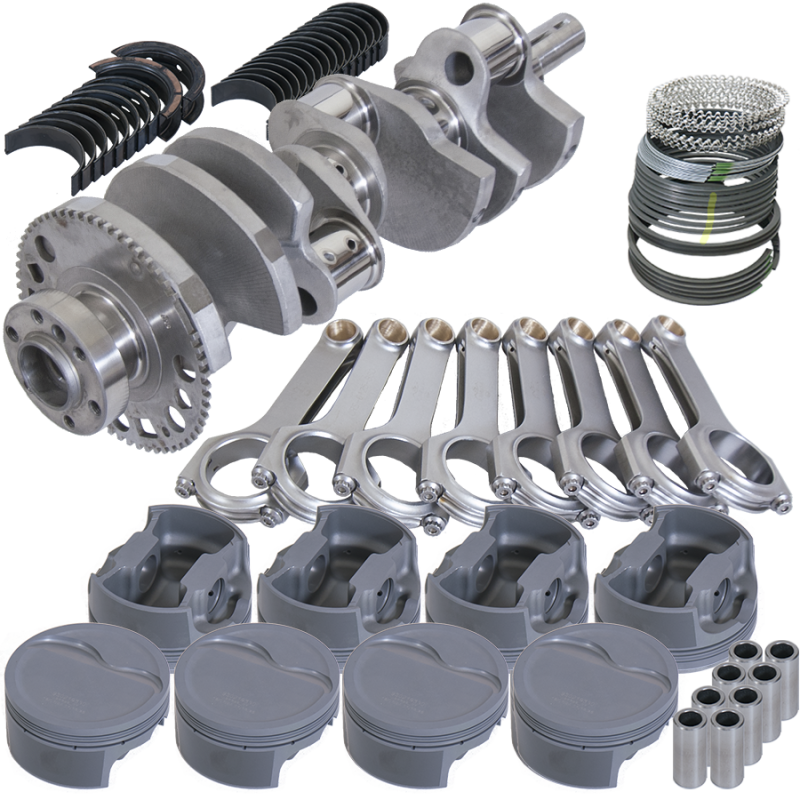

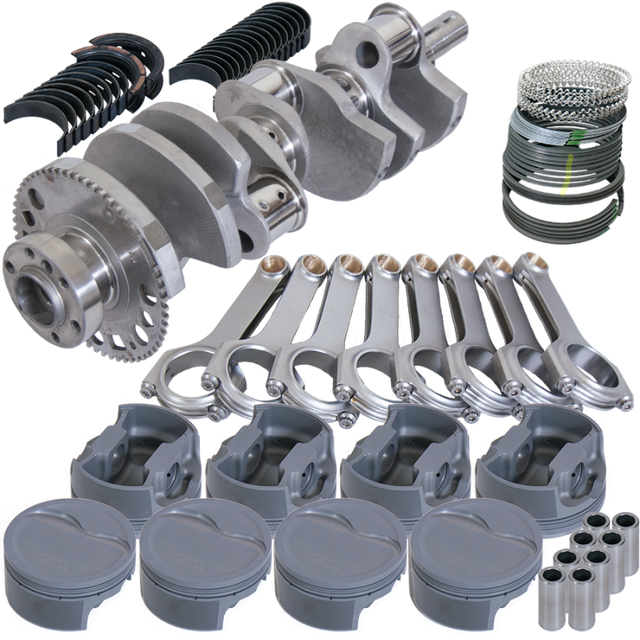

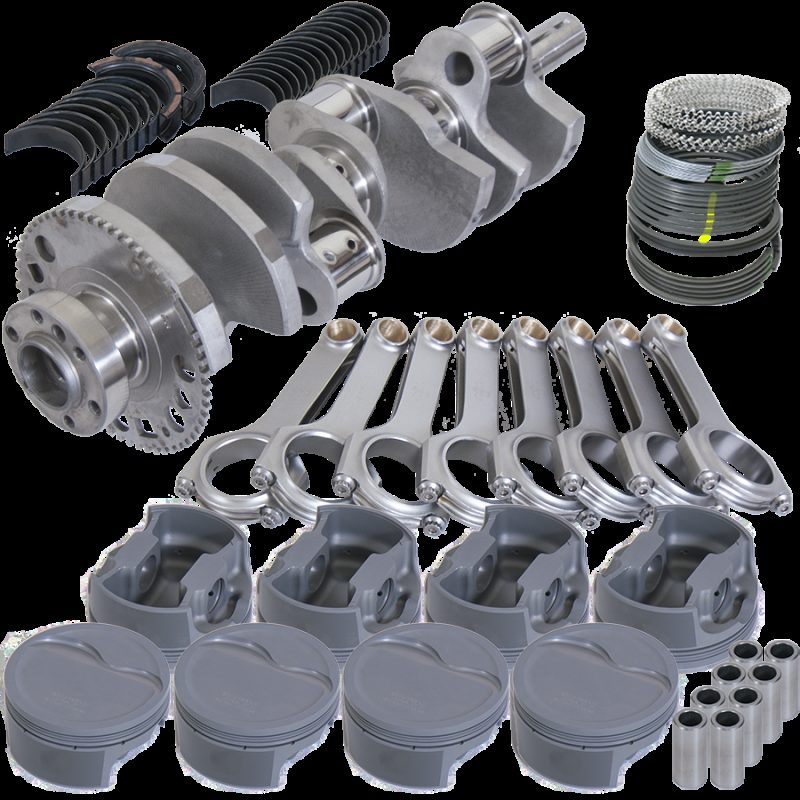

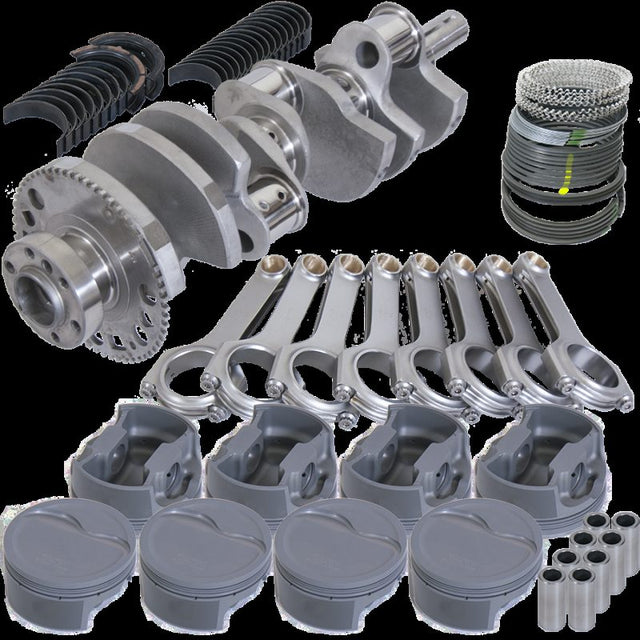

Eagle 129264010 - Rotating Assembly Kit for Chevrolet/Pontiac LS-Series 403/408cu.in. - 4.010in Bore

Chvrolet LS2 Competition Rotating Assembly

Competition Assembly,4.000" forged 4340 crank, 58 tooth reluctor,6.125" I-Beam rods,7/16" ARP 8740 bolts,forged 4032 Mahle -12cc inv. dome 4.010" pistons,plasma-moly file fit rings,King XP rod/main bearings.

Eagle Competition Rotating Assemblies are the perfect choice for your racing engine. Eagle takes great care to select the best parts to makimize performance, reliability, and durability without breaking the bank. Eagle competition assemblies are recommended for use in racing engines including exotic fuels, nitrous, and forced-induction.

Assembly Balanced: No
Assembly Type: Competition Assembly
Balance Type: internal
Bore: 4.01
Connecting Rod Bolt Diameter: 7/16 in
Connecting Rod Bolt Material: ARP 8740
Connecting Rod Design: H-Beam
Connecting Rod Length: 6.125 in
Connecting Rod Material: Forged 4340 Steel
Crankshaft Center Counterweights: No
Crankshaft Flange Bolt Holes: 6
Crankshaft Main Journal Diameter: 2.559 in
Crankshaft Material: Forged 4340 Steel
Crankshaft Reluctor: 58 tooth
Crankshaft Rod Journal Diameter: 2.100 in
Crankshaft Stroke: 4.000 in
Cylinder Bore Diameter: 4.010 in
Damper Included: No
Flexplate/Flywheel Included: No
Main Bearing Type: hardened, chamfered or narrowed
Main Bearings Included: Yes
Oil Rail Support Included: Yes
Piston Brand: Mahle
Piston Dome Volume: -12cc
Piston Face Type: inverted dome
Piston Material: Forged 4032 Aluminum
Piston Pin Diameter: .927 in
Piston Pin Type: Full Floating
Piston Ring Gap: file fit
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Type: Inverted Dome Forged
Product Line: Competition
Rod Bearing Type: hardened, chamfered or narrowed
Rod Bearings Included: Yes
Second Piston Ring Type: Reverse Twist Iron
Thrust Washer Included: No
Top Piston Ring Type: Barrel Faced Plasma-Moly
