Eagle 129104005 - Competition Rotating Assembly Kit for Chevrolet/Pontiac LS-Series 4.005in Bore
Eagle | SKU:
CFQW-129104005
Sale price
$2,54799
Regular price
$2,84099
Unit price
/
Unavailable
$293.00 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

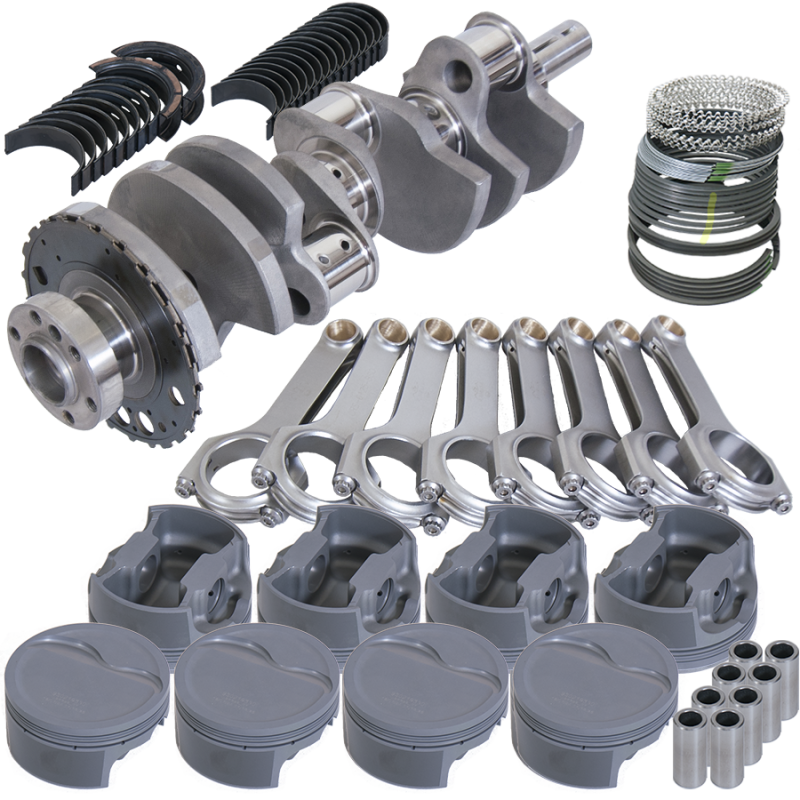

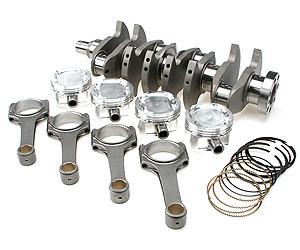

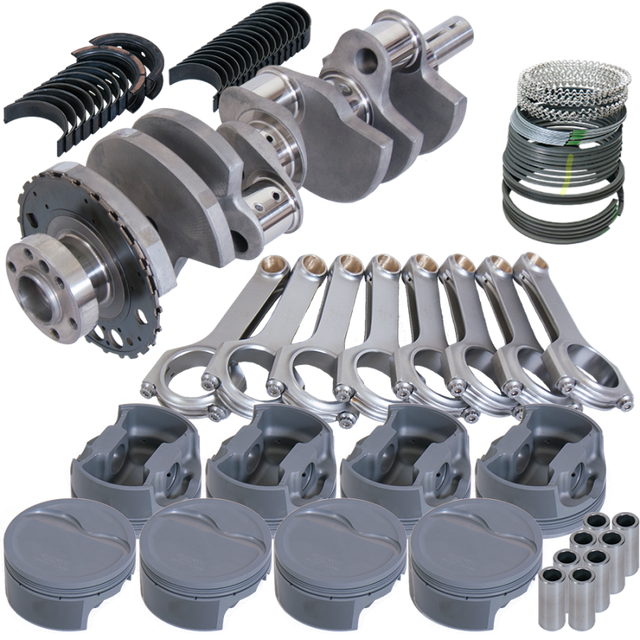

Eagle 129104005 - Competition Rotating Assembly Kit for Chevrolet/Pontiac LS-Series 4.005in Bore
Competition Assembly Chevy LS2
4.000" Forged 4340 Crank, 24 TOOTH RELUCTOR,6.125" H-BEAM Rods,7/16" ARP 8740 BOLTS,Forged 4032 MAHLE -12CC INV. DOME 4.005" PISTONS,PLASMA-MOLY FILE FIT RINGS,KING XP Rod/MAIN BEARINGS.
Eagle Competition Rotating Assemblies are perfect for all forms of racing use including nitrous and forced-induction.
Assembly Balanced: No
Assembly Type: Competition Assembly
Balance Type: internal
Bore: 4.005
Connecting Rod Bolt Diameter: 7/16 in
Connecting Rod Bolt Material: ARP 8740
Connecting Rod Design: H-Beam
Connecting Rod Length: 6.125 in
Connecting Rod Material: Forged 4340 Steel
Crankshaft Center Counterweights: No
Crankshaft Flange Bolt Holes: 6
Crankshaft Main Journal Diameter: 2.559 in
Crankshaft Material: Forged 4340 Steel
Crankshaft Reluctor: 24 tooth
Crankshaft Rod Journal Diameter: 2.100 in
Crankshaft Stroke: 4.000 in
Cylinder Bore Diameter: 4.005 in
Damper Included: No
Flexplate/Flywheel Included: No
Main Bearing Type: hardened, chamfered or narrowed
Main Bearings Included: Yes
Oil Rail Support Included: Yes
Piston Brand: Mahle
Piston Dome Volume: -12cc
Piston Face Type: inverted dome
Piston Material: Forged 4032 Aluminum
Piston Pin Diameter: .927 in
Piston Pin Type: Full Floating
Piston Ring Gap: file fit
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Type: Inverted Dome Forged
Product Line: Competition
Rod Bearing Type: hardened, chamfered or narrowed
Rod Bearings Included: Yes
Second Piston Ring Type: Reverse Twist Iron
Thrust Washer Included: No
Top Piston Ring Type: Barrel Faced Plasma-Moly
