Eagle 127264030 - Chevrole LS2 408 Cid Competition Rotating Assembly
Eagle | SKU:
CFQW-127264030
Sale price
$2,56099
Regular price
$2,98599
Unit price
/
Unavailable
$425.00 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

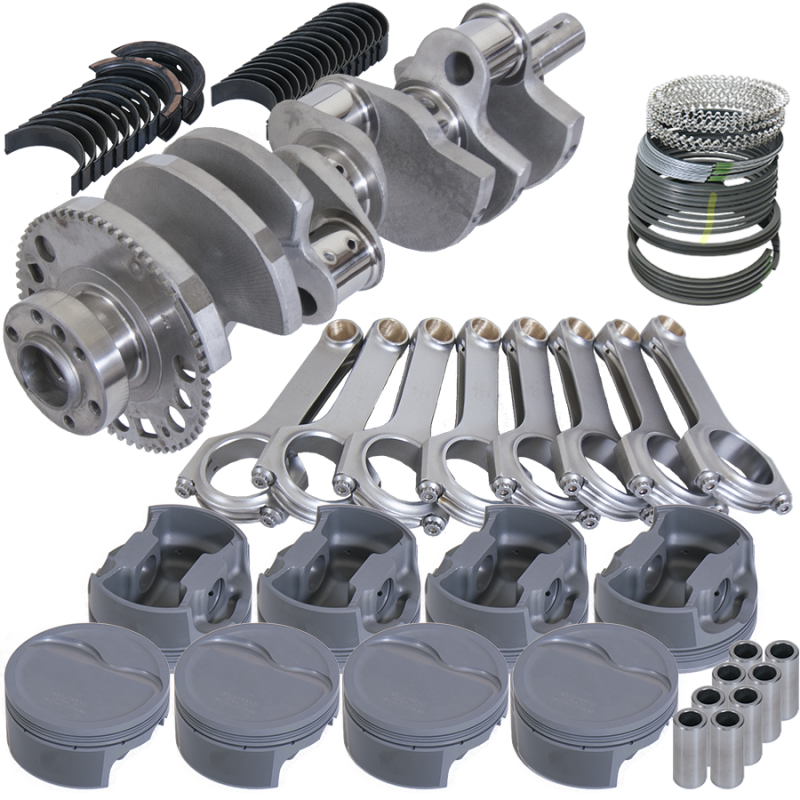

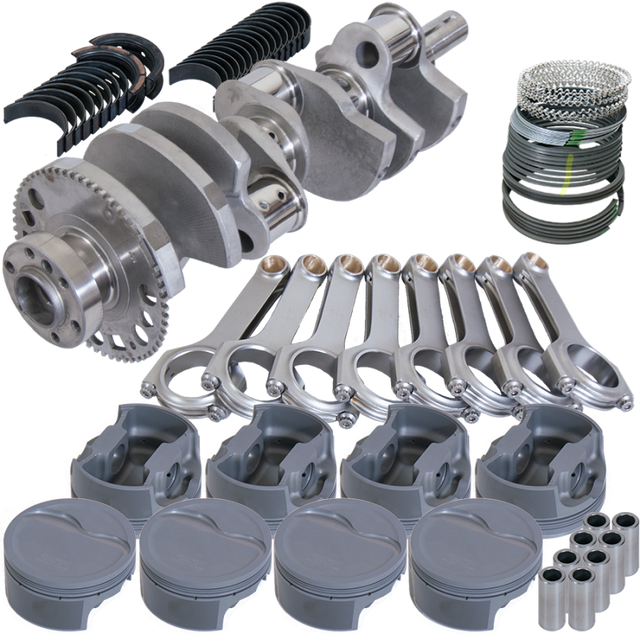

Eagle 127264030 - Chevrole LS2 408 Cid Competition Rotating Assembly
Competition Assembly Chevy LS2
4.000" Forged 4340 LONG SNOUT Crank, 58 TOOTH RELUCTOR,6.125" I-BEAM Rods,7/16" ARP 8740 BOLTS,Forged 4032 MAHLE -12CC INVERTED DOME 4.030" PISTONS,PLASMA-MOLY FILE FIT RINGS,KING XP Rod/MAIN BEARINGS.
Eagle Competition Rotating Assemblies are perfect for all forms of racing use including nitrous and forced-induction.
Assembly Balanced: No
Assembly Type: Competition Assembly
Balance Type: internal
Bore: 4.03
Connecting Rod Bolt Diameter: 7/16 in
Connecting Rod Bolt Material: ARP 8740
Connecting Rod Design: H-Beam
Connecting Rod Length: 6.125 in
Connecting Rod Material: Forged 4340 Steel
Crankshaft Center Counterweights: No
Crankshaft Feature: long sNout for dry sump oiling system
Crankshaft Flange Bolt Holes: 6
Crankshaft Main Journal Diameter: 2.559 in
Crankshaft Material: Forged 4340 Steel
Crankshaft Reluctor: 58 tooth
Crankshaft Rod Journal Diameter: 2.100 in
Crankshaft Stroke: 4.000 in
Cylinder Bore Diameter: 4.030 in
Damper Included: No
Flexplate/Flywheel Included: No
Main Bearing Type: hardened, chamfered or narrowed
Main Bearings Included: Yes
Oil Rail Support Included: Yes
Piston Brand: Mahle
Piston Dome Volume: -12cc
Piston Face Type: inverted dome
Piston Material: Forged 4032 Aluminum
Piston Pin Diameter: .927 in
Piston Pin Type: Full Floating
Piston Ring Gap: file fit
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Type: Inverted Dome Forged
Product Line: Competition
Rod Bearing Type: hardened, chamfered or narrowed
Rod Bearings Included: Yes
Second Piston Ring Type: Reverse Twist Iron
Thrust Washer Included: No
Top Piston Ring Type: Barrel Faced Plasma-Moly
