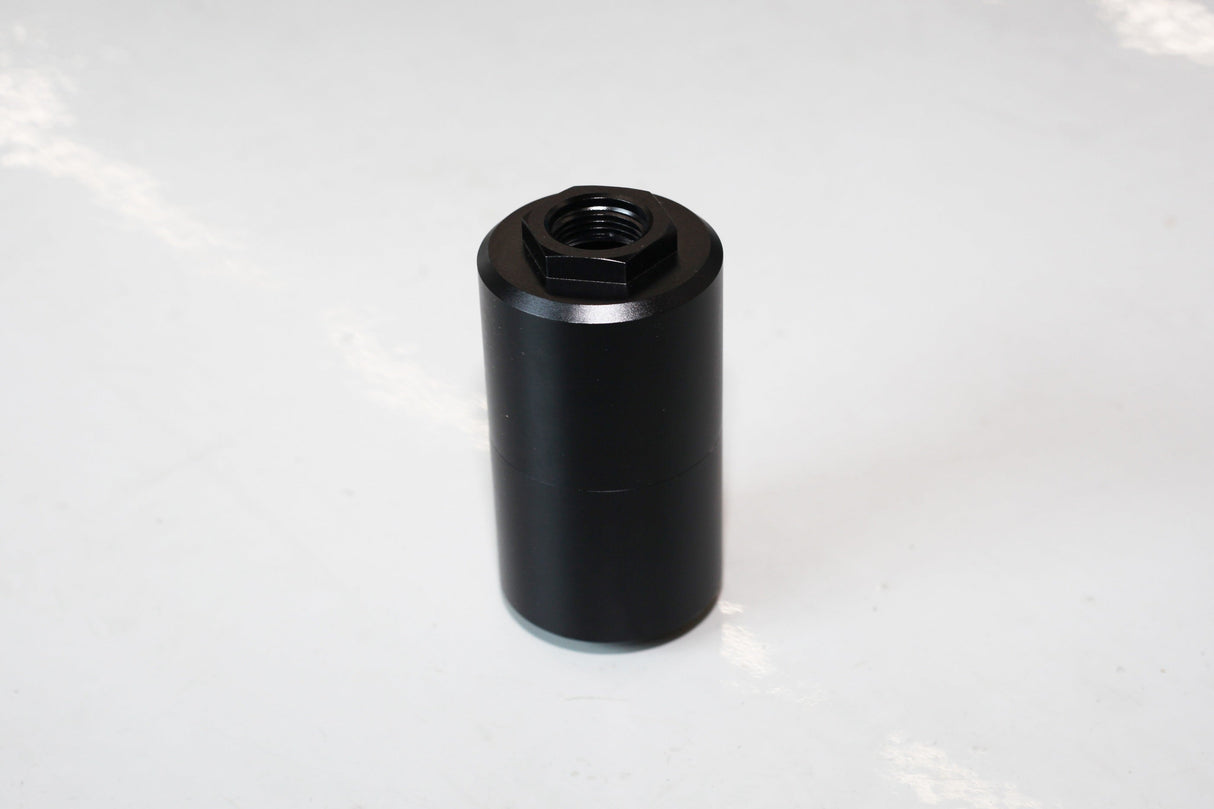

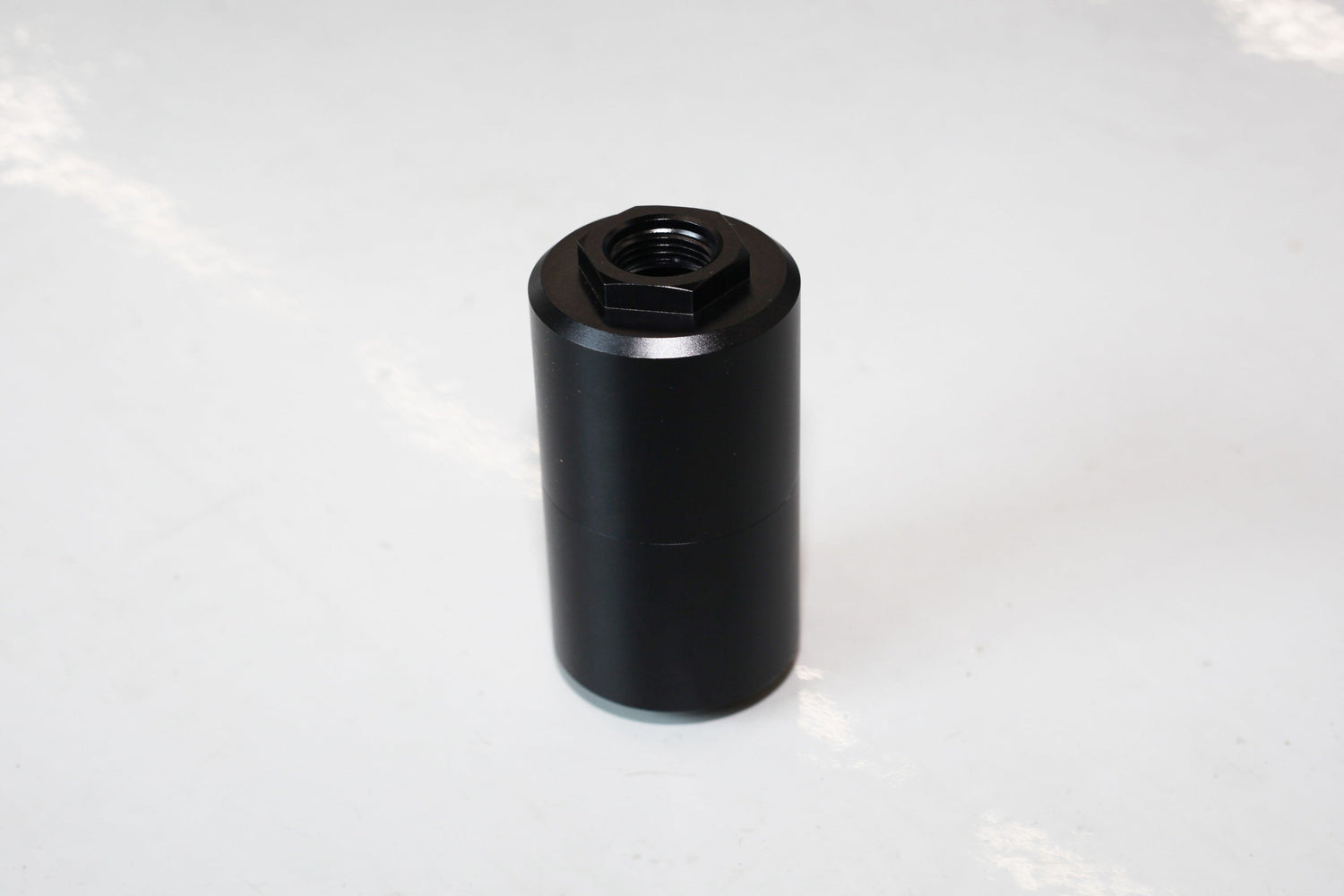

DSX Tuning Fuel Filter

This filter is intended for placement after fuel pumps to protect fuel injectors from contaminants and debris in fuel. The filter housing is modular and able to work with two different elements offered exclusively through DSX Tuning. All o-rings exposed to fuel are made from fluorosilicone for the ultimate in fuel compatibility. The inlet and outlet are both 10ORB connections so you can adapt to whatever you need.

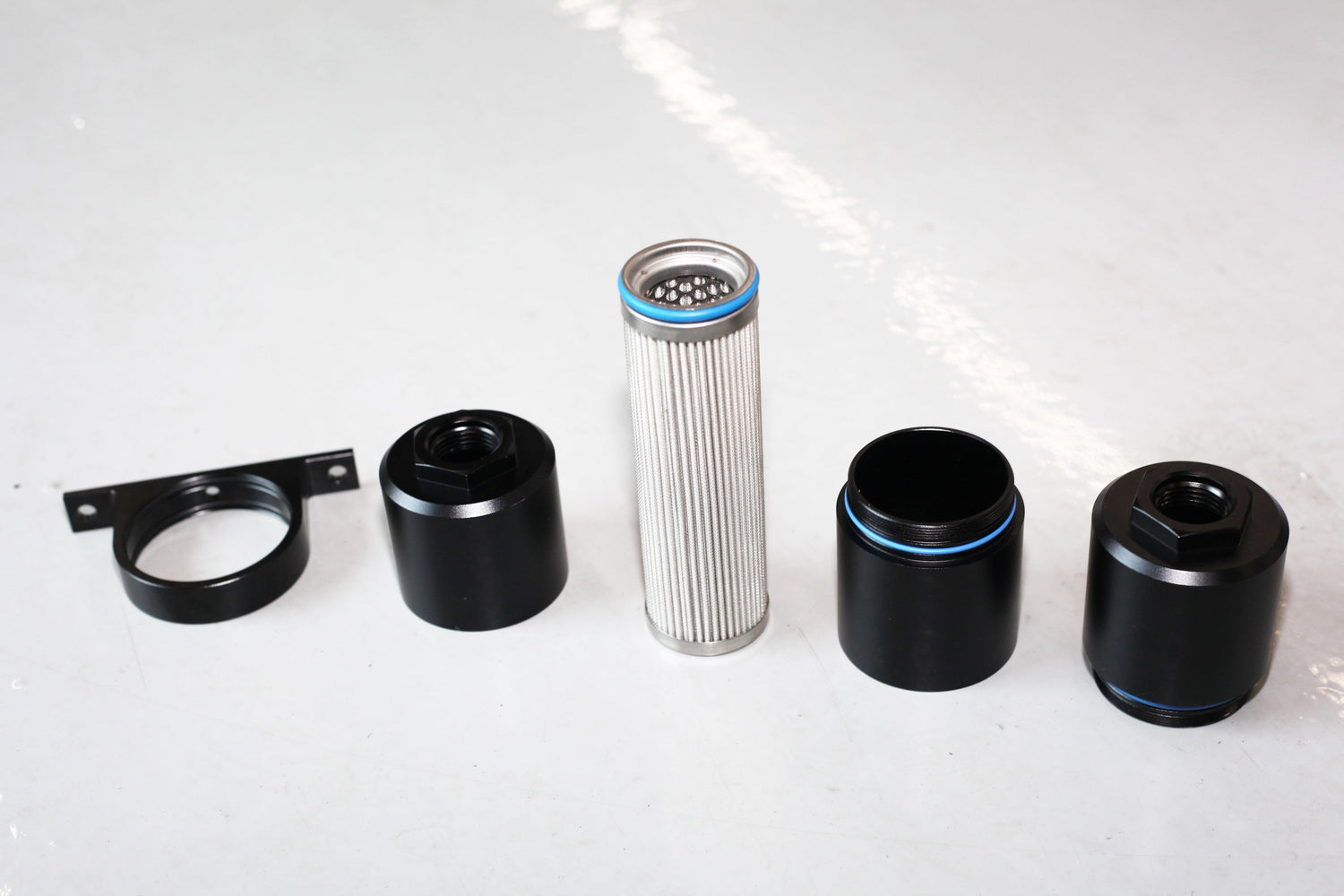

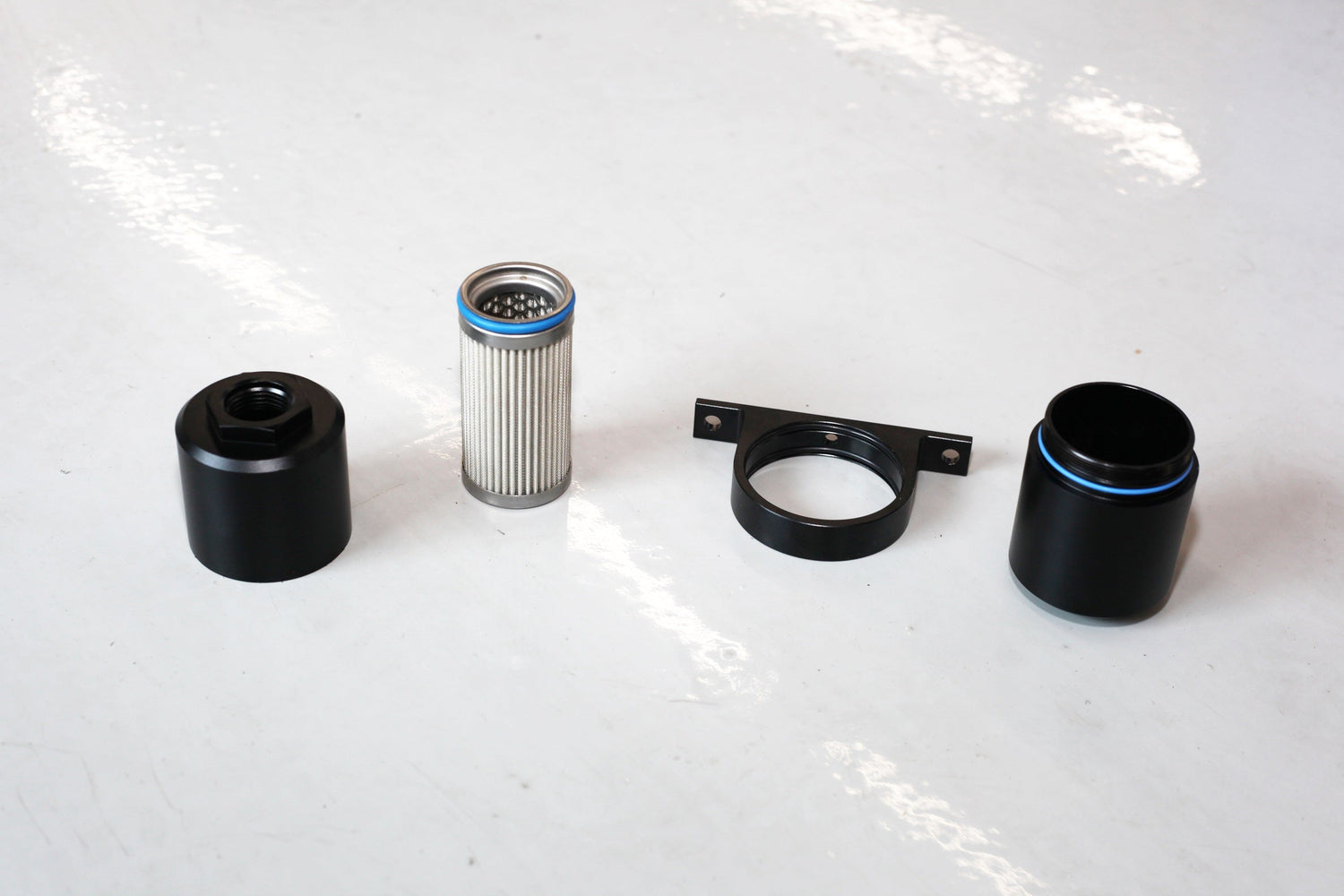

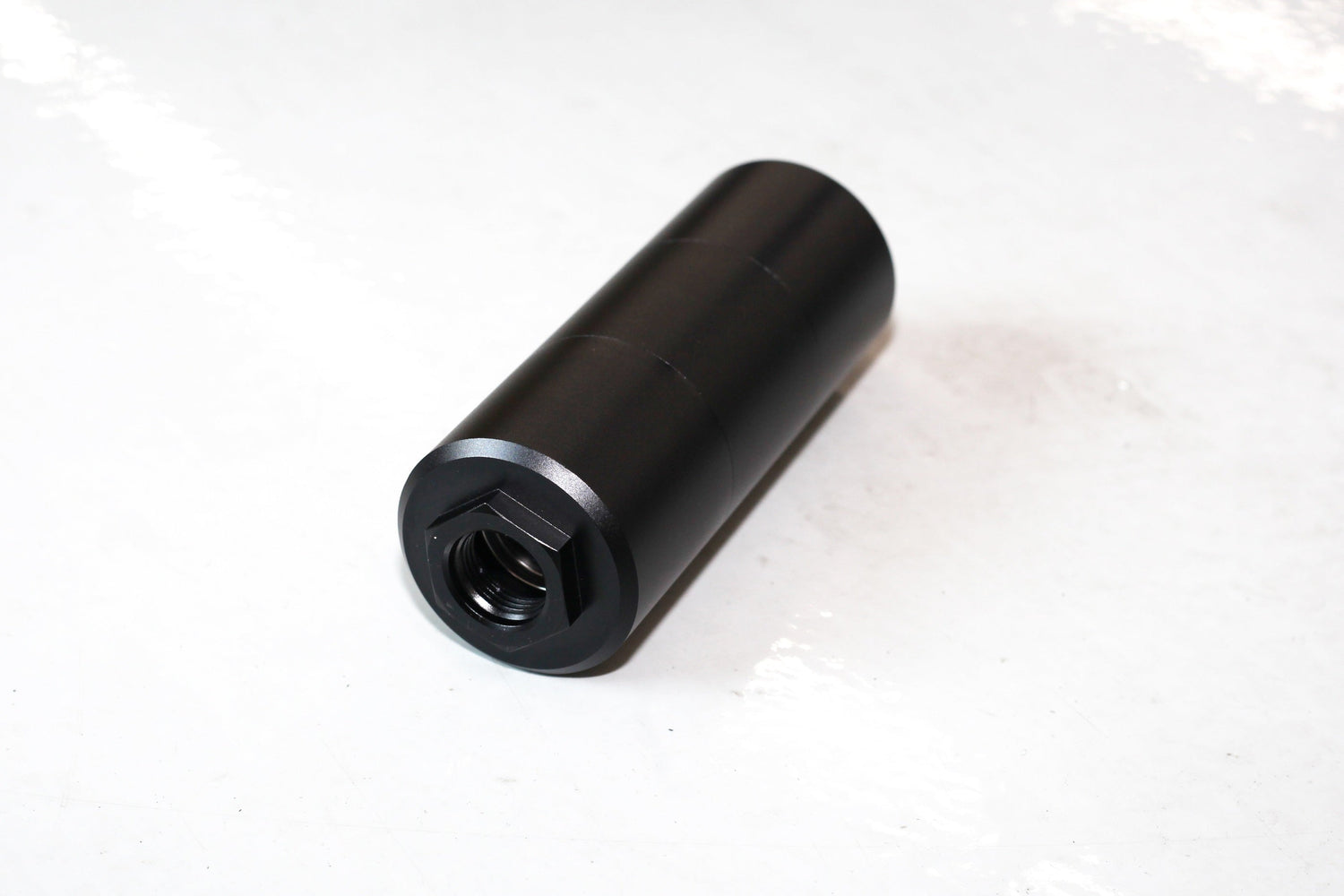

The filter elements are 12μm fiberglass elements available in 80mm and 130mm lengths which meet the filtration requirements for Injector Dynamics. The standard housing accepts the 80mm element while the extension pieces allows the use of the 130mm element if you decide to upgrade later on.

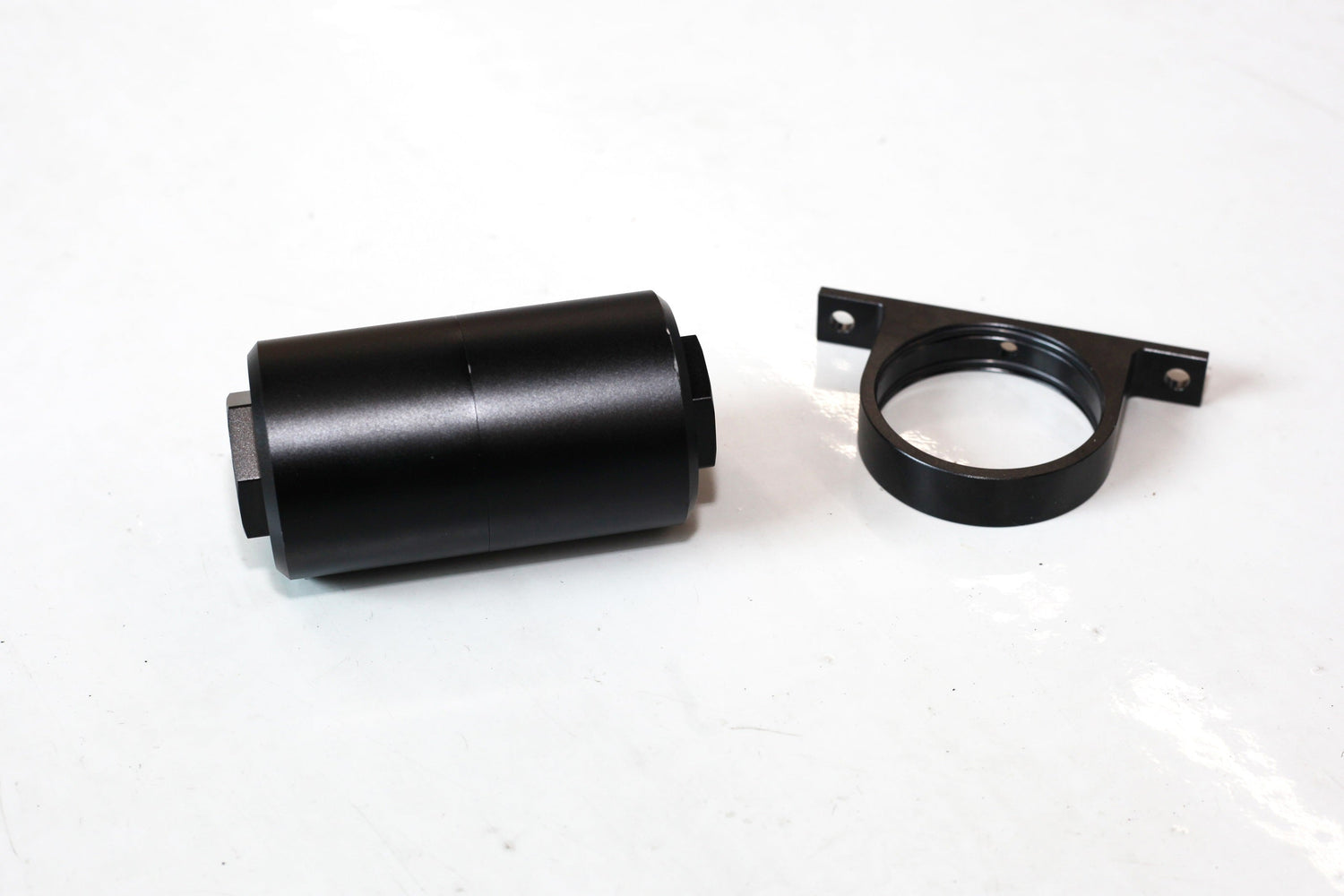

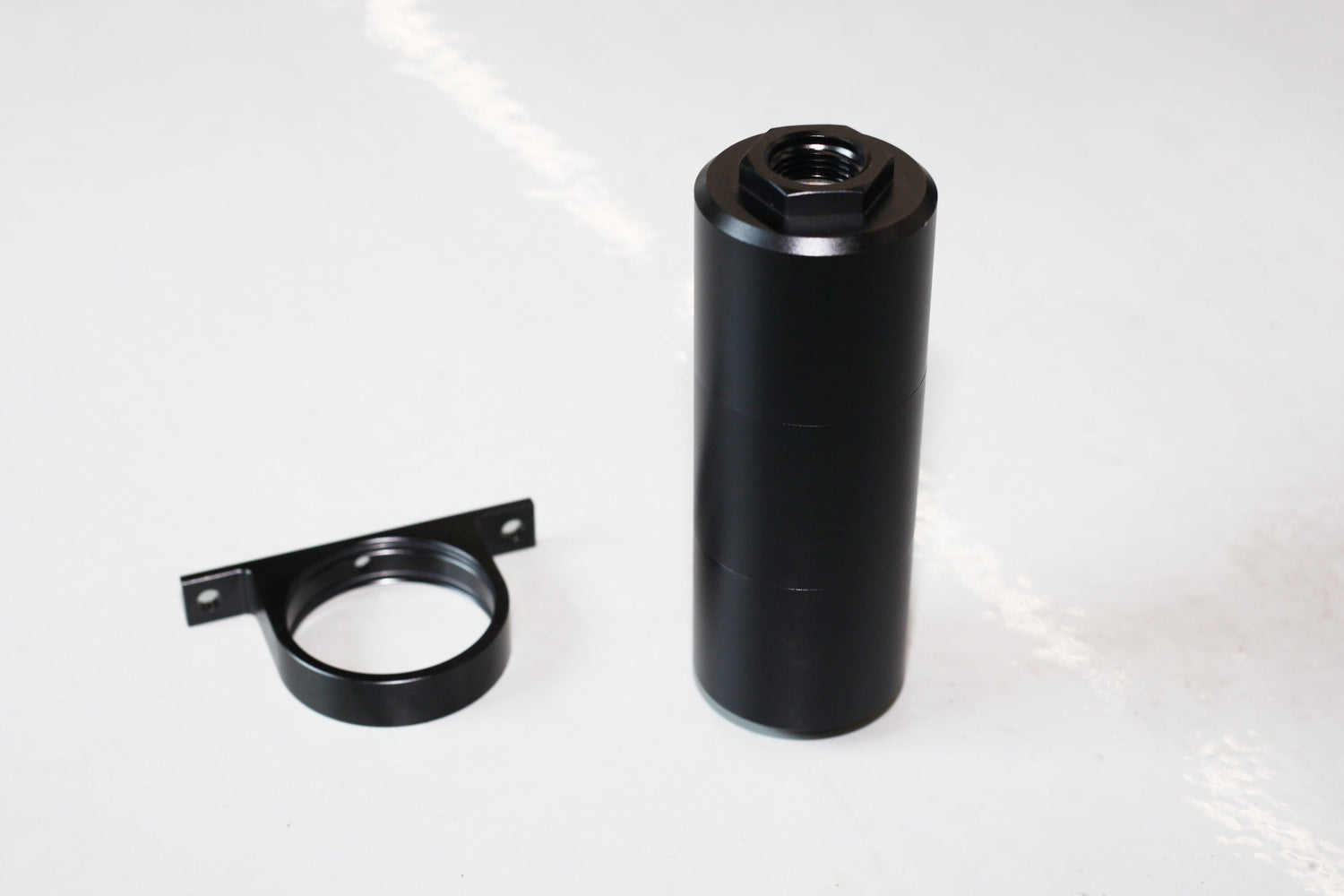

An optional mount is available that uses o-rings and a set screw to hold the housing in place.

Laser engraving and branding is available for resellers buying in quantities!
