DS18 ZR500.1D - ZR Class D 1-Channel Monoblock Amplifier 500 Watts RMS

DS18 ZR500.1D - ZR Class D 1-Channel Monoblock Amplifier 500 Watts RMS

DS18 ZR500.1D ZR Class D 1-Channel Monoblock Amplifier. 500 Watts RMS. DS18's ZR series of amplifiers are guaranteed to supercharge your sound system to deliver brilliant sound and bulky bass frequencies.

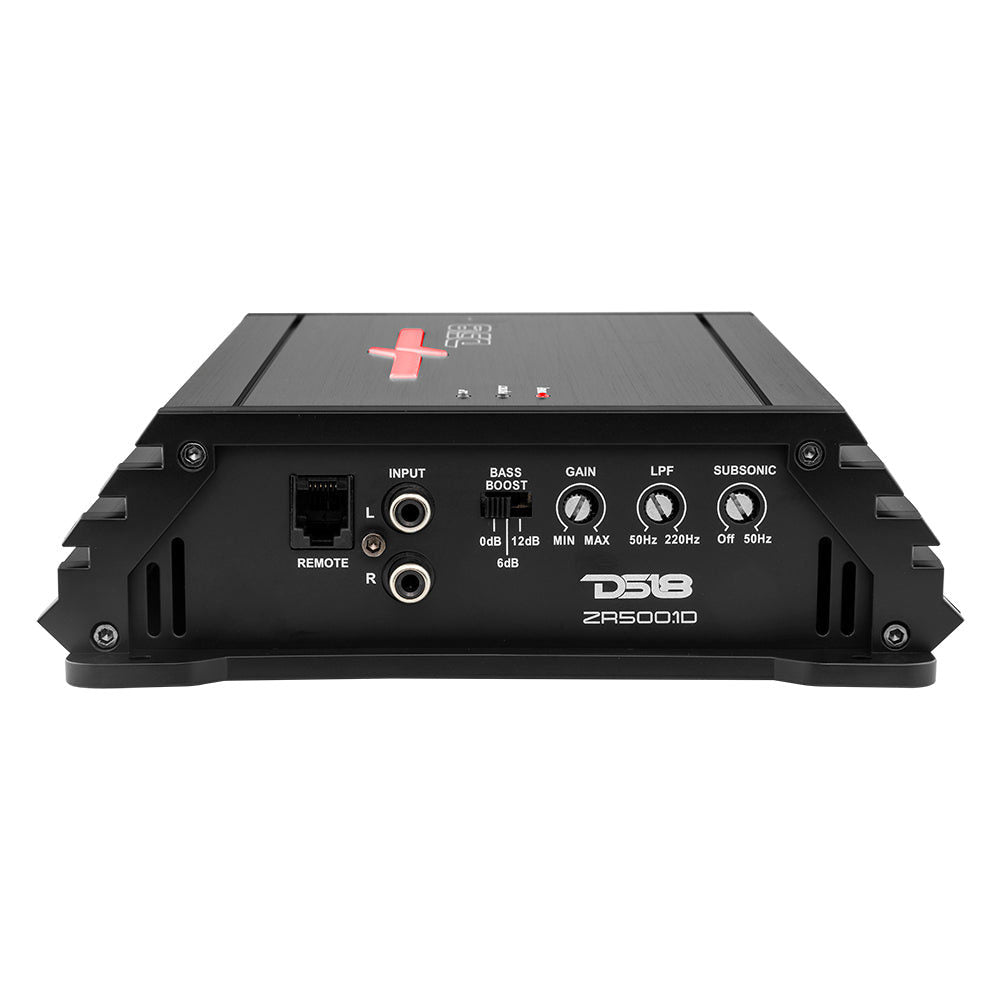

The ZR series was designed to pump up the bass and help your speakers reach their maximum potential as a part of your sound system. The ZR500.1D offers a surplus of tuning options: such as Lowpass, and Subsonic frequency adjusters, as well as Gain Knob and Bass Boost Switch Selector to help tune any song to your frequency.

The ZR500.1D is made to deliver 500W RMS at 1-Ohm, 300W RMS at 2-Ohms, and 200W RMS at 4-Ohms giving you the perfect power settings for your speakers.

Key Features

• Class D Monoblock Amplifier
• MAX Wattage: 1500 Watts Peak
• RMS Wattage: 500W RMS at 1-Ohm, 300W RMS at 2-Ohms, and 200W RMS at 4-Ohms
• Frequency Response: 10 – 220Hz
• Signal to Noise Ratio: >95dB
• Efficiency at 4-Ohms: 85 percent
• Total Harmonic Distortion: 0.01 percent
• Input Range: 0.2v - 6v
• Selectable X-Over: LPF Fixed
• LED Indicator: Clipping, Power, Protect

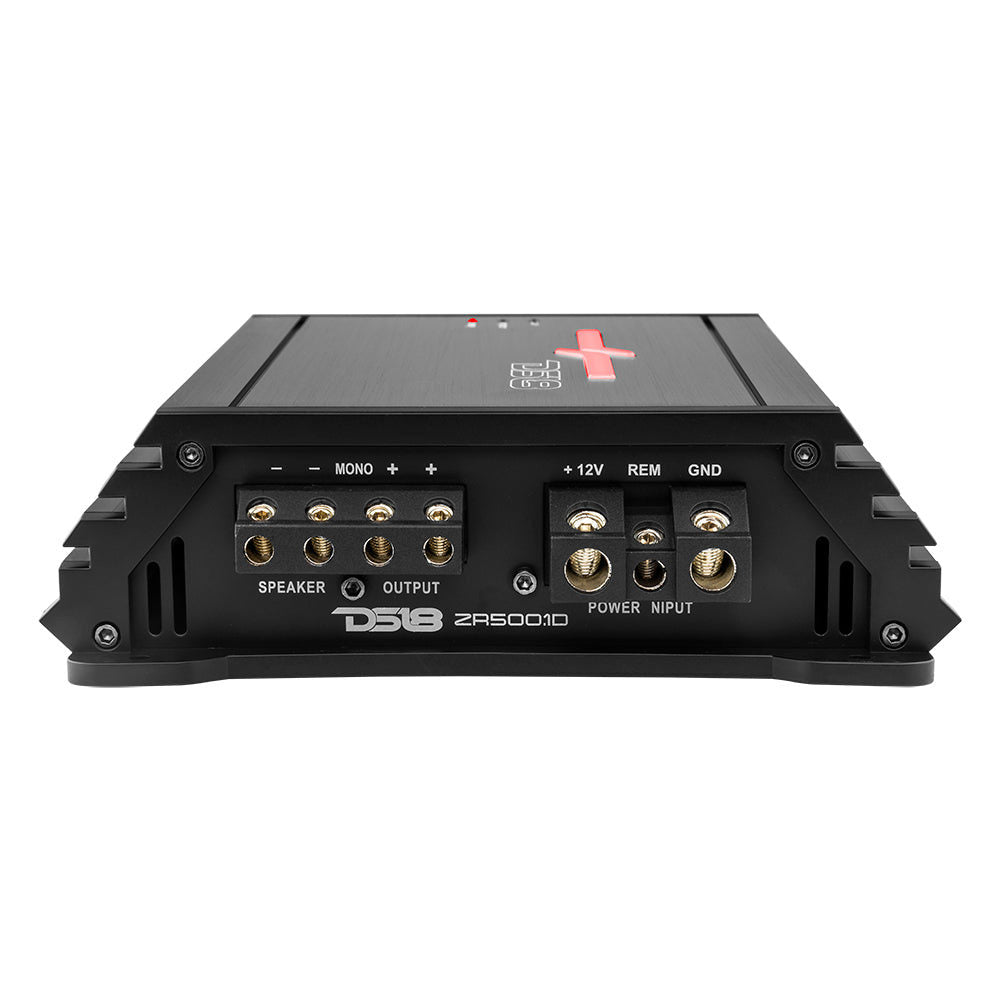

• Power and Ground Terminal: 4 Ga
• Minimum Impedance: 1-Ohm

Great for

Car Audio
Pro Audio
Off Road
Motorcycles
Stunt Walls
DIY Projects
