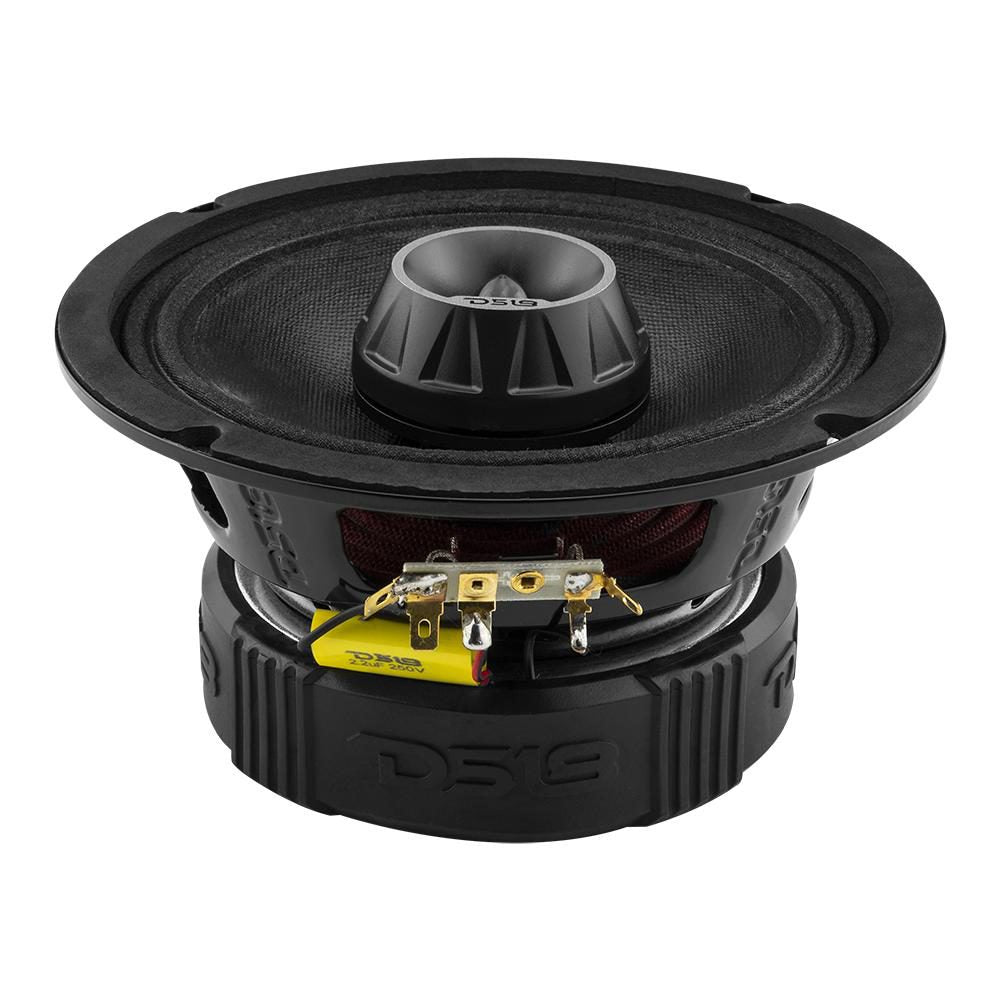

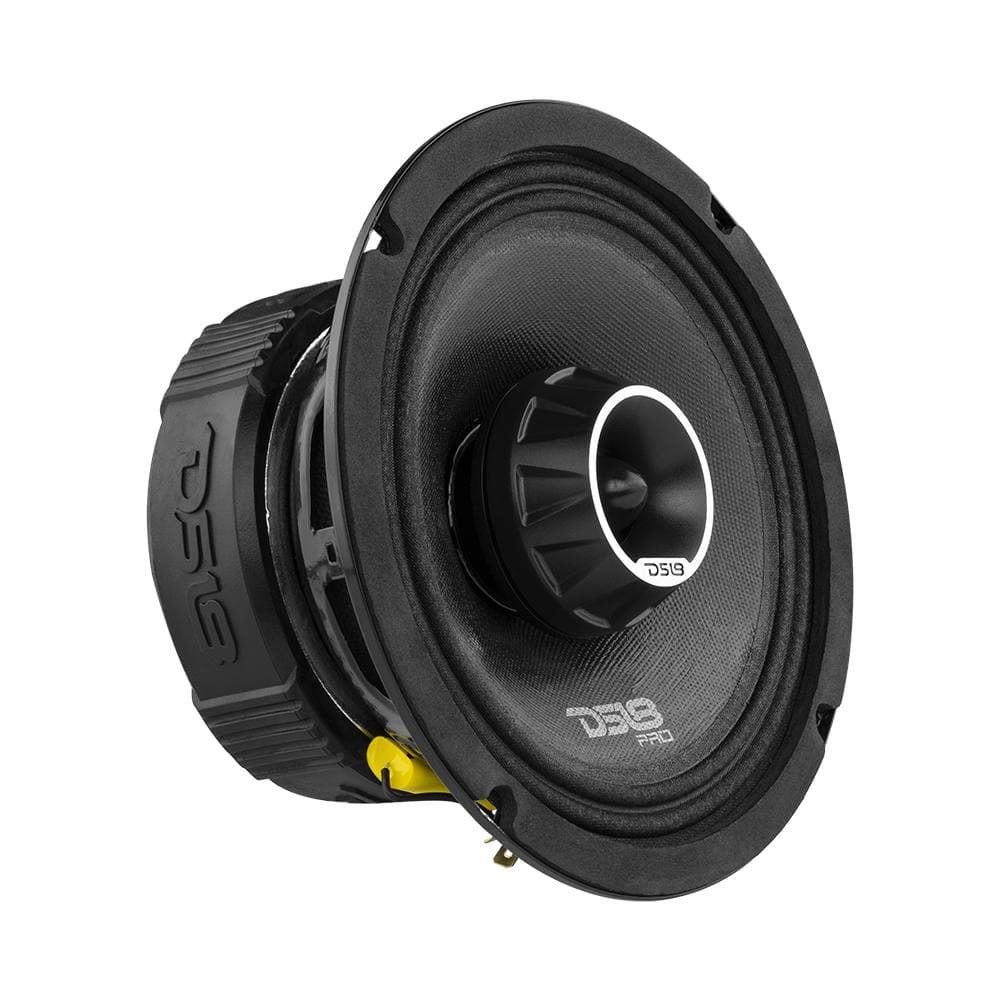

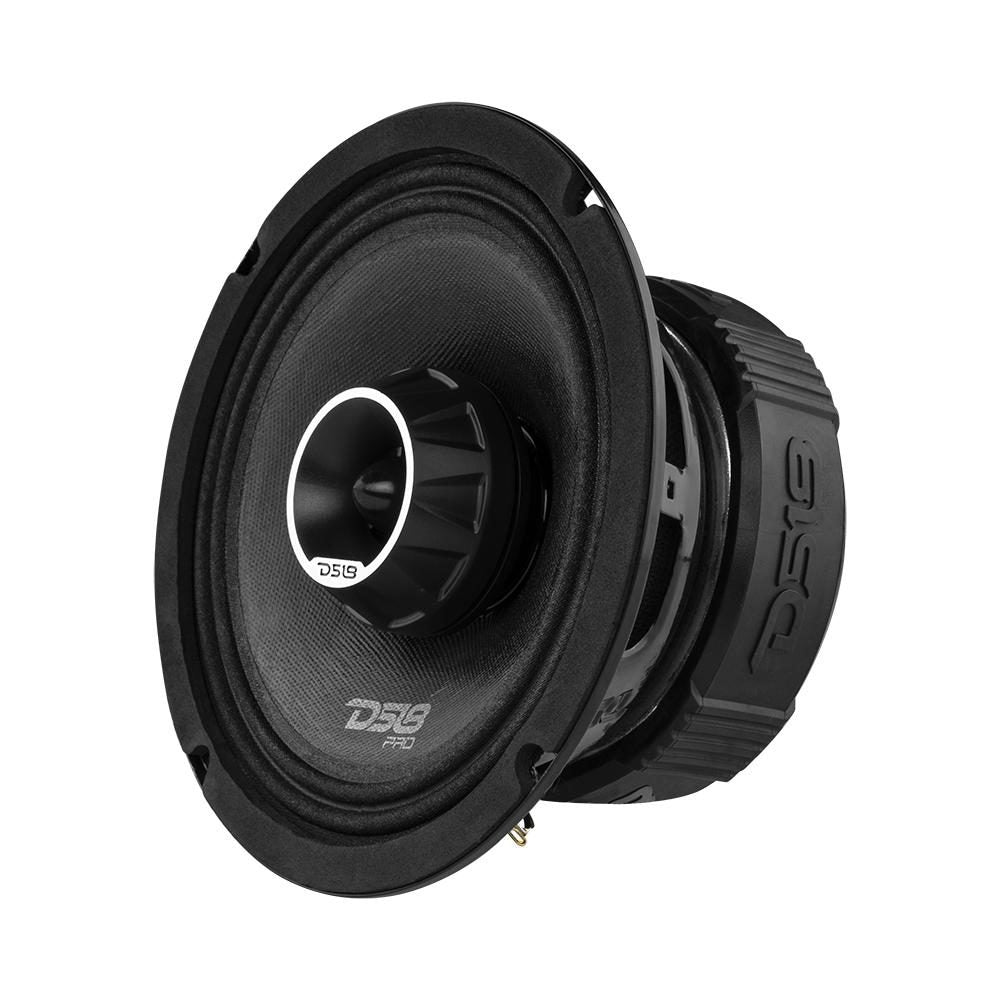

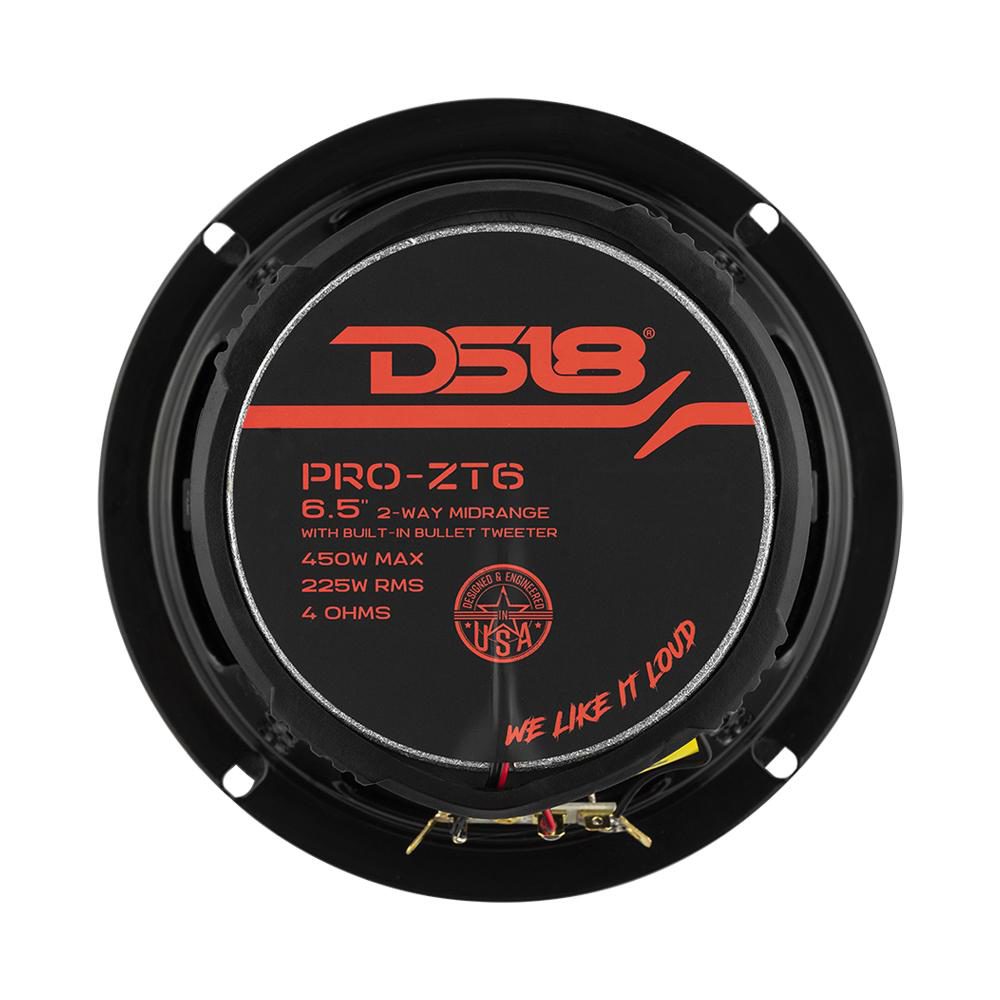

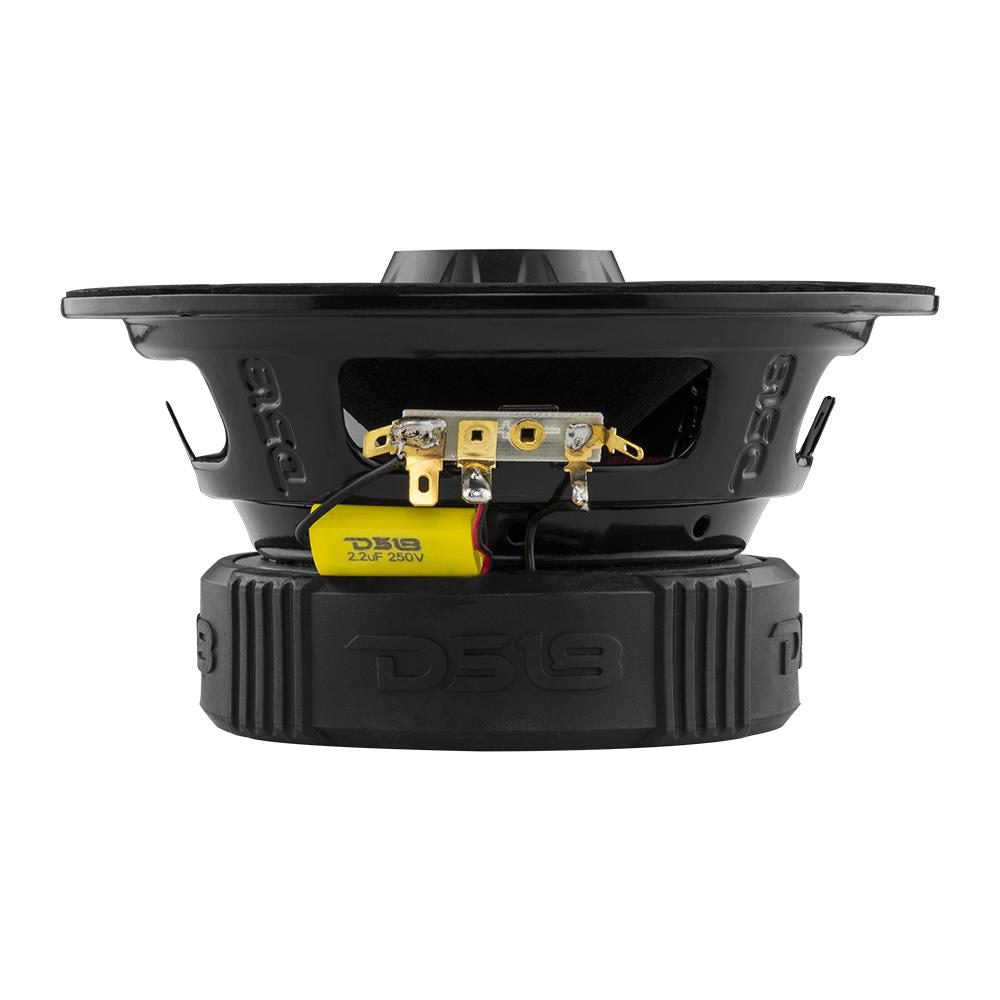

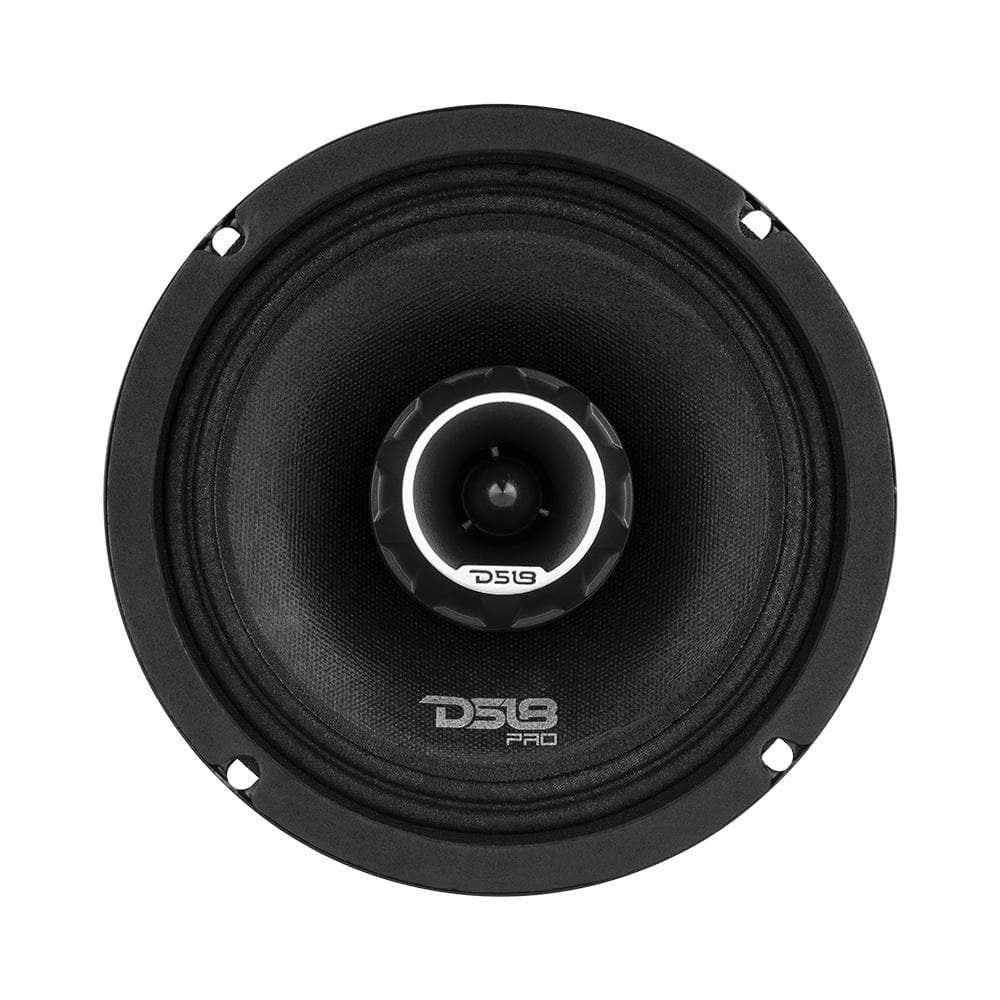

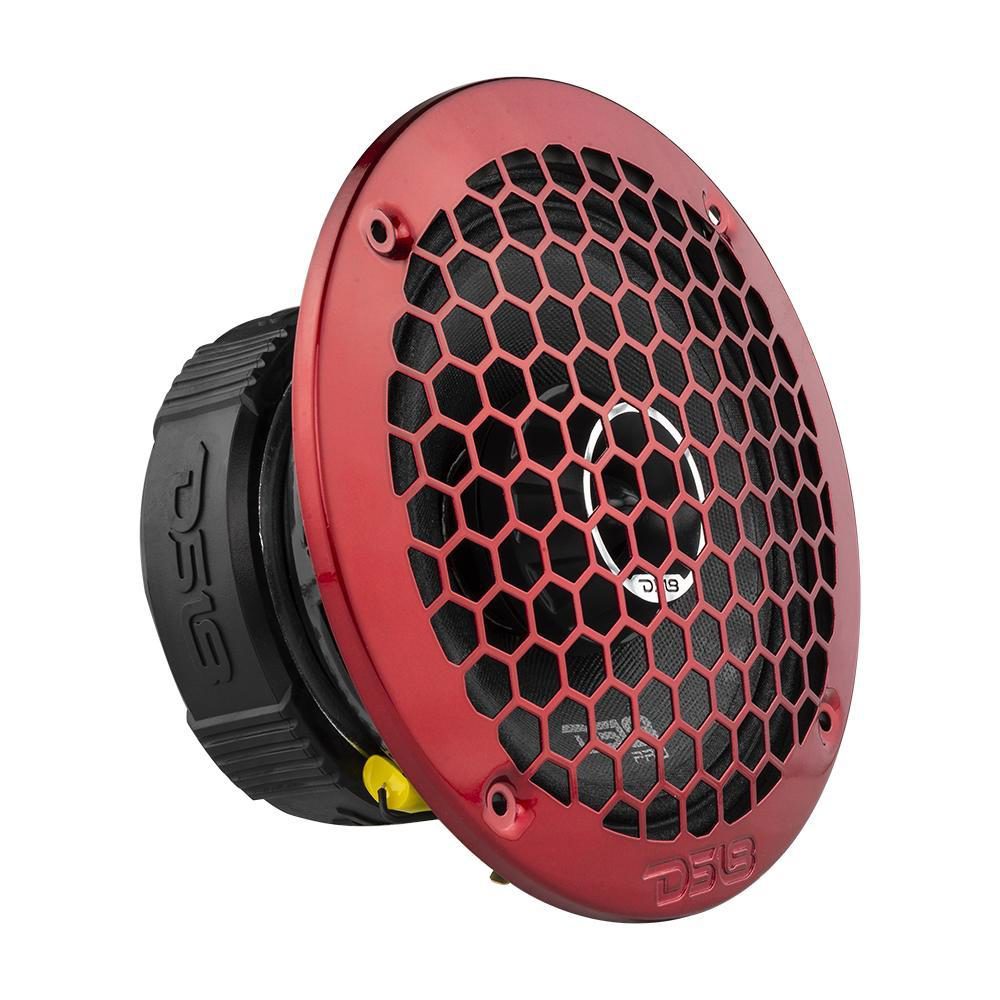

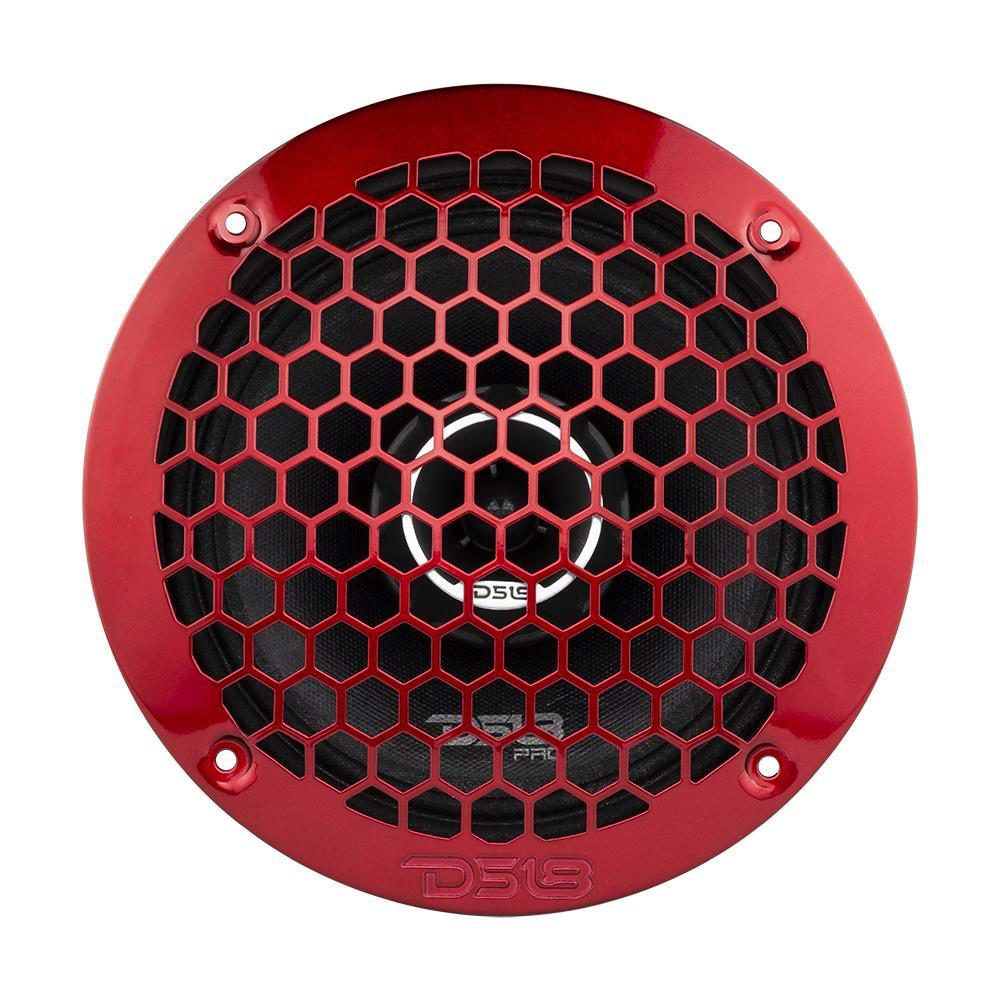

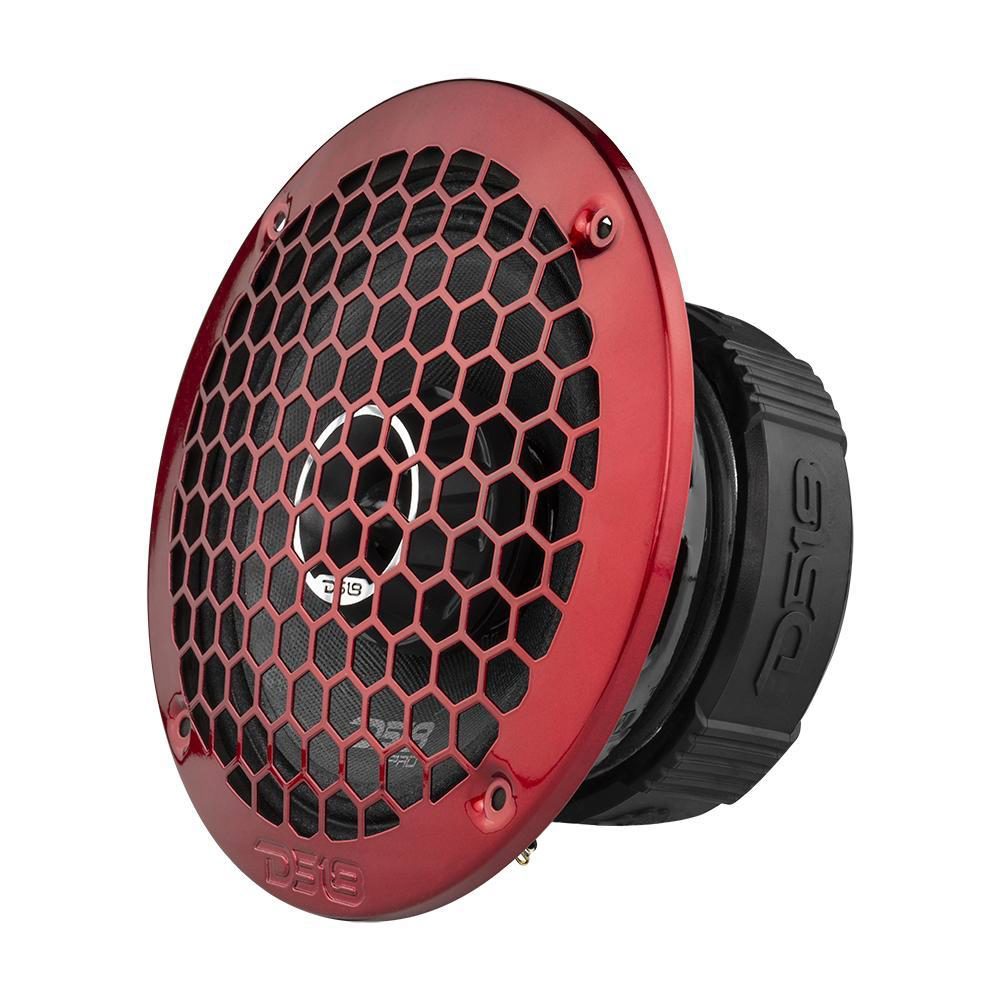

DS18 PRO-ZT6 - PRO-ZT 6.5 Inch Mid-Range Loudspeaker W/ Water resistance Cone Built-in Bullet Tweeter and Grill 450 Watts 4-Ohm

DS18 PRO-ZT6 - PRO-ZT 6.5 Inch Mid-Range Loudspeaker W/ Water resistance Cone Built-in Bullet Tweeter and Grill 450 Watts 4-Ohm

DS18 amassed a wealth of experience in manufacturing the most elegant neodymium midranges for those seeking simple perfection. Neodymium magnets provide a higher magnetic flux density in the air gap, which generates a much greater action force in the voice coil.

For this reason, Neo magnets have the strongest permanent magnets of all the commercially available speakers. Ranging in sizes, mounting depths, and frequency responses, we have more than 10 different models of Neo midranges to accommodate any build.

Specifications

• Nominal Diameter: 6.5 inch (1651.1mm)
• Nominal Impedance: 4 ohms
• RMS Power Handing: 225 Watts
• MAX Power Handing: 450 Watts
• Sensitivity (1w/1m): 96dB
• Frequnecy Response: 65Hz - 22KHz
• Recommended Hi Pass Crossover 120Hz

Midrange

• Voice Coil Diameter: 1.5 inch (38.1mm)
• Voice Coil Former Material: Kapton
• Winding Material: CCAW
• Basket Material: Steel
• Magnet Weight: 27 oz

Tweeter

• Voice Coil Diameter: 1 inch
• Voice Coil Material: Kapton
• Winding Material: CCAW
• Diaphragm Material: Aluminum Alloy
• Magnet Weight: 0.44 oz
• Magnet Material: Neodymium
• Thiele and Small Parameters
• Equivalent Volume / Vas 2.917 LTR
• Excursion / Xmax 1.6mm
• Free Air Resonance / Fs 150Hz
• Mechanical Factor / Qms 3.906
• Electrical Factor / Qes 0.747
• Total Factor / Qts 0.701
• DC Resistance / Re 3.2

Measurements

• Overall Diameter: 178mm (7 inch)
• Front Mount Baffle Cutout: 144mm (5.67 inch)
• Mounting Depth: 77mm (3.03 inch)
• Overall Depth: 97mm (3.81)
