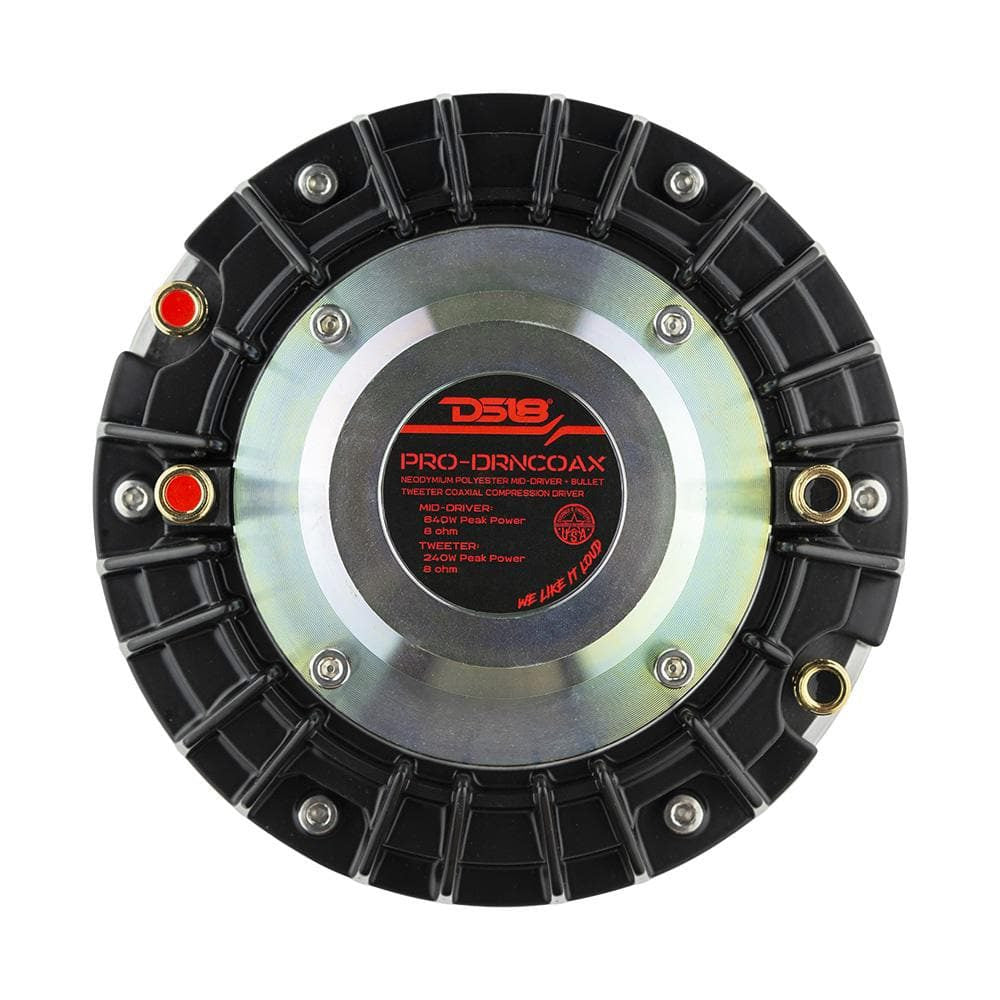

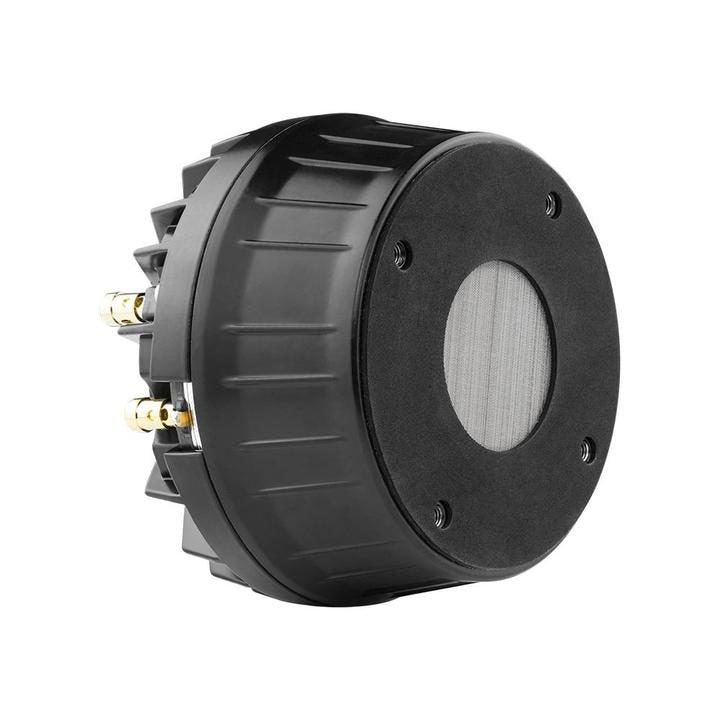

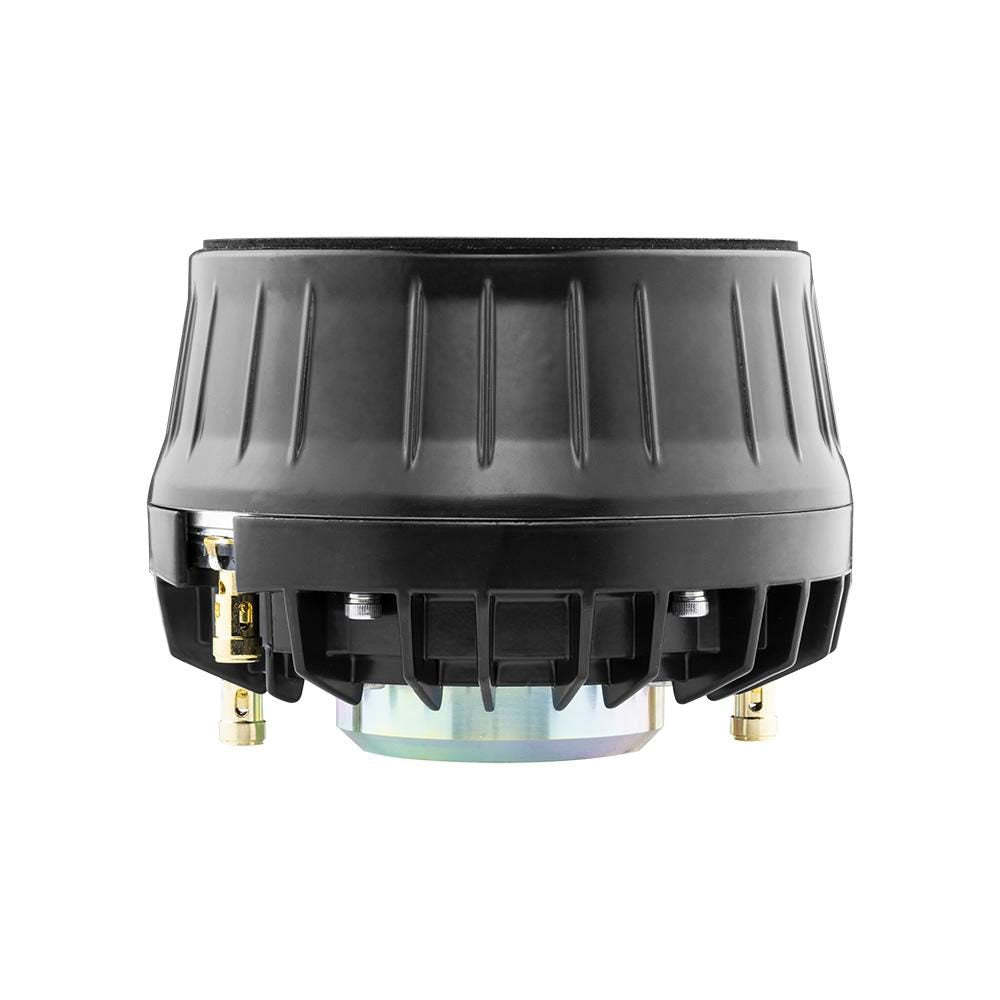

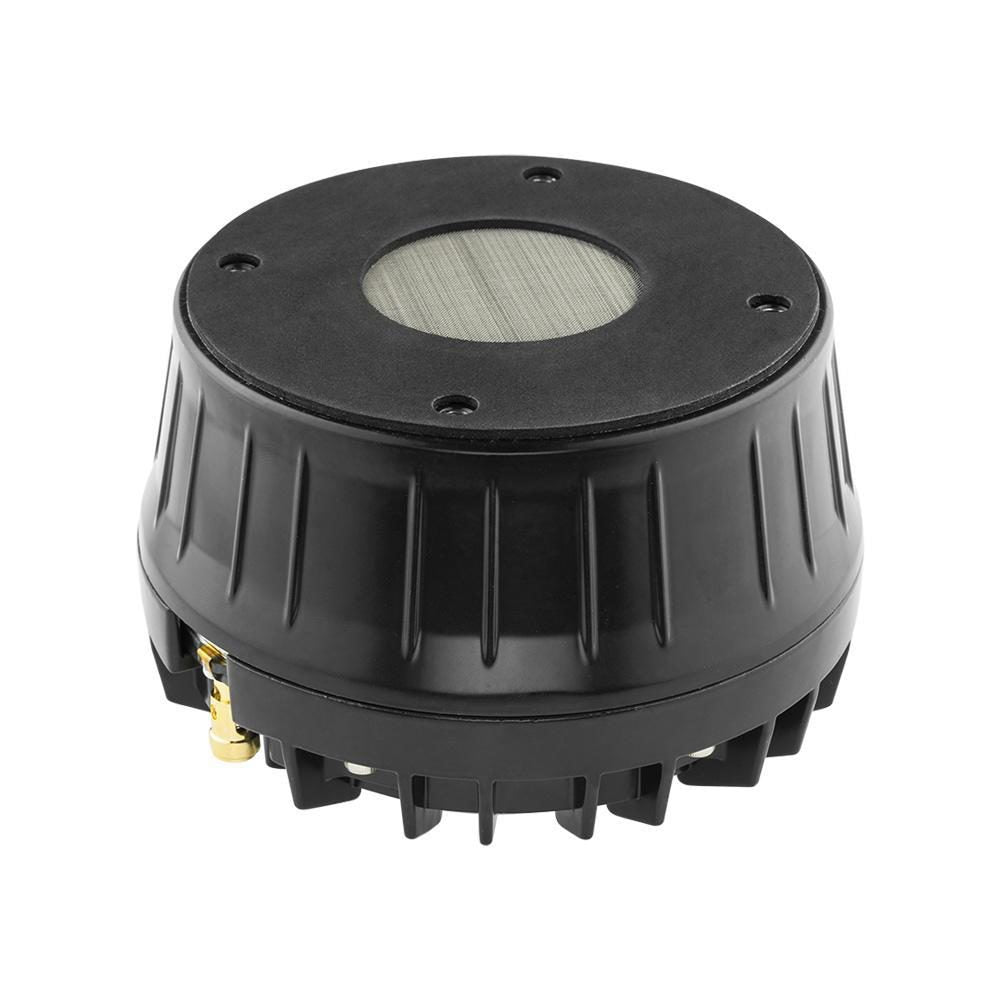

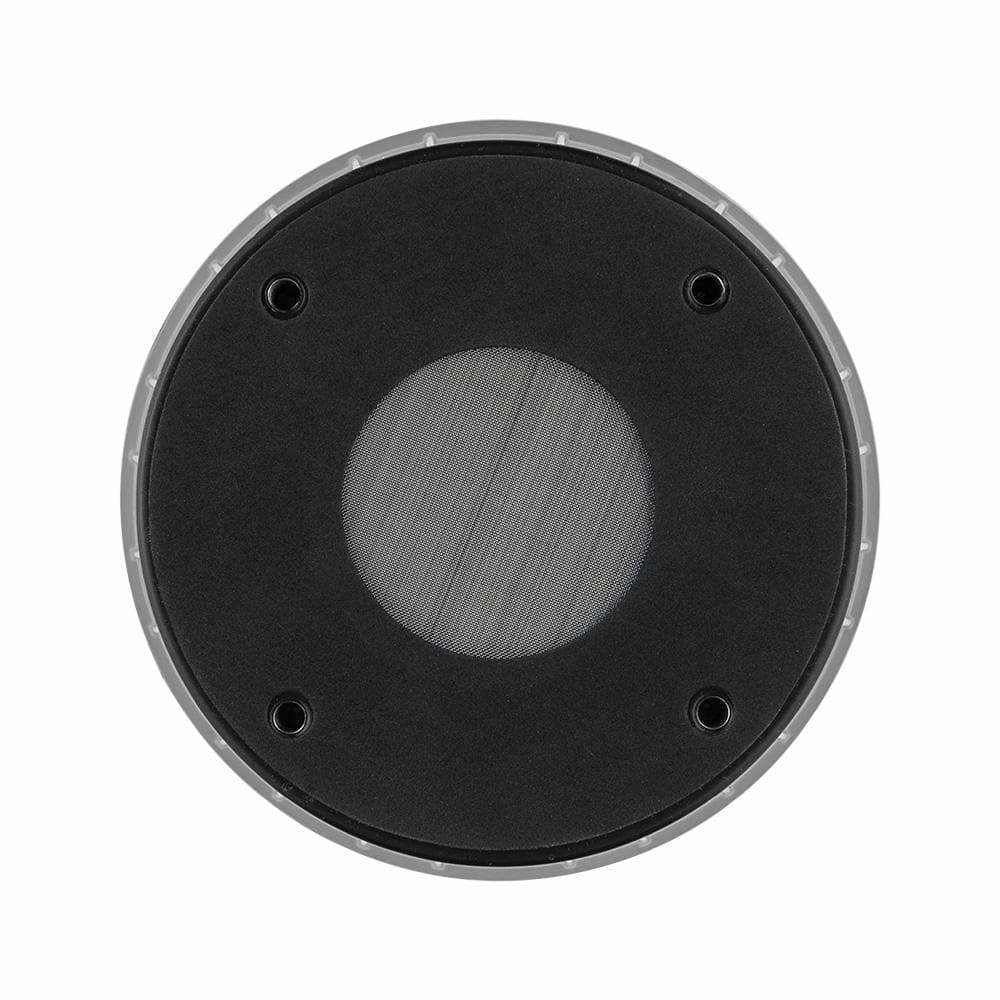

DS18 PRO-DRNCOAX - Pro 2 Inch Bolt on Throat Nedodymium Driver W/ Dual Polymer 1 x 3.5 Inch Mid Range Voice 640 Watts + 1.75 Inch High Range 240 Watts 118Db 8-Ohm
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Description
Description
DS18 PRO-DRNCOAX - Pro 2 Inch Bolt on Throat Nedodymium Driver W/ Dual Polymer 1 x 3.5 Inch Mid Range Voice 640 Watts + 1.75 Inch High Range 240 Watts 118Db 8-Ohm
Bringing new and innovative products is what DS18 is all about! Our new coax driver will be sure to fill in all your high end frequencies without slipping one beat!
This unique neodymium driver is 2 way. The midrange driver plays 315hz-20khz, while the high range tweeters fills out frequencies from 4khz to 20khz for added punch!
Features
- 2 way driver featuring a 160w AES driver and 60w AES tweeter.
- Separate inputs for both speakers to give you more power and mounting options.
- Gold plated terminals for the highest conductivity.
- Slay the highs with this ultra loud 2 way coaxial driver.
Specifications
- Throat Diameter 2 Inch/50.8mm
- Installation Type Bolt-on
- Sensitivity (1w/1m) 118dB
- Frequency Response 315Hz-20KHz
Mid Driver Specifications
- Peak Power Handling 640W
- Program Power Handling 320W
- AES Power Handling 160W
- Frequency Response 315Hz - 20KHz
- Recommended Band-Pass Crossover 630Hz - 5KHz
Tweeter Specifications
- Peak Power Handling 240W
- Program Power Handling 120W
- AES Power Handling 60W
- Frequency Response 4KHz - 20KHz
- Recommended Hi-Pass Crossover 5KHz
Motor
- Tweeter Voice Coil Diameter 1.75 Inch Inch/44.4mm
- Mid-Drive Voice Coil Diameter 3.5 Inch/90mm
- Voice Coil Former Material Kapton
- Winding Material CCAW
- Diaphragm Material Polyester
- Magnet Material Neodymium
Measurements
- Overall Diameter 5.5 Inch/140 mm
- Overall Depth 3.9 Inch/101 mm
- Bolt Pattern M6 - 4 Inch/102mm
