Diode Dynamics DD8829 - 22-25 Toyota RAV4 SS3 Fog Light Kit - White Pro

Diode Dynamics  |  SKU: DIODE-DD8829
Sale price $51995 Regular price $52000

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

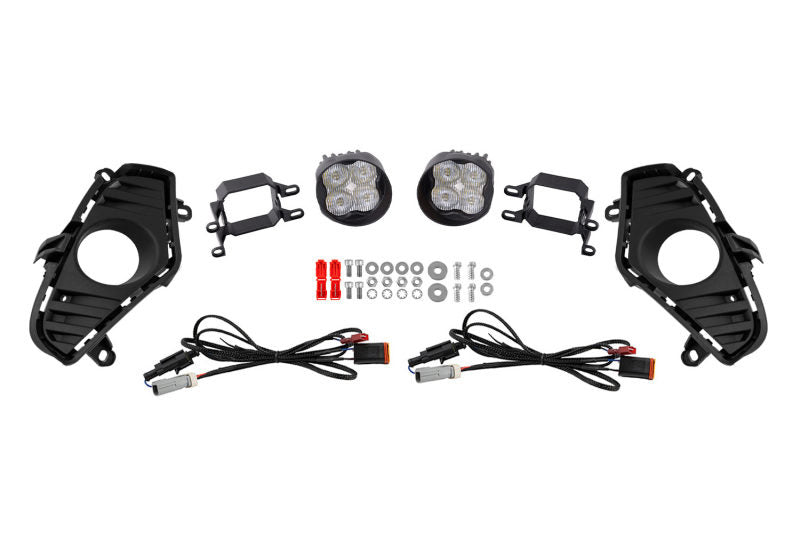

Diode Dynamics DD8829 - 22-25 Toyota RAV4 SS3 Fog Light Kit - White Pro

Pod light featuring advanced TIR optics for high efficiency and focus.

Features



  • Direct replacementcompatible with Toyota RAV4 2022-2025

  • Up to 42% brighter than stock fog lamps.

  • SAE-compliant road-legal output

  • Includes custom bezel for factory-style appearance

  • Plug and play no modification needed

  • Advanced TIR optics deliver a wide beam pattern with uniform focused light.

  • Durable powdercoated aluminum die-cast


Overview. Upgrade the fog lights on your vehicle with our SS3 Fog Light Bracket Kit! Featuring higher output intensity than any other 3in light on the market these LED pods have been designed for maximum functionality with custom-engineered TIR optics shining in highly useful beam patterns all in a durable package. With the included custom bezel the SS3 Fog Kit has a clean factory-style appearance only much brighter!


Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare so not all of the light shines on target. Instead the custom-engineered TIR optic in the SS3 collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.


Plug and Play. The SS3 Fog Light Kit can be installed on your vehicle by simply removing your factory fog light assembly and ours will bolt right in its place! Wire adapters are included to connect the lights to your factory bulb sockets!


SAE Compliant. When installed as a pair and aimed in accordance with your state's regulations the Fog pattern meets SAE J583 standard as a Foglamp for legal on-road use.

  • Advanced TIR optics provide high efficiency and focus
  • High-intensity automotive-type LEDs
  • Pin-fin heatsink design
  • Integrated Deutsch-style connector
  • Durable powdercoated aluminum construction
Add-On: N/A
Beam Angle: Fog 80°x8°
Bracket Color: Black
Color Temp: 6000K
Compliance Rating: SAE J583 Foglamp Beam Pattern
DOT Approved: Yes
Grade Type: Performance
Housing Material: Aluminum
Input Power (watts): Main Beam: 36 Backlight: 0.4
Intensity (lux): 11 900 cd
Intrusion Rating: IP69K Waterproof High Pressure
Lens Material: Polycarbonate
Light Housing Color: Black
Measured Output (lumens): 3 000 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Raw Output (lumens): 5 796 lm
Street Legal: Yes
Terminal Type: Pin
Voltage: 9-30V
