Diode Dynamics DD8819 - 19-22 Toyota RAV4 SS3 Add-On Fog Lamp Kit - White Sport

Diode Dynamics  |  SKU: DIODE-DD8819
Sale price $41995 Regular price $42000

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Diode Dynamics DD8819 - 19-22 Toyota RAV4 SS3 Add-On Fog Lamp Kit - White Sport

Pod light featuring advanced TIR optics for high efficiency and focus.

While some vehicles do not come with a factory fog light option there is still a need for light directly in front of the vehicle to increase visibility in foggy dusty snowy or rainy conditions.

Features

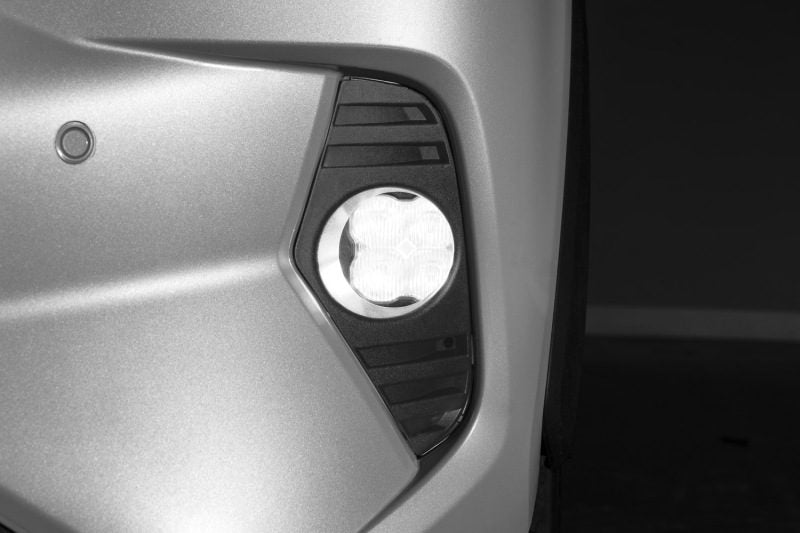

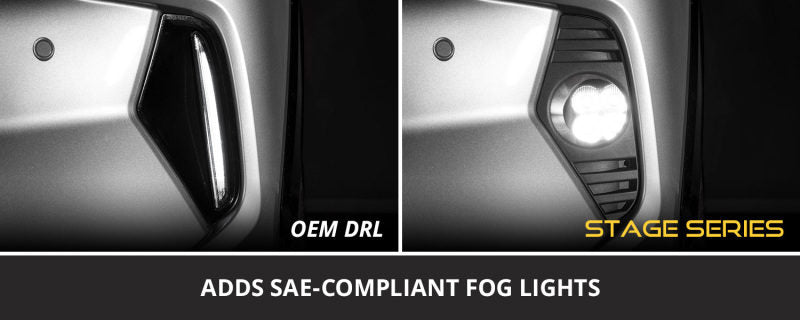

  • Adds SAE-compliant fog lights compatible with Toyota RAV4 2022-2025.

  • Includes custom bezel for factory-style appearance and fitment.

  • Custom harness allows for factory-like operation.

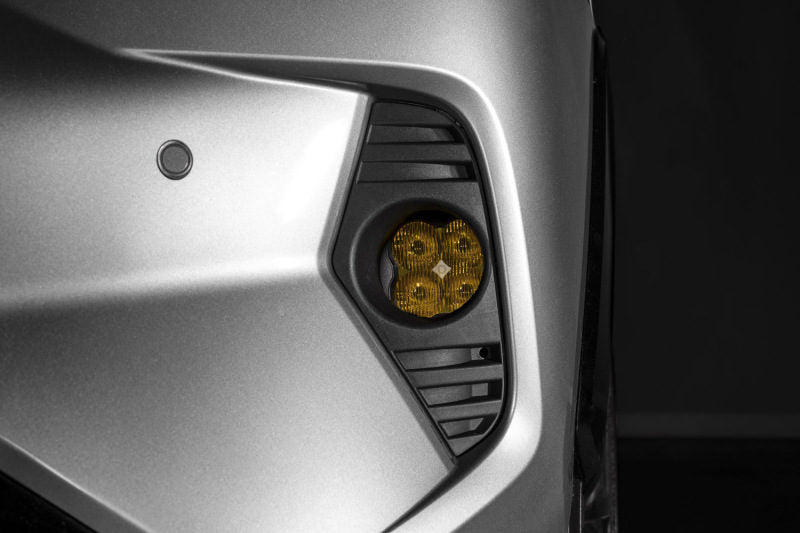

  • Distinctive integrated amber backlight activates with parking lights.


Overview. Upgrade the fog lights on your vehicle with our SS3 Fog Light Kit! Featuring higher output intensity than any other 3in light on the market these LED pods have been designed for maximum functionality with custom-engineered TIR optics shining in highly useful beam patterns all in a durable package. With the included round bezel the SS3 Fog Kit has a clean factory-style appearance only much brighter!

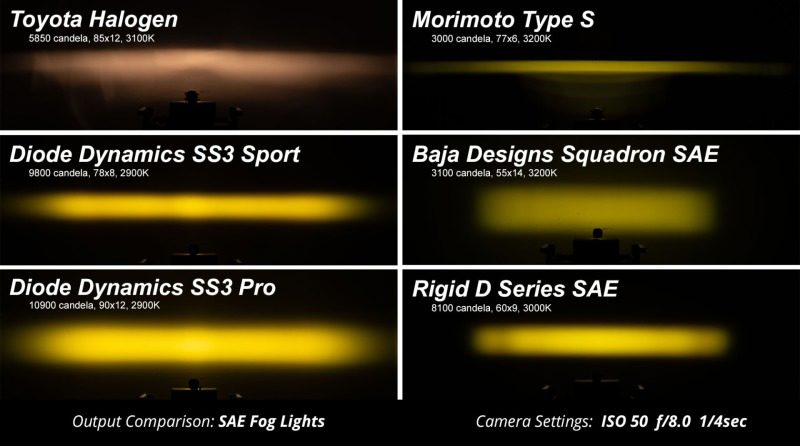

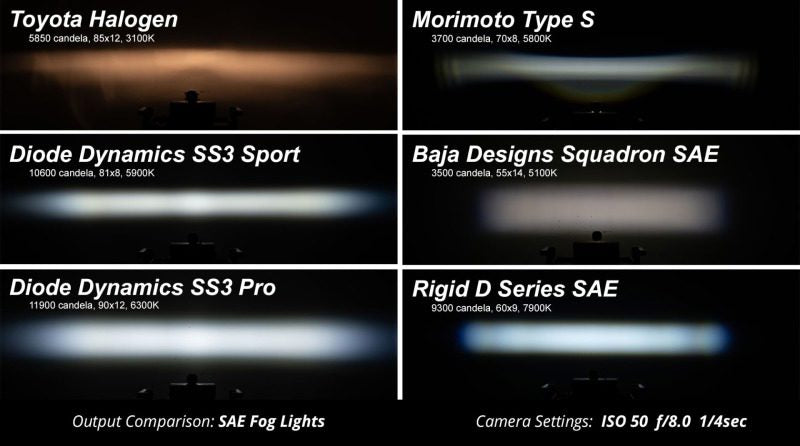

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare so not all of the light shines on target. Instead the custom-engineered TIR optic in the SS3 collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.

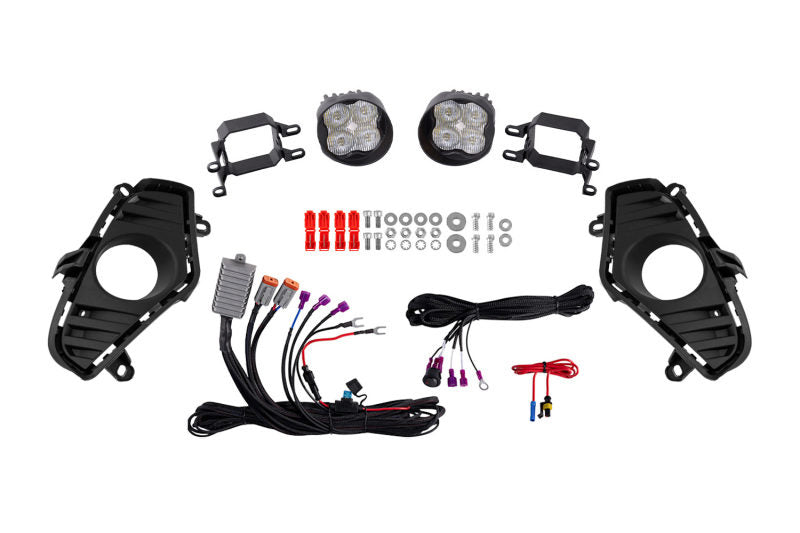

Plug and Play. The SS3 Fog Light Kit can be installed on your vehicle by simply removing your factory fog light assembly and ours will bolt right in its place! Wire adapters are included to connect the lights to your factory bulb sockets!


SAE Compliant. When installed as a pair and aimed in accordance with your state's regulations the Fog pattern meets SAE J583 standard as a Foglamp for legal on-road use.

  • Advanced TIR optics provide high efficiency and focus
  • High-intensity automotive-type LEDs
  • Pin-fin heatsink design
  • Integrated Deutsch-style connector
  • Durable powdercoated aluminum construction
Add-On: N/A
Beam Angle: Fog 80°x8°
Bracket Color: Black
Color Temp: 6000K
Compliance Rating: SAE J583 Foglamp Beam Pattern
DOT Approved: Yes
Grade Type: Performance
Housing Material: Aluminum
Input Power (watts): Main Beam: 14.5 Backlight: 0.4
Intensity (lux): 10 600 cd
Intrusion Rating: IP69K Waterproof High Pressure
Lens Material: Polycarbonate
Light Housing Color: Black
Measured Output (lumens): 1 520 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Raw Output (lumens): 2 262 lm
Street Legal: Yes
Terminal Type: Pin
Voltage: 9-30V
Wattage: 14.5
