Diode Dynamics DD8354 - 21-24 Nissan Armada SSC1 LED Fog Light Kit (6000K) White SAE Fog - Cool White

Diode Dynamics  |  SKU: DIODE-DD8354
Sale price $31995 Regular price $35194

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Diode Dynamics DD8354 - 21-24 Nissan Armada SSC1 LED Fog Light Kit (6000K) White SAE Fog - Cool White

Pod light featuring modern TIR optics for the highest intensity on the market.

Features

  • Bolt-on replacement for your factory fog lamps
  • SAE-compliant road-legal output
  • Backlight feature provides amber accent light
  • Plug-and-play no modification needed
  • Engineered and Assembled in USA

Overview

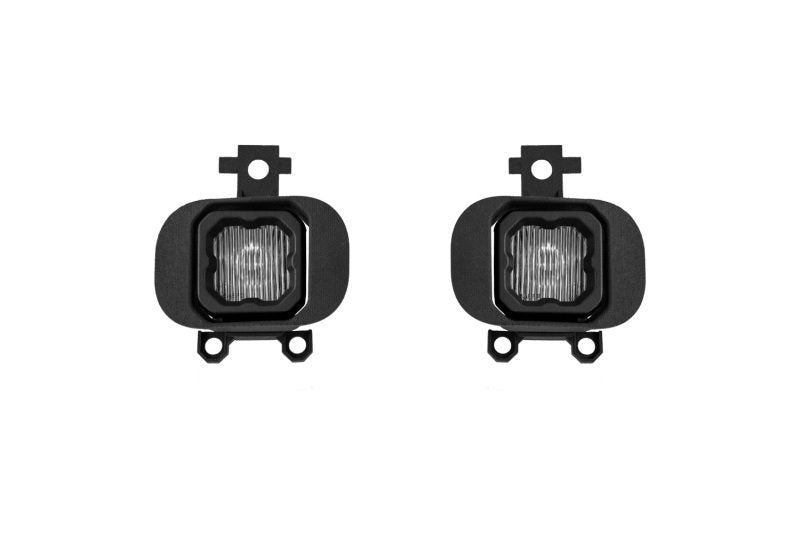

Upgrade your fog lights with our SSC1 Type NSQ Fog Light Bracket Kit! Featuring custom-engineered TIR optics combined with the newest LED chip technology these pods deliver road-legal light output in our most compact package yet. With the included custom bracket with bezel the SSC1 Fog Kit has a clean factory-style appearance only much brighter! This kit includes custom 3D-printed brackets designed and produced by Foxbeam Lighting.

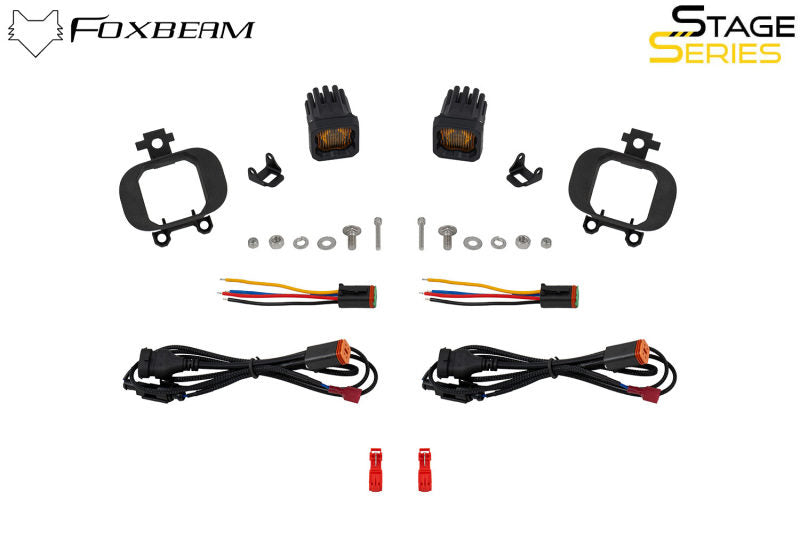

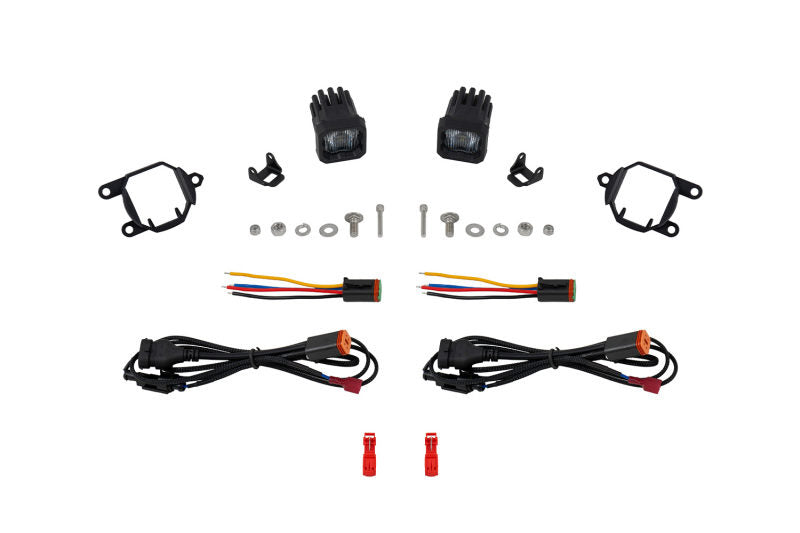

Plug and Play. The SSC1 Fog Light Bracket Kit can be installed on your vehicle in minutes. Simply remove your factory fog light assembly and ours will bolt right in its place! Two DT adapter wires are included with the kit allowing you to connect the lights to your factory bulb sockets - no extra wiring needed!

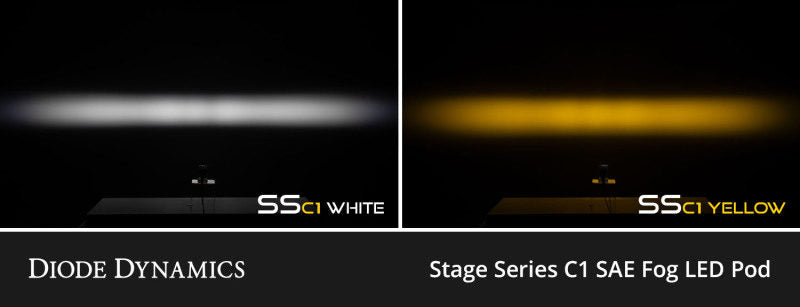

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare so not all of the light shines on target. Instead the custom-engineered TIR optic in the SSC1 collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.

Backlight Functionality The Stage Series C1 LED Pod includes a distinctive backlight feature as well. The SSC1's backlight fully illuminates the TIR optic providing unique accent lighting that you won't find in other single-LED pods on the market.

SAE Compliant When installed as a pair and aimed in accordance with your state's regulations this Fog pattern meets the SAE J583 standard as a Foglamp for legal on-road use and will fully illuminate the area in front of your vehicle.

  • SAE-compliant road-legal output
  • Molded bracket for perfect bolt-on fitment
  • Plug and play no modification needed
  • Advanced TIR optics provide high efficiency and focus
  • Engineered and Assembled in USA
Add-On: N/A
Beam Angle: Fog 98°x9°
Bracket Color: Black
Color Temp: 6000K
Compliance Rating: SAE J583 Foglamp Beam Pattern
DOT Approved: Yes
Grade Type: Performance
Housing Material: Aluminum
Input Power (watts): Main Beam: 19.2 Backlight: .3
Intensity (lux): 6 000 cd
Intrusion Rating: IP69K Waterproof High Pressure
Lens Material: Polycarbonate
Light Housing Color: Black
Measured Output (lumens): 430 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Street Legal: Yes
Terminal Type: Pin
Voltage: 9-16V
Wattage: 19
