Diode Dynamics DD8236 - SS20 Pro Yellow Flood Standard ABL (one)

Diode Dynamics  |  SKU: DIODE-DD8236
Sale price $54995 Regular price $60494

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

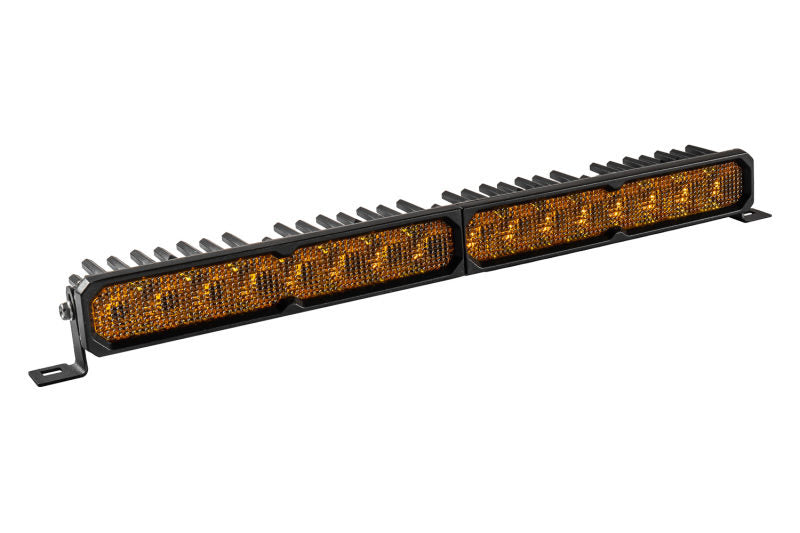

Diode Dynamics DD8236 - SS20 Pro Yellow Flood Standard ABL (one)

All-new Stage Series Lightbars. More power control and style.

The all-new Stage Series Lightbars are here! Rebuilt with modern optics SmartSelect control new backlight options and unmatched durability. Get more power configurability and performance than ever before.

Features

  • Patented TIR Optics for maximum efficiency and output
  • Upgraded beam patterns engineered for real-world performance
  • True amber backlight provides unique accent lighting
  • Built for the extreme

Overview

See Further and Go Faster with all-new SS20 LED Light Bar! With higher light output, modern optics, and greater intensity than anything else on the market — plus advanced control and unmatched configurability — the new Stage Series Lightbars are the most capable lightbars available today.

Designed for Performance. Each Stage Series Light Bar has been engineered from the ground up to provide more output. The TIR optics capture and focus nearly all of the light output, shining it only where you need it.

Thanks to copper circuit boards on the high-power models, thermal transfer materials, and optimized heatsinks, these lightbars effectively dissipate heat from the LED chips, allowing them to run at maximum power, producing serious light output.

Built for Every Application. Each beam pattern has been fine-tuned for real-world conditions to perform even better than before. No matter the application, there is a Stage Series Lightbar for you!

Fully Illuminated Backlight. All yellow Stage Series LED Light Bars include an amber backlight that fully illuminates the TIR optic, providing unique accent lighting that you won't find on other LED light bars. This amber backlight is perfect for forward-facing applications to provide extra visibility to others when stopped on the trail.

Choose Your Power Level. Available in three different power levels, the Sport model offers the best bang for your buck, while the Pro model takes things a step further with a noticeable boost in power.

Add-On: N/A
Beam Angle: Flood 100°x80°
Color Temp: 3000K
Input Power (watts): 105
Intensity (lux): 7 000 cd
Intrusion Rating: IP69K Waterproof High Pressure
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-30V
Raw Output (lumens): 25 088 lm
