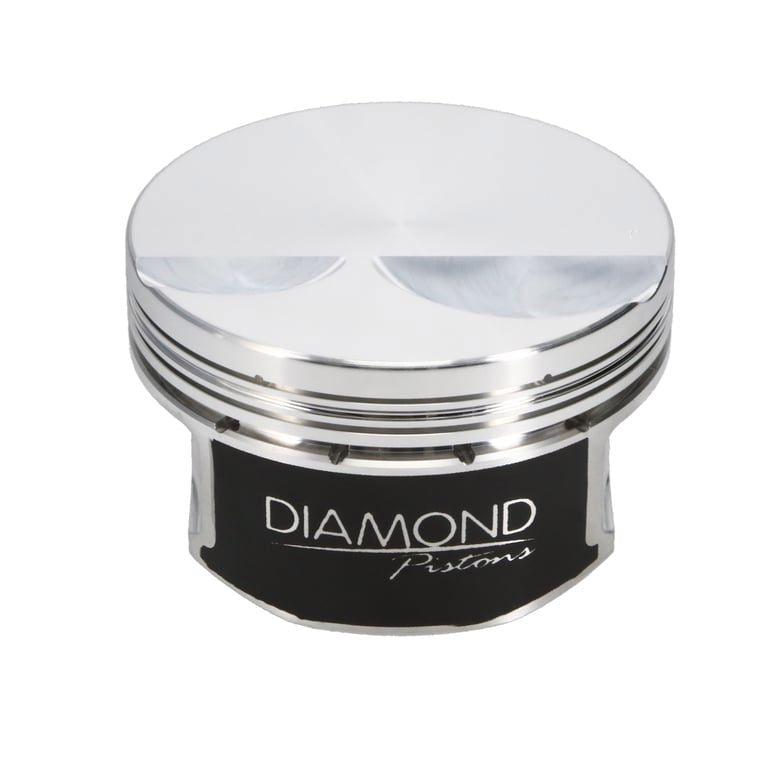

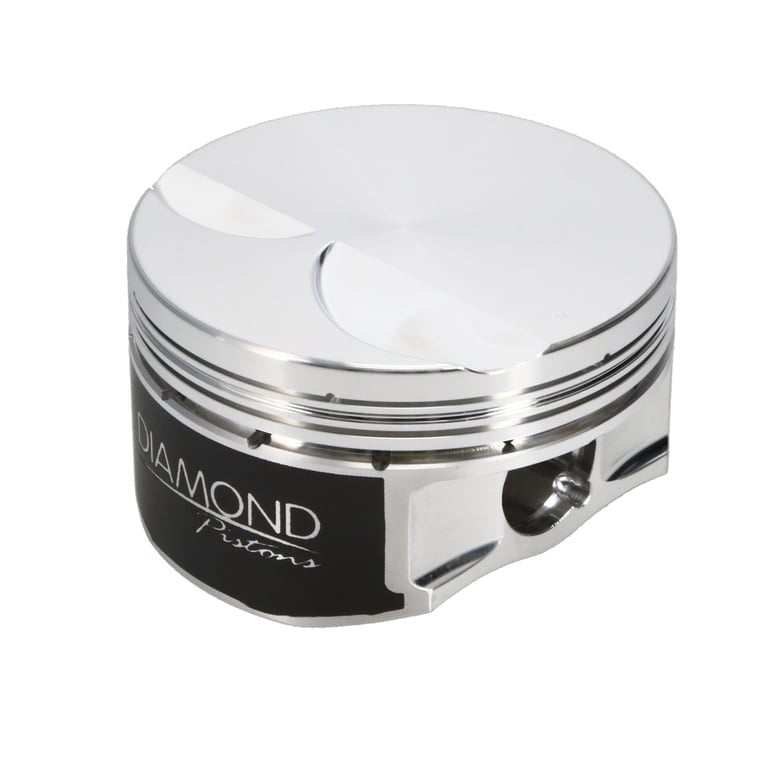

Diamond Racing Products 11599-R1-8 - Chevrolet LS7 3.800 Bore x 3.622 Stroke x 6.125 Rod x 1.304 Comp Height; Std Kit

Diamond Racing Products 11599-R1-8 - Chevrolet LS7 3.800 Bore x 3.622 Stroke x 6.125 Rod x 1.304 Comp Height; Std Kit

Piston - Street/Strip Flat Top Series - Flat Top - 3.800 in Bore - 1.304 in Compression Height - 1.0 x 1.2 x 2.8 mm Ring Grooves - Minus 2.0 cc - GM LS-Series - Set of 8

3.800 in. Bore - -2.00 CC Volume - 1.304 in. Comp Height - Standard Pin

The muscle car era is back with a horsepower-fueled vengeance and Diamond has late-model muscle builders covered with a huge selection of performance pistons. Whether you're building an LS, LT, Modular/Coyote, or a third generation Hemi, Diamond has the pistons you need to get the job done right. Pistons are available for builders seeking more cubic inches, higher compression, or nitrous/boost ready performance, and all of Diamonds Modern Muscle pistons are forged and machined 100% in the USA, utilize extremely strong 2618 aluminum and incorporate premium Trend Performance wrist pins.

• 3D milling on piston crowns for ready to install finish
• Inboard forging design for maximum strength
• Valve pockets designed to work with most aftermarket cylinder heads
• Offset pins for quiet operation
• Moly skirt coating for friction loss and skirt wear protection
• Top ring down dimension: .250"
• Ratios figured for .040 head gasket
• Premium 1.2mm x 1.2mm x 3.0mm ring package included
• Premium 8620 .155W wrist pins chamfered for roundwire locks included
• Valve pocket depth: 0.206" intake and .148" exhaust
• 2618 material for High HP-NOS-Boost applications
