DiabloSport Trinity 2 GM E90/T93 Unlock and Tune Kit

Fits 2019-2022 5.3L or 6.2L - Silverado/Sierra

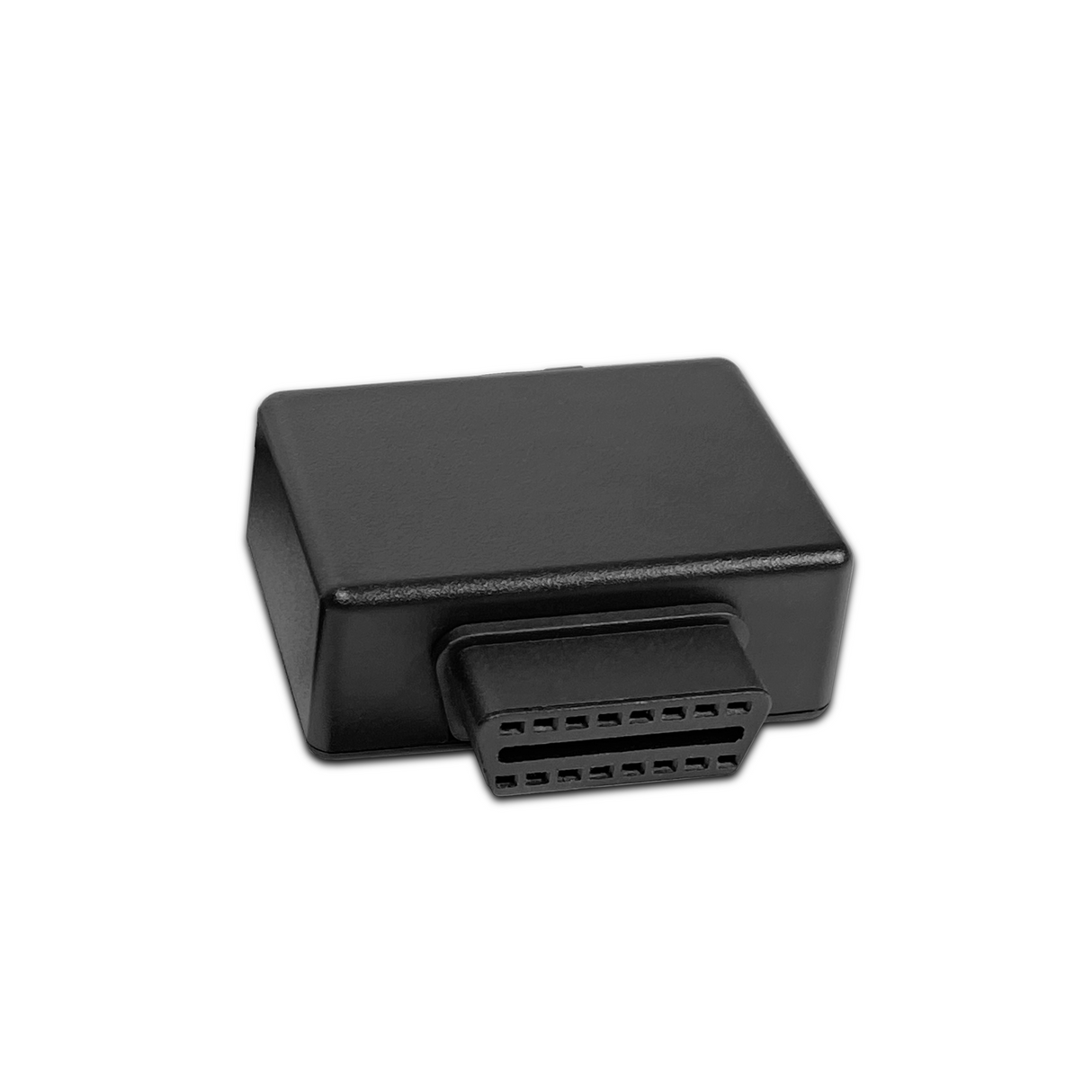

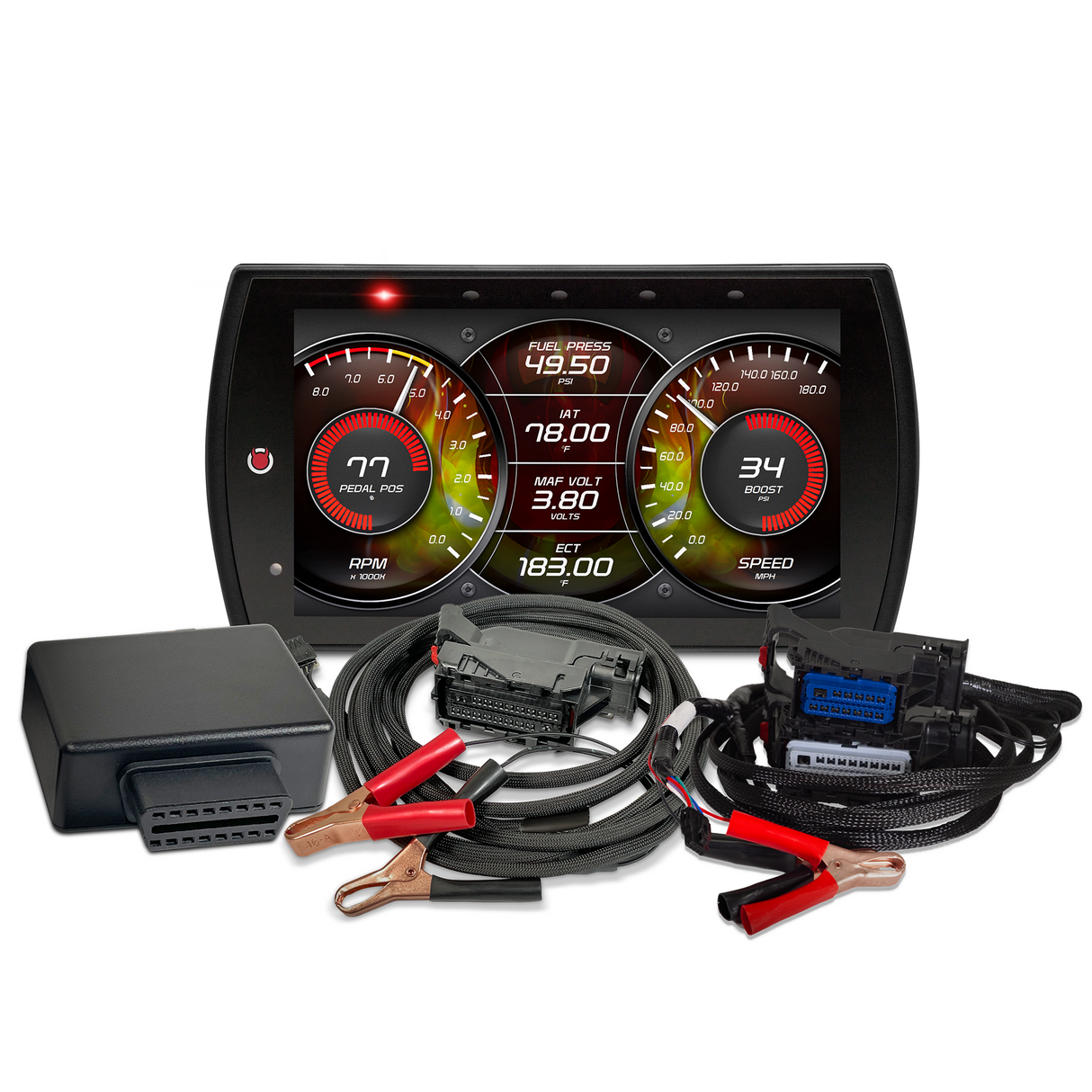

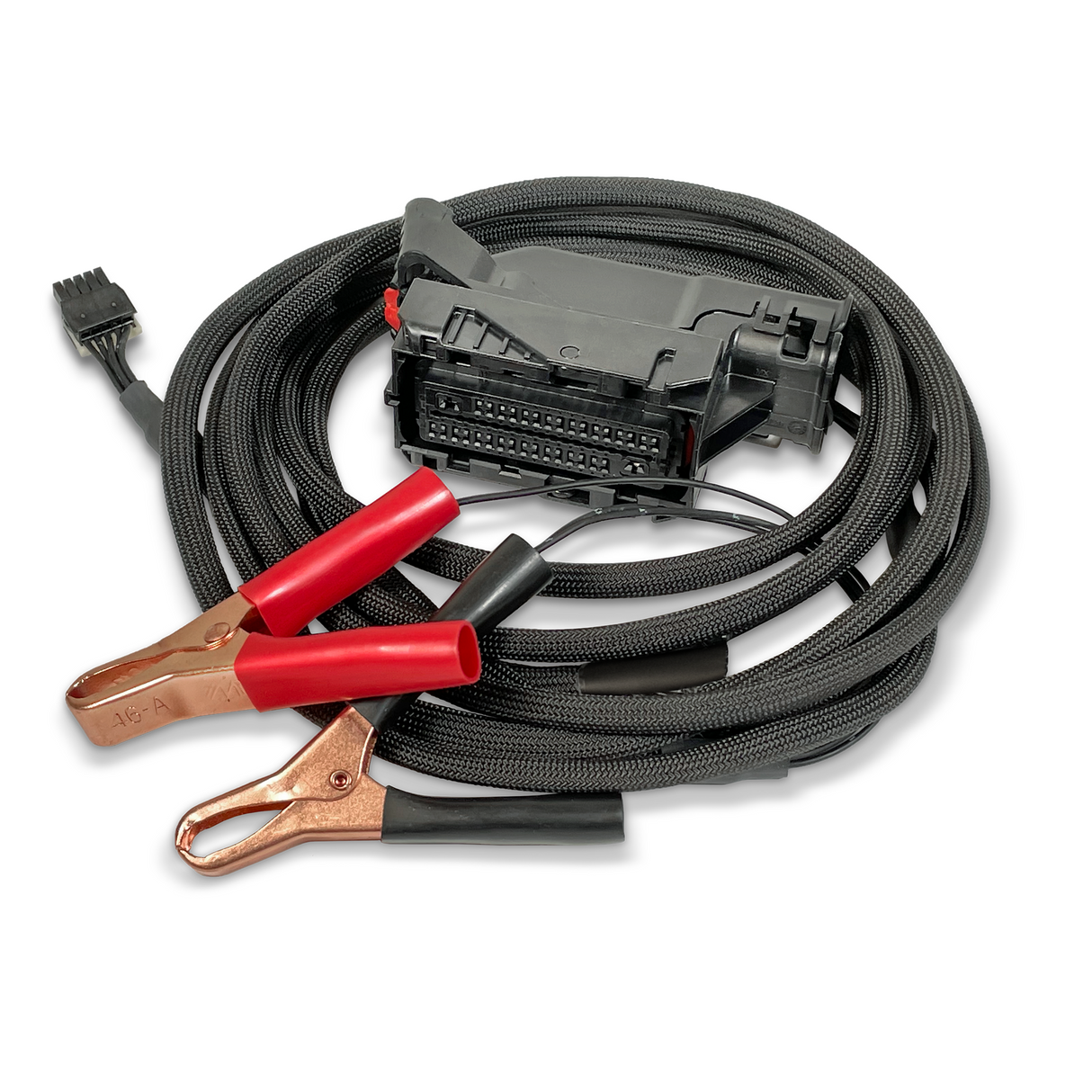

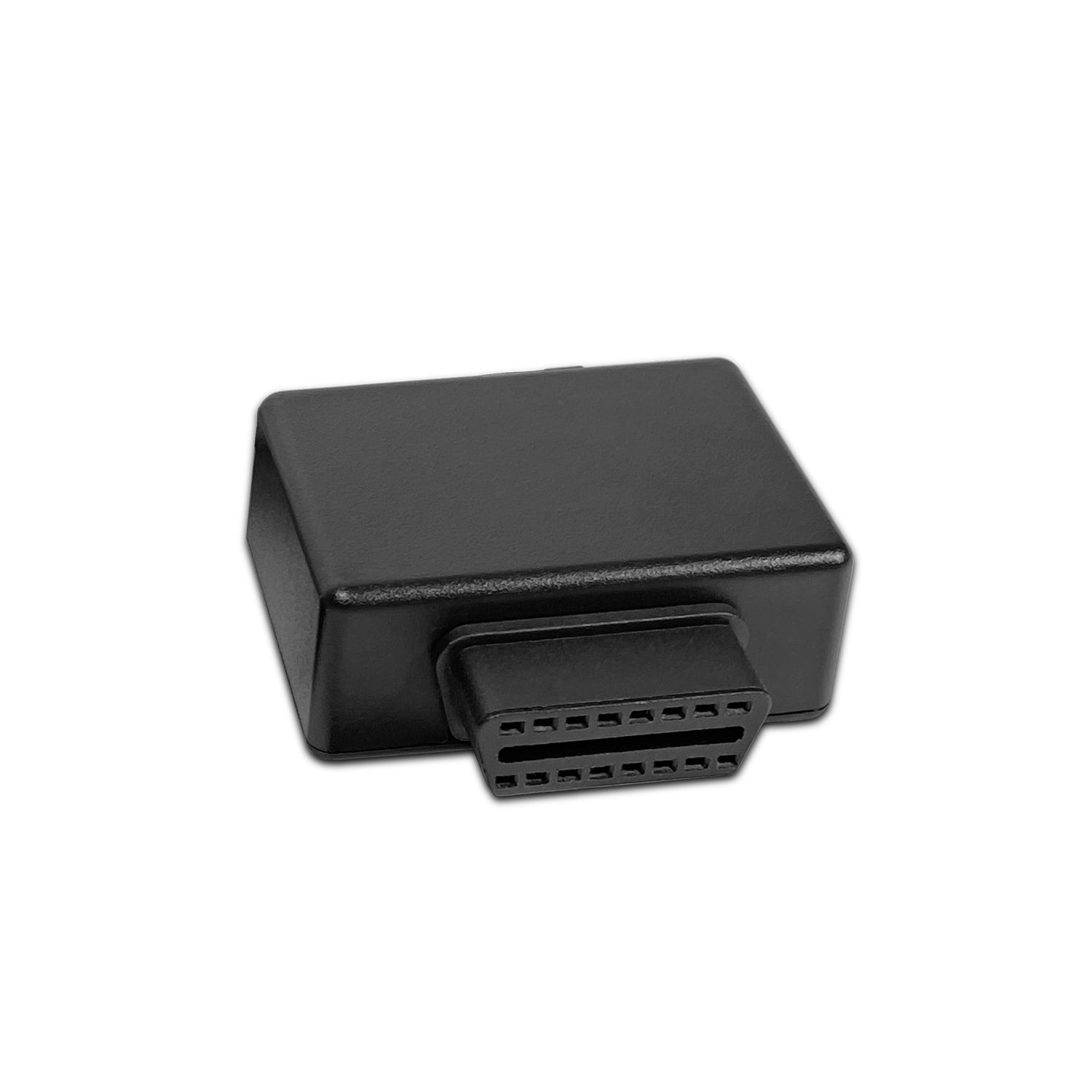

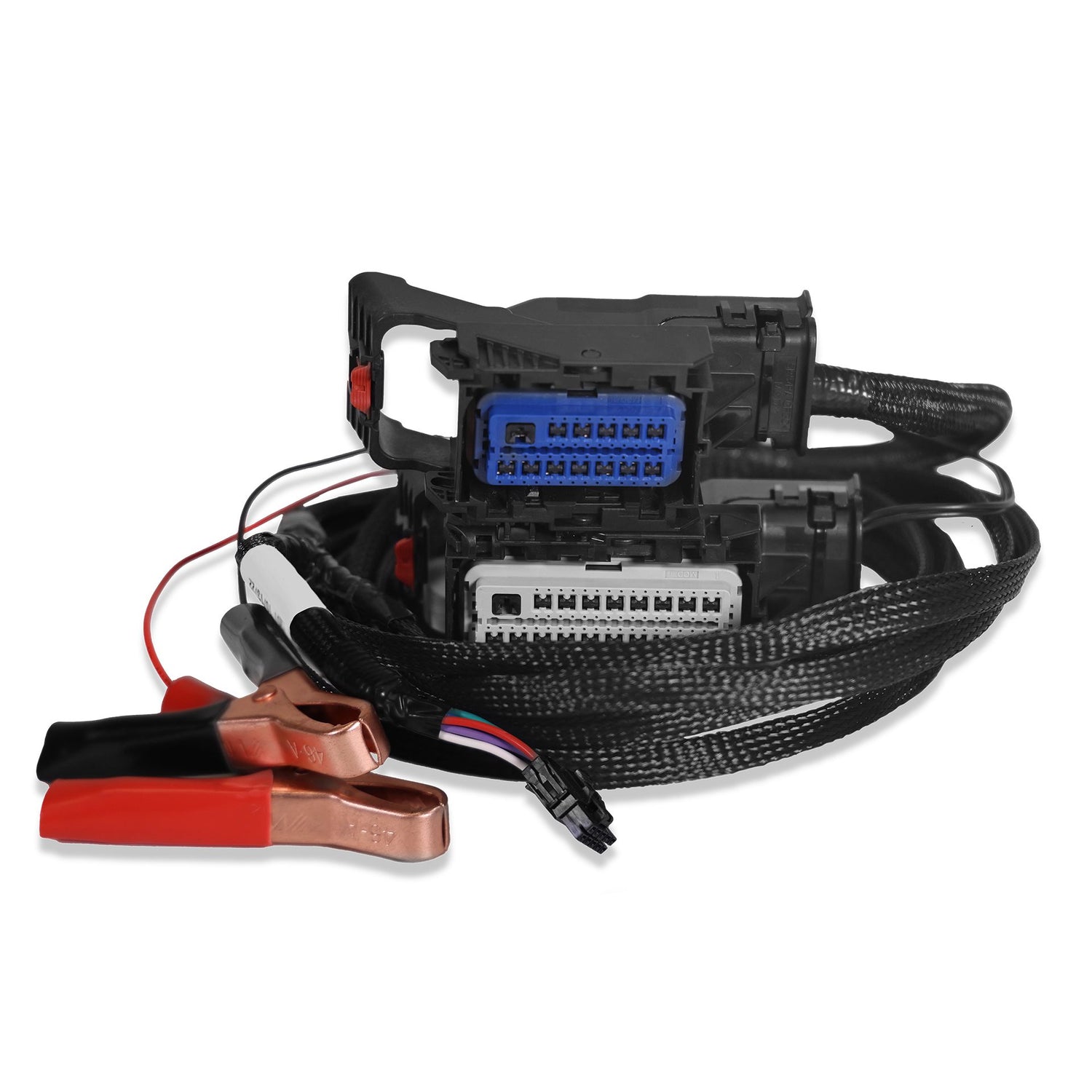

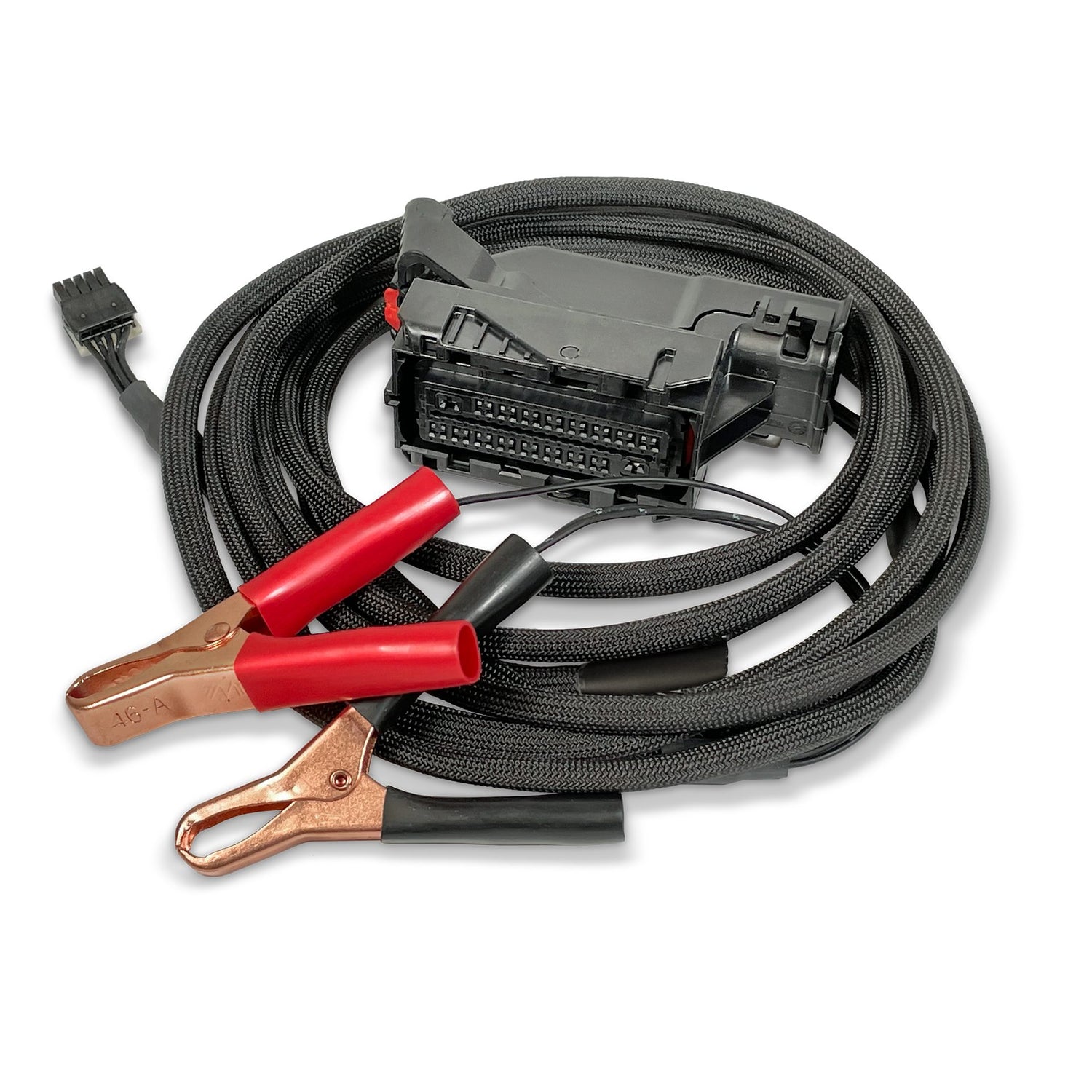

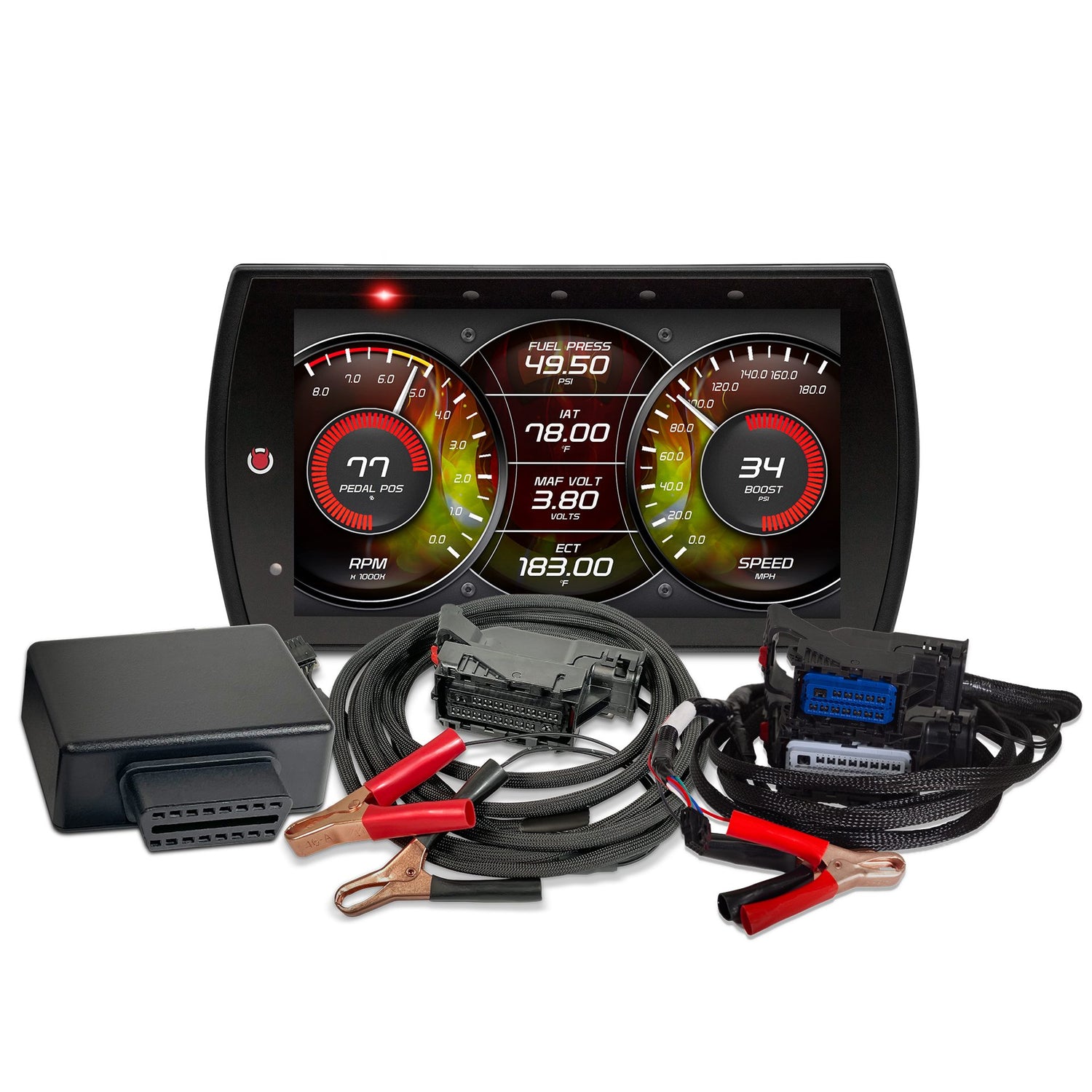

The 2019-2022 (22.5+ refresh not supported at this time) GM gas trucks have been locked down since their introduction. Owners of these trucks have been waiting patiently for a tuning solution, and DiabloSport has delivered in a big way! The new 9225-R kit includes our industry leading Trinity 2 on-dash tuner, along with the locksmith device and harnesses required to unlock both the ECM and TCM in your truck. Once unlocked, the Trinity 2 offers up tunes for 87, 91 and 93 octane fuels, as well as 2 transmission tunes to choose from, plus the option to load custom tunes developed by our CMR tuning partners. Beyond the preloaded tunes, we offer a host of user adjustable parameters, like throttle response, speed limit, tire size, and of course, DFM disable! We've even added some new features for drivers of these newer trucks, like the ability to recall your last mode setting, or to retain your auto-start-stop setting.Of course it doesn't stop there with T2. The full color, 5" touch screen allows you to keep an eye on all your vital engine data. The on-screen gauges deliver all the info you want to see, in real time. Of course, it can also record data for playback on our DV2 software for further analyzation. T2 also allows you to set up virtual alerts, and supports our Expandable Accessory System (EAS) for adding and logging additional external sensors. The device is internet updateable, either through our Update Agent software, or through its built in WiFi.Get power you can feel, with DiabloSport!

• 2019-2022 5.3/6.2 GM Trucks
• ECM and TCM unlock included!
• Unlock and Tune, at home!
• Preloaded tunes for multiple octane levels
• Full color, 5" touchscreen
• Support for 5.3L and 6.2L V8 applications with 6, 8 or 10 speed transmissions
• Supports Custom Tuning for ECM and TCM through our CMR sfotware!
• Disable Dynamic Fuel Management for full time V8 operation
• Throttle Boost setting for adjustable throttle feel
• Adjust speedometer for larger tires (26"-38")
• Calibrate speedometer for gear change (3.42-5.13)
• Remove speed limiter for increased top speed
• Adjust engine rev limiter for increased RPM range (+/- 400 RPM)
• Adjust engine idle speed in Park/Neutral and Drive
• New ‘Keep Auto Stop Start Setting’ allows you to disable the system using the button on the dash and it stays that way!
• New ‘Keep Drive Mode Setting’ allows you to select a drive mode and it will remember that mode next time you start the truck!
• Customizable gauge layouts and background images
• Supports our Expandable Accessory System
• Includes windshield mount
