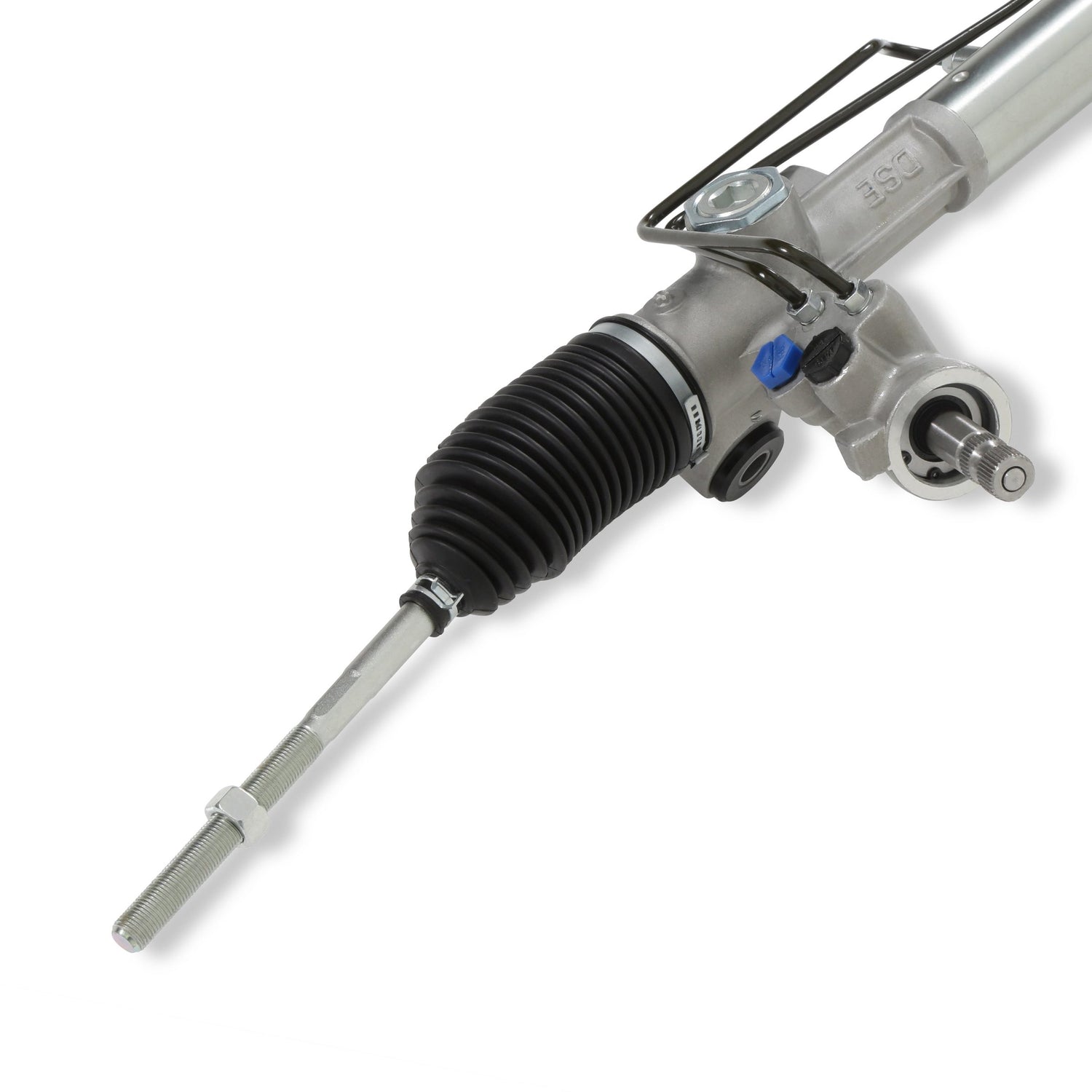

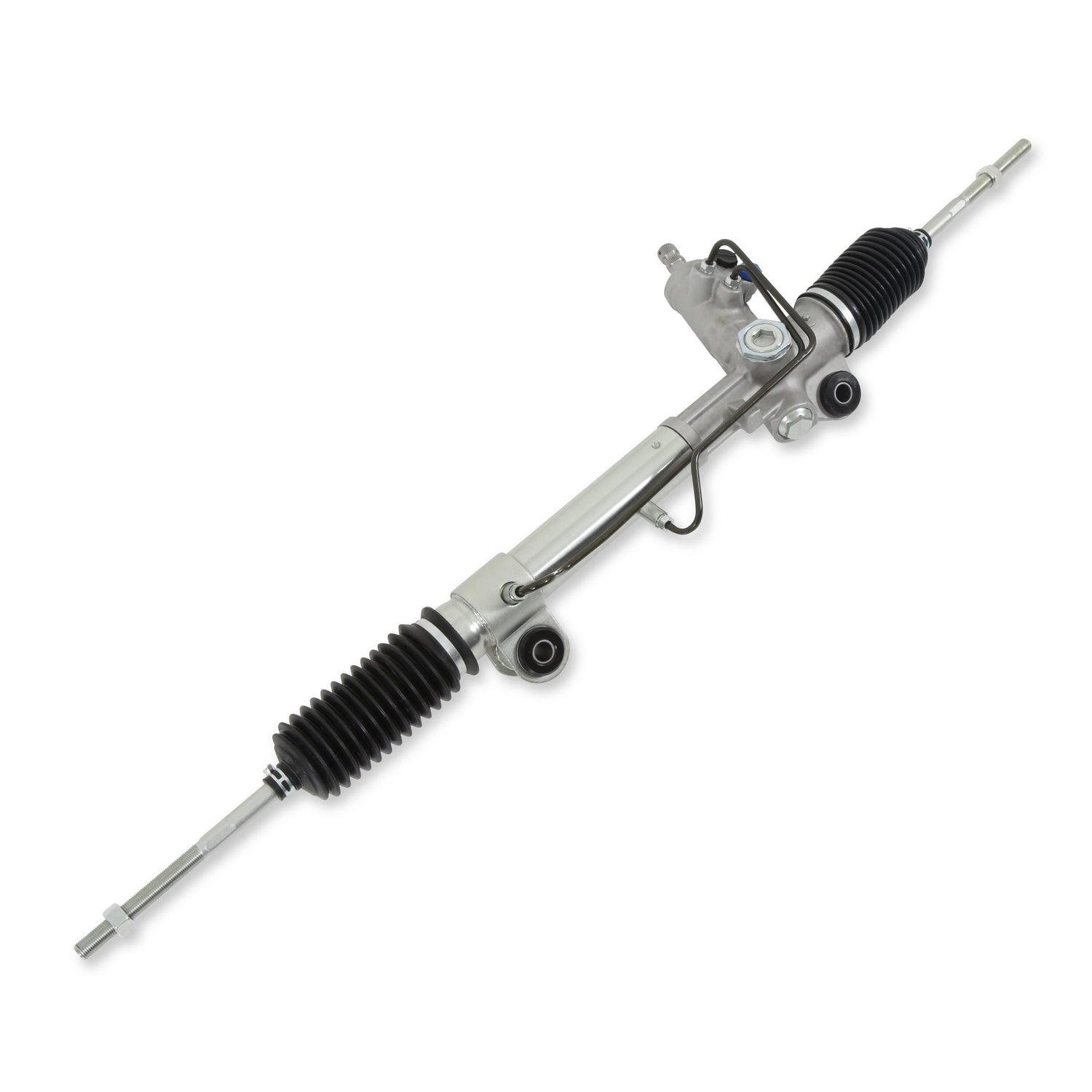

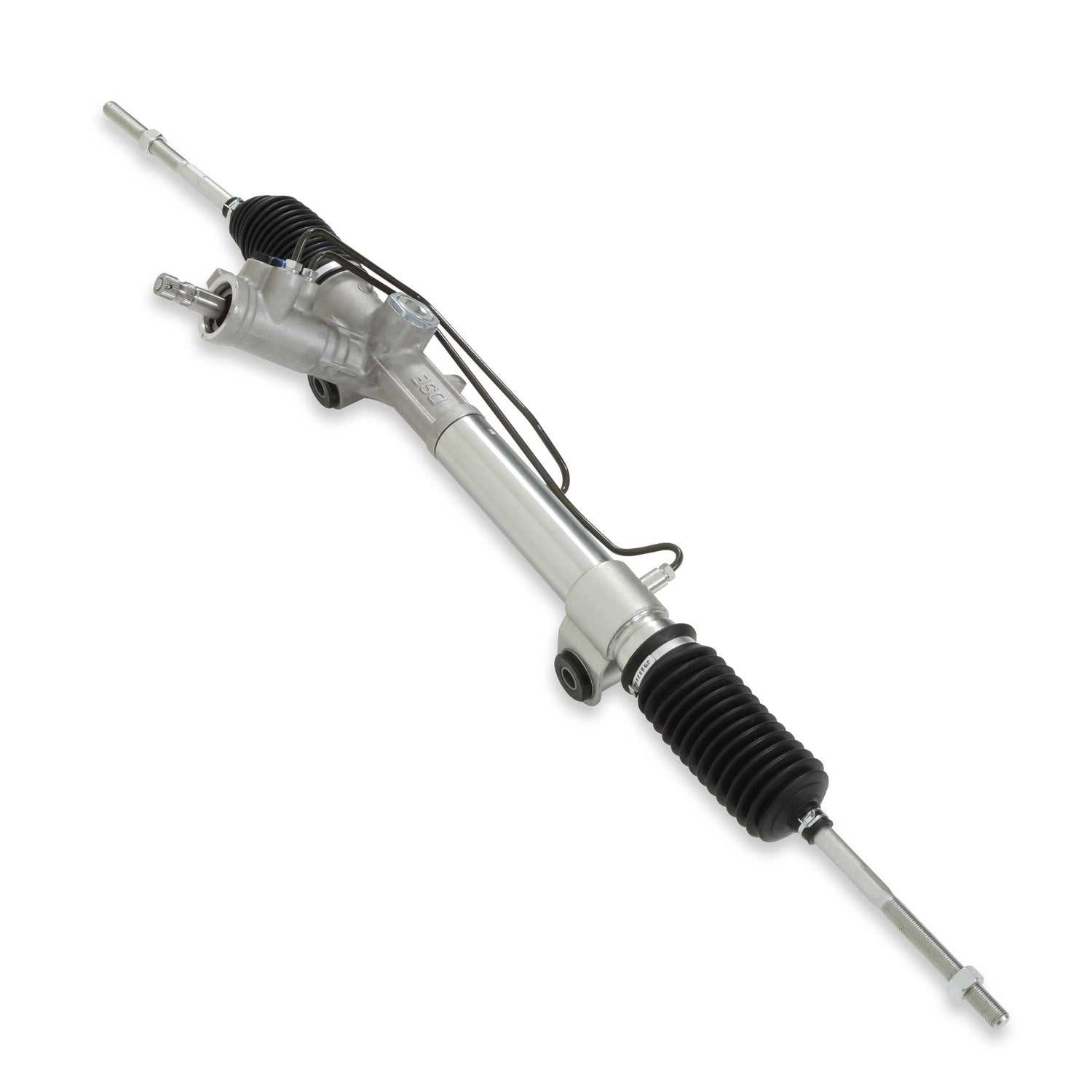

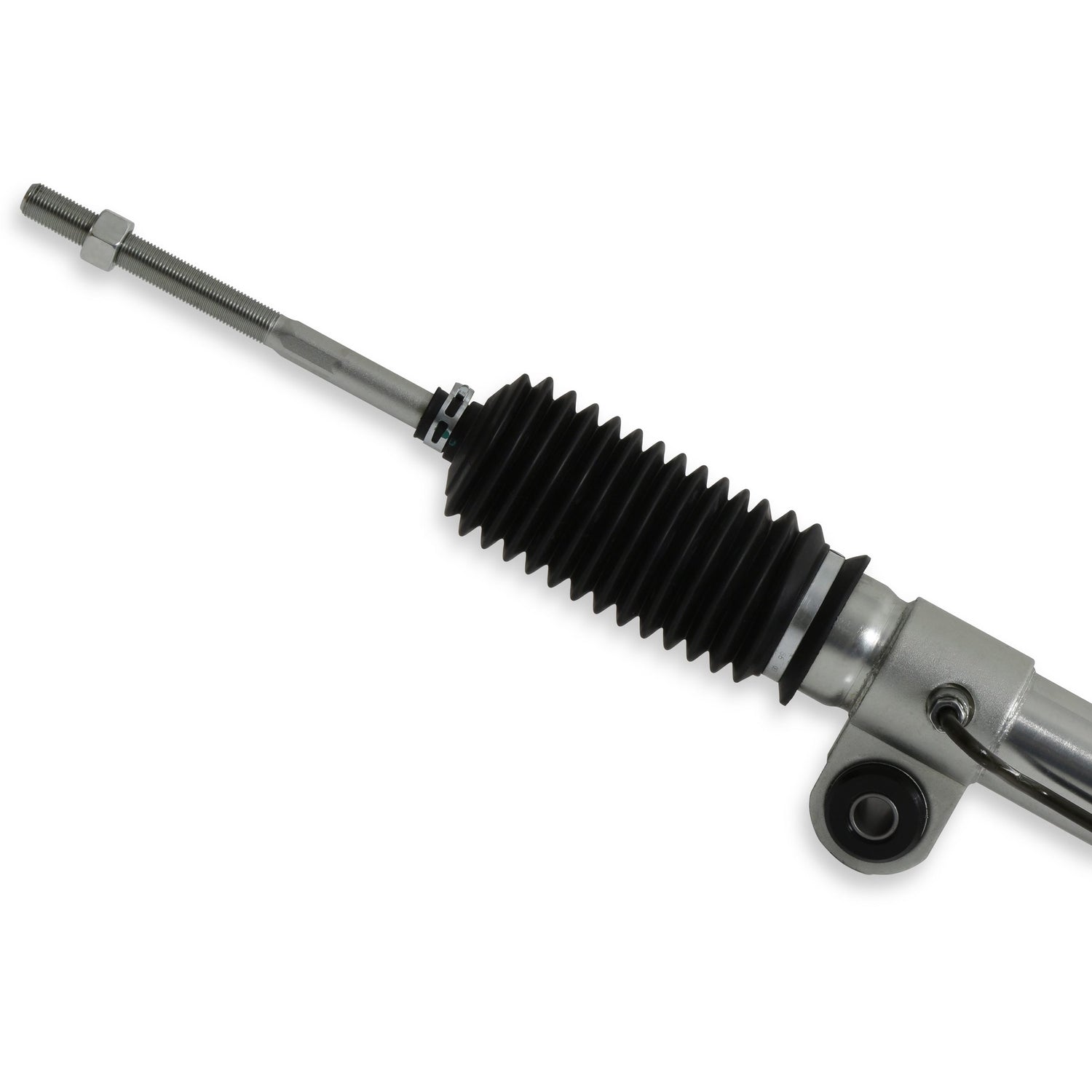

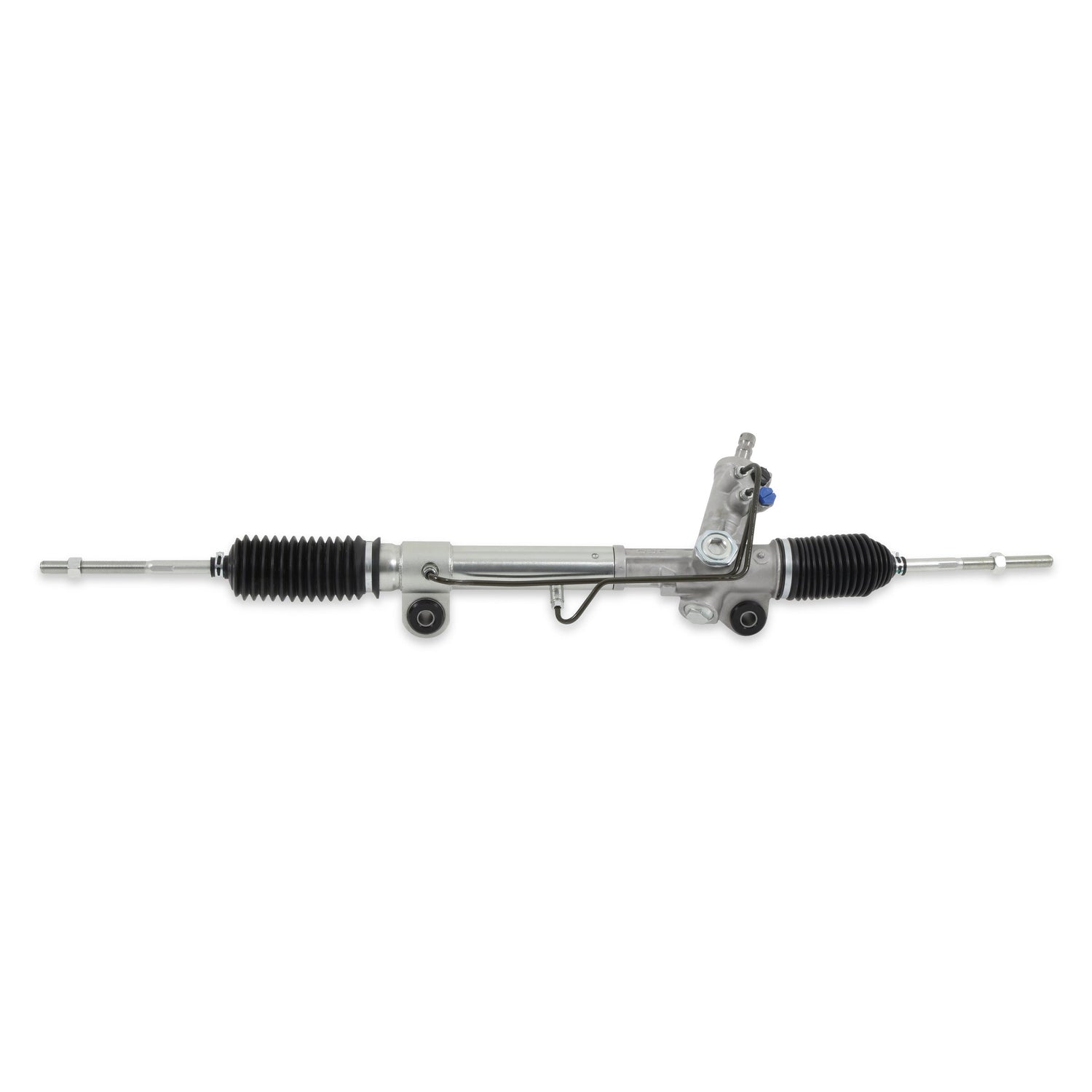

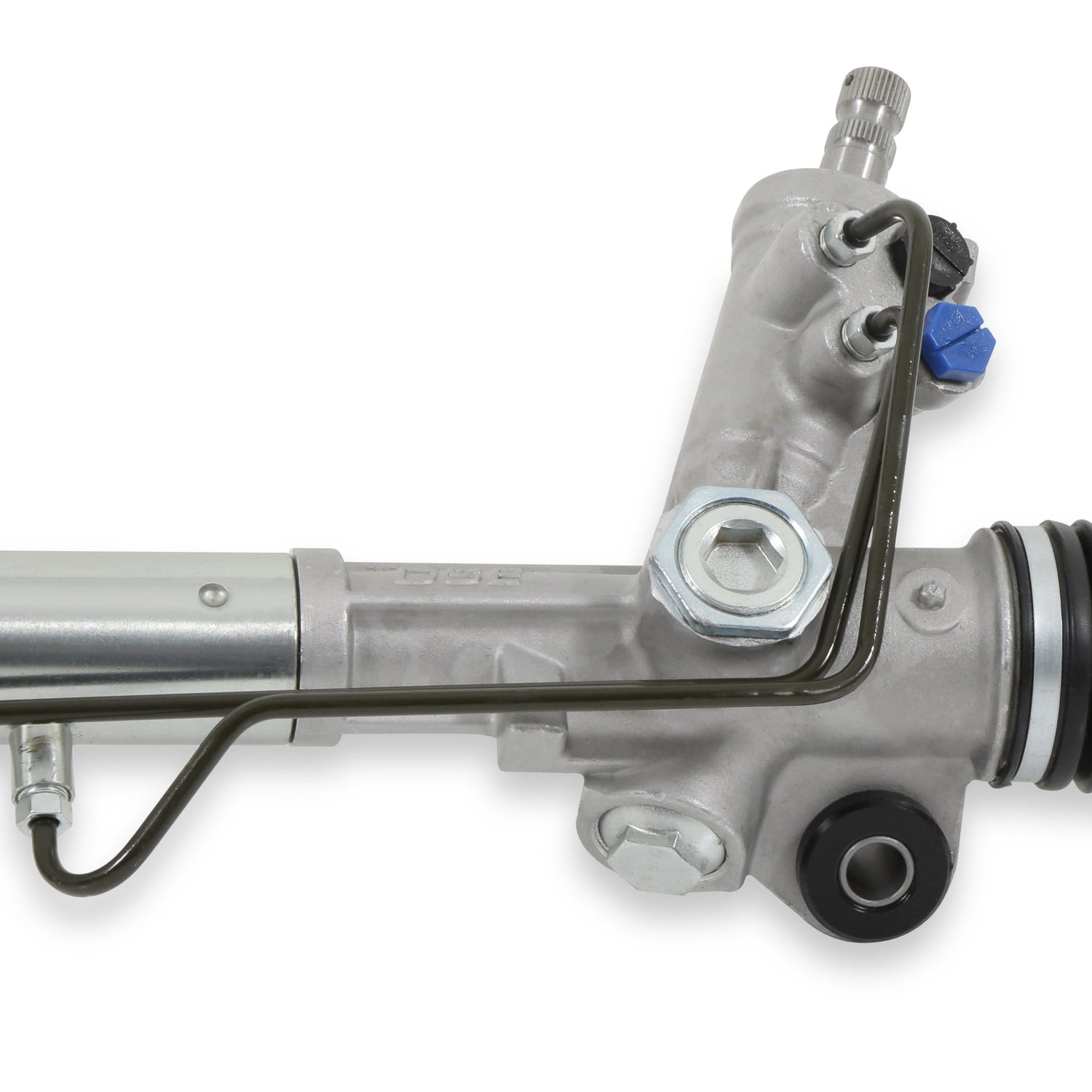

Detroit Speed 090220DS - 21.5 in. Detroit Tuned Power Rack & Pinion

Detroit Speed 090220DS - 21.5 in. Detroit Tuned Power Rack & Pinion

Rack and Pinion - Power - 4.5 in Travel - 21.5 in Long - 9/16-18 in Thread Rod End Eye - GM X-Body 1962-68 - Each

Detroit Speed Aluma-Frame/Chevy II Front Frame

Detroit Speed's rack and pinions have been optimized to provide an exceptional modern performance feel on the street and on the track and are available in both standard and narrow widths. The standard width is 24.5" and the narrow width being 21.5". This is one of the only racks with a 21.5" width in the aftermarket industry!

• 'Detroit Tuned' valving specifically to provide the increased effort and performance feel found in late model performance vehicles.
• All new components
• Every rack undergoes a rigorous quality check and is performance tested prior to being packaged.
• Includes polyurethane mounting bushings.
• Features an internal, inner tie rod boot balance tube.
• Inner Tie Rod Ball-to-Ball Width: 21.5 inches
• Overall Width: 42 inches
• Linear Rack Travel: 4.5 inches
• Number of Turns Lock-to-Lock: 2.5
• Mounting Bolt Span: 13.5 inches
• Centerline of Rack Housing to Centerline of Driver's Side Mount: 7.77 inches
• Mounting Bolt Size: 9/16 inch
• Outer Tie Rod Thread Length: 6 inches
• Outer Tie Rod Thread Size: 9/16"-18
• Input Shaft: 3/4"-36
• Recommended Flow Rate: 3 gal/min.
• Maximum Peak System Pressure: 1800 psi
• High Pressure Fitting Thread: 9/16"-18
• Low Pressure Fitting Thread: 5/8"-18
