Derale 14207 - Transmission Cooling Pan, Reduces Fluid Temps up to 50°F, Increase Capacity

Derale 14207 - Transmission Cooling Pan, Reduces Fluid Temps up to 50°F, Increase Capacity

Transmission Pan - Cooling - Deep Sump - Flat - 4.25 in Deep - Adds 4.5 qt Capacity - Steel - Black Paint - 4L80E - Each

Transmission Cooling Pan; Reduces Fluid Temps up to 50deg.F; Increase Capacity

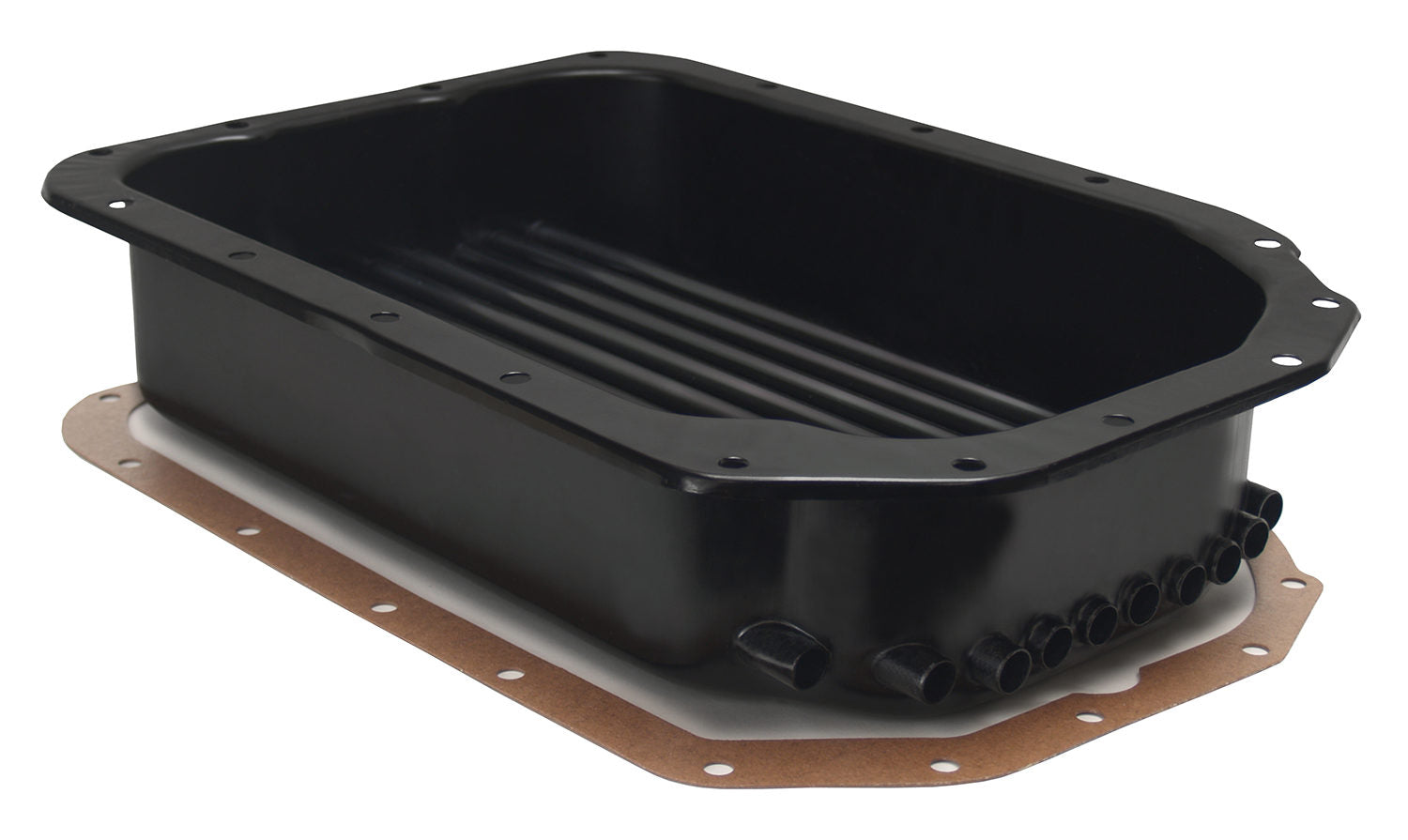

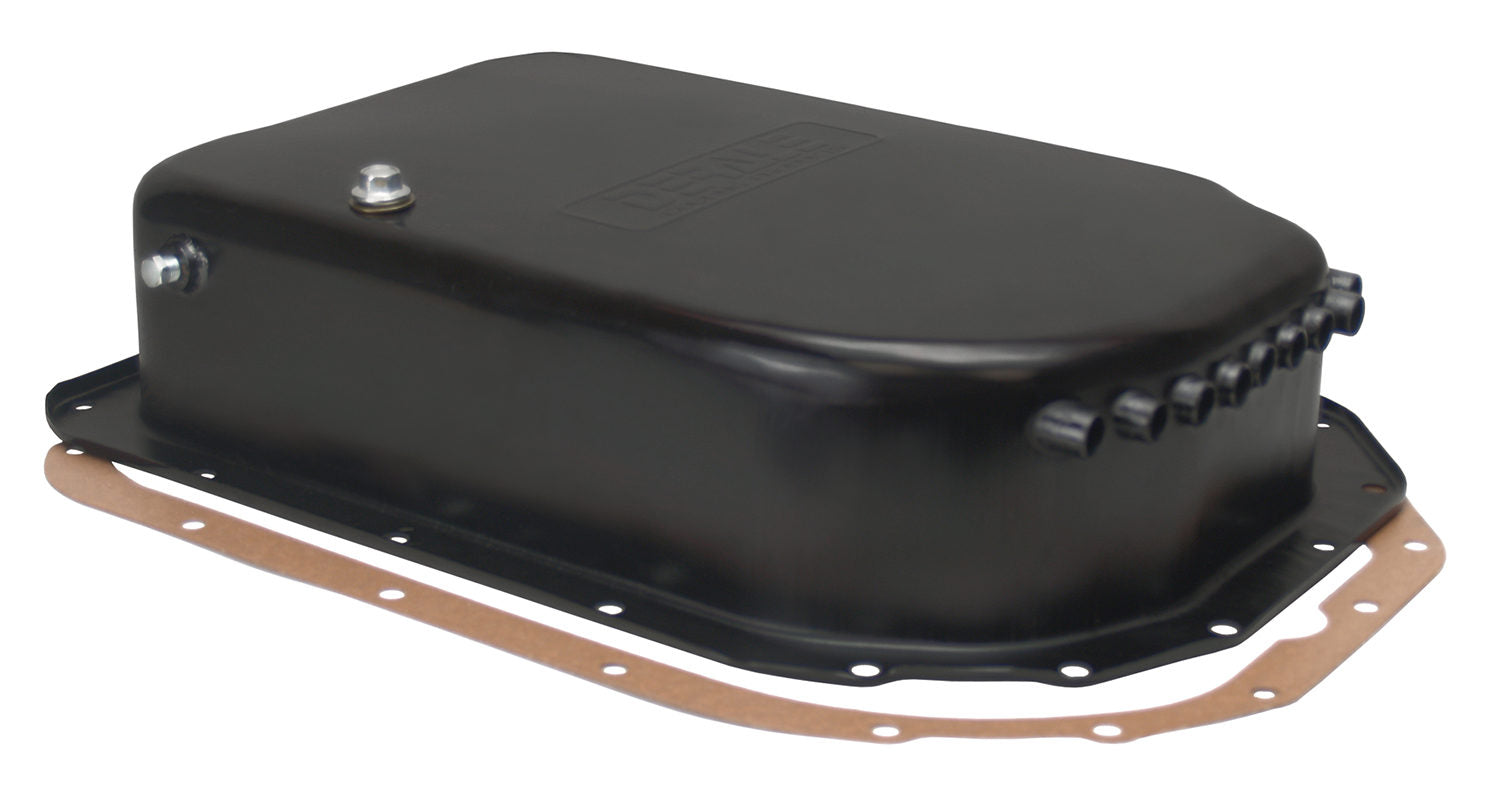

Derale's Transmission Cooling Pan #14207 uses air passing beneath the vehicle and redirects it to help lower transmission oil temperatures. Designed for GM's heavy duty 4L80E transmissions, this pan features brazed, turbulator-equipped airway tubes passing through the lower section of the transmission pan for more efficient cooling, each is individually pressure tested to ensure a leak-free pan. We've included a much stronger magnetic drain plug and rubber/steel reusable washer, in addition to a 1/8 in. NPT temperature sender bung located in the side of the pan. Finished with a durable black two-stage coating, each pan also includes neoprene gasket and 1/8 in. NPT temperature sender plug.

• Heavy Gauge Stamped Steel Construction
• Two Stage Heat Dissipating Black Finish
• 1/8 in. NPT Temperature Sender Port
• Reduces Fluid Temperatures Up To 50 Degrees Fahrenheit
• Increases Fluid Capacity By 4 qts. 16 oz.
• Patented Turbulator Cooling Tubes Add Heat Transfer Capability
• Magnetic Drain Plug With Increased Magnetic Strength And Rubber/Steel Washer
• 4-1/16 in. Pan Depth
