Dart 41616010 - Big Block Chevy 8.1 Liter Manifold
Dart | SKU:
BGWK-41616010
Sale price
$81495
Regular price
$85784
Unit price
/
Unavailable
$42.89 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

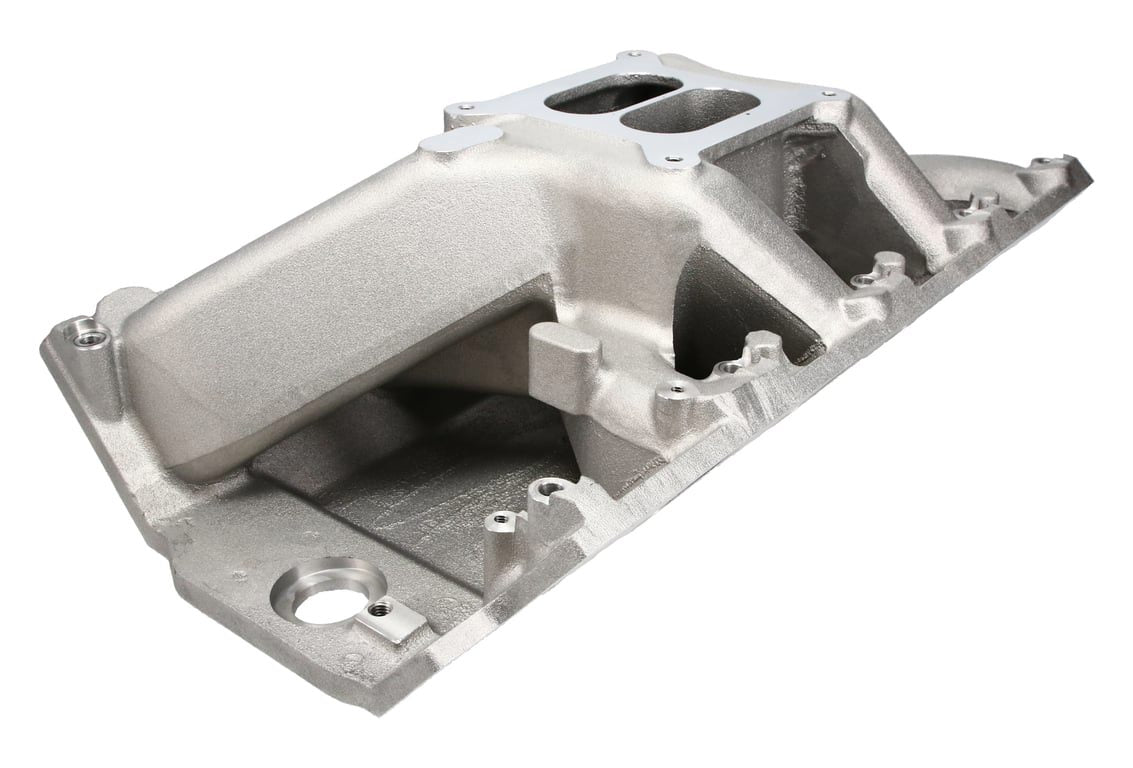

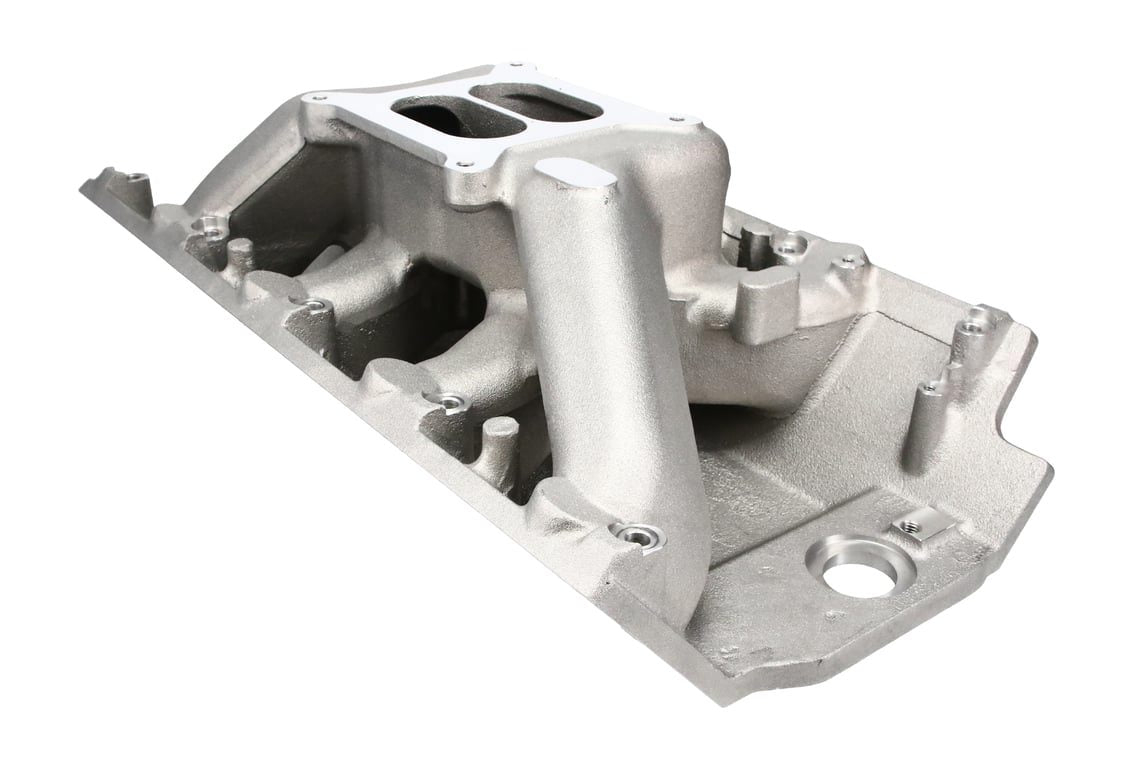

Dart 41616010 - Big Block Chevy 8.1 Liter Manifold
Intake Manifold - Square Bore - Dual Plane - Cathedral Port - Aluminum - Natural - Standard Deck - 8.1 L - Big Block Chevy - Each
Dart Big Block Chevy 8.1 Liter Manifolds
An engine's cylinder heads and intake manifold must work together as an integrated system to produce maximum performance. The intake charge should make a seamless transition from the manifold runners to the cylinder head ports. Dart has accomplished this in every intake manifold we make.
Industry: Automotive
Carburetor Flange: 4150
Deck Height: 10.236
Manifold Flange Thickness: 0.435
Material: Aluminum
Port Height: 3.190
Port Style: Cathedral
Port Width: 1.420
Single Or Dual Plane Type: Dual Plane
Engine Type: ICE
Product Type: Engine Intake Manifold
Make: Chevrolet
Engine: Big Block
Make - Web: Chevrolet
Engine - Web: Big Block
Title - Web: Big Block Chevy 8.1 Liter Manifold
Category Hierarchy: Intakes>Big Block Chevy
Cylinder Head Port Shape: Cathedral
Manifold Port Shape: Cathedral
Intake Manifold Material: Aluminum
Mounting Flange Thickness: 0.435
EBAY Category ID: 36474
