Dart 31837221 - LS NEXT Chevy LS Gen III Iron Block - 4.125 in. Bore, 9.450 in. Deck

Dart 31837221 - LS NEXT Chevy LS Gen III Iron Block - 4.125 in. Bore, 9.450 in. Deck

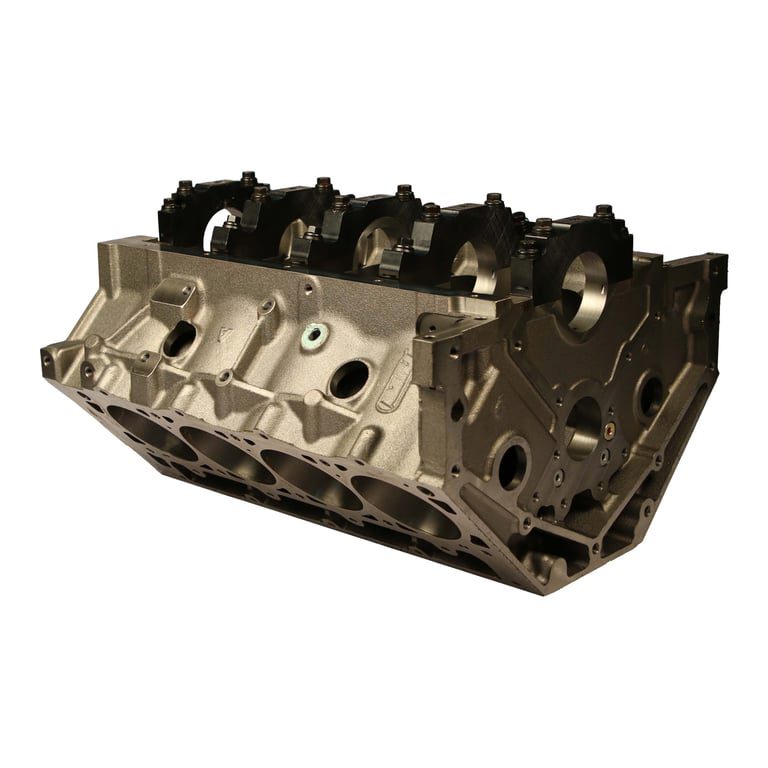

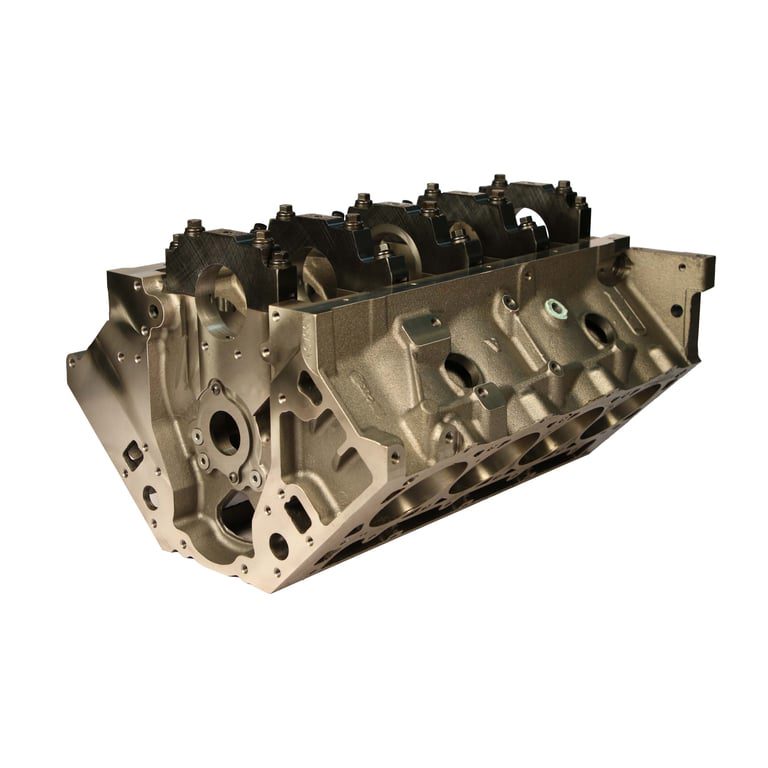

Dart LS Next Iron Gen III Blocks

Designed from a clean slate approach the LS Next Iron block has addressed the shortcomings of the LS platform and is the ideal candidate for hot rodders, drag racers, circle track competitors, off-roaders, and high performance marine enthusiasts. By utilizing conventional style main caps and oil pans with LS rotating assemblies and related components, Dart has addressed the windage and oil control problems which result from the factory LS engine's separated crankcase bays.

• Priority main oiling system with two lifter crossovers and restrictor provisions
• Siamesed cylinder bores with extra thick walLS2
• Cylinder barreLS2 extended .375in at the bottom
• Extra thick decks ensure reliable head gasket seal
• Blind head bolt holes available in 7/16in or 1/2in
• Scalloped water jackets increase flow around cylinders for better cooling
• Clearance for 4.100in stroke w/ steel rods
• MUST BE clearanced for center counterweighted crankshafts
• Splayed outer bolts on middle main bearing style motor mounts
• Provisions for OE stock roller lifters and stock timing covers and stock rear cover
• All OE bolt holes for starter, water pump, or passenger side starter mounts
• Parts kit sold separately (PN: 32000016)
