Dart 19674136 - Pro2 CNC Aluminum Big Block Chevy Cylinder Heads

Dart  |  SKU: BGWK-19674136
Regular price $000


AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

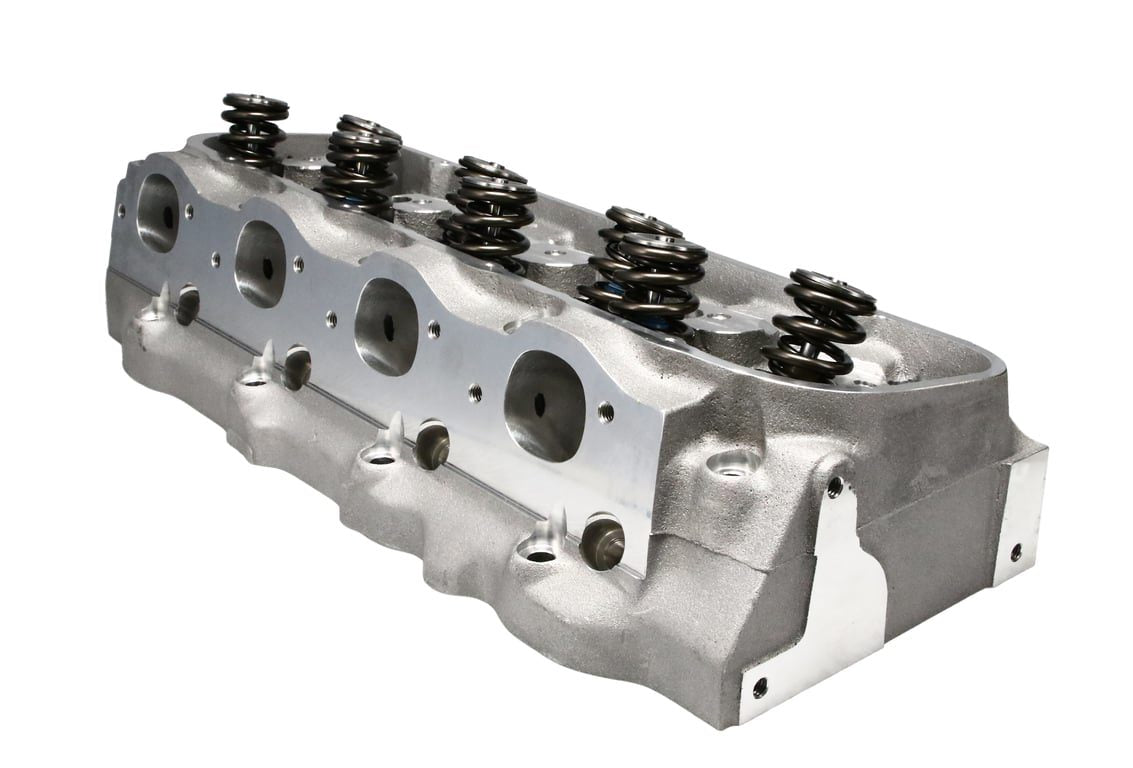

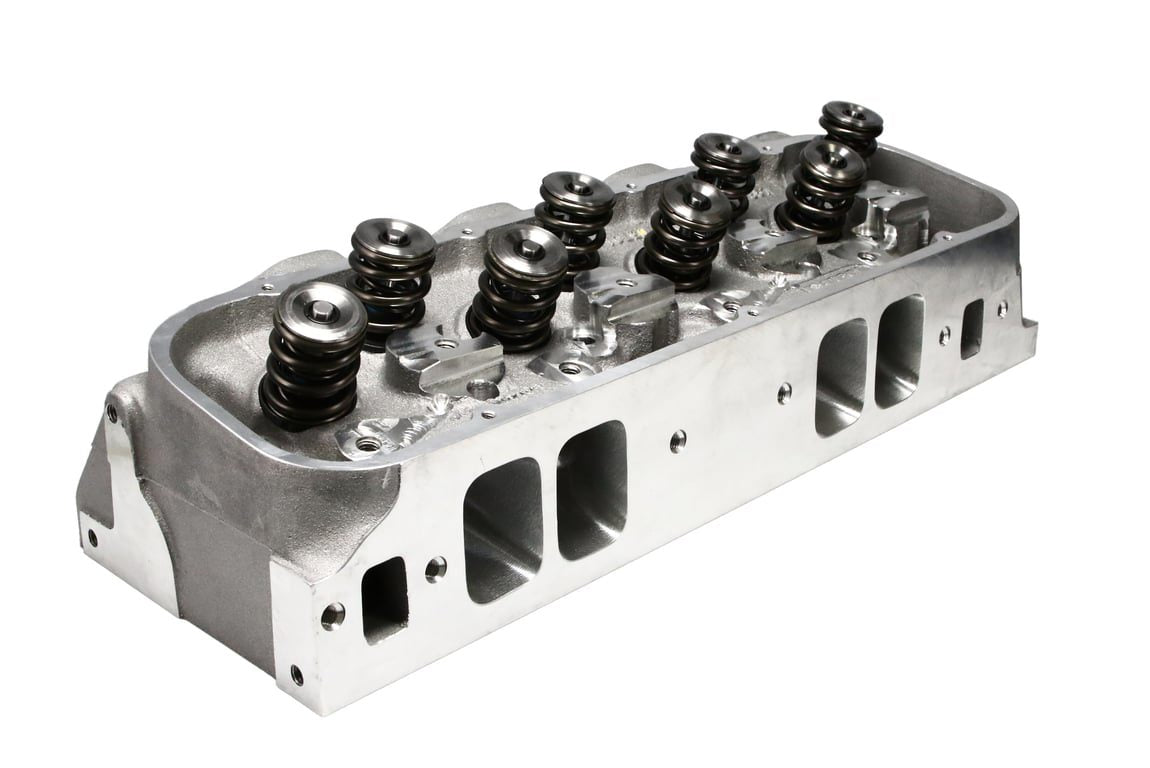

Dart 19674136 - Pro2 CNC Aluminum Big Block Chevy Cylinder Heads

Cylinder Head - Pro 2 CNC - Assembled - 2.350 / 1.880 in Valves - 380 cc Intake - 124 cc Chamber - 1.625 in Springs - Aluminum - Big Block Chevy - Each

Dart Pro2 CNC Aluminum Big Block Chevy Cylinder Heads

Maximum performance, bracket racing, heads up and super classes. Over 7,500 RPM, 500+ cubic inches, a great head for maximum effort comp or bracket cars. Dart's PRO2 24 Deg 380cc CNC heads have been revised with larger 2.350 in. intake valves and a revised port design for improved airflow and a substantial horsepower increase! These cylinder heads were designed to make competitive engine building easier and less expensive by incorporating the rugged features of our famous Race Series casting into a ready to use, professional quality competition cylinder head. Every intake port, every exhaust runner, every valve bowl, and every combustion chamber is 100% digitally CNC machined for the ultimate in consistency. Assemblies include Stainless Steel valves, premium springs, locks, retainers, guide plates and seals.

  • Heads are sold individually
Industry: Automotive
CNC Ported: Yes
Combustion Chamber Volume: 124.00
Exhaust Valve Diameter: 1.880
Intake Valve Diameter: 2.300
Material: RMR Cast Aluminum Alloy
Port Volume: 380.00
Valve Angle: 24
Valve Spring Diameter: 1.625
Valve Spring Maximum Lift: 0.850
Engine Type: ICE
Valve Spring Type: Double
Product Type: Engine Cylinder Head
Make: Chevrolet
Engine: Big Block
Cylinder Head Series: Pro2
Cylinder Head Material: RMR Cast Aluminum Alloy
Intake Runner Volume: 380.00
