Dart 11030153 - Pro1 LS 15 Deg (LS1 Compatible) Gen III Cylinder Heads

Dart  |  SKU: BGWK-11030153
Regular price $000


AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

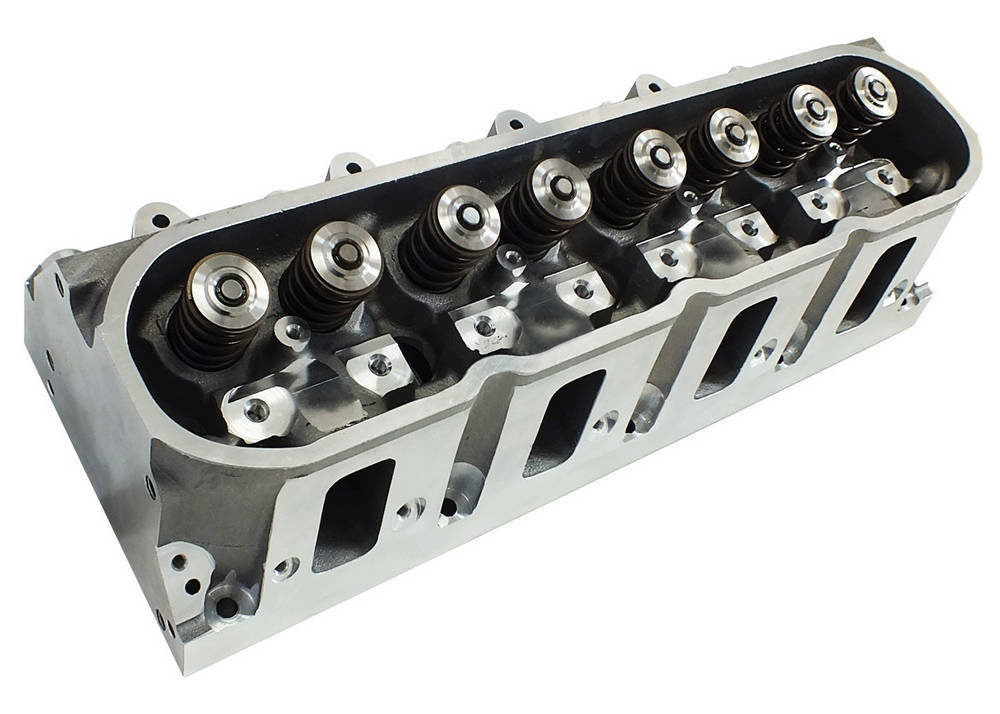

Dart 11030153 - Pro1 LS 15 Deg (LS1 Compatible) Gen III Cylinder Heads

Cylinder Head - Pro1 LS 15 Degree - Assembled - 2.165 / 1.600 in Valves - 280 cc Intake - 68 cc Chamber - 1.295 in Springs - Aluminum - GM LS-Series - Each

Dart Pro1 LS 15 Deg (LS1 Compatible) Gen III Cylinder Heads

Recommended for engines with 4.000 inch bore or larger. Maximum competition, comp/modified drag racing, circle track, and heavy duty applications. Dart's LS based PRO1 LS 15 Deg 280cc Aluminum rectangle port cylinder head (LS3 compatible) for GM LS series small block V8 engines take performance to the next level. Offers higher performance and more versatility than factory designs. The 15 Deg based high performance cylinder head has better airflow, more efficient combustion chambers and more user friendly features than production LS castings. The Dart PRO1 280cc cylinder head retains stock valve angles, stock valve locations and stock accessory mounting holes to make installation easy. Virtually everything else has been improved.

  • Heads are sold individually
Material: RMR Cast Aluminum Alloy
Port Volume: 280.00
Valve Angle: 15
Valve Spring Diameter: 1.295
Valve Spring Maximum Lift: 0.650
Engine Type: ICE
Valve Spring Type: Double
Product Type: Engine Cylinder Head
Make: Chevrolet
Engine: LS Gen III
Cylinder Head Series: Pro1
Cylinder Head Material: RMR Cast Aluminum Alloy
Intake Runner Volume: 280.00
Industry: Automotive
CNC Ported: Yes
Combustion Chamber Volume: 68.00
Exhaust Valve Diameter: 1.600
Intake Valve Diameter: 2.165
