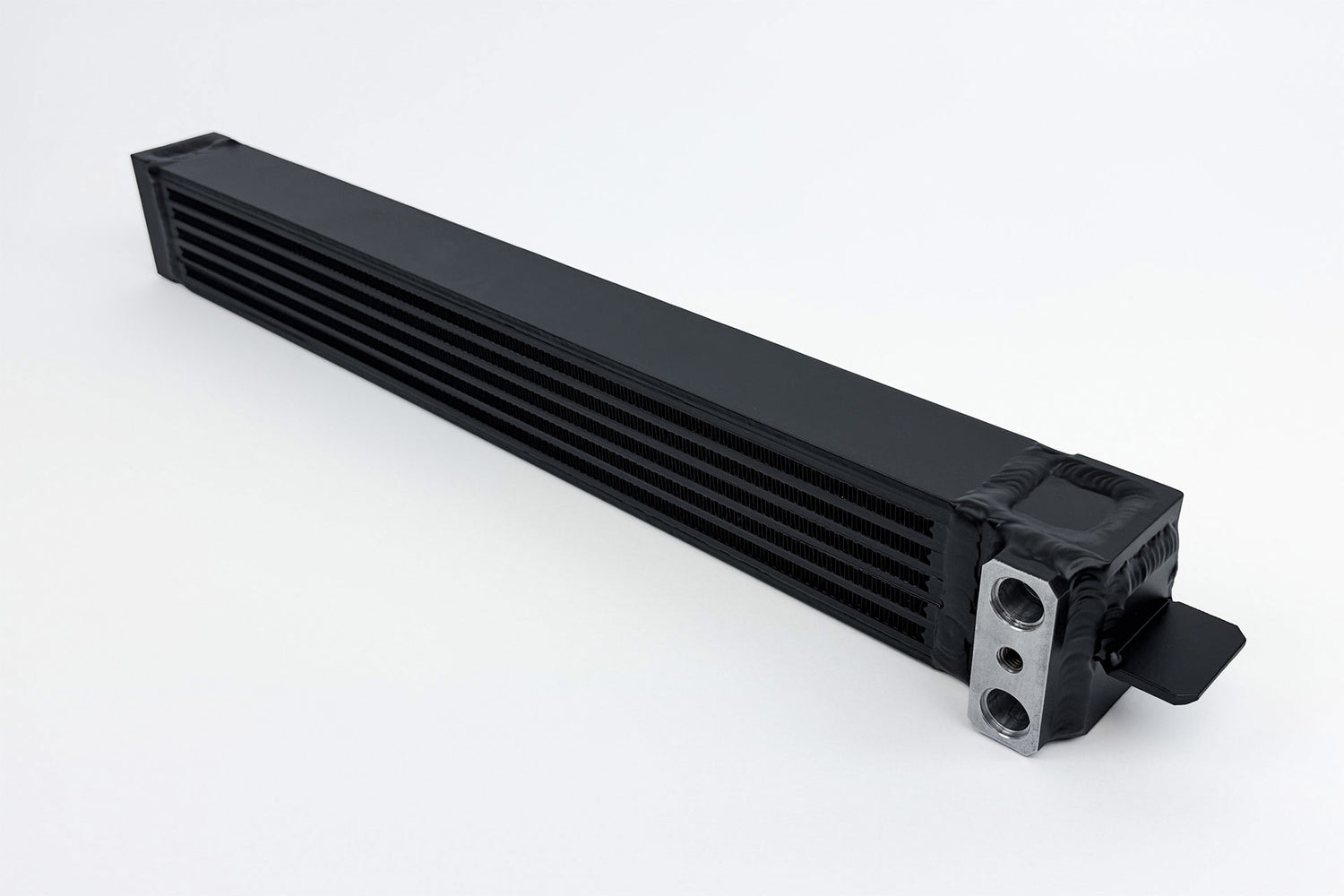

CSF E36 M3/3-Series Euro Spec Oil Cooler

The factory Euro oil cooler was discontinued by BMW so Bimmerworld partnered with CSF to produce a direct replacement and keep this essential E36 oil cooler upgrade alive.

The original oil cooler used Tube and Fin construction. While this is acceptable for cooling performance, it is not a very robust design. CSF chose to go with a Bar and Plate construction to improve durability. While there is plenty of ground clearance, the cooler is low enough to see some potential abuse on the track. CSF wanted to offer that extra durability of a Bar and Plate cooler for track enthusiasts and those running their car on the lower side.

• Unique Top/Bottom Dual-Pass Design for Maximum Surface Area and Flow

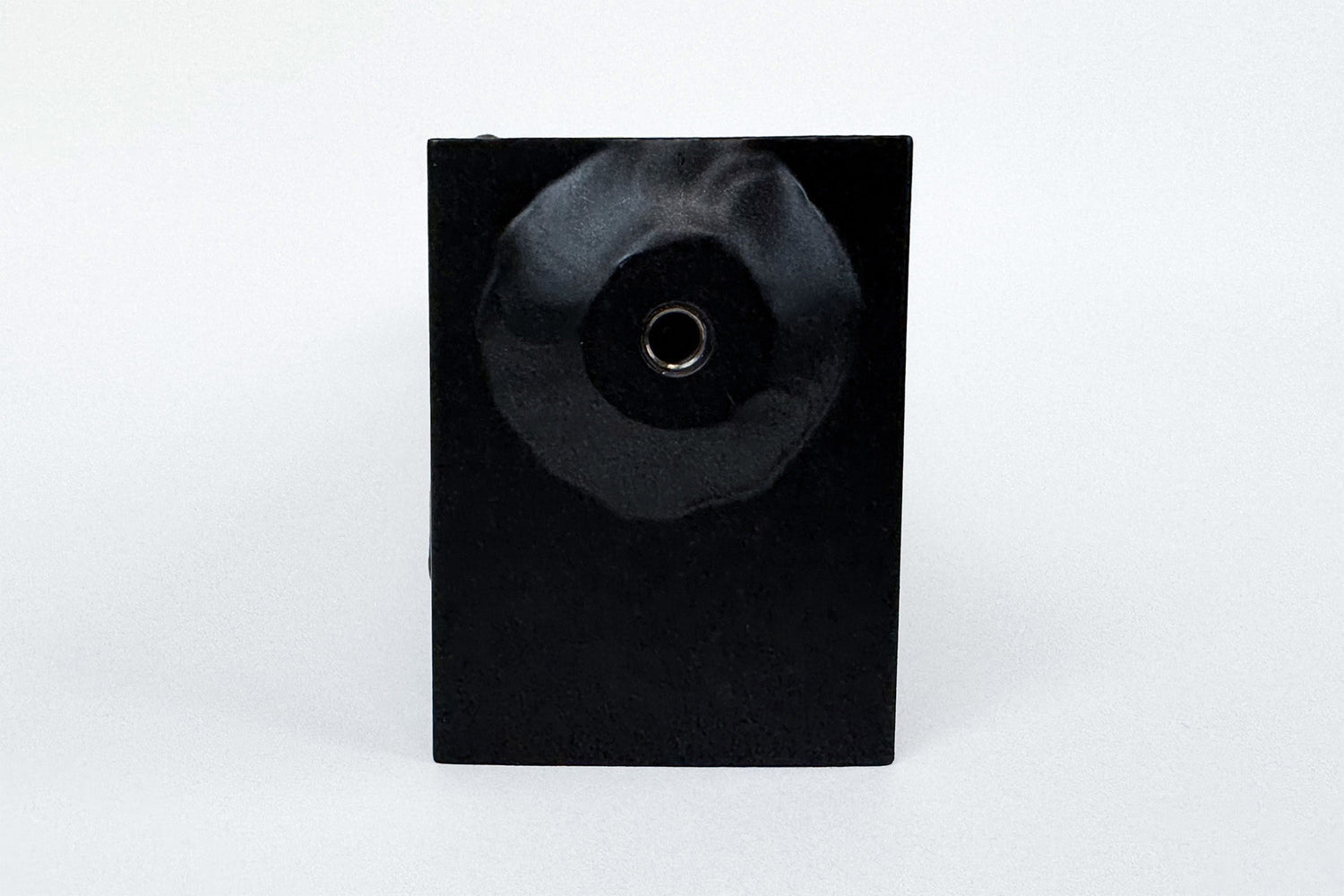

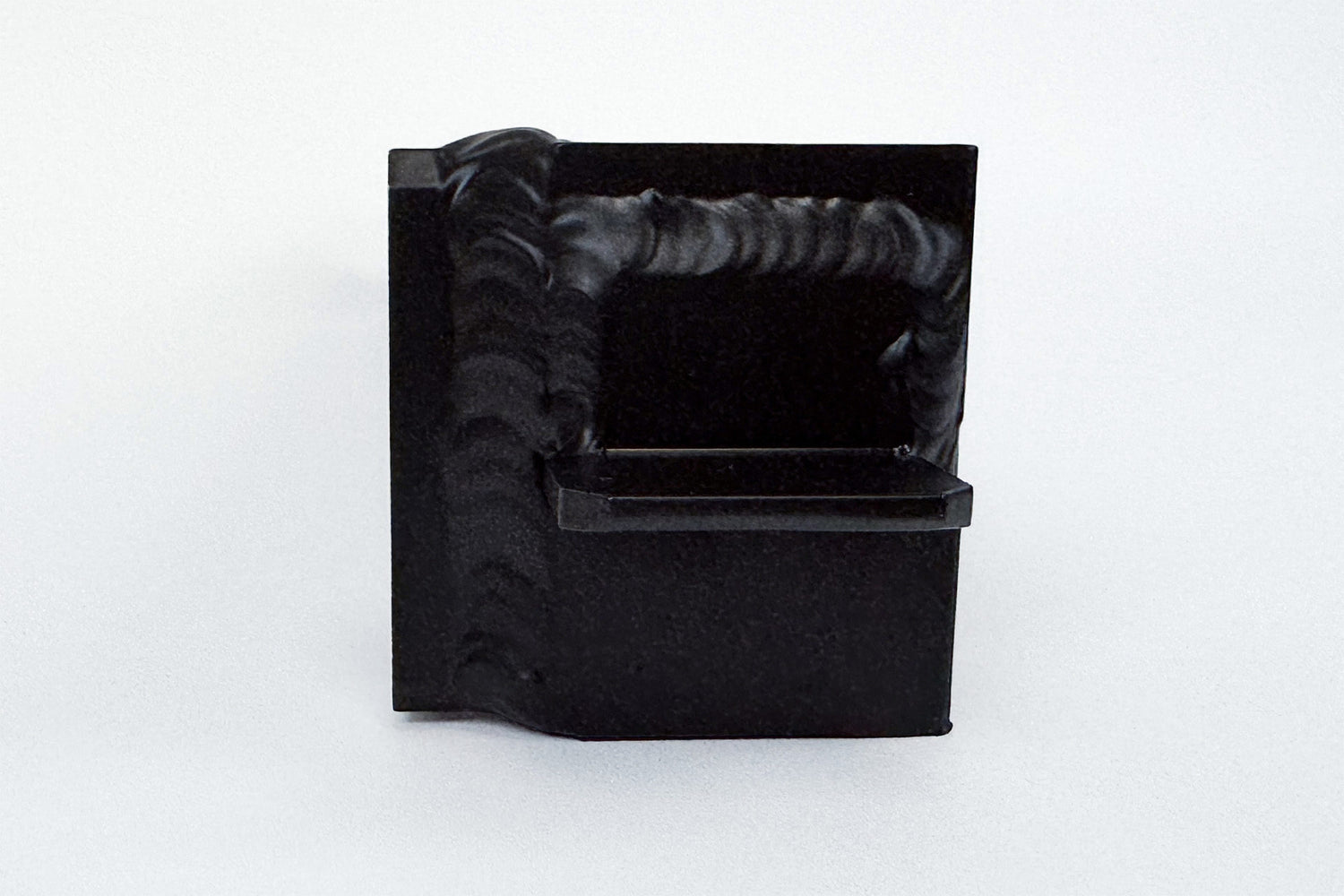

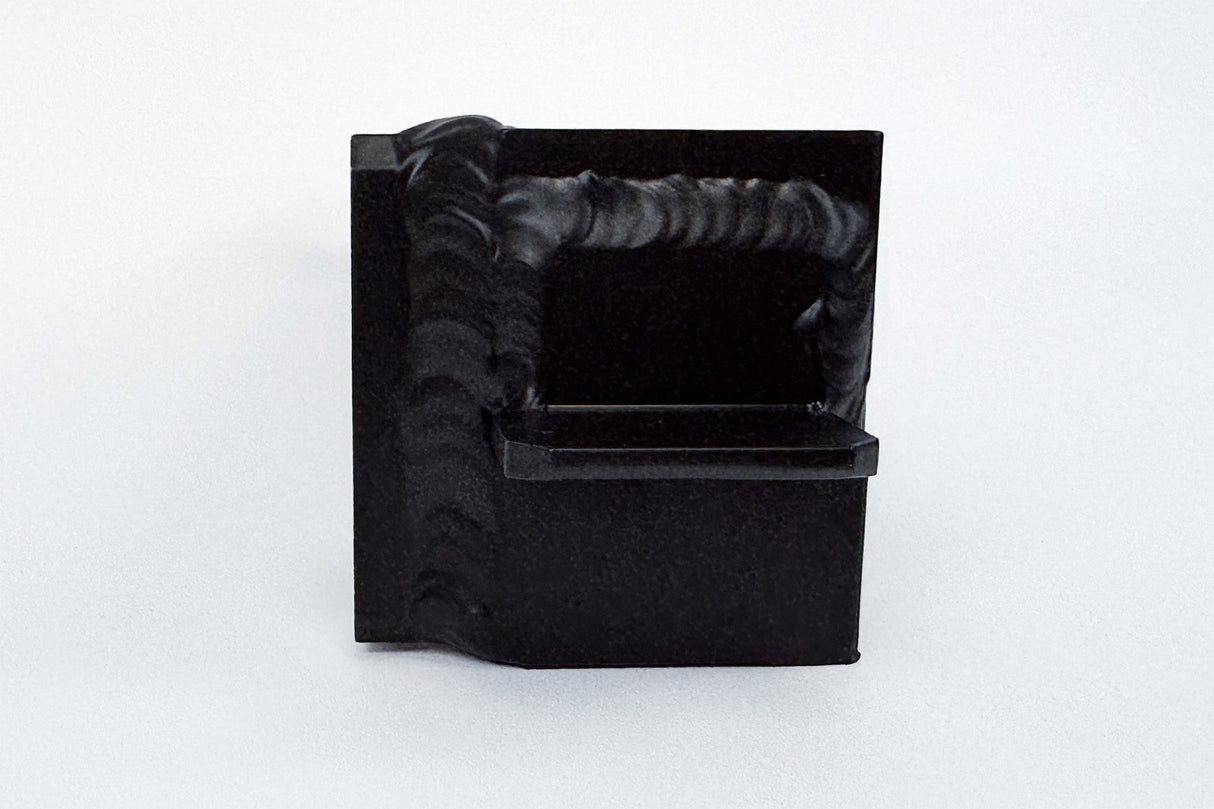

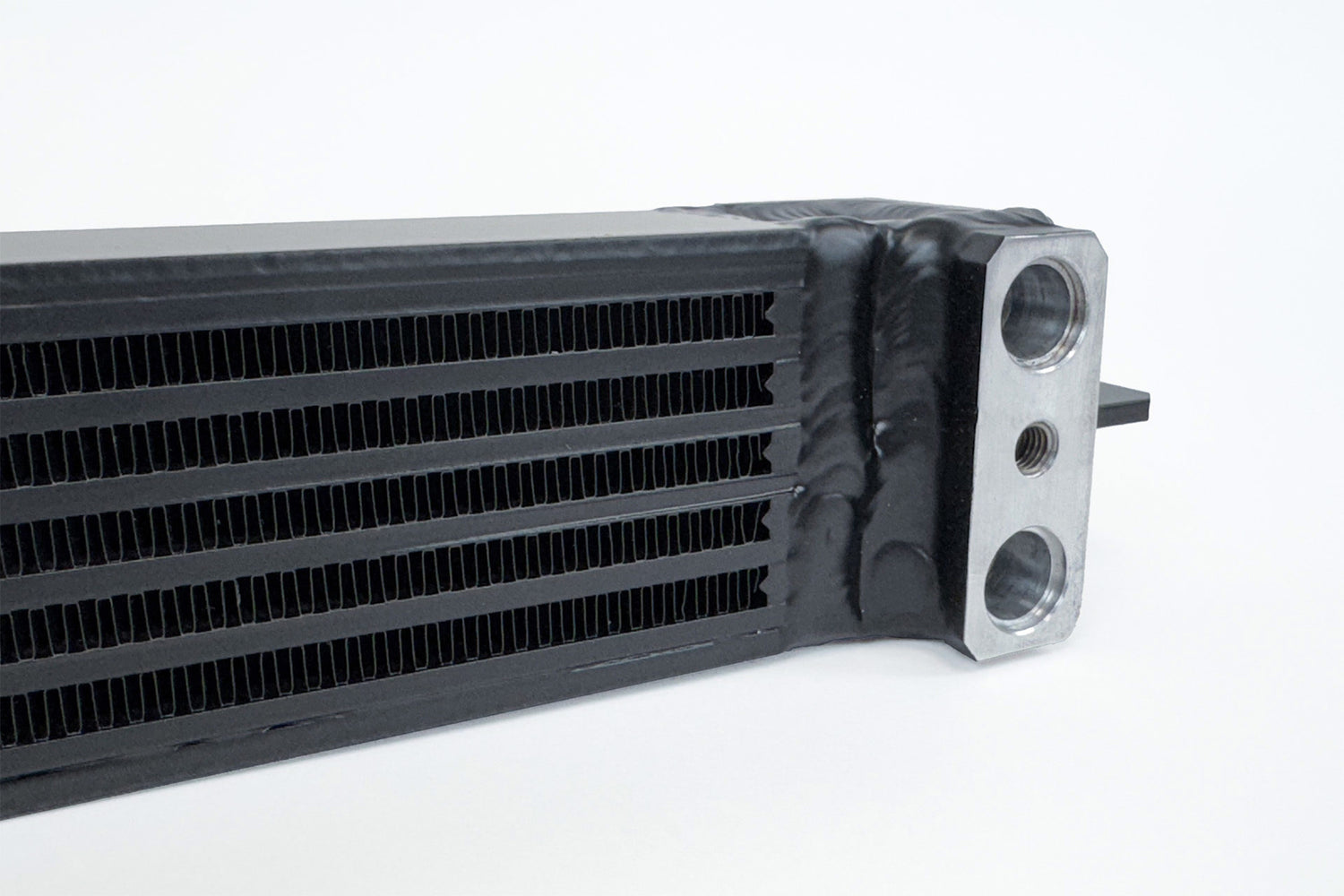

• Fully TIG-Welded Extruded End Tank Design for Superior Reliability & Durability

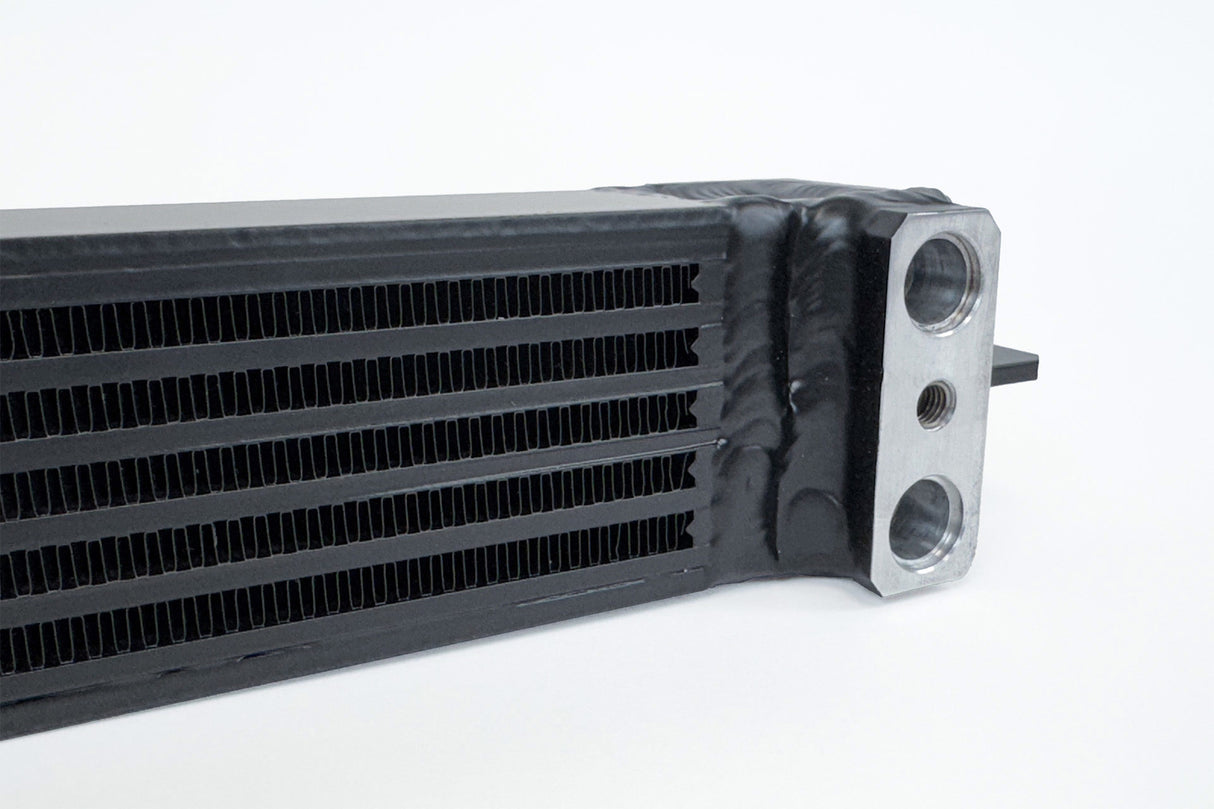

• Turbulated Heavy-Duty Bar/Plate Design for the Most Reliable & Durable Oil Cooler Available

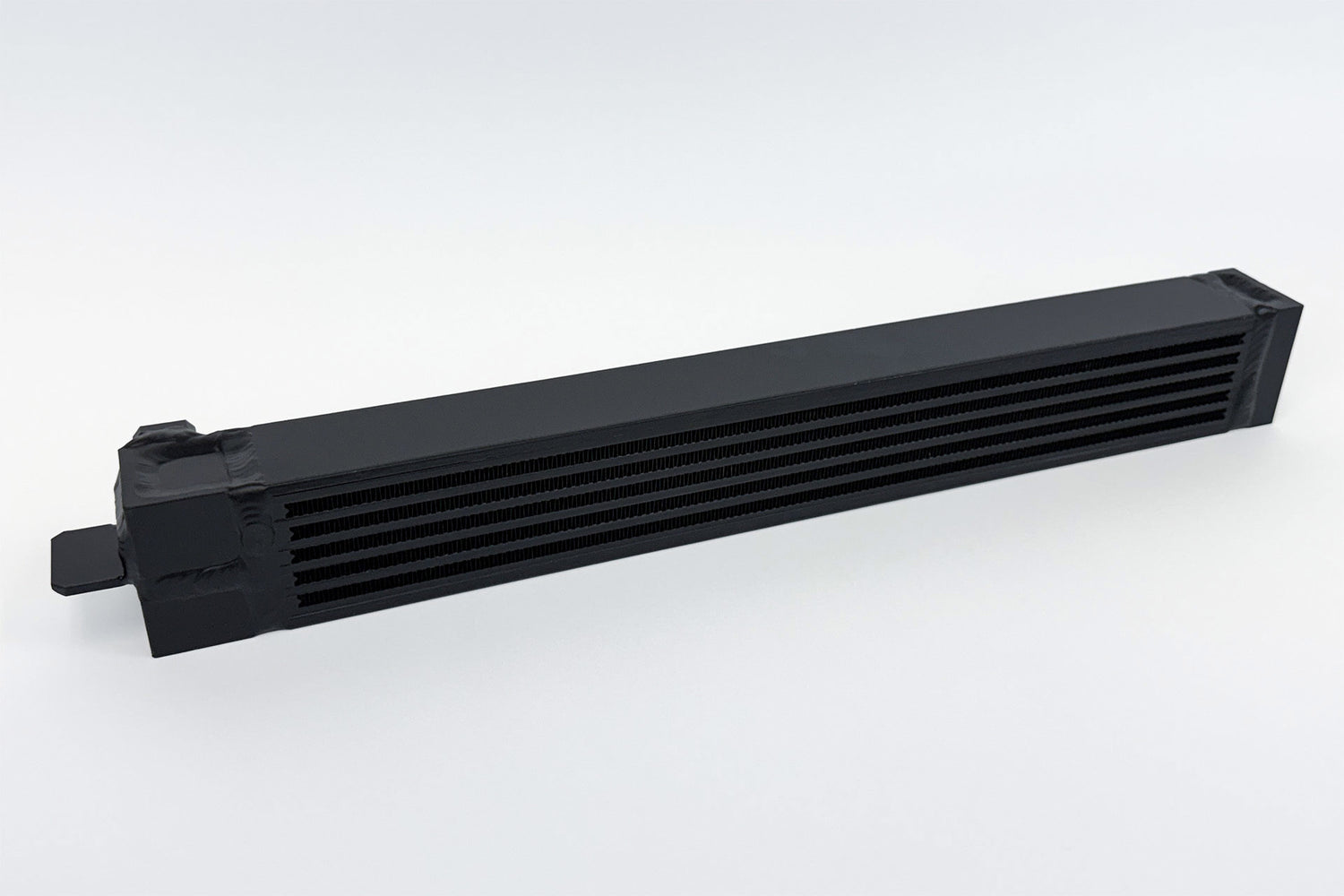

• 6 Rows of Maximum Cooling with a High Density Multi-Louvered Fin Pitch Design

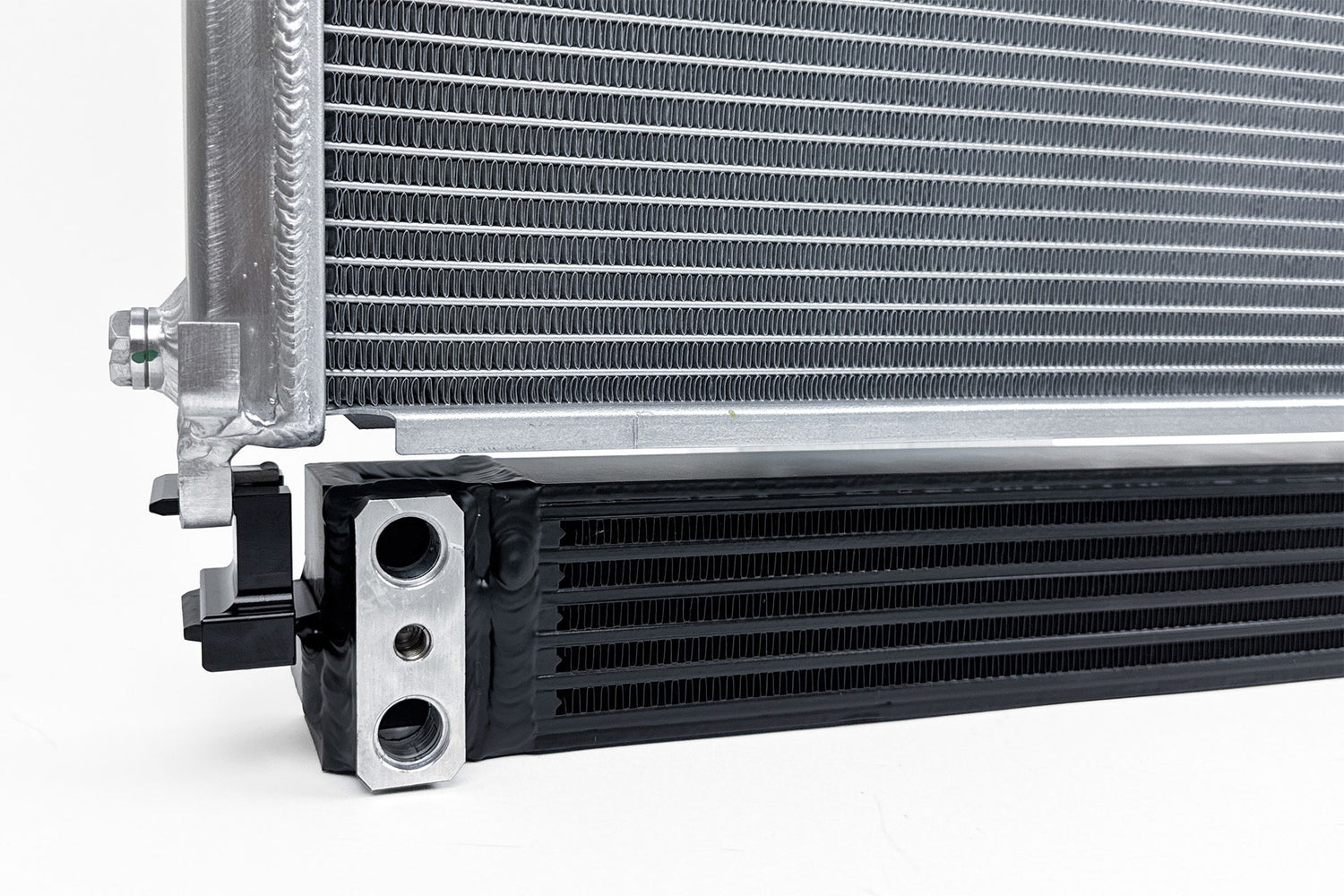

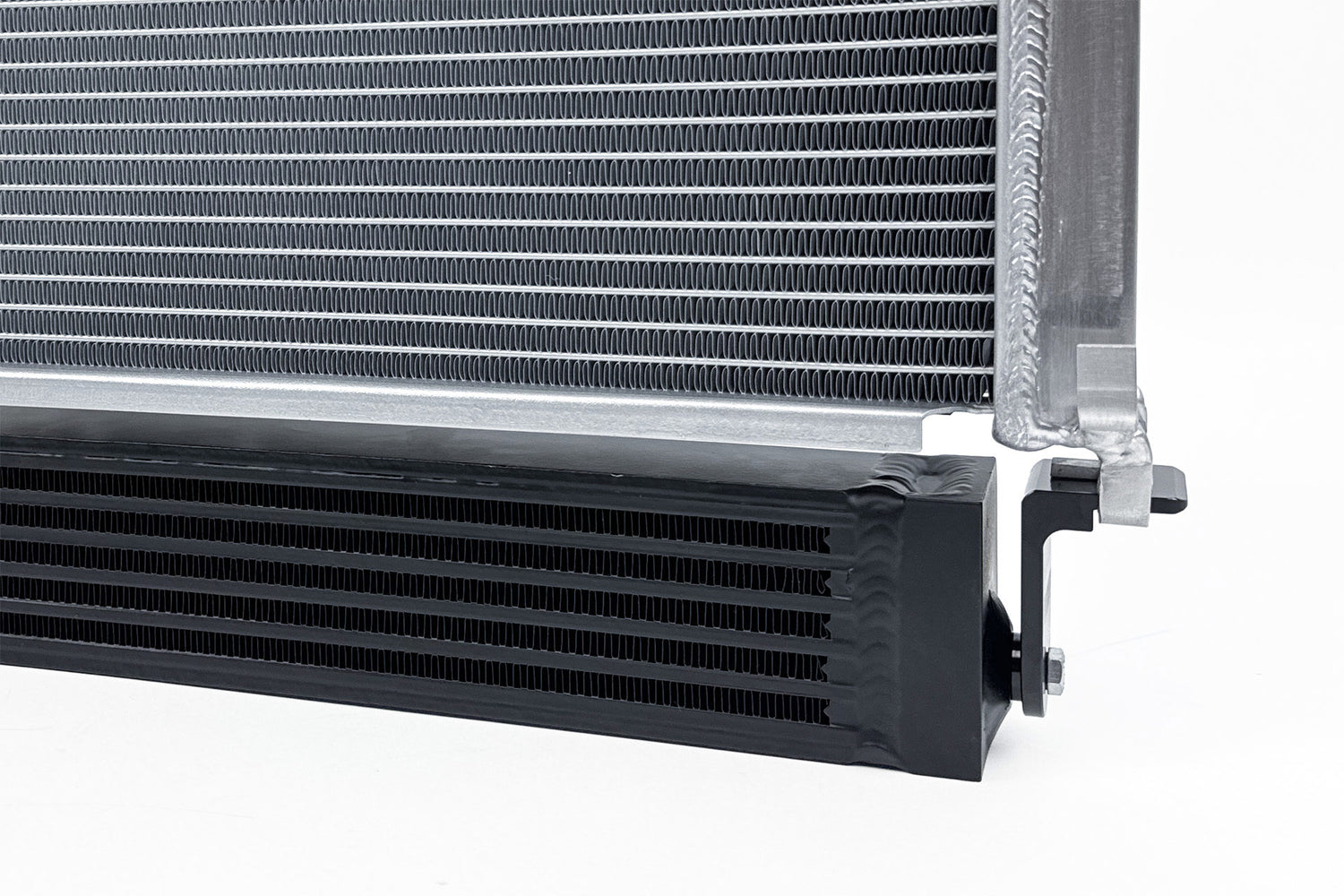

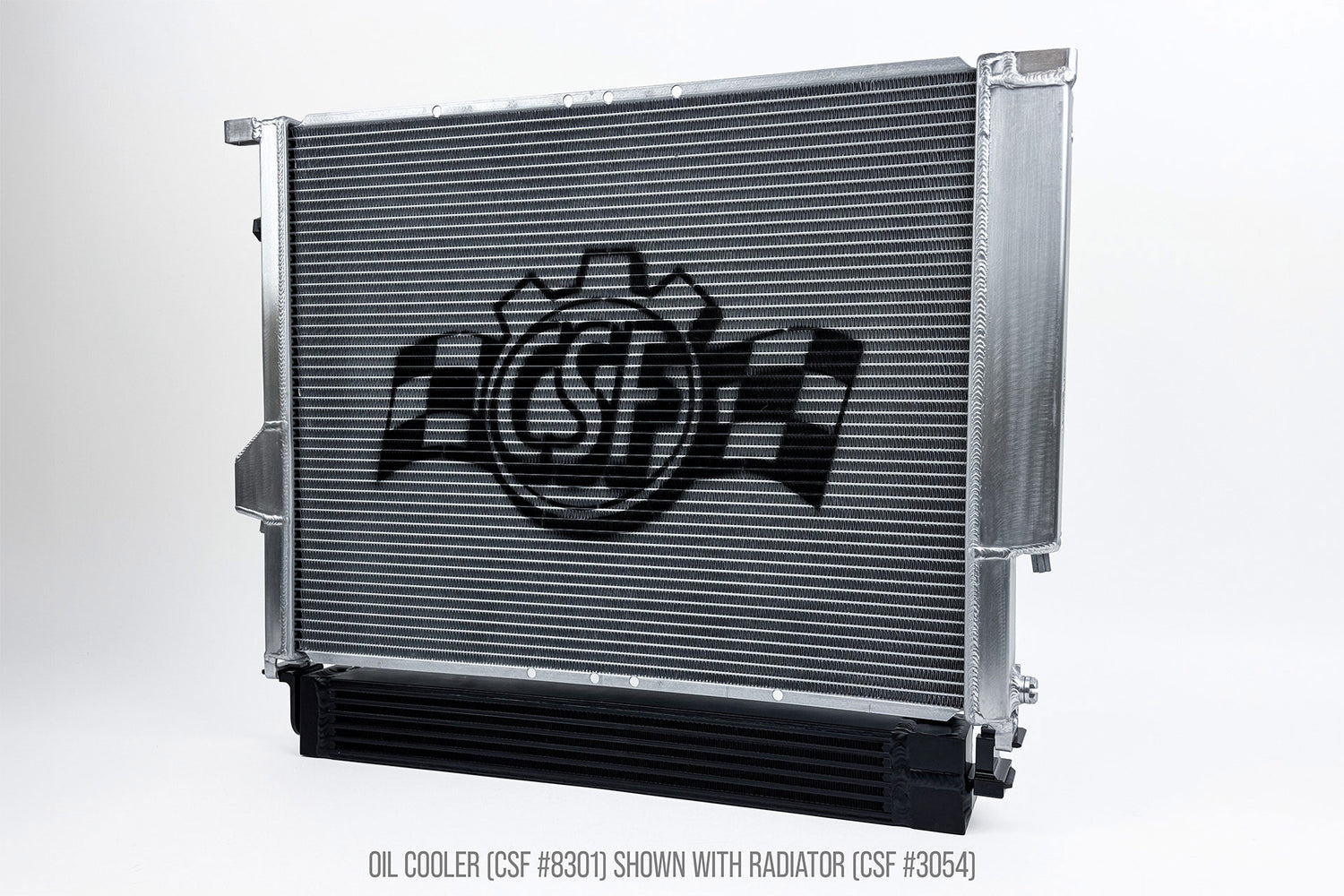

• Designed to Work with OE & CSF All-Aluminum Radiator (CSF #3054)
• OE Style Black Finish

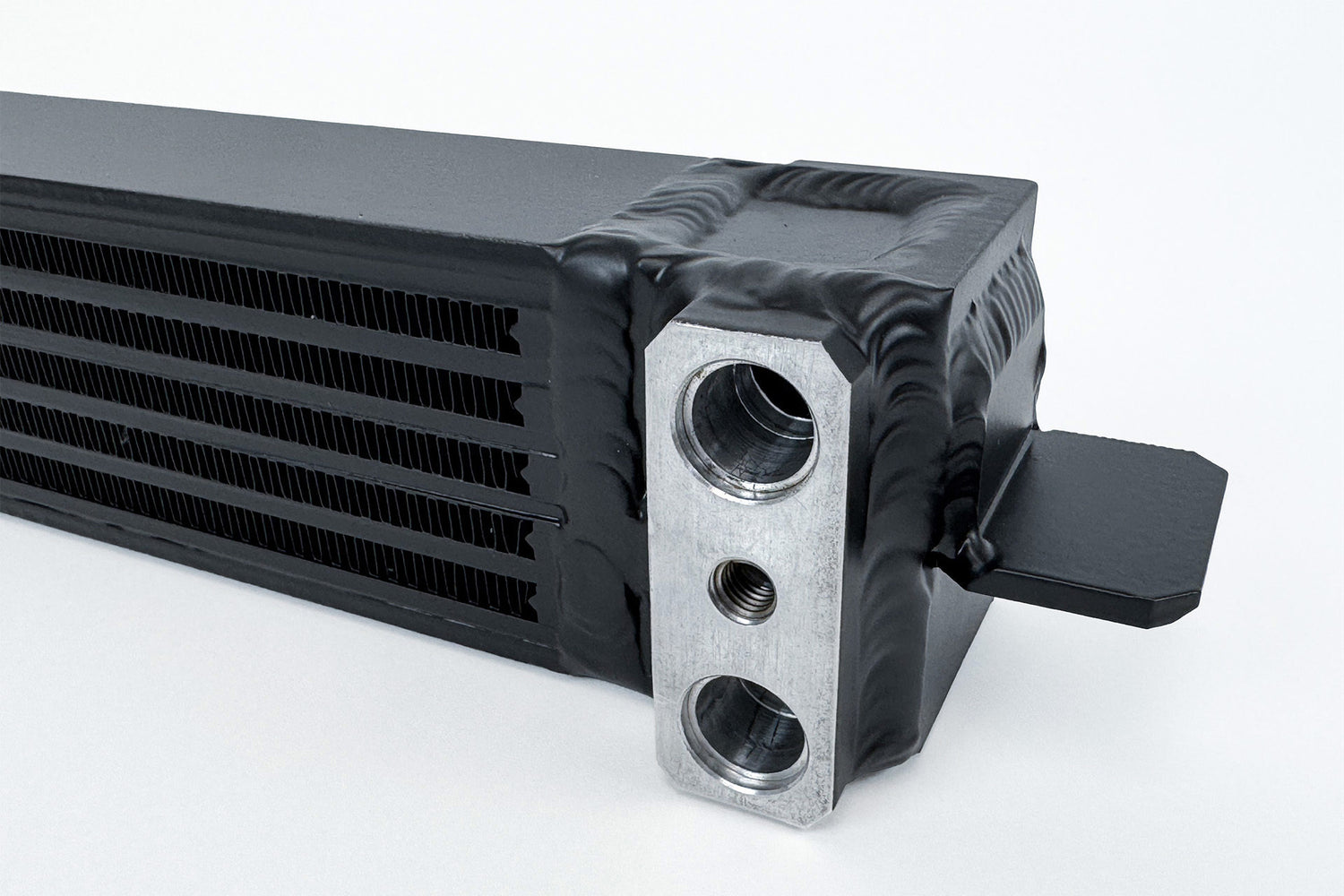

• Accepts Factory Oil-Line Connections
• Mounts using OE Brackets or BimmerWorld Bracket Kit (#TEN3631201)
• Uses OE E36 Euro Spec Oil Cooler Lines (Pipe) - BMW PN: 17212227235
