CSF 8202 - Universal Single-Pass Oil Cooler - M22 x 1.5 Connections 22x4.75x2.16

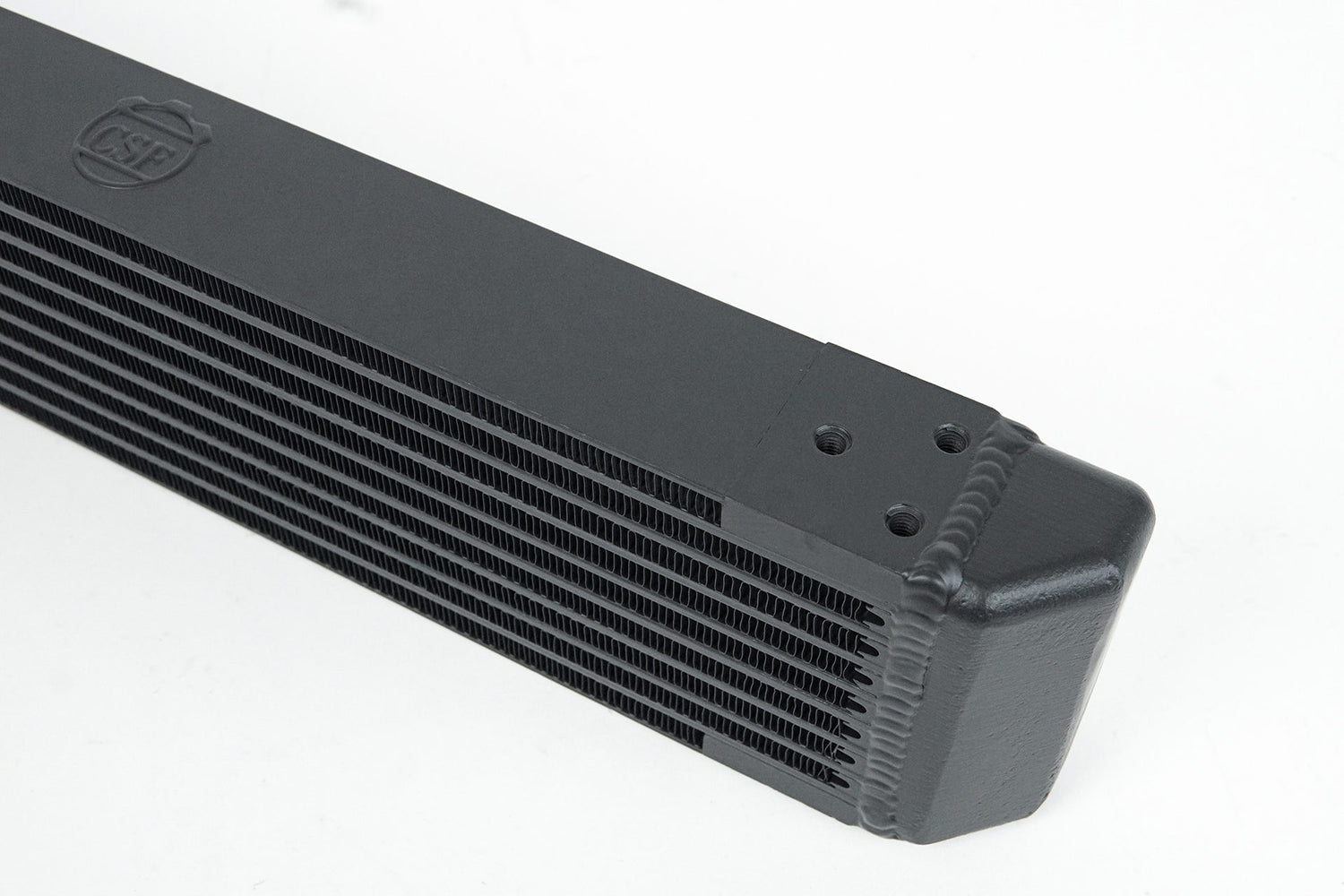

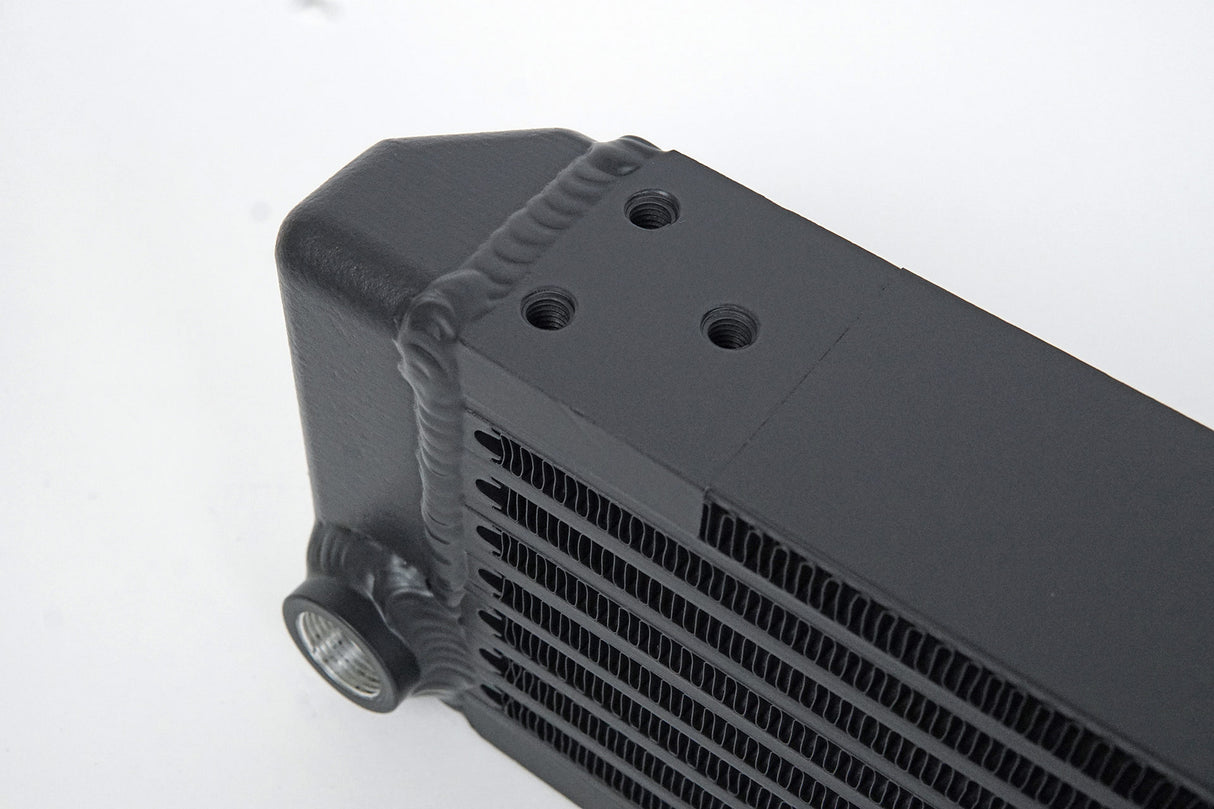

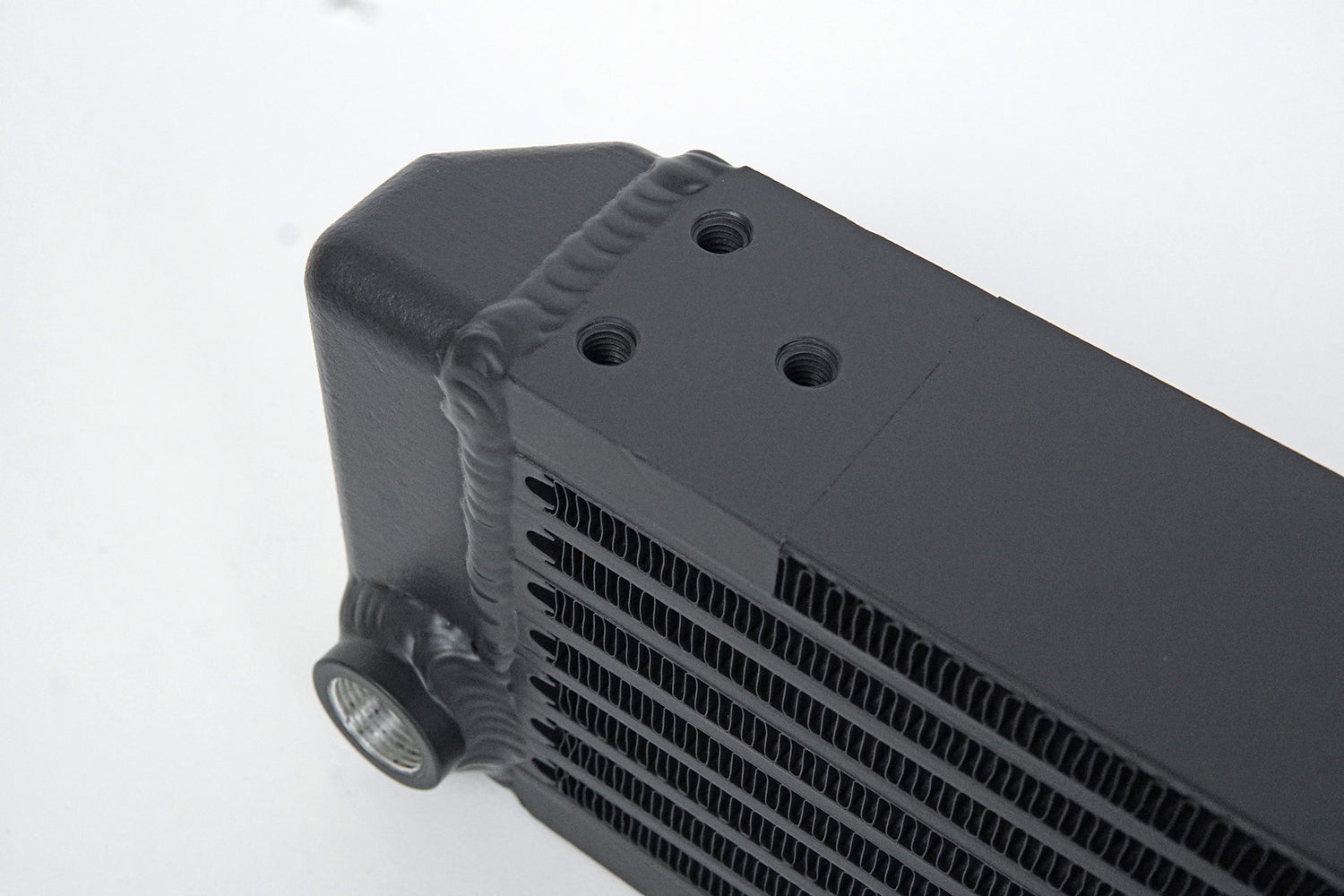

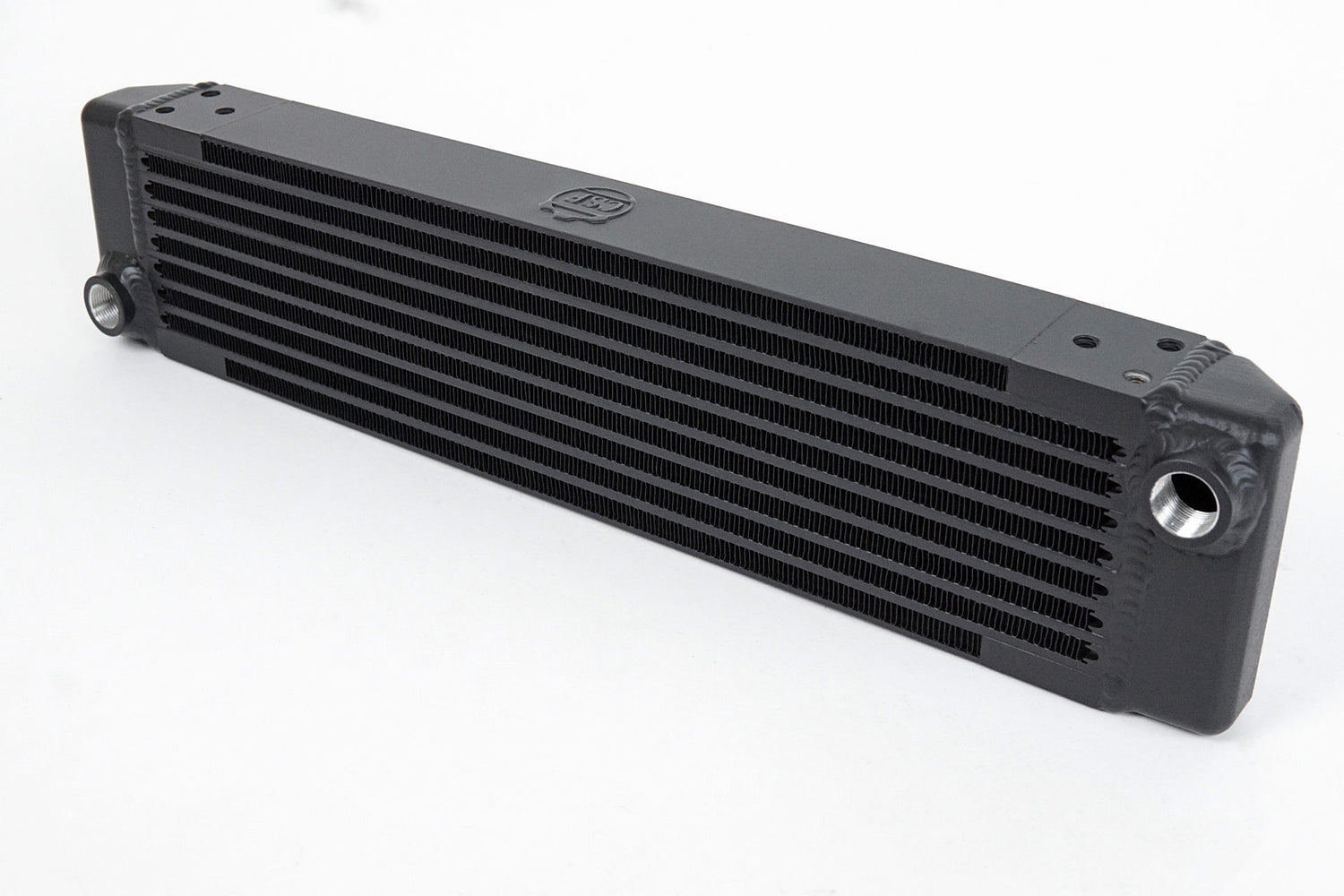

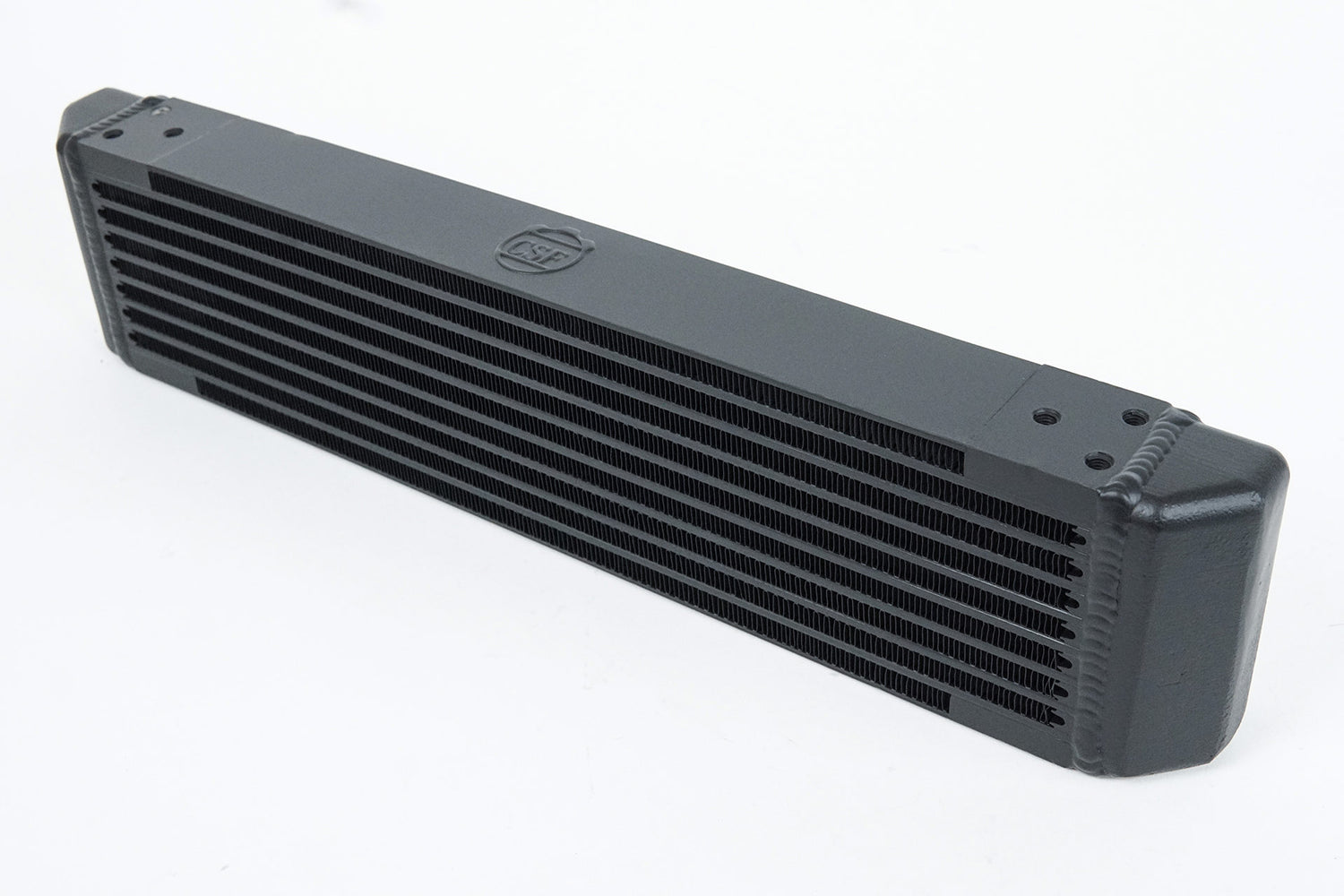

Universal Single-Pass Oil Cooler / RSR Porsche / M22 x 1.5 / 22L x 4.75H x 2.16W
CSF offers the best and most advanced Oil Coolers on the market. So when it comes to keeping your engine oil temps down as you push your Universal / 73' Porsche 911 RSR-Style Bumper hard on the street or track, a CSF is the obvious choice.
The unique design of CSF's oil cooler line has distinct advantages over conventional style oil coolers (plate-type/stacked oil coolers). The oil coolers can be placed in tighter spaces or different areas of the vehicle that don't have much vertical surface area. Longer rectangular sizes can also help with avoiding the stacking of too many coolers which may cause airflow issues to other components in the cooling system. Inlet/outlet port placement is much easier to route oil lines. Typical oil cooler lines have to be routed from different/opposite ends of the cooler often facing up or down. Usually one line has to run across from one side of the cooler to the other to then be routed together to the feed/return connection of the oil system. The CSF oil coolers are much more robust, durable, and can withstand a higher peak burst rate. This allows the cooler to be mounted in areas that might get high debris (front fascia, diff cooler, side vents, etc...). The CSF oil cooler is designed to withstand a tremendous amount of vibration and debris.
- Single-Pass Oil Cooler
- Overall: 22" L x 4.75" H x 2.25" W
- Core Surface: 18.9" L x 4.72" H x 2.25" W

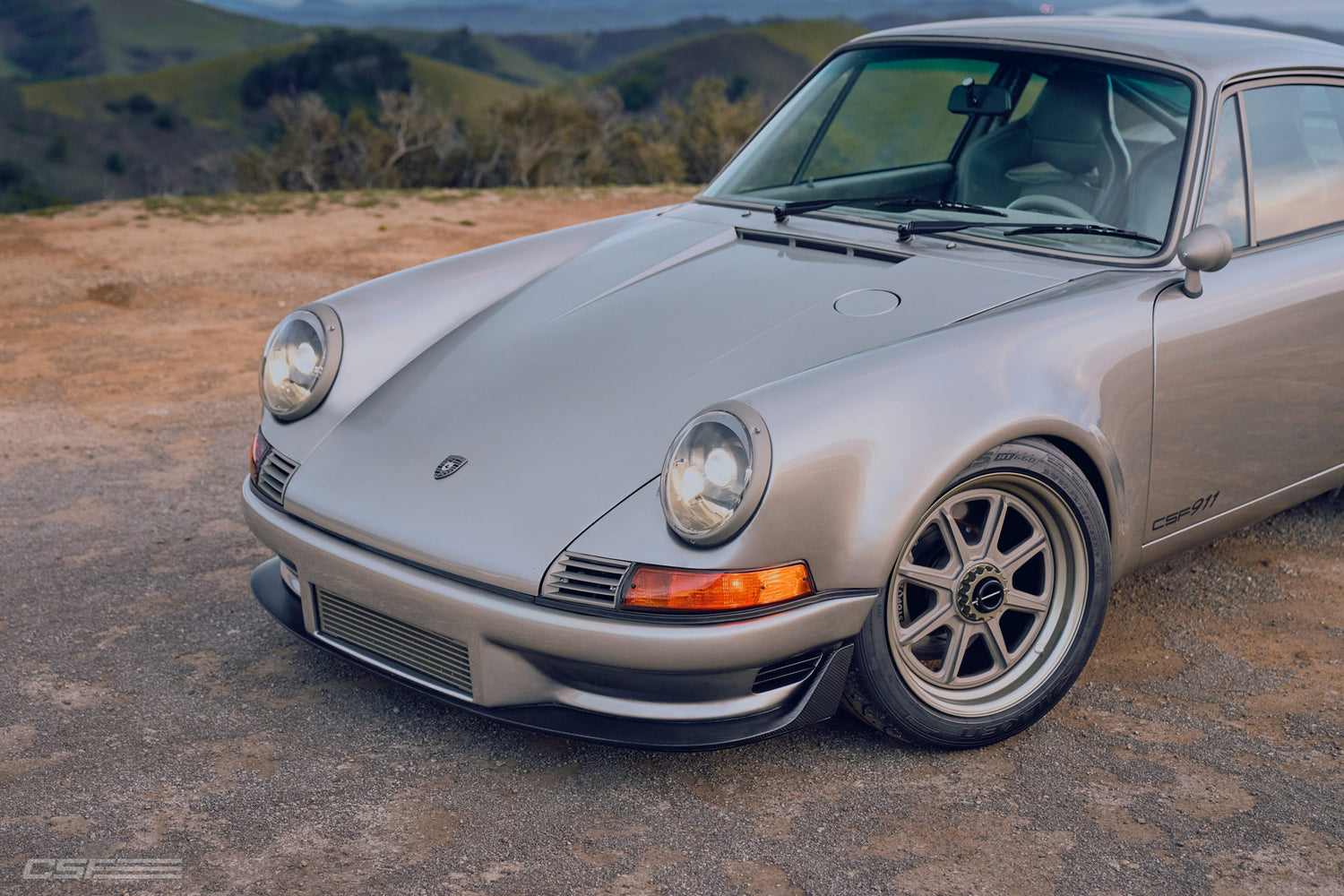

- Direct-Fit for Porsche '73 RSR Style Front Bumper
- High Efficiency & Rugged Durability Bar/Plate Design
- M22 x 1.5 Inlet/Outlet Connections
- Internal Radius for Maximum Flow
- Optimized to Also Accept AN-16 Connections
- Triangular Flush Mounting Holes (M8 x 1.25)
- "Aero-Flow" Bar Design for Lightweight, Strength, and Maximum Flow
- Satin Black Finish for Extreme Protection Against Corrosion and Debris
- Pressure Tested at 120psi
- Fluid Capacity 0.72L (0.76 qt)
