CSF 7231 - 99-02 Nissan GT-R / GT R34 High-Performance All-Aluminum Radiator

CSF 7231 - 99-02 Nissan GT-R / GT R34 High-Performance All-Aluminum Radiator

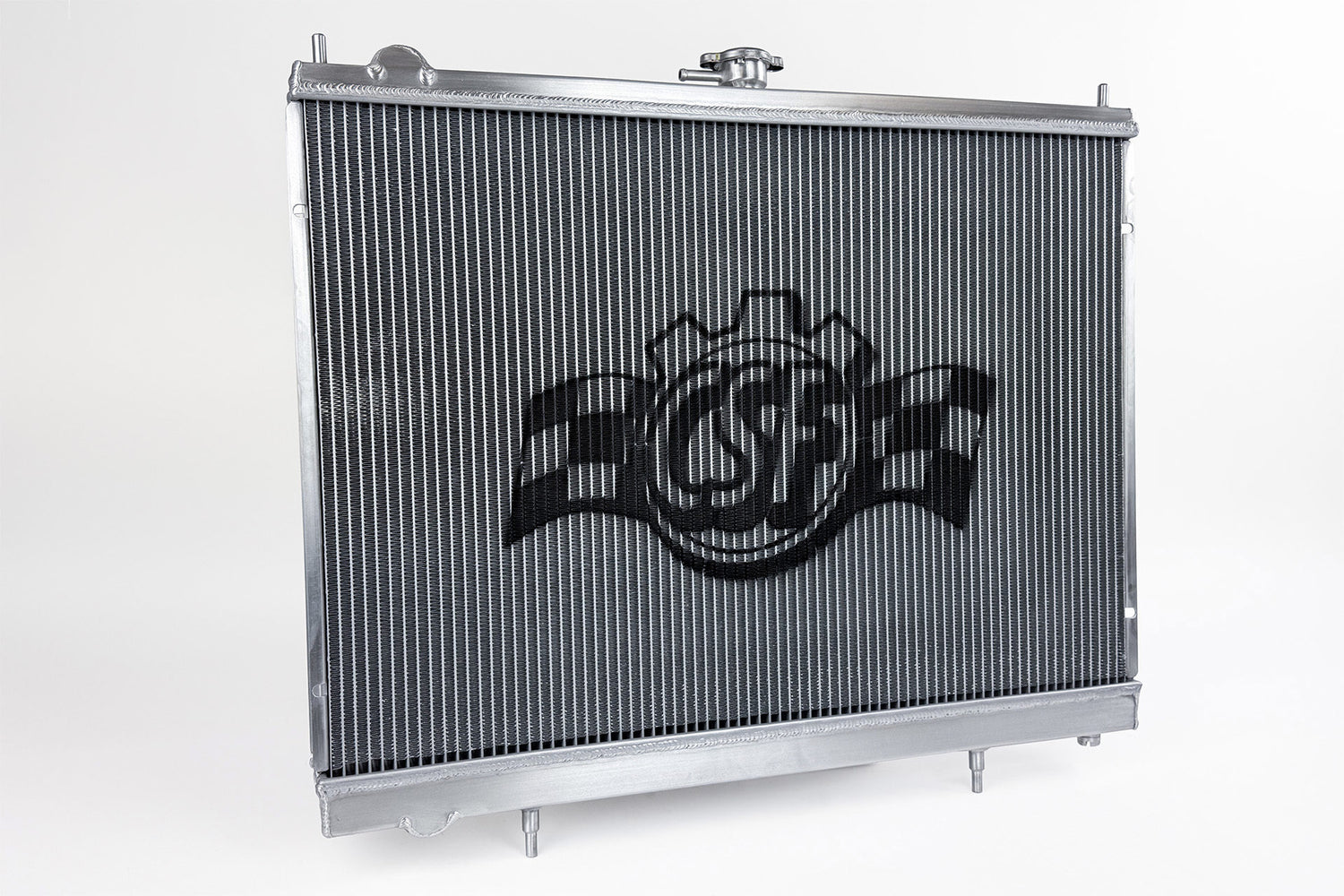

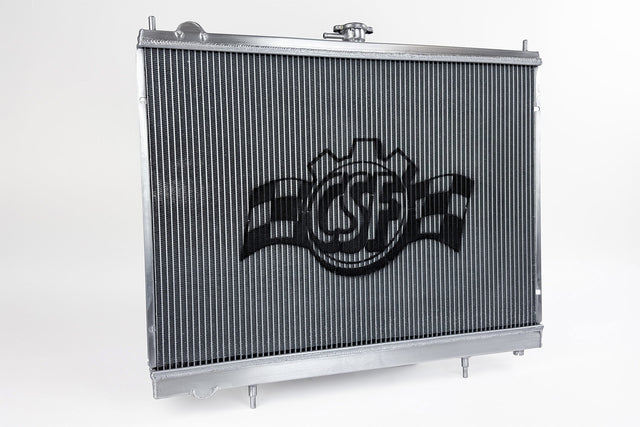

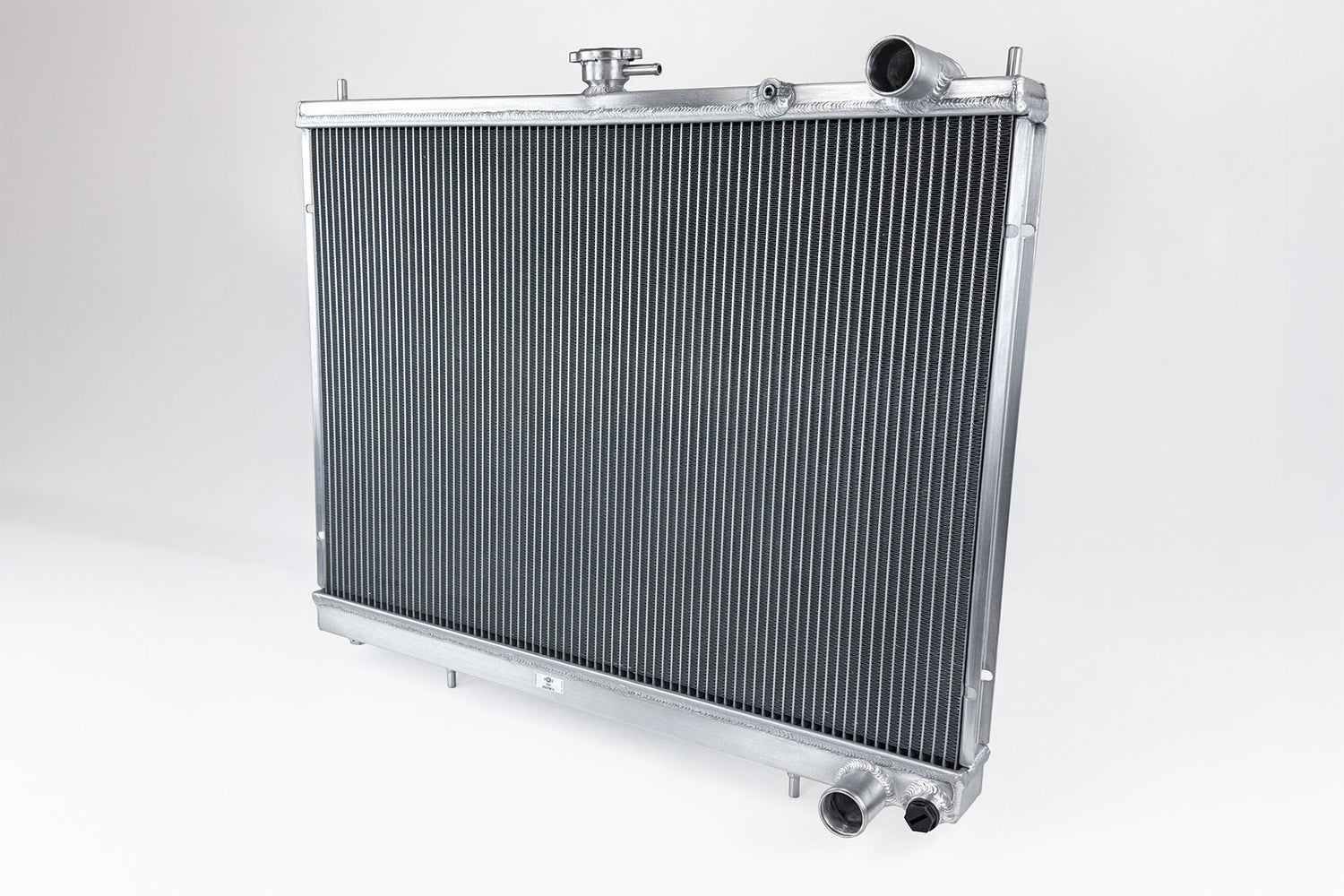

R34 Skyline GT-R High-Performance All-Aluminum Radiator - Silver

CSF manufactures the most advanced and efficient radiator in the industry for your R34 GTR. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

The 2-Row 42mm core greatly not only increases the fluid capacity of the radiator, but also improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. More cooling rows also improve the overall efficiency of the radiator. More cooling tubes means more surface area for the coolant's heat to dissipate from.

• 2-Row - 42mm Ultra-High-Performance Core
• 75 Cooling Tubes with CSF's Exclusive B-Tube Technology
• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined Mounting Pins and OEM Style Inlet/Outlet
• 1/8th NPT Temp Sensor Port on Top End Tank
• M16 x 1.5P temperature sensor port with pre-installed plug
• 100% All Aluminum TIG-Welded Construction

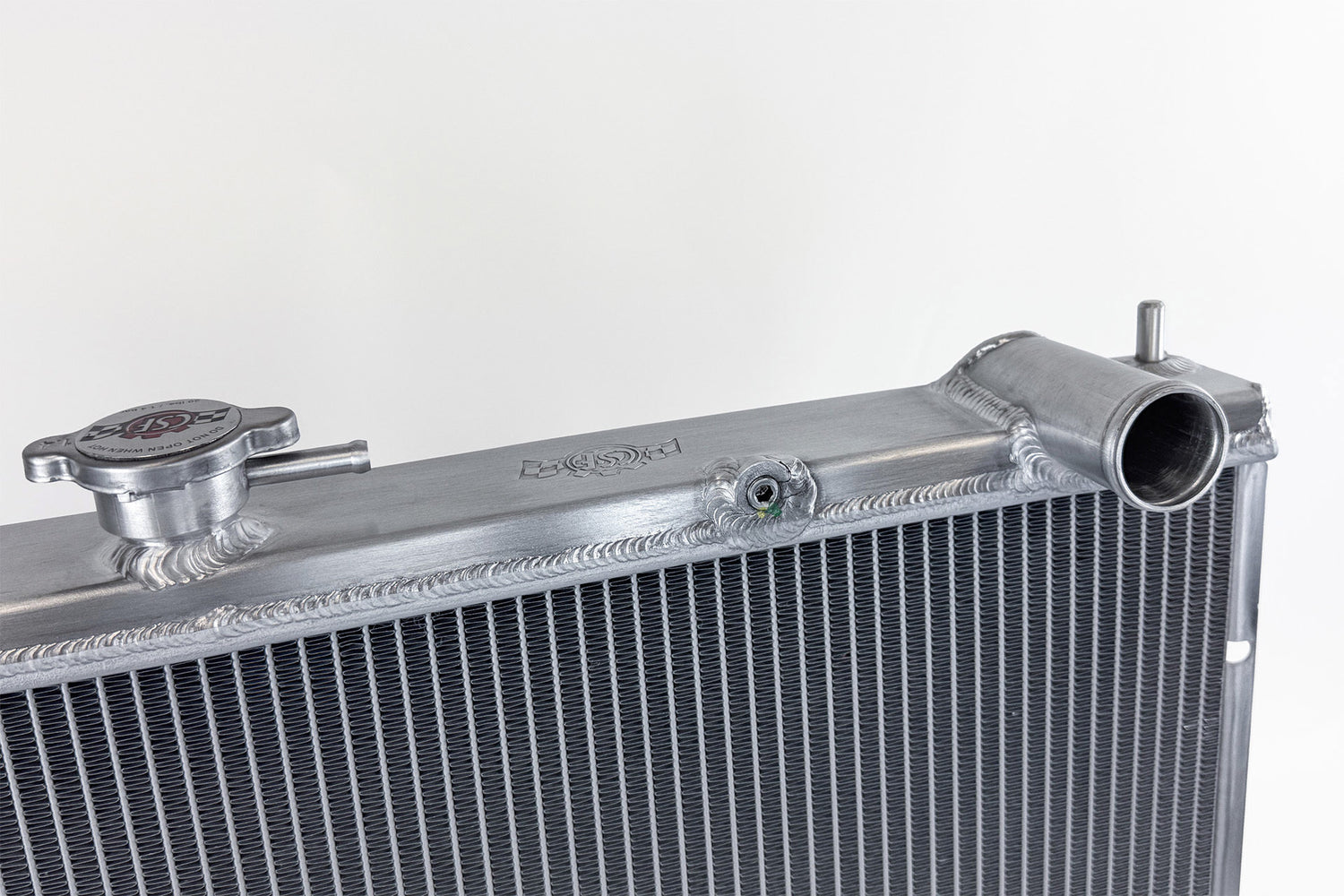

• 1.4 Bar High Pressure Radiator Cap with CSF embossed logo
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• OE Location Fan Shroud Mounting Points
• Hand Brushed Satin Finish
• 2-Year Limited Warranty
