CSF 7223 - 05-13 Chevrolet Corvette C6 (Not 11-13 Z06/ZR1/427) High Performance All-Aluminum Radiator

CSF  |  SKU: CSF-7223
Sale price $68900 Regular price $75790

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

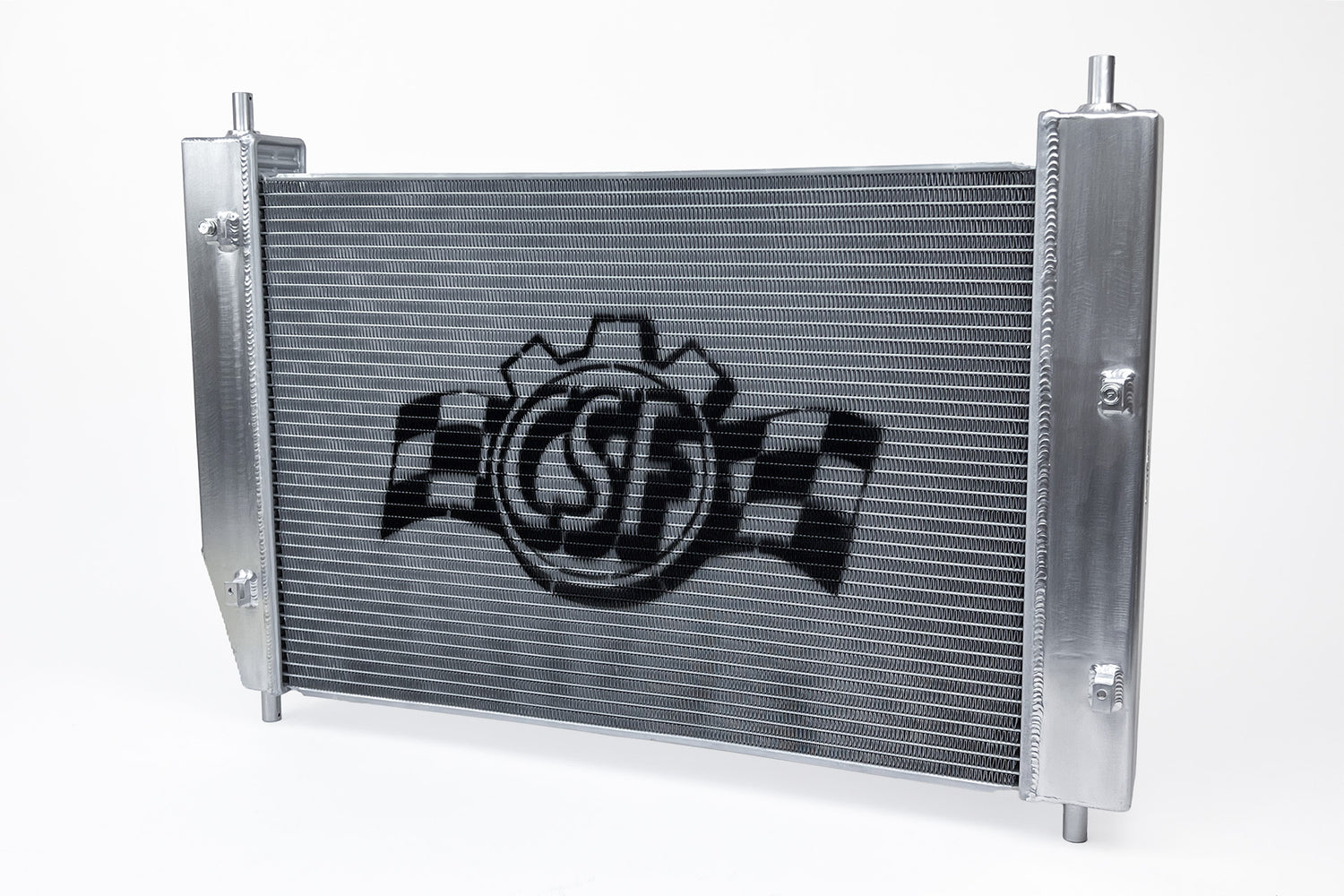

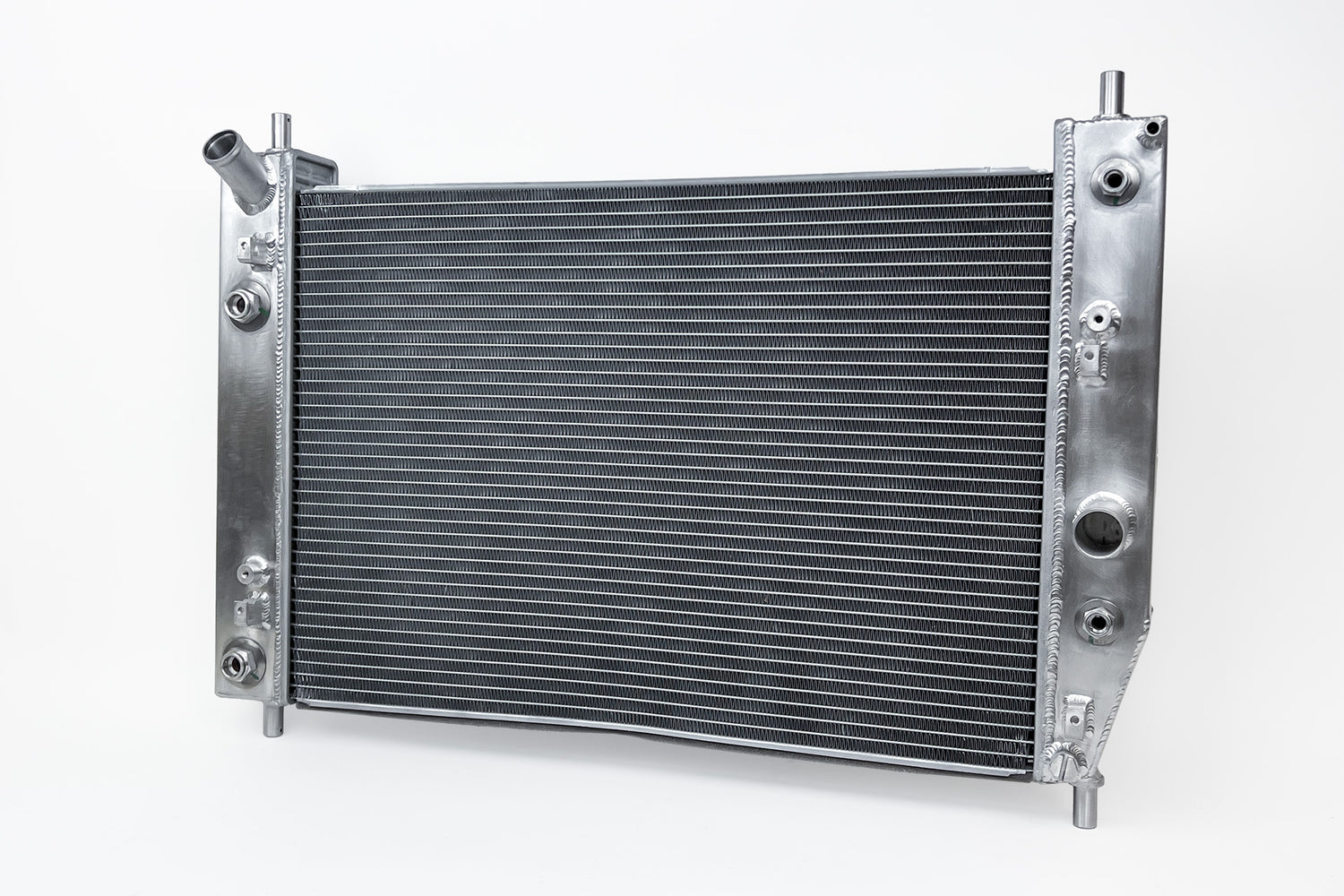

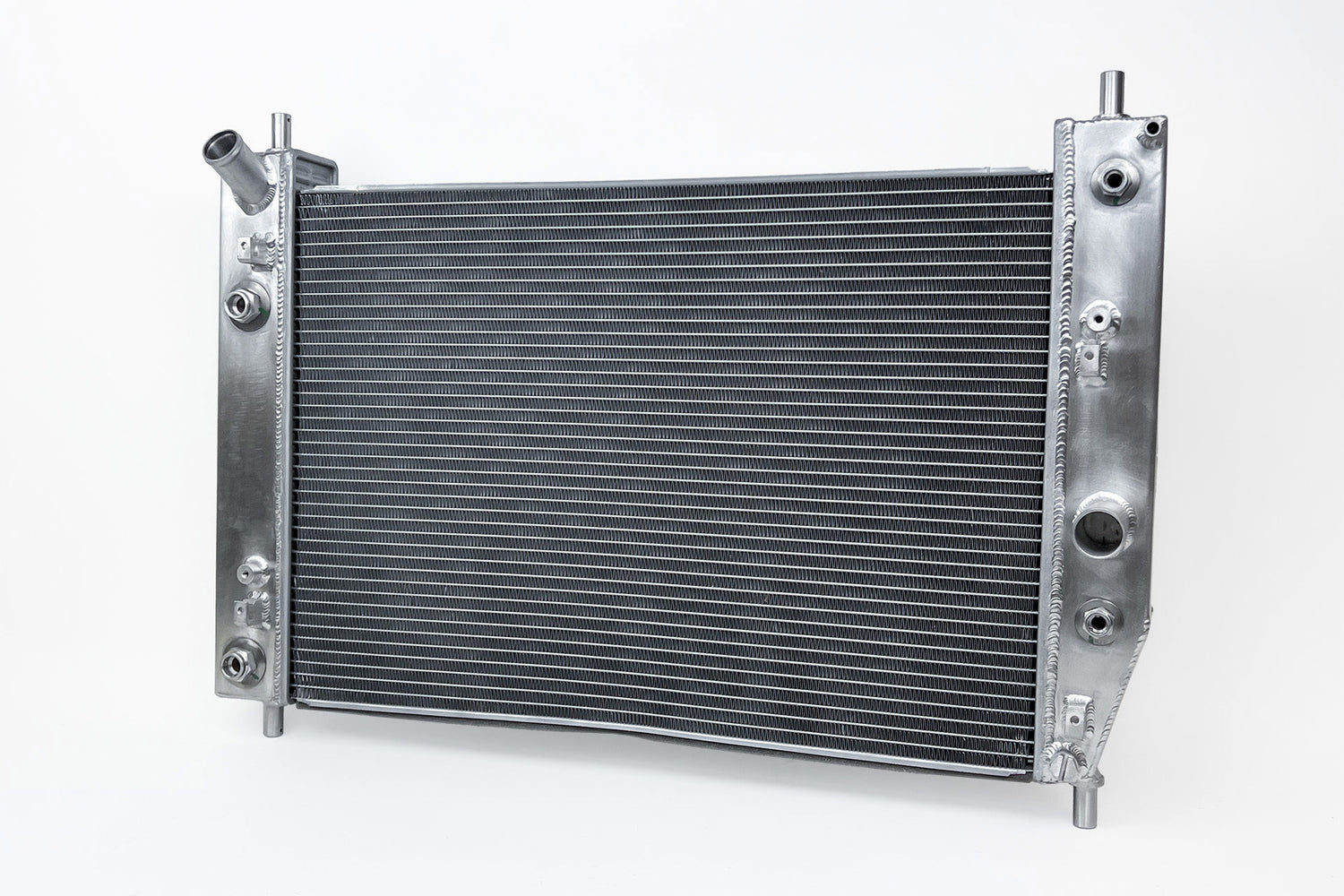

CSF 7223 - 05-13 Chevrolet Corvette C6 (Not 11-13 Z06/ZR1/427) High Performance All-Aluminum Radiator

05-13 Chevrolet C6 Corvette Base/Grand Sport/427/Z06 All-Aluminum Radiator

CSF manufactures the most advanced and efficient radiator in the industry for your C6 Corvette. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

CSF is quite familiar with GM performance vehicles so creating a high-performance radiator for the C6 Corvette made a lot of sense. Also given the age of the C6, there are a lot of owners ready to upgrade or looking to replace their original radiators. The goal was to create a model that could fit all of the C6 Corvette trims and work with the majority of upgrades and modifications. CSF teamed up with A&A Corvette to develop this radiator. As experts exclusively developing products for Corvettes for over 20 years, they were the perfect R&D Partner for this radiator. This new design coupled with a core that has 193% more volume than the factory radiator offers a massive upgrade in cooling capacity. The CSF Radiator also offers the best value of any aftermarket radiator coming in hundreds of dollars less than competitors.

  • 2-Row, 52mm Ultra-High-Performance Core

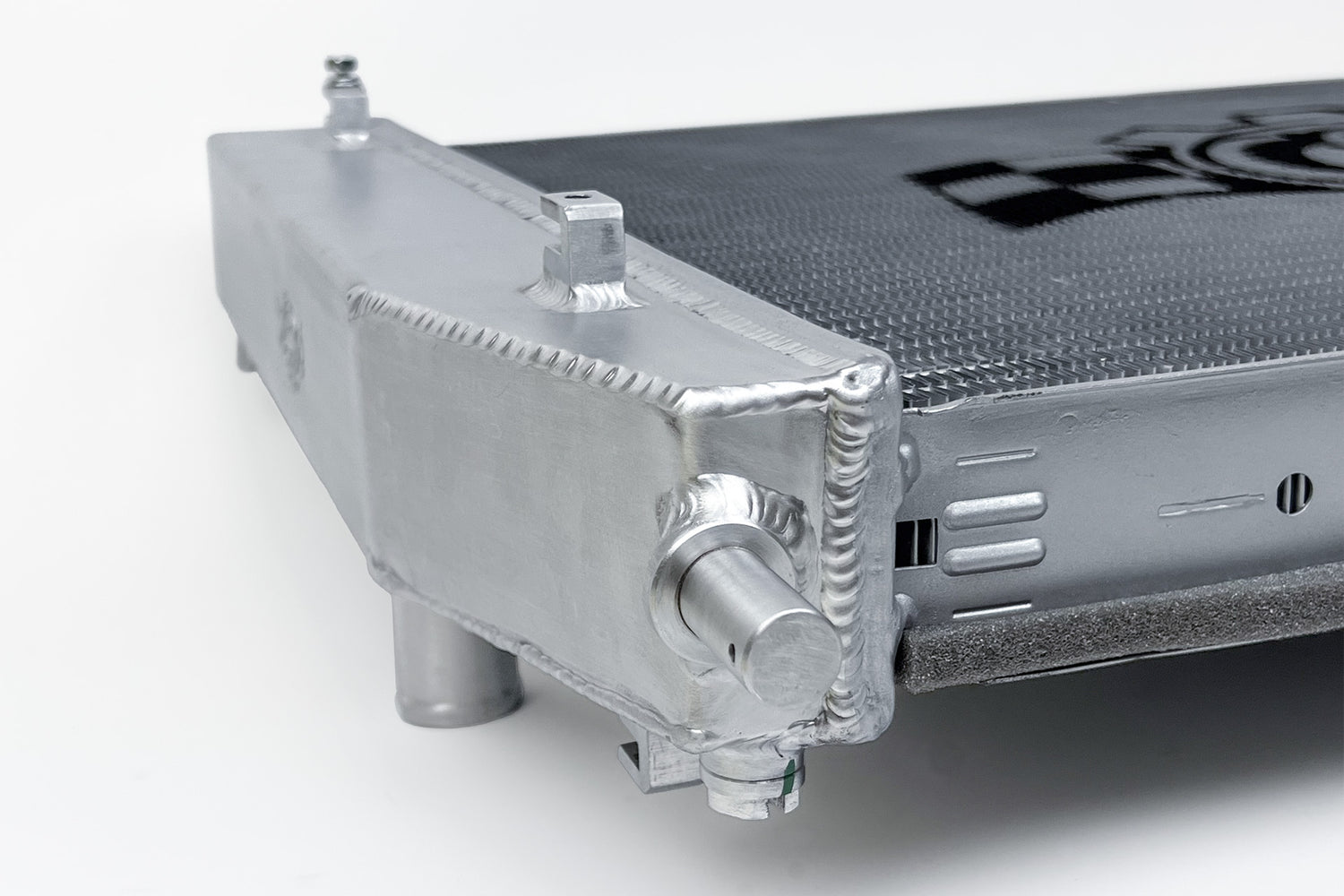

  • 100% All Aluminum TIG-Welded Construction
  • Smooth Satin Finish
  • True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
  • Individually Leak and Pressure Tested
  • 2-Year Limited Warranty
  • Cooling Tubes with CSF's Exclusive B-Tube Technology
  • 8mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
  • Shorter core height provides clearance for supercharger installations
  • No need to modify the radiator core support or trim the radiator
  • Fits all OEM and Aftermarket Intake Systems

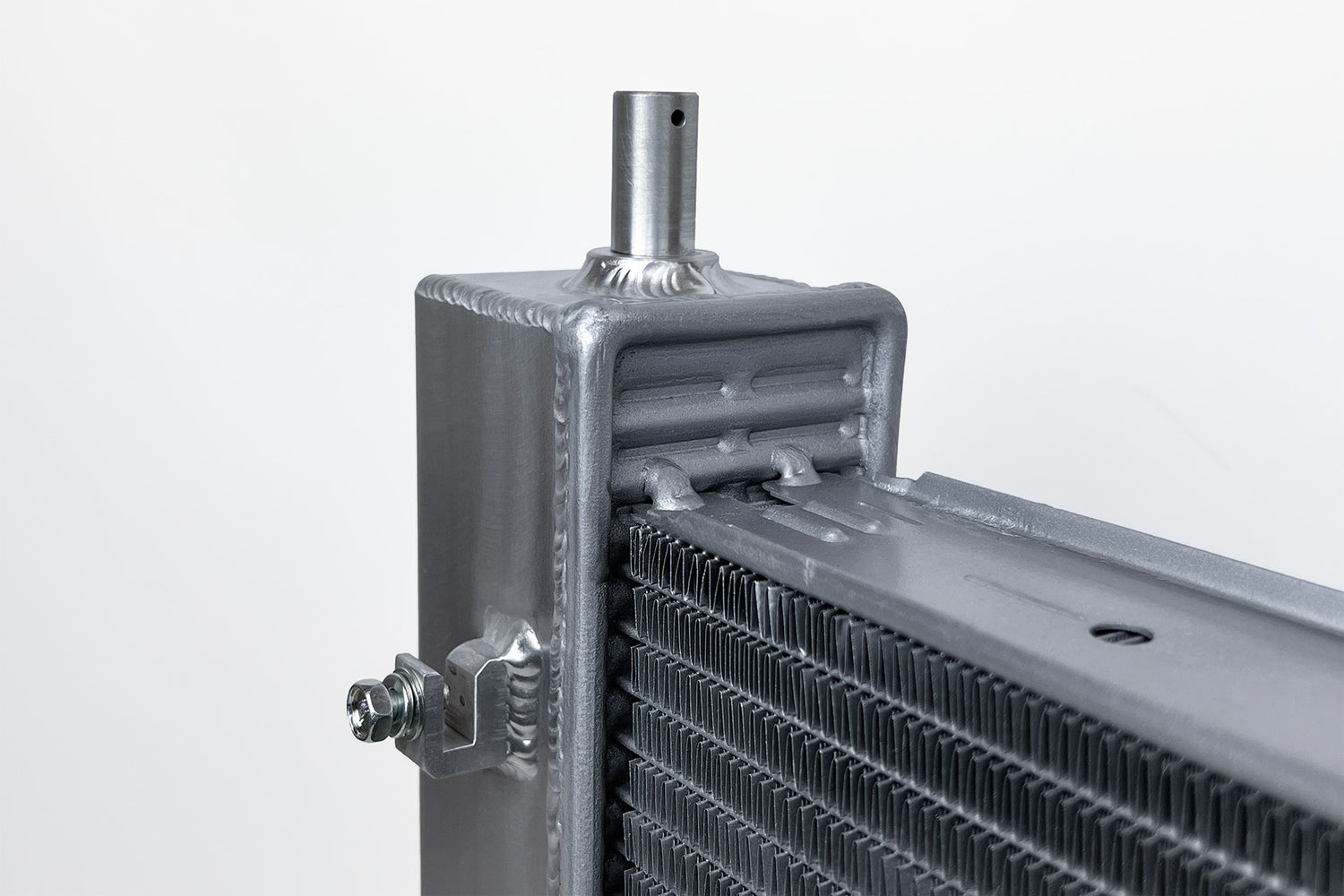

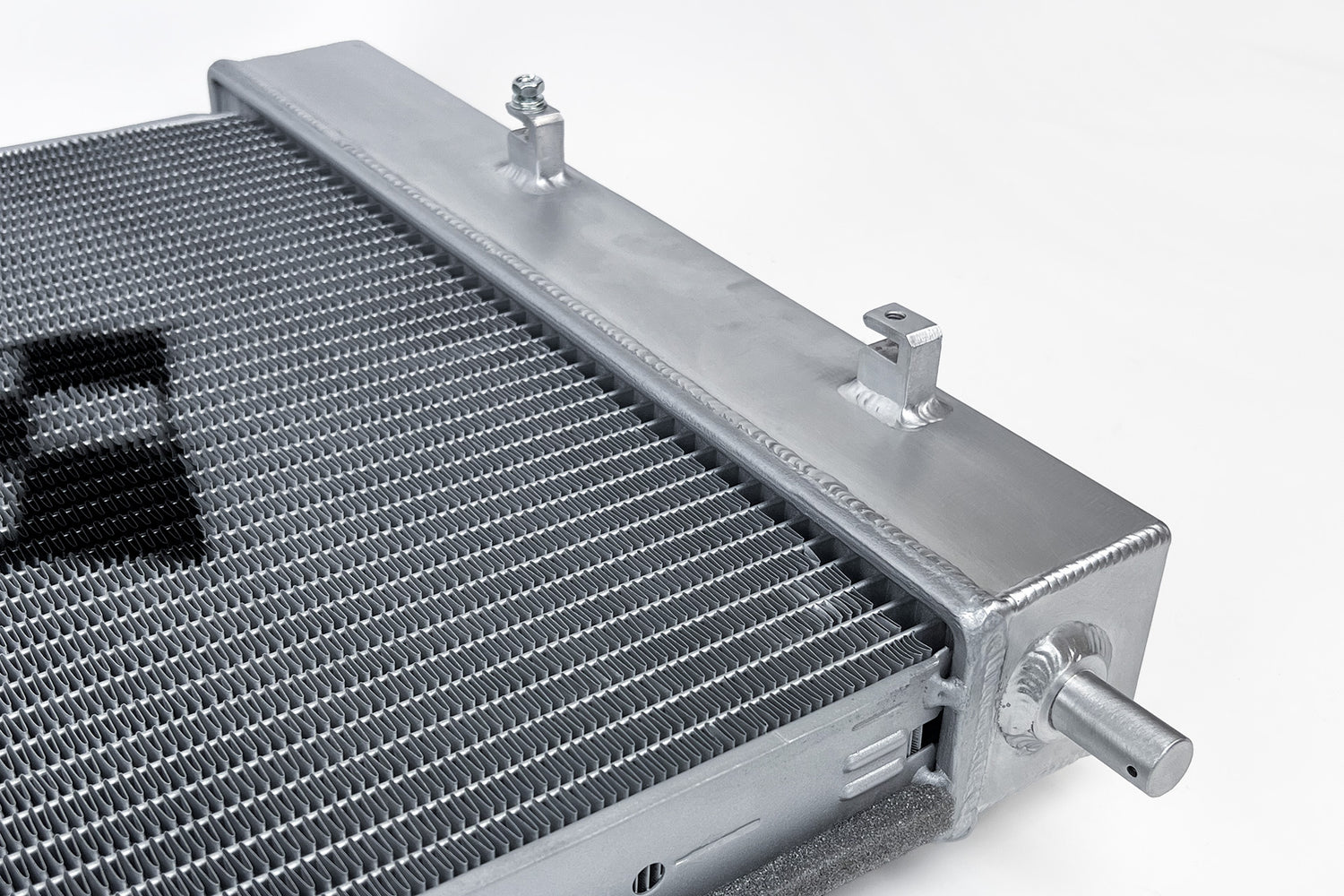

  • CNC Machined Mounting Brackets and OEM Style Inlet/Outlet

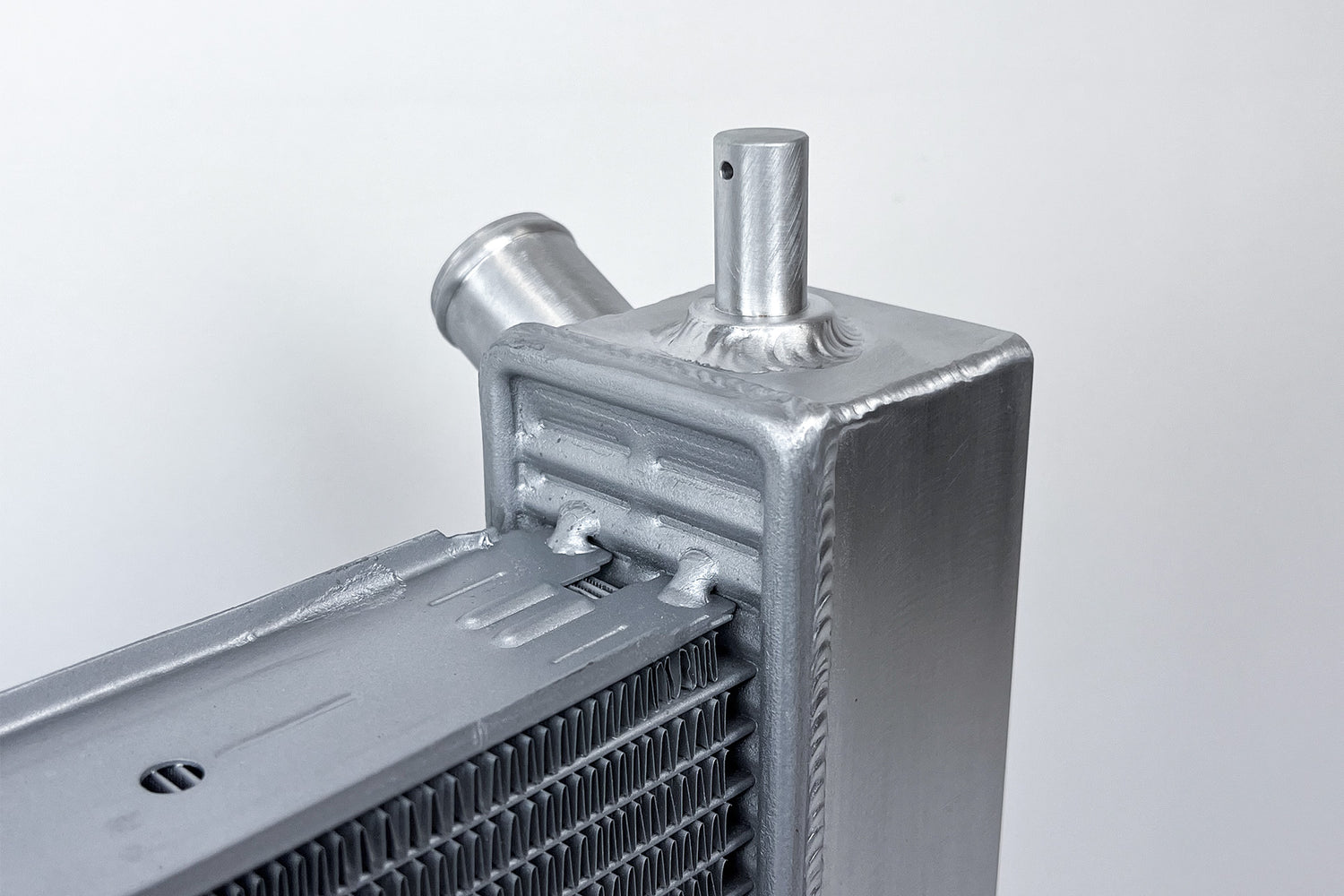

  • Mounting Pins have Cotter Pin Holes for securing A&A Corvette's Top Shroud

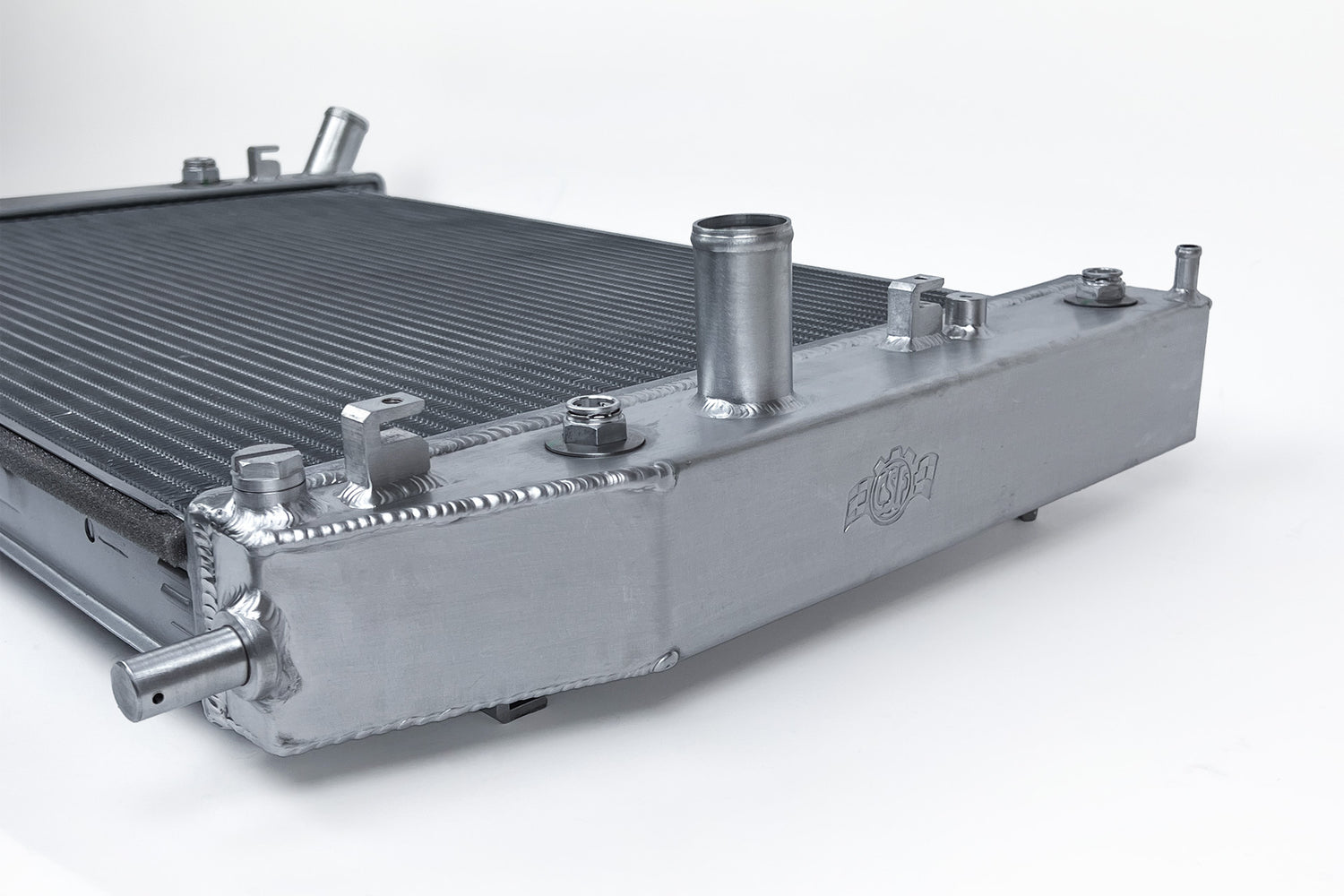

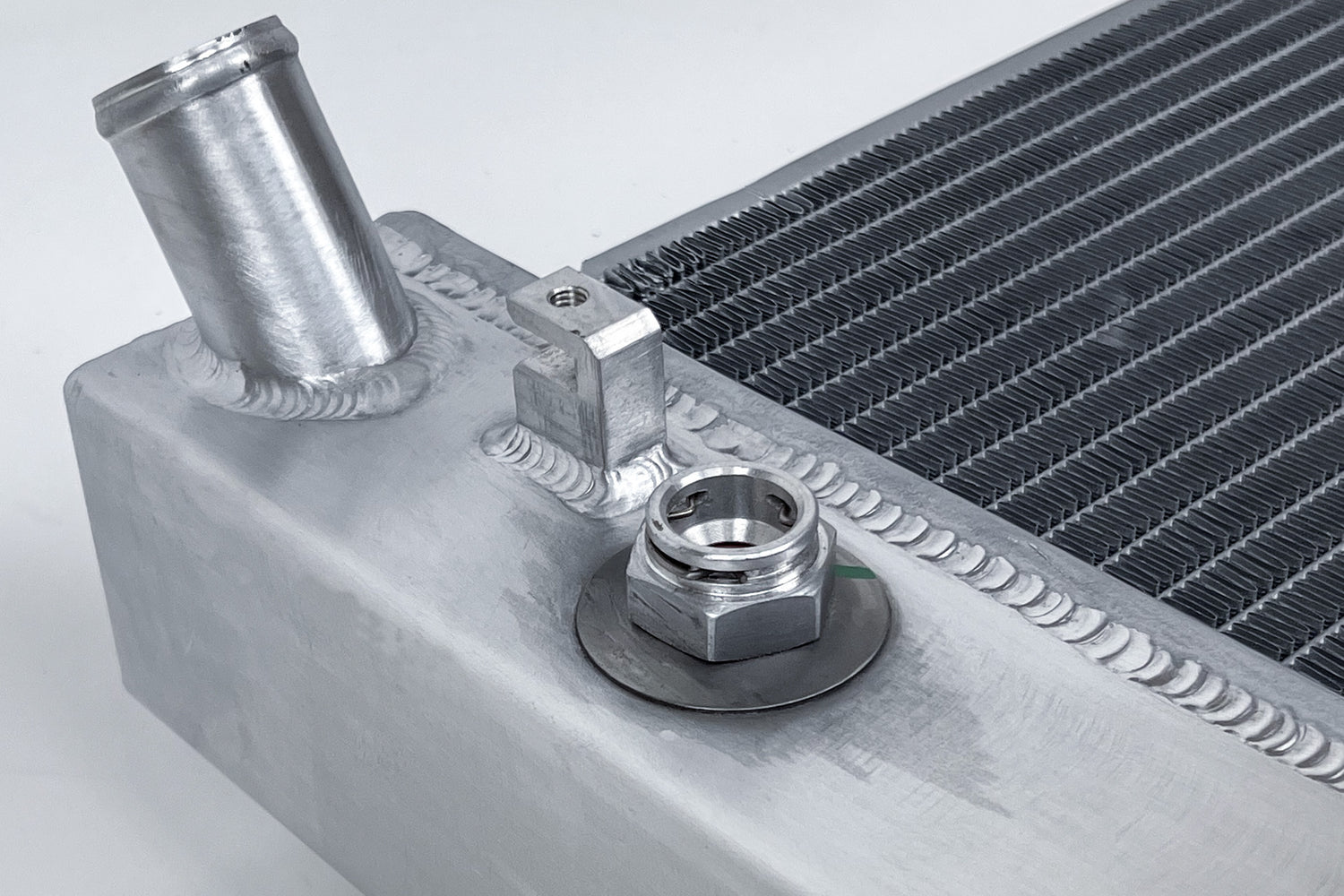

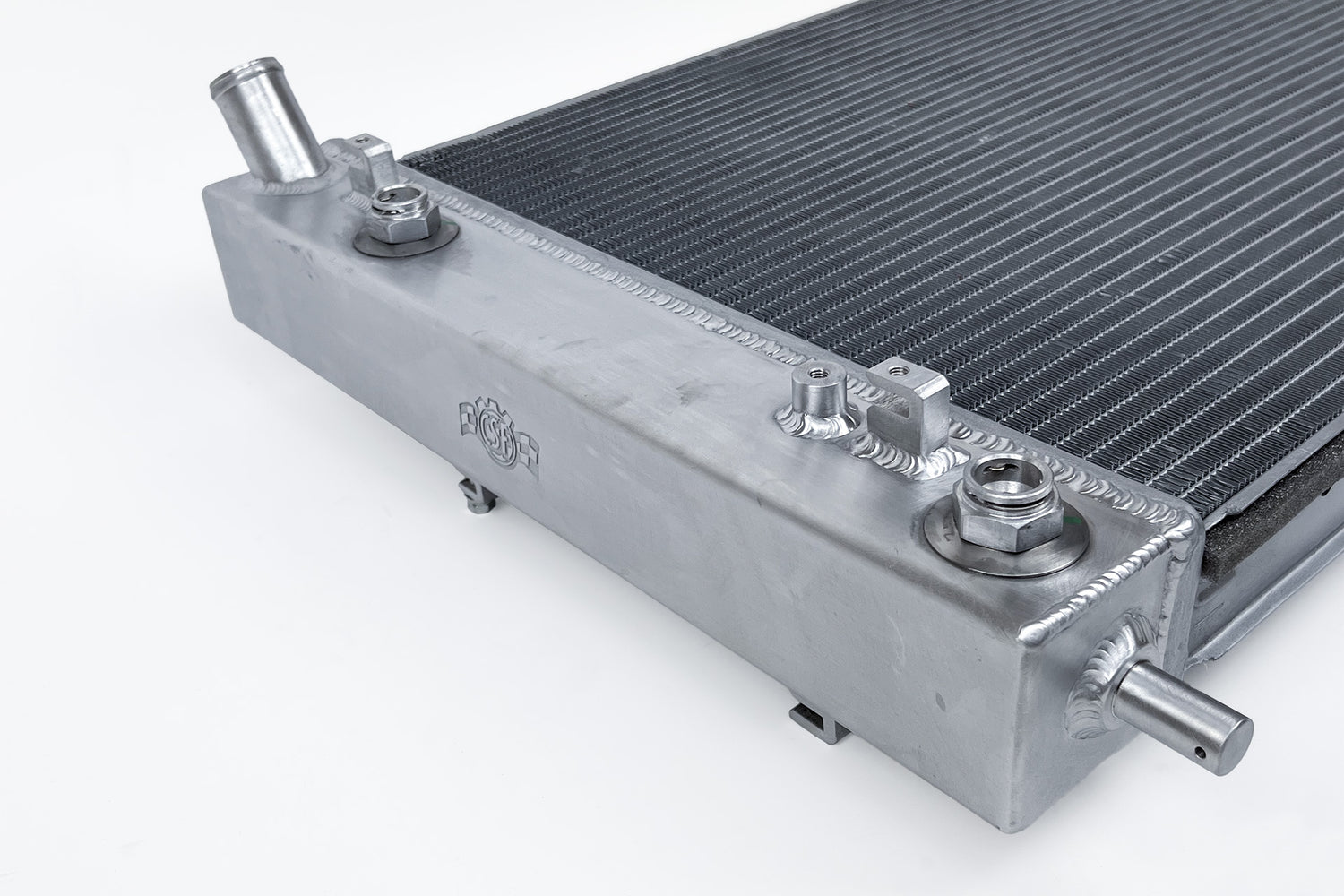

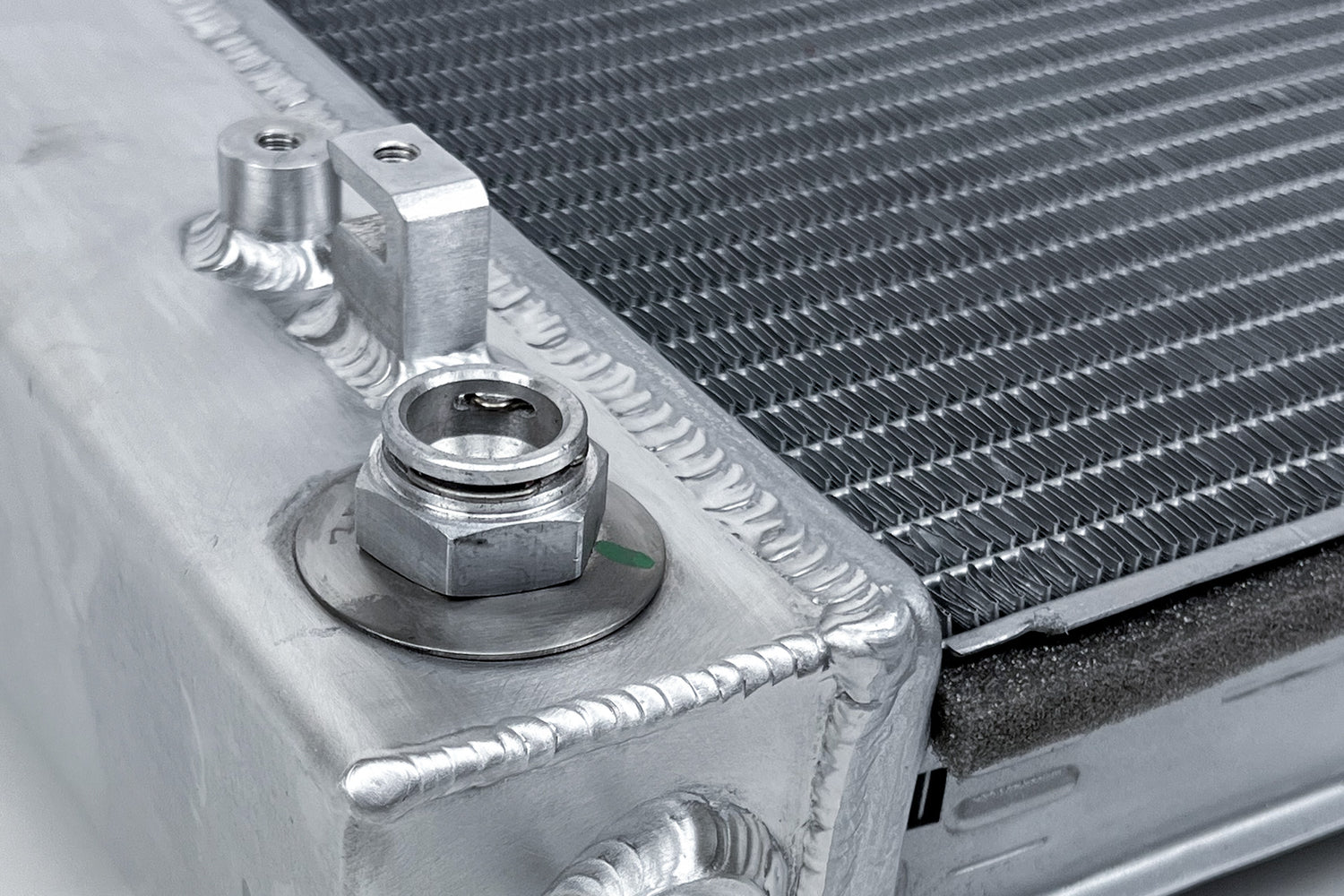

  • Built In Engine Oil cooler & Automatic Transmission Cooler with Factory-style Quick Connect Fittings
Coolant Hose Inlet Connection Type: OE Type Connection
Installation Type: Drop-In Fit Installation
Thermostat Included: No
Tank Material: Aluminum
Radiator Cap Included: No
Outlet Location: Bottom Right
Outlet Diameter: 32mm
Outlet Connector Type: Slip On
Mounting Type: Mounts with OE Hardware
Mounting Hardware Included: No
Internal Transmission Oil Cooler: Yes
Internal Engine Oil Cooler: Yes
Inlet Location: Top Left
Coolant Hose Outlet Connection Type: OE Type Connection
Inlet Diameter: 32mm
Inlet Connector Type: Slip On
Grade Type: Performance
Frame Included: No
Finish/Color: Satin
Down Flow Or Cross Flow Type: Cross Flow
Core Width: 594mm
Core Thickness: 52mm
Core Row Quantity: 2
Core Material: Aluminum
Core Height: 408mm
