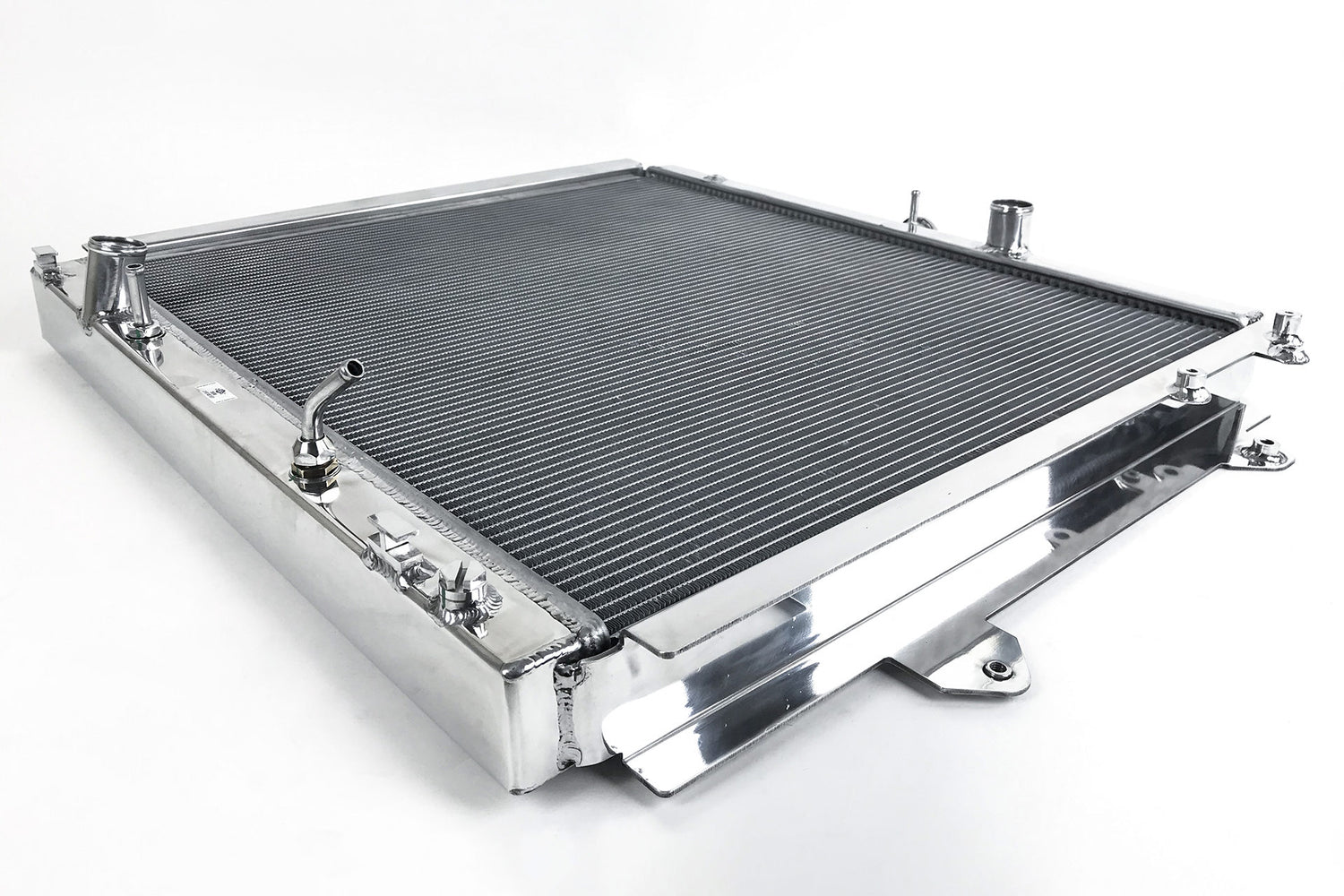

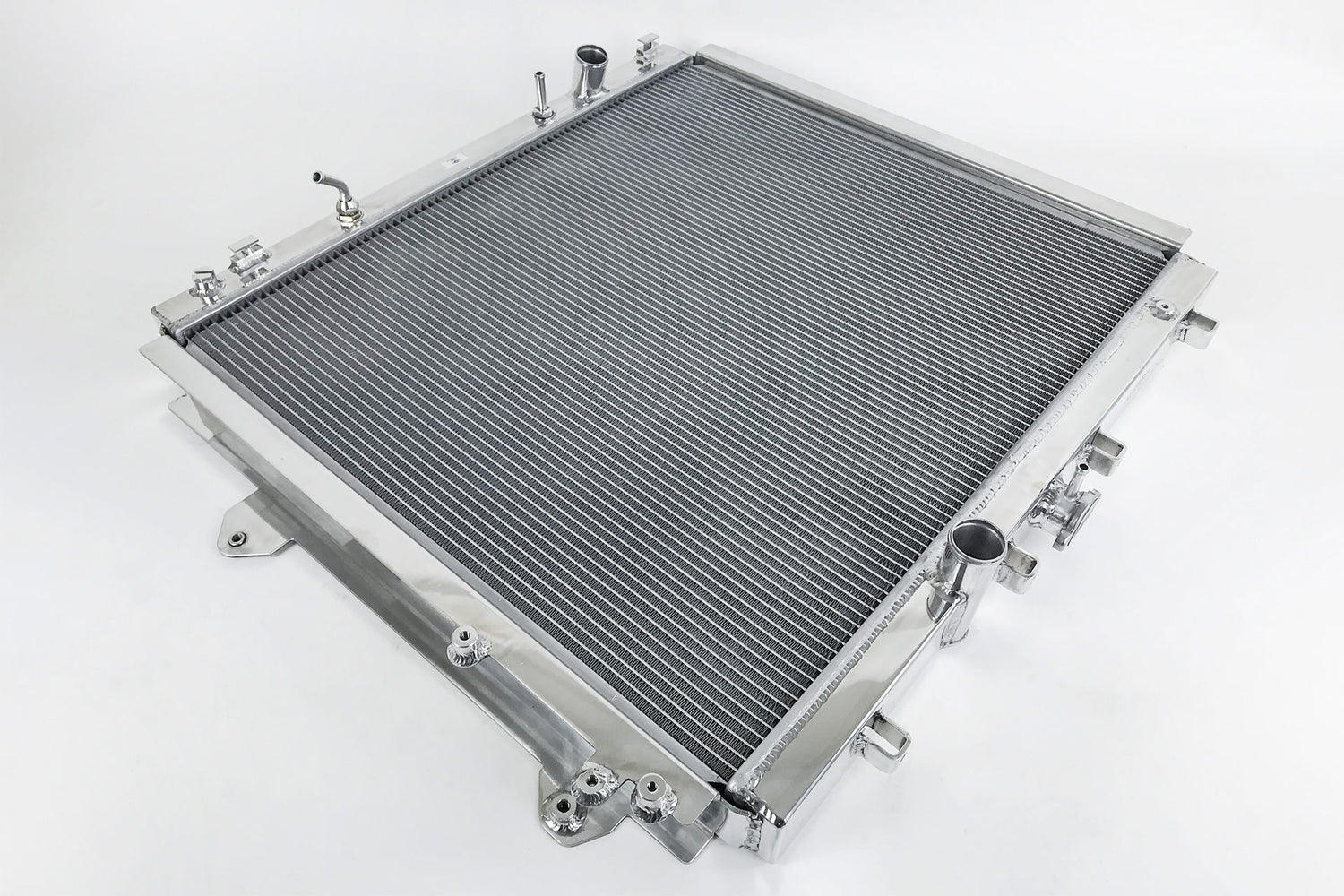

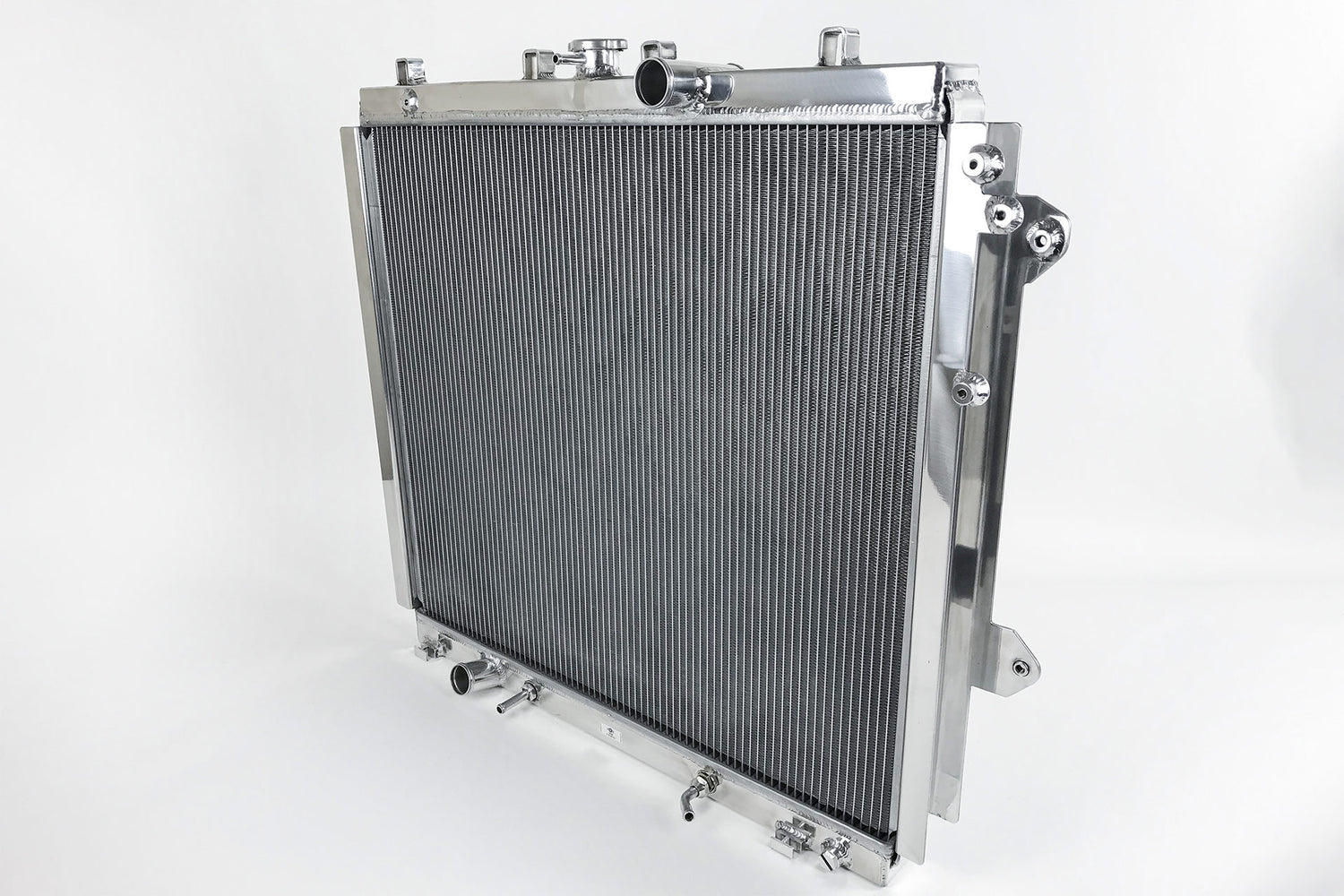

CSF 7085 - 10-19 Toyota 4Runner High Performance All-Aluminum Radiator

CSF 7085 - 10-19 Toyota 4Runner High Performance All-Aluminum Radiator

Radiator - 22.625 in W x 25.625 in H x 0.875 in D - Single Pass - Top Center Inlet - Driver Side Outlet - Oil Cooler Included - Aluminum - Polished - Toyota Compact SUV 2010-20 - Each

CSF manufactures the most advanced and efficient radiator in the industry for your 4Runner. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your 4Runner running at its best, a CSF Heavy-Duty/High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on and off road, a heavy-duty performance radiator is a must-have for off-roaders, overlanders, and adventurers. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.

• 2 Row, 42mm Ultra High-Performance Core Featuring CSF's Exclusive B-Tube Technology
• Core Features Ultra-Efficient, 6.5mm Tall Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• Upgraded 4-Plate Automatic Transmission Cooler Built Into Bottom End Tank
• Individually Leak and Pressure Tested
• CNC Machined Mounting Brackets for Superb Fit and Durability
• 100% All Aluminum TIG-Welded Construction
• True "Drop-In-Fit" Requires No Modifications to Install
• 1 Hour "Mirror Finish" Hand Polish
• 2 Year Limited Warranty
