COMP Cams K11-560-4 - Camshaft Kit CB Nx268H
COMP Cams | SKU:
COMP-K11-560-4
Sale price
$70895
Regular price
$77984
Unit price
/
Unavailable
$70.89 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
COMP Cams K11-560-4 - Camshaft Kit CB Nx268H
Nitrous HP 224/236 Hydraulic Flat Cam K-Kit for Chevrolet Big Block 396-454
Street machines with 125+ hp nitrous kit, needs 2000+ stall, 3.73 gear, choppy idle.

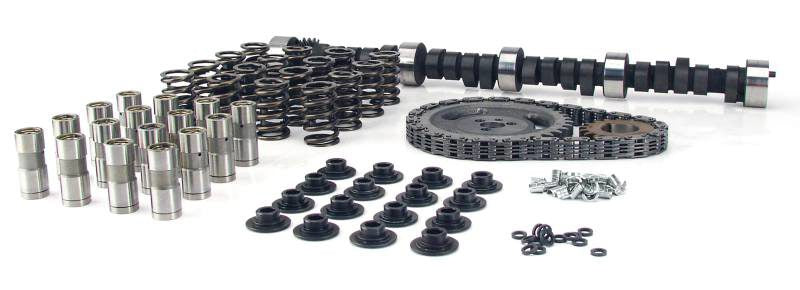

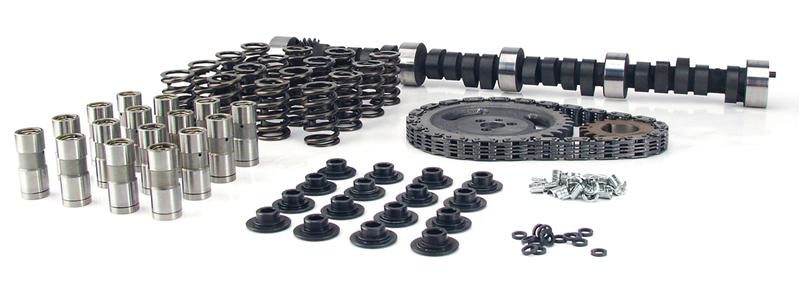

K-KIT - Complete Kit Includes: Camshaft, Lifters, Valve Springs, Retainers, Valve Locks, Valve Stem Seals, Timing Chain Set, Assembly Lube (in flat tappet applications), Decals and Instructions.
Basic Operating RPM Range: 2,000-6,200
Intake Duration at .050 Inch Lift: 224
Exhaust Duration at .050 inch Lift: 236
Advertised Intake Duration: 268
Advertised Exhaust Duration: 286
Lobe Separation: 113
Intake Valve Lift: 0.515
Exhaust Valve Lift: 0.547
Lifters Included: Yes
Valve Springs Included: Yes
Assembly Lubricant Included: Yes
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Cast Iron
Lifter Type: Hydraulic Flat Tappet
Gaskets Included: No
Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
Amazon ASIN: B001GF0ZNK
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Kit Type: K-Kit - Complete Kit
Camshaft Series: Nitrous HP
Usage: Street/Strip
Cam Type: Hydraulic Flat Tappet
