COMP Cams CL08-503-8 - Cam & Lifter Kit CS XR276HR-1

COMP Cams  |  SKU: COMP-CL08-503-8
$82999 $91299

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

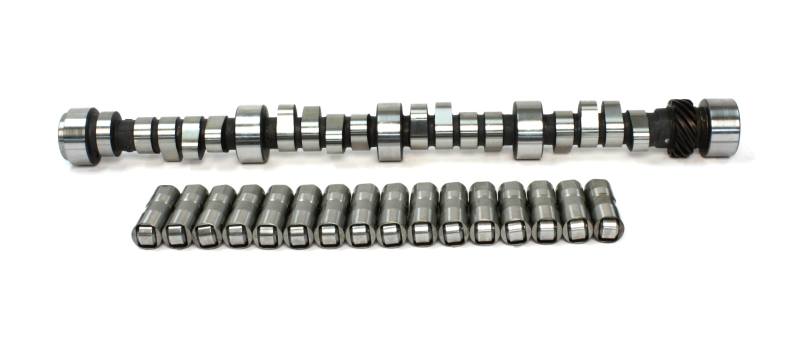

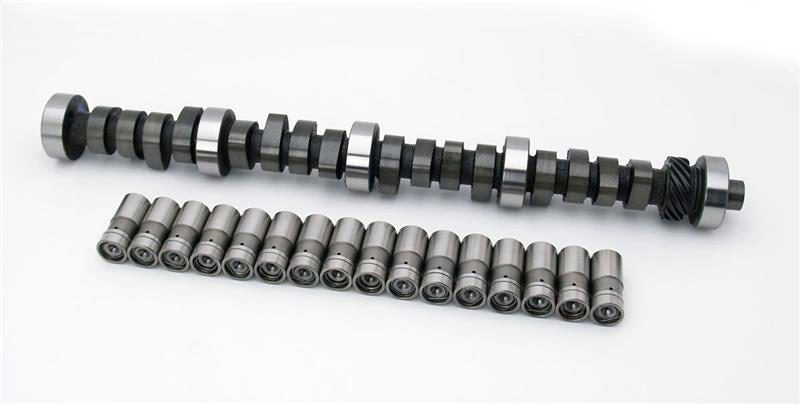

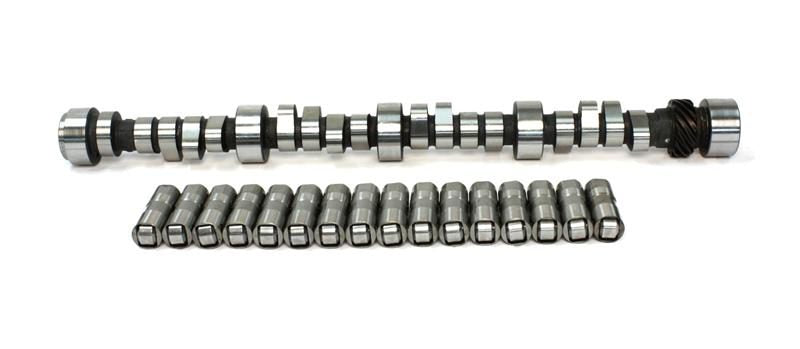

COMP Cams CL08-503-8 - Cam & Lifter Kit CS XR276HR-1

XE Computer Controlled 224/230 Hydraulic Roller Cam and Lifter Kit OE Roller SBC

Needs modified TPI w/injectors, plenum, runners, exhaust, 2000+ stall. Requires custom tuning.

CL-KIT - Cam and Lifter Kit Includes: Camshaft, Lifters, Assembly Lube, Decals and Instructions.

Kit Type: CL-Kit - Cam and Lifter Kit
Camshaft Series: Xtreme Energy Computer Controlled
Usage: Street/Performance
Cam Type: Hydraulic Roller
Basic Operating RPM Range: 1,800-5,800
Intake Duration at .050 Inch Lift: 224
Exhaust Duration at .050 inch Lift: 230
Advertised Intake Duration: 276
Advertised Exhaust Duration: 281
Lobe Separation: 112
Intake Valve Lift: 0.503
Exhaust Valve Lift: 0.51
Lifters Included: Yes
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Austempered Ductile Iron
Lifter Type: Hydraulic Roller
Timing Chain and Gears Included: No
Valve Stem Seals Included: No
Retainers Included: No
Locks Included: No
Gaskets Included: No
Engine Family: Chevrolet 305-350 c.i. 8 Cylinder O.E. Roller (1987-1998)
Amazon ASIN: B001R98GK4
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
