COMP Cams CK54-701-11 - Stage 1 Thumpr Cam Kit for GEN IV LS 4.8/5.3/6.0L Trucks
COMP Cams | SKU:
COMP-CK54-701-11
Sale price
$86595
Regular price
$95254
Unit price
/
Unavailable
$86.59 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
COMP Cams CK54-701-11 - Stage 1 Thumpr Cam Kit for GEN IV LS 4.8/5.3/6.0L Trucks
Stage 1 Thumpr Cam Kit for GEN IV LS 4.8/5.3/6.0L Trucks

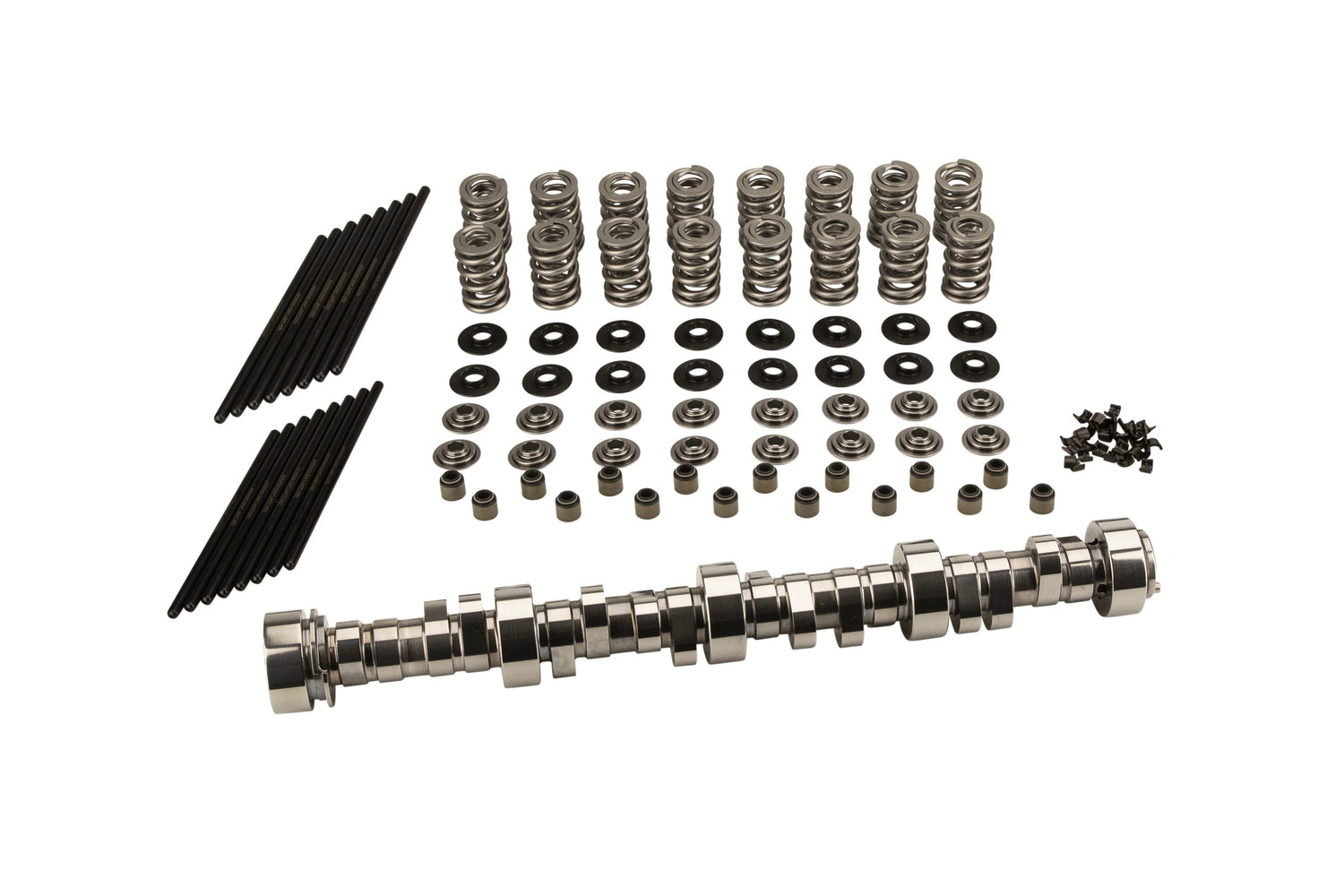

The Stage 1 Thumpr Cam Kit for LS GEN IV 4.8-6.0L is the perfect choice for a strong idle lope with great power gains in 4.8-5.3L trucks. Includes pushrods, LS6+ springs, retainers, locks, spring seats and seals.
Kit Type: CK-Kit
Camshaft Series: Thumpr NSR (No Springs Required)
Usage: Street / Performance
Cam Type: Hydraulic Roller
Basic Operating RPM Range: 1,800-6,400
Intake Duration at .050 Inch Lift: 222
Exhaust Duration at .050 inch Lift: 233
Advertised Intake Duration: 276
Advertised Exhaust Duration: 295
Lobe Separation: 112
Intake Valve Lift: 0.541
Exhaust Valve Lift: 0.536
Lifters Included: No
Valve Springs Included: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Billet Steel
Lifter Type: Hydraulic Roller
Retainers Included: Yes
Locks Included: Yes
Pushrods Included: Yes
Gaskets Included: No
Engine Family: GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015)
Stage: 1
Timing Set Included: No
Valve Seals Included: Yes
Valve Spring Seats Included: Yes
Grind Number: 276LTH12
Estimated Horsepower Gain with Kit: 75
Recommended Upgraded Stock Rocker Arms: 1477-16
Recommended Max-Lift BSR Shaft Rocker System: 1981-16
Recommended Cam Install Kit: 5621
Amazon ASIN: B07MC8XLDF
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 276LTH12
