COMP Cams CK54-311-11 - Stage 1 LST Max Horsepower Solid Roller Cam Kit for LS 3-Bolt Engines
COMP Cams | SKU:
COMP-CK54-311-11
Regular price
$000
Unit price
/
Unavailable
AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
COMP Cams CK54-311-11 - Stage 1 LST Max Horsepower Solid Roller Cam Kit for LS 3-Bolt Engines
Stage 1 LST Max Horsepower Solid Roller Cam Kit for LS 3-Bolt Engines

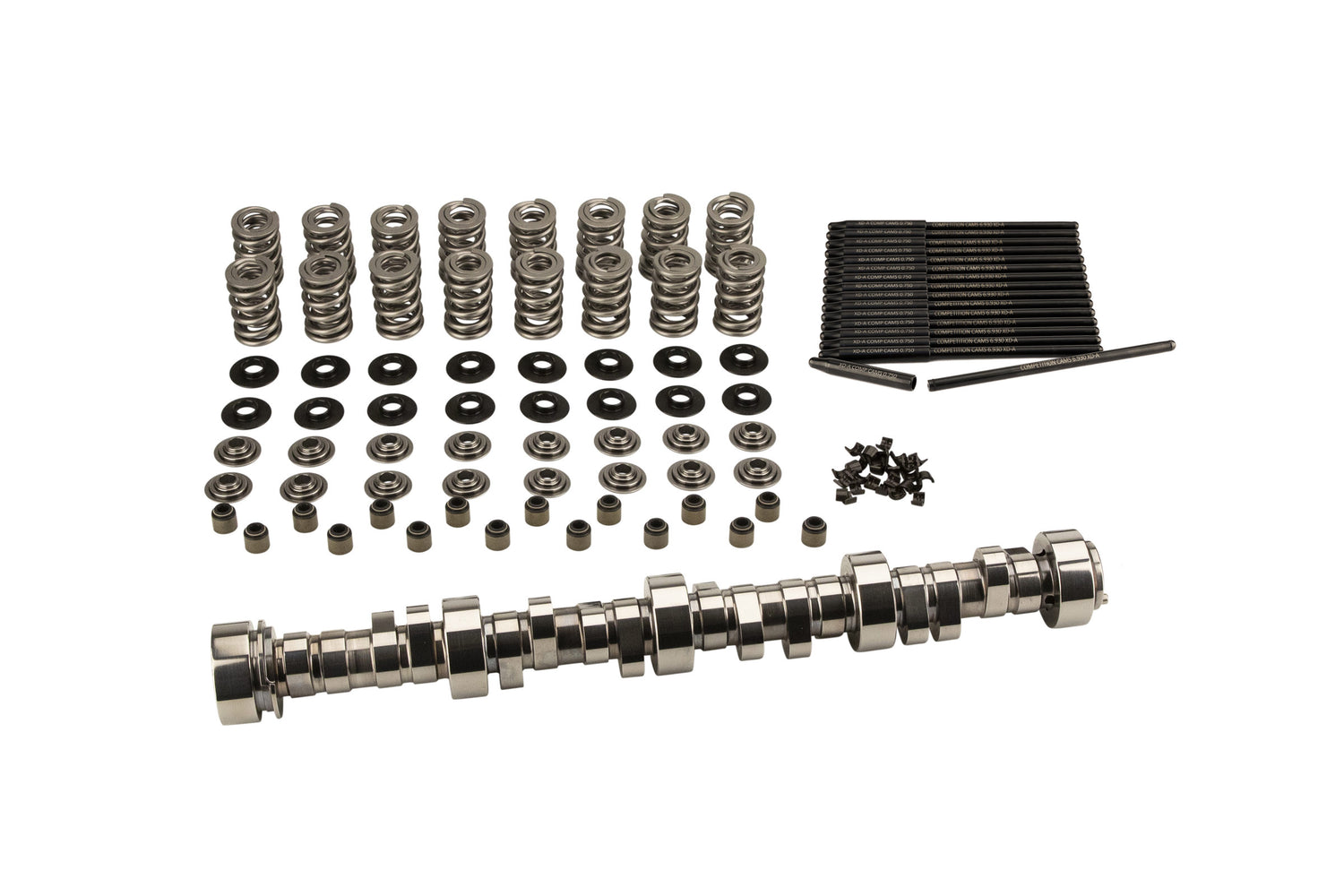

The Stage 1 Max Horsepower Solid Roller LS Cam Kit provides excellent HP/torque average from 3,000-7,000 with factory relief pistons. Includes XD-A pushrods, springs, retainers, locks, spring seats and seals.
Lobe Separation: 111.5
Intake Valve Lift: 0.672
Exhaust Valve Lift: 0.668
Lifters Included: No
Valve Springs Included: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Billet Steel
Lifter Type: Solid Roller
Retainers Included: Yes
Locks Included: Yes
Pushrods Included: Yes
Gaskets Included: No
Engine Family: GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015)
Stage: 1
Timing Set Included: No
Valve Seals Included: Yes
Valve Spring Seats Included: Yes
Grind Number: 274LGW11
Estimated Horsepower Gain with Kit: 82
Recommended Cold Lash Setting - Intake: 0.007
Recommended Cold Lash Setting - Exhaust: 0.009
Recommended Upgraded Stock Rocker Arms: 1477-16 (LS1), 1478-16 (LS3), 1479-16 (LS7)
Recommended Max-Lift BSR Shaft Rocker System: 1981-16 (LS1), 1982-16 (LS3), 1983-16 (LS7)
Recommended Cam Install Kit for LS7: 5622
Amazon ASIN: B07MM2LDWD
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 274LGW11
Kit Type: CK-Kit
Camshaft Series: Low Shock Technology
Usage: Street/Strip
Cam Type: Solid Roller
Basic Operating RPM Range: 2,800-7,500
Intake Duration at .050 Inch Lift: 234
Exhaust Duration at .050 inch Lift: 248
Advertised Intake Duration: 274
Advertised Exhaust Duration: 288
